PGL36120U41A - Square D 1200A 600V 3-Pole Molded Case Circuit Breaker PowerPact P Frame

PGL36120U41A

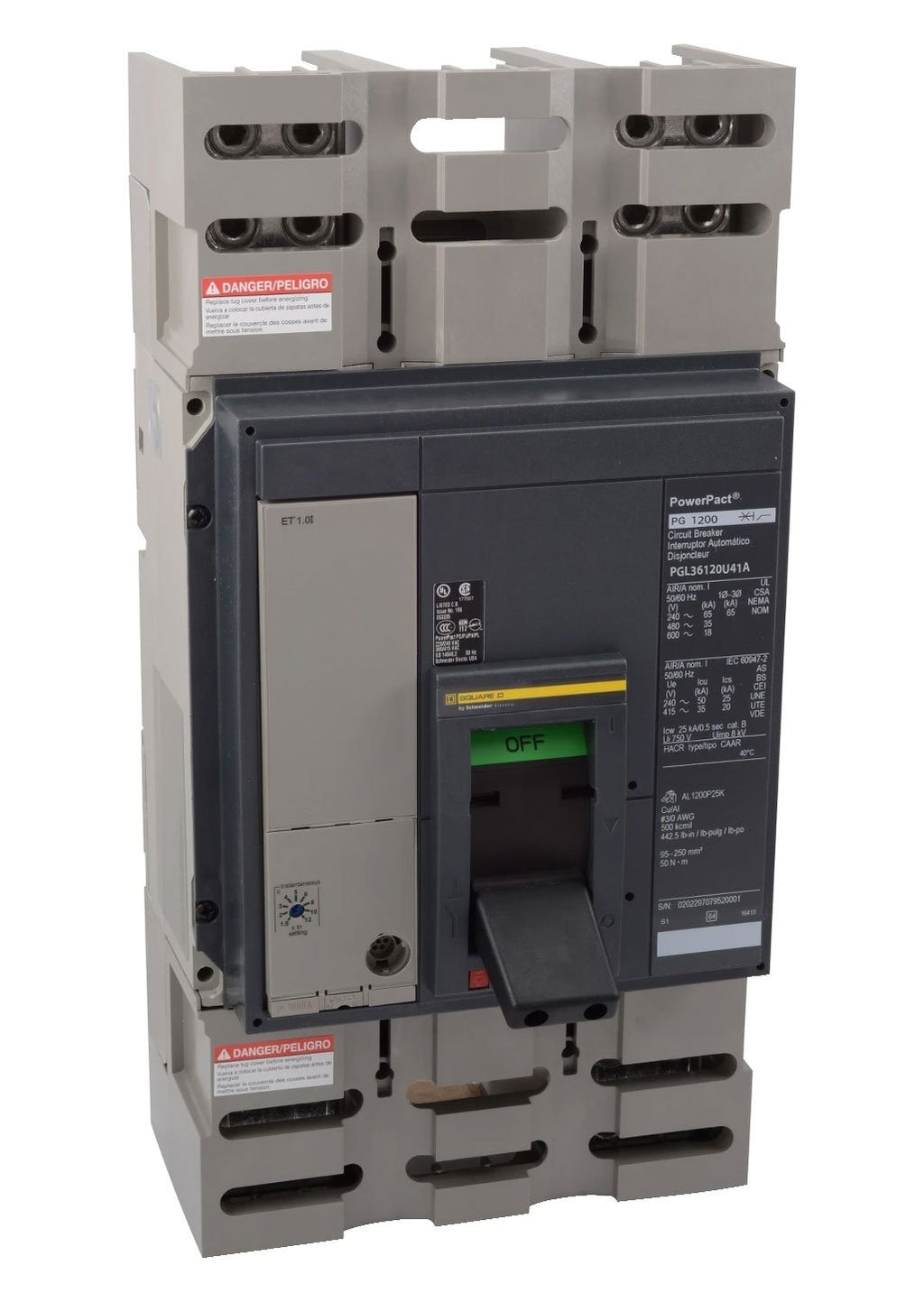

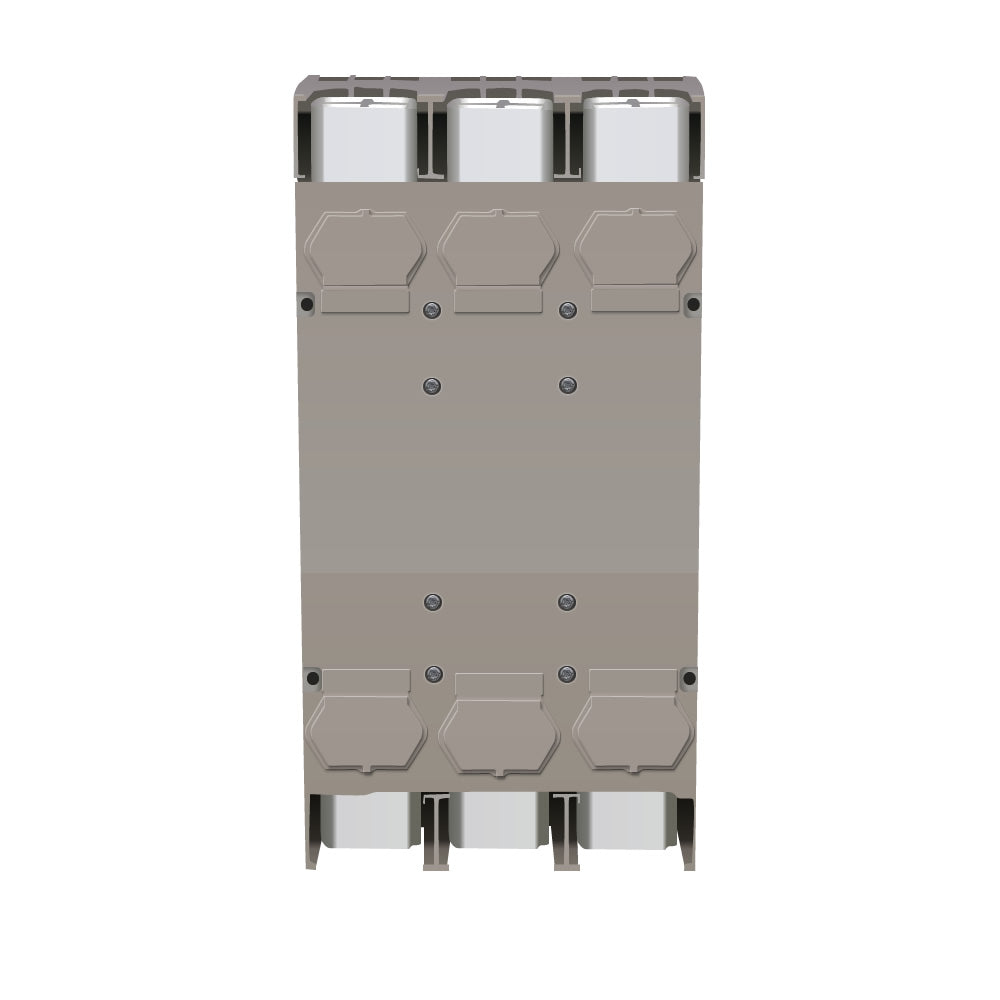

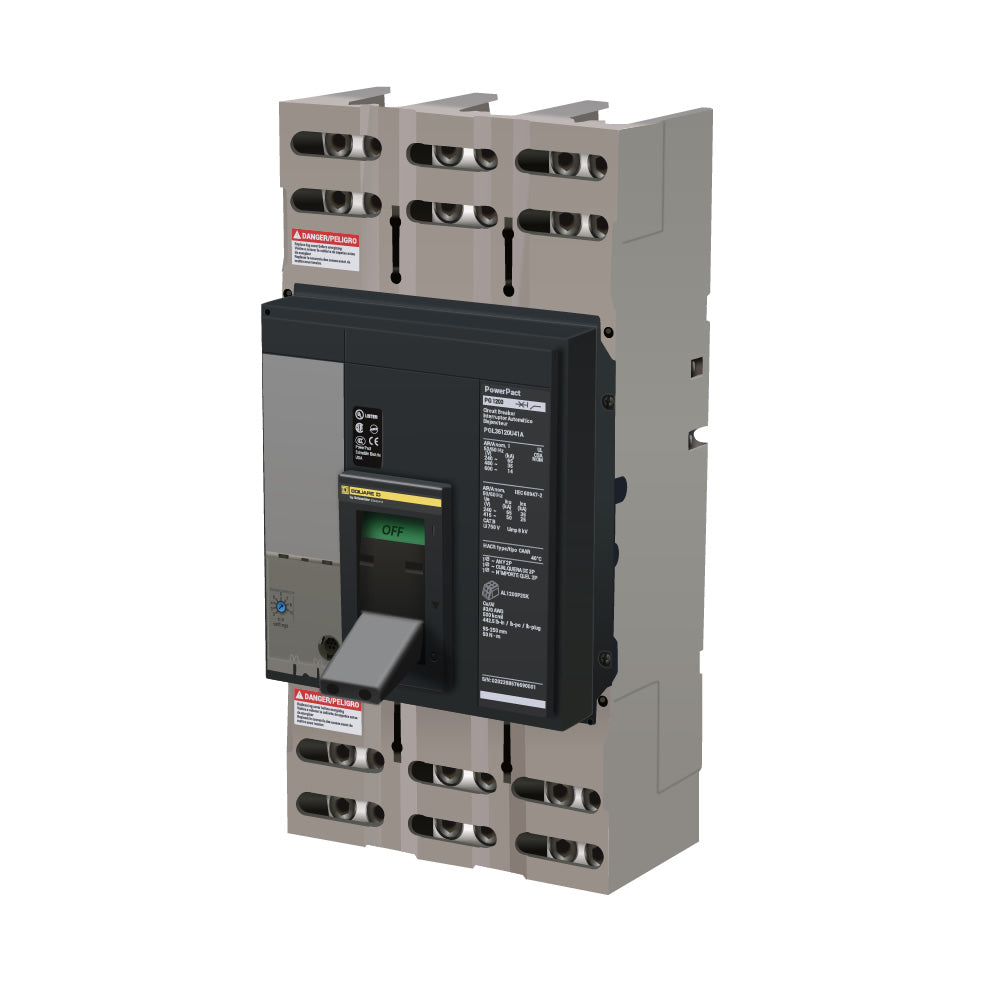

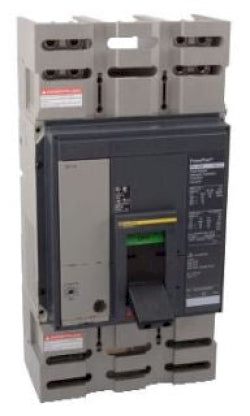

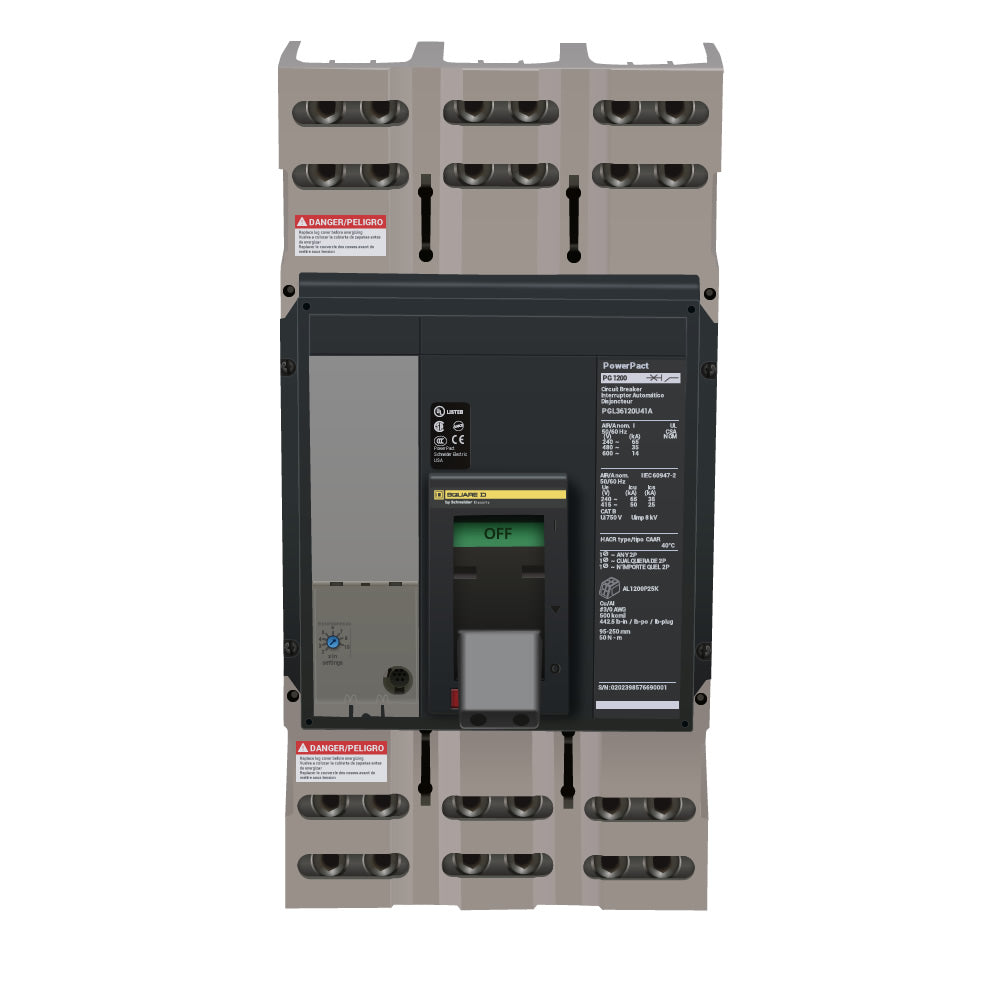

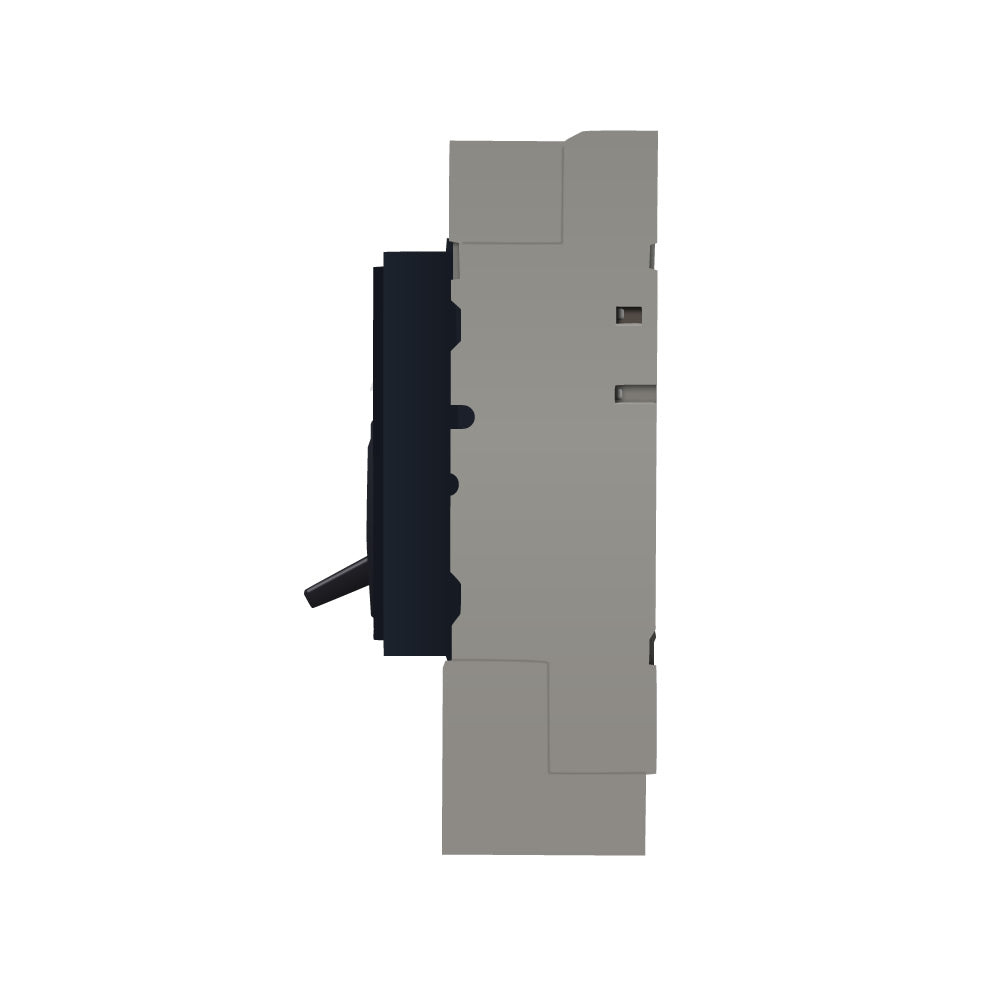

PGL36120U41A is a 3-pole molded case circuit breaker from Square D designed for 1200 amps and 600 volts AC applications.This PowerPact P frame breaker features solid state protection with long time and instantaneous trip functions for reliable circuit interruption.

Key Specifications
• Amperage: 1200A
• Voltage Rating: 600VAC
• Poles: 3
• Interrupting Rating: 35kAIC at 480VAC
• Frame Type: PowerPact P (PGL)
• Trip Unit: Solid State with Long Time and Instantaneous
• Mounting Type: I-Line Style Plug-In / Feed-Thru Connection
• Terminal Connection: Line and Load Side Lug
• Approvals: UL, CSA, CE, NEMA, NOM, IEC
• Operating Temperature: -25 to 70 °C
• Dimensions (HxWxD): 16.16 x 8.27 x 8.05 inches
• Wire Gauge: 4x AWG 3/0 to 500 kcmil Aluminum/Copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs included AL1200P25K

Specifications

• Part Number: PGL36120U41A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGL
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : P Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 785901977650
• GTIN : 00785901977650
• Country of Origin : Mexico
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
