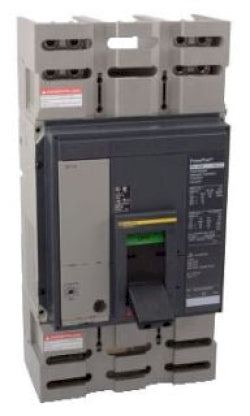

PGL36120U33A - Square D PowerPact P 1200A 600V 3 Pole Molded Case Circuit Breaker Micrologic 5.0 Lugs

PGL36120U33A

PGL36120U33A is a Square D PowerPact P series 3 pole, 1200A, 600V molded case circuit breaker with Micrologic 5.0 electronic trip unit and lugs for feed-thru applications. This PowerPact PGL breaker is designed for main panel disconnect and control panel use, featuring a robust 18kA interrupt rating at 600V, electronic trip technology, and UL 489, CSA, and IEC certifications for global compliance. Its compact design and standardized mounting make it ideal for industrial and commercial power distribution systems.

• Part Number: PGL36120U33A
• Manufacturer: Square D
• Series/Frame: PowerPact P
• Amperage: 1200A
• Voltage: 600V AC
• Poles: 3
• Interrupt Rating: 18kA at 600V
• Mounting Type: Panel Mount
• Wire Size: 3/0 AWG
• Tripping Mechanism: Electronic (Micrologic 5.0)
• Certifications: UL 489, CSA, IEC
• Application: Main Panel Disconnect, Control Panel

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs included AL1200P25K

Specifications

• Part Number: PGL36120U33A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGL
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : P Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 785901677642
• GTIN : 00785901677642
• Country of Origin : Mexico
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 37.578
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
