PGL36100U44A - Square D PowerPact P-Frame 1000A 600V 3P 35kA@480V LSIG Electronic Trip Molded Case Circuit Breaker

PGL36100U44A

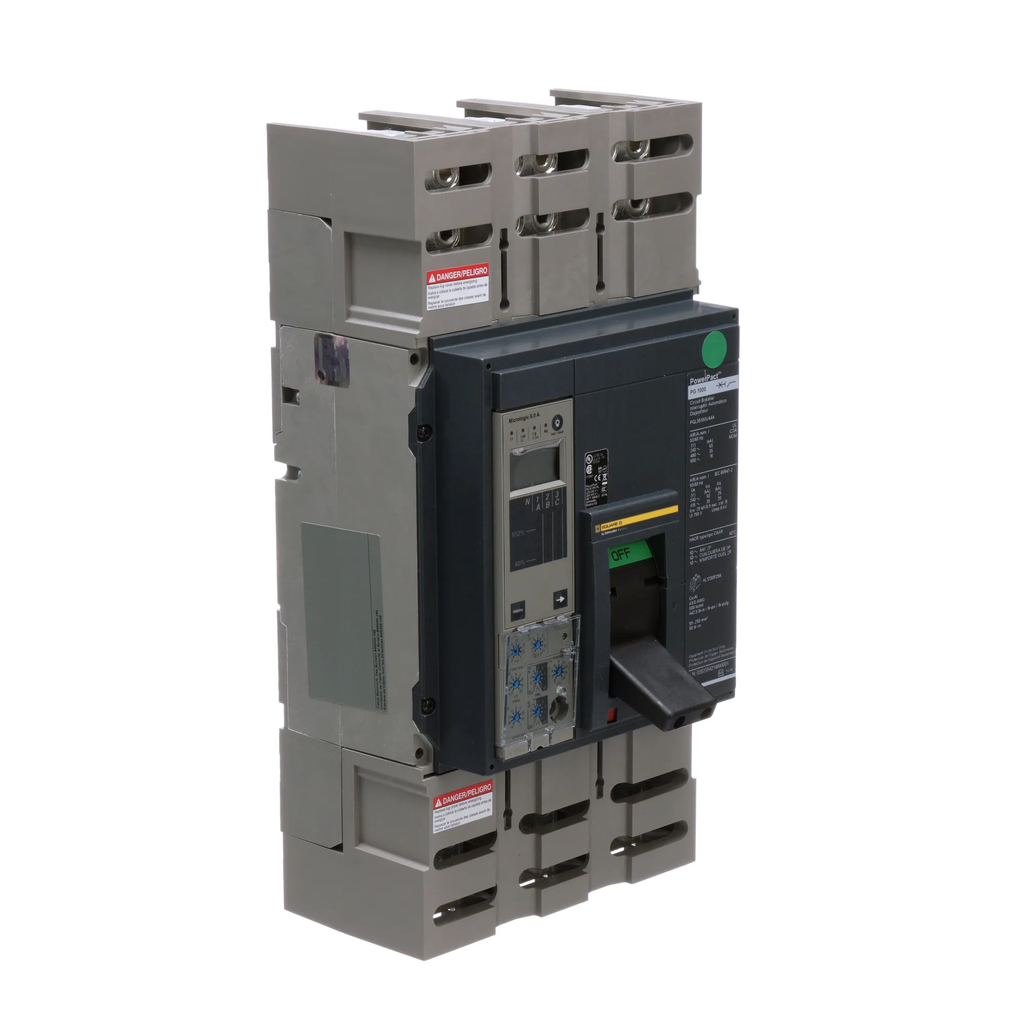

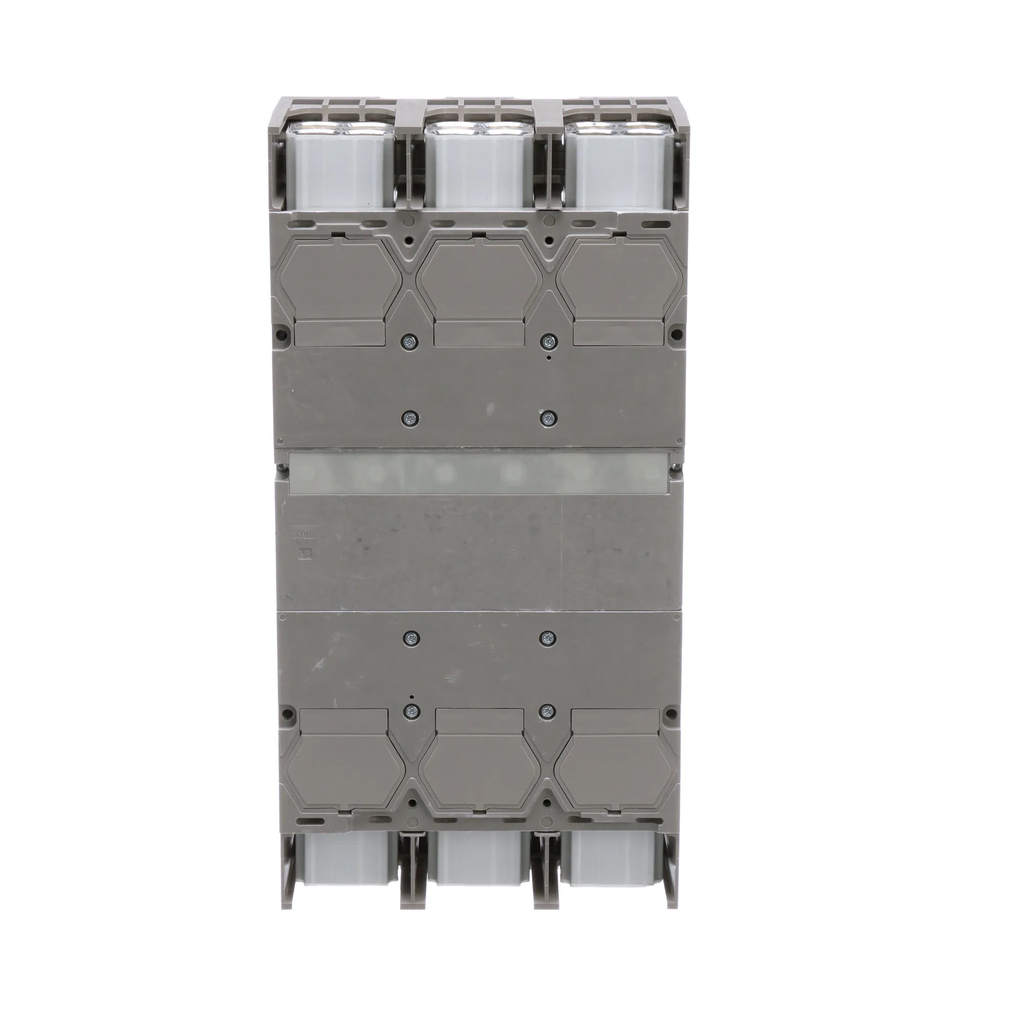

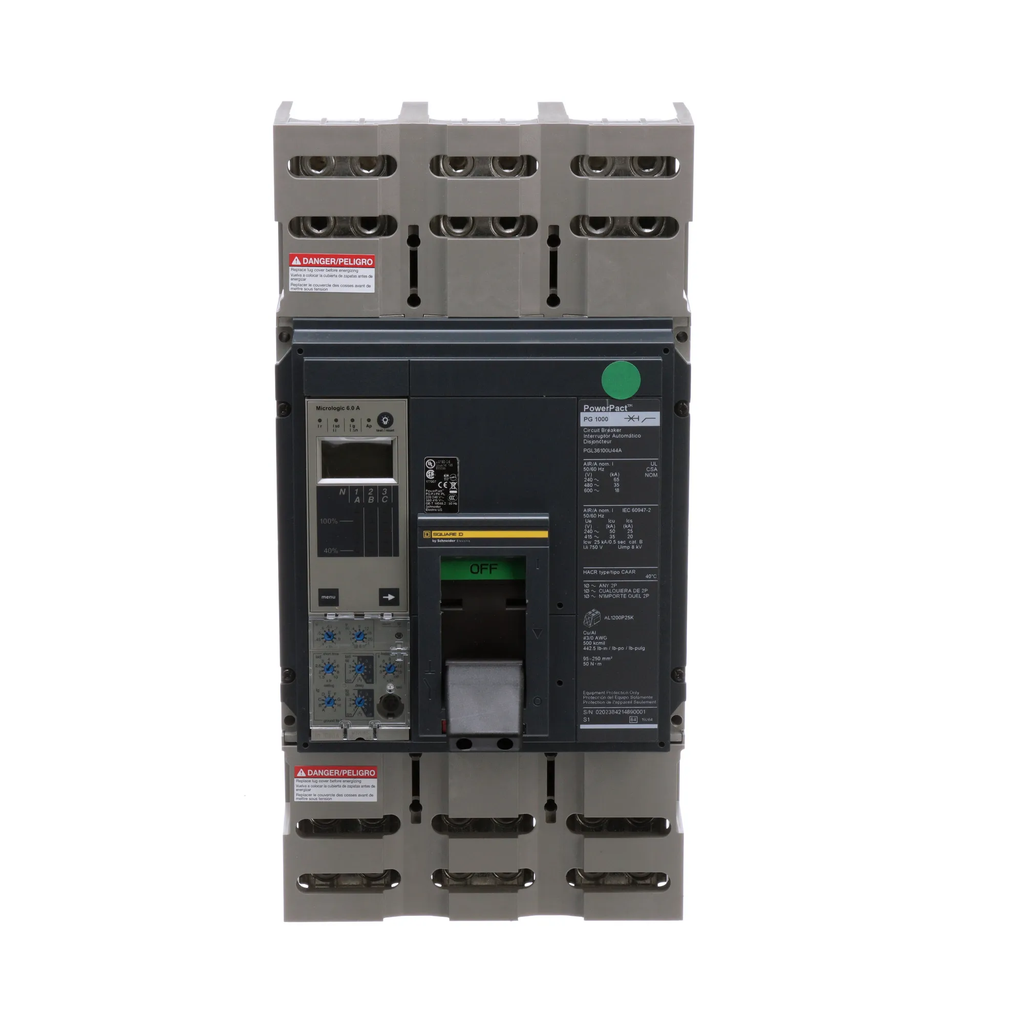

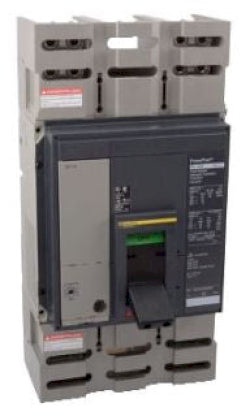

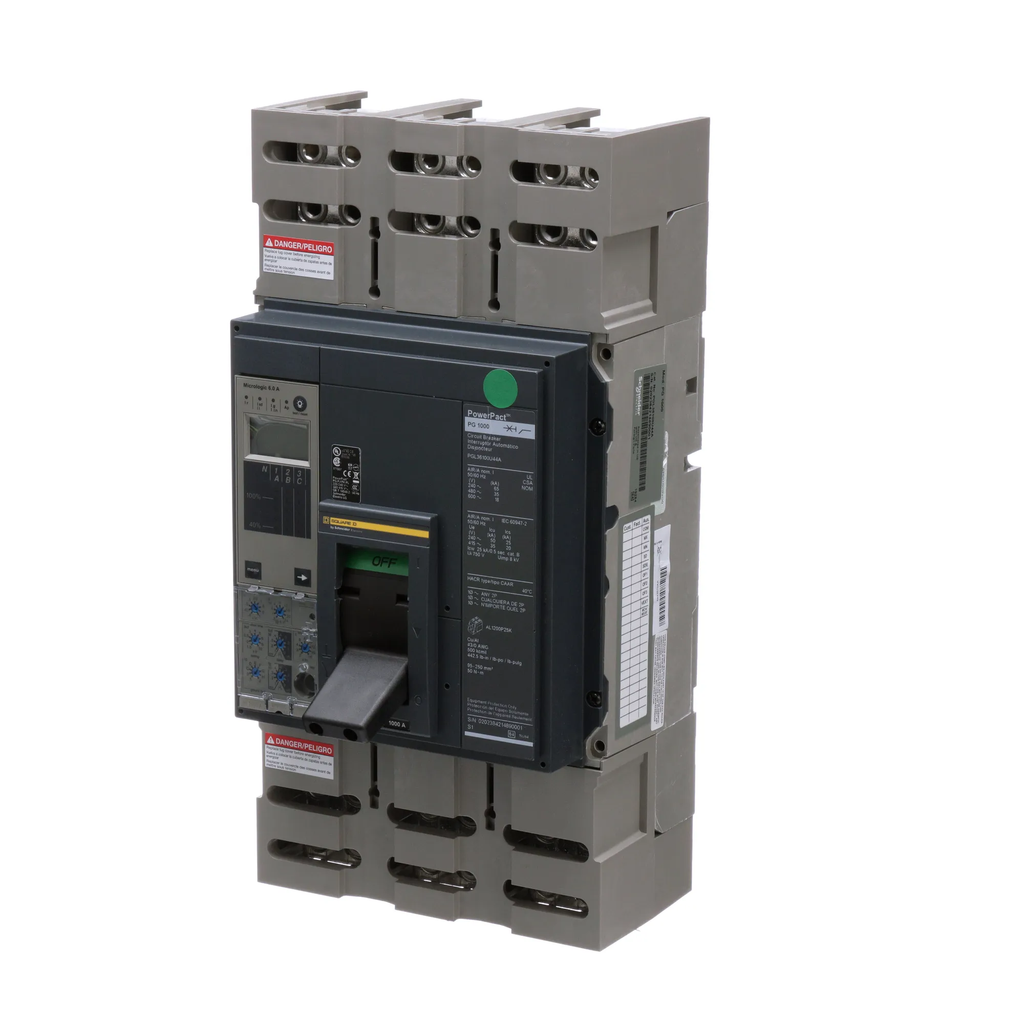

PGL36100U44A is a Square D PowerPact P-Frame molded case circuit breaker designed for robust electrical protection in industrial and commercial applications.

This electronic trip unit breaker features advanced LSIG (Long-Time, Short-Time, Instantaneous, and Ground Fault) protection, solid-state technology, and a feed-thru connection. It is UL and CSA listed, making it suitable for demanding environments where reliability and safety are critical.

Key Specifications
• Amperage: 1000A
• Voltage: 600V AC (240/480/600V AC rated)
• Poles: 3
• Mounting Type: Panel mount, NEMA AB1 enclosure compatible
• Interrupt Rating: 35kA @ 480V (G code)
• Series/Frame: PowerPact P-Frame
• Trip Unit: Electronic, MicroLogic 6.0A, LSIG functions
• Certifications: UL, CSA
• Connection: Feed-thru, line and load side lugs
• Continuous Current Rating: 80%
• Control Type: Toggle
• Dimensions: 8.27" W x 8.05" D x 16.16" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs included AL1200P25K

Specifications

• Part Number: PGL36100U44A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGL
• Voltage : 600
• Amperage : 1000
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Frame Size : P Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 785901912590
• GTIN : 00785901912590
• Country of Origin : Mexico
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 37.439
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
