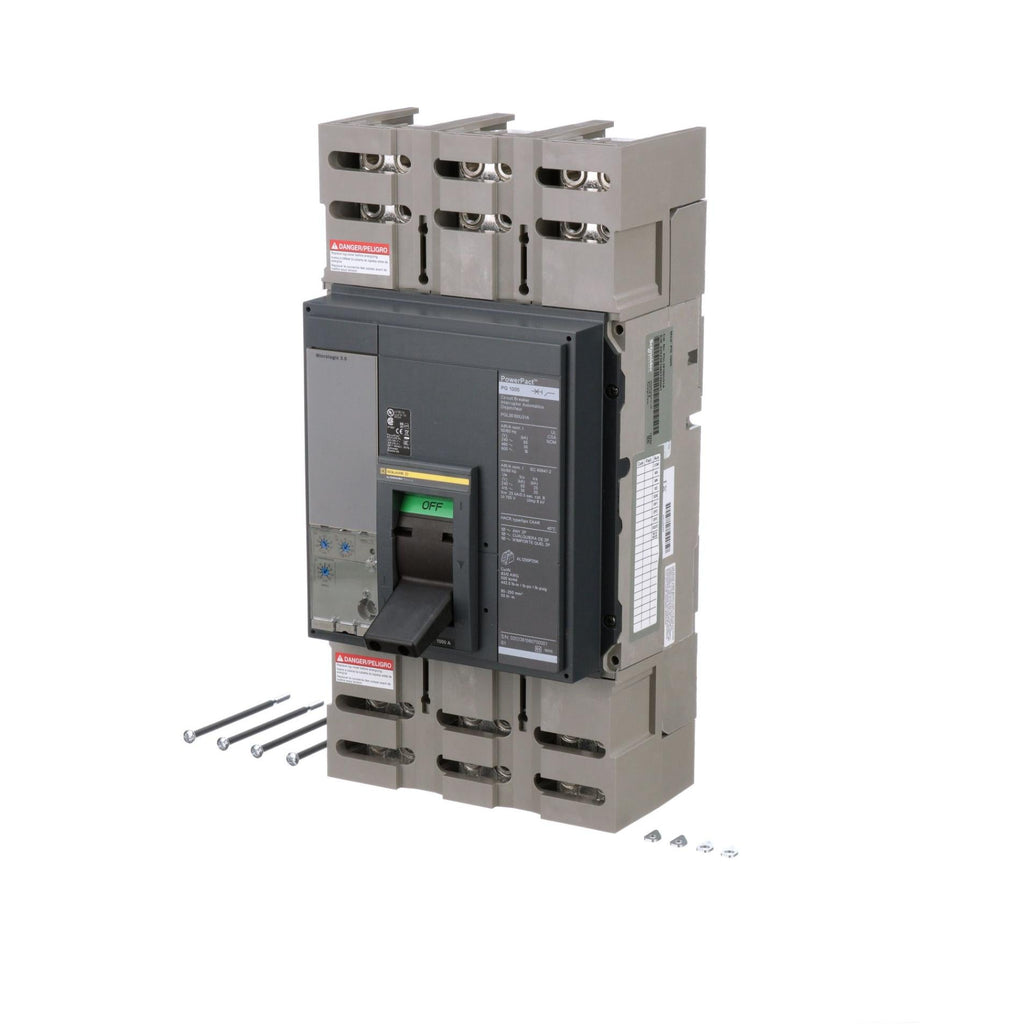

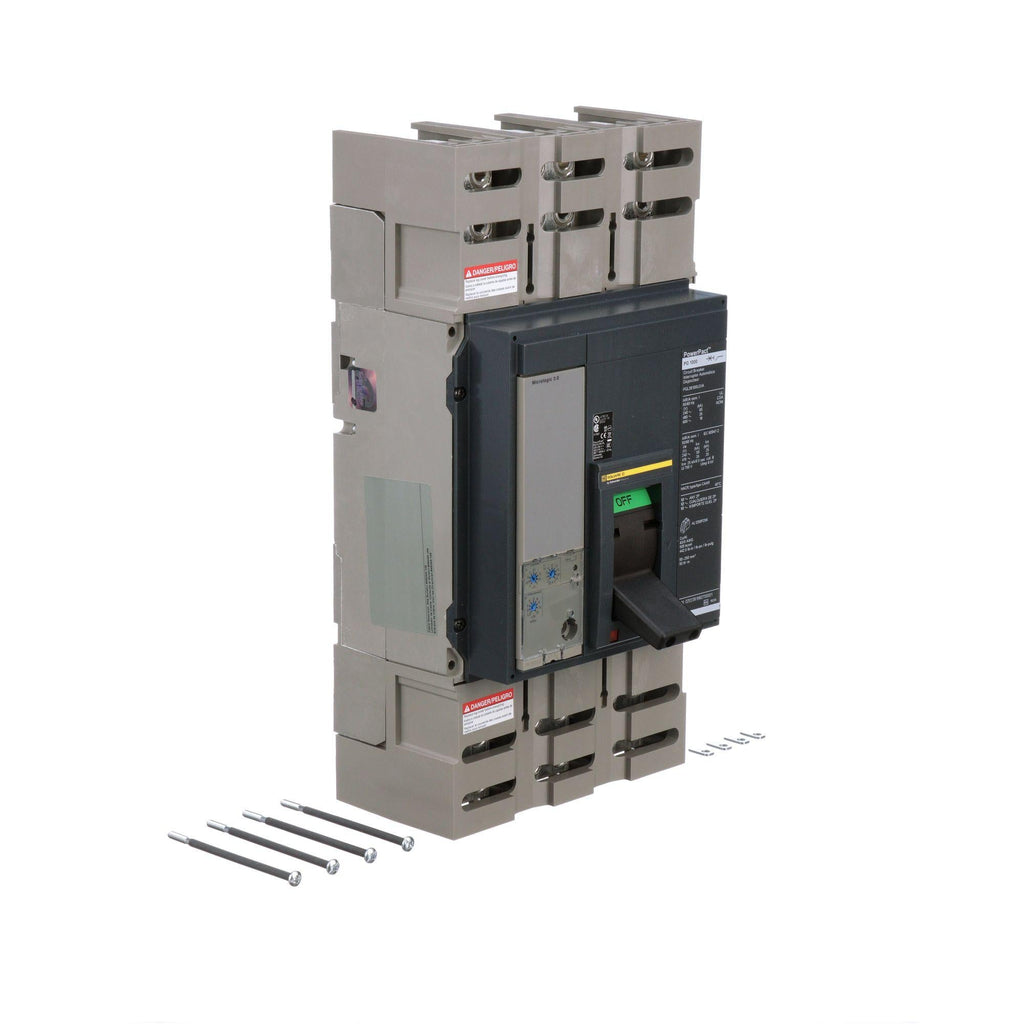

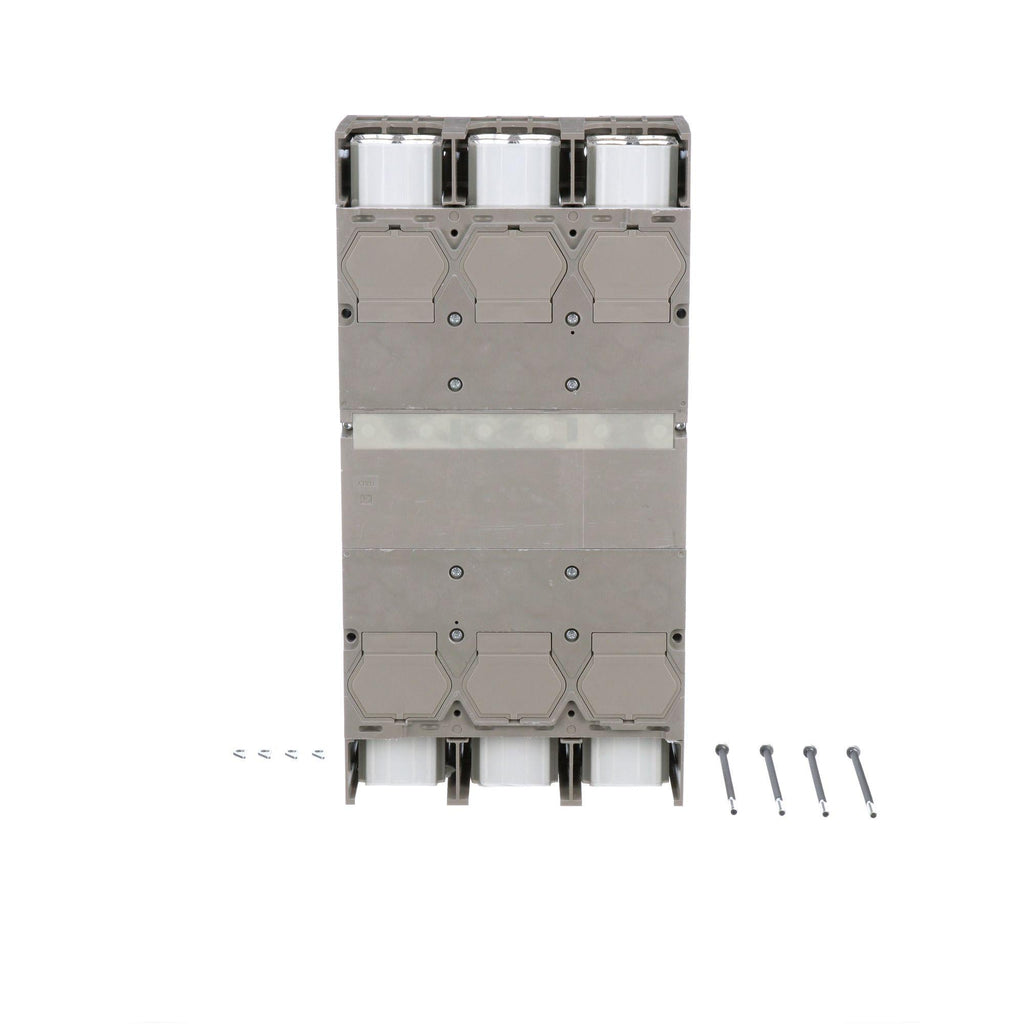

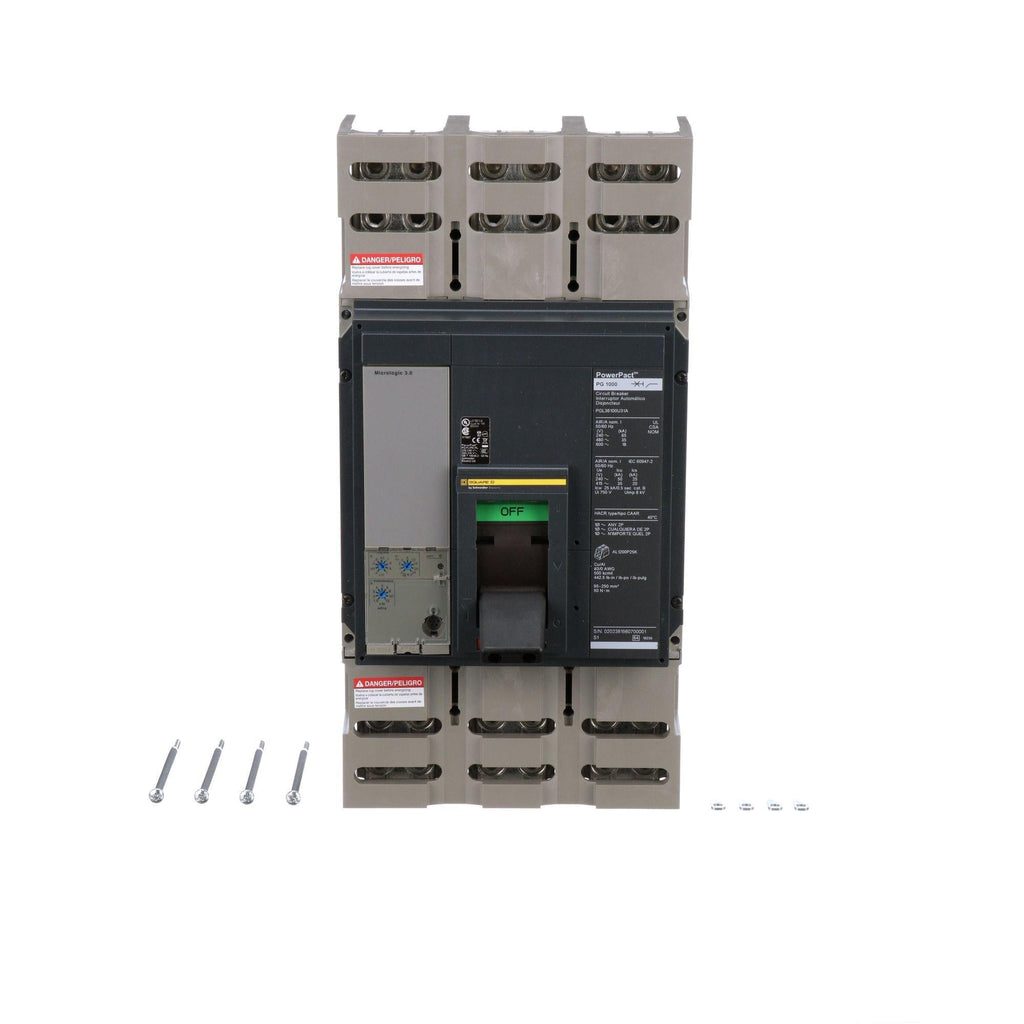

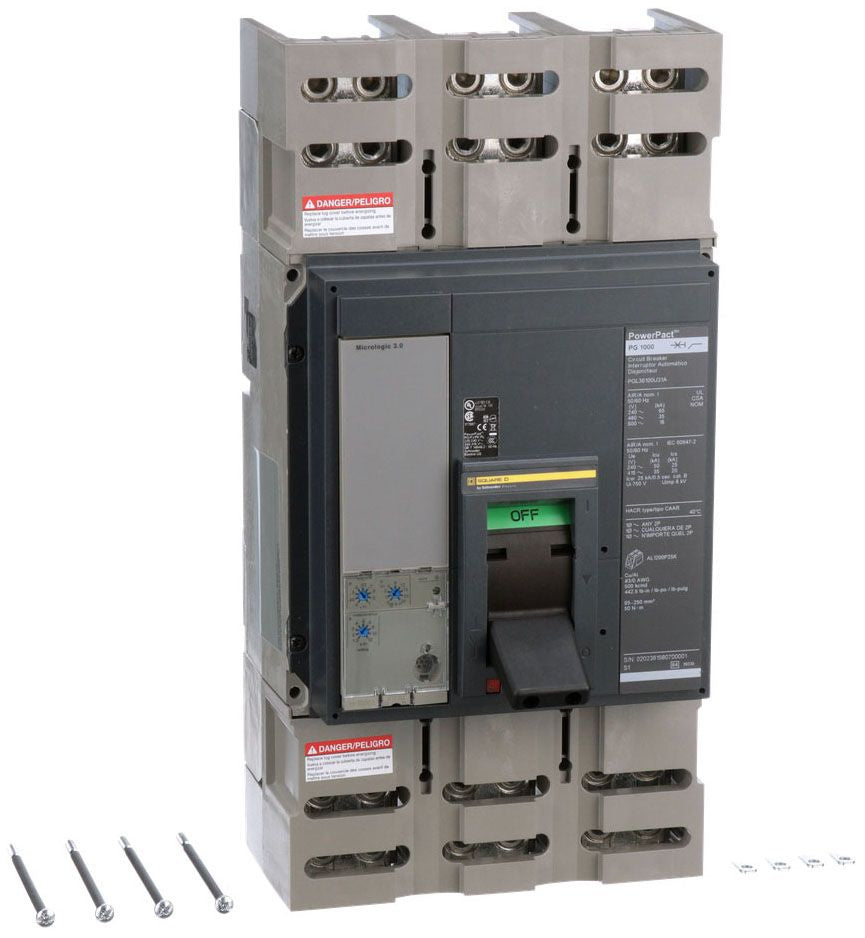

PGL36100U31A - Square D 1000 Amp 600VAC 3 Pole PowerPacT P Frame Circuit Breaker

PGL36100U31A

PGL36100U31A is a Square D PowerPacT P Frame 3 pole molded case circuit breaker rated for 1000 Amps and 600VAC voltage.This circuit breaker features a unit mount design with solid state protection, long time and instantaneous trip functions, and a 35kA interrupt rating at 480V. It includes line and load side lugs compatible with AWG 3/0 to 500 kcmil aluminum or copper wire. The breaker complies with UL, CSA, IEC, NOM, CE, and RoHS standards and has a toggle actuator. It is designed for overload and short circuit protection in three-phase electrical systems.

Key Specifications
• Amperage: 1000 Amps
• Voltage Rating: 600VAC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupting Rating: 35kA at 480V
• Frame Type: PowerPacT P Frame
• Trip Functions: Long Time and Instantaneous
• Connection Type: Feed-Thru with Line and Load Side Lugs
• Wire Gauge Compatibility: AWG 3/0 to 500 kcmil Aluminum/Copper
• Approvals: UL 489, CSA, IEC, NOM, CE, RoHS
• Actuator Type: Toggle
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Lugs included AL1200P25K




Specifications

• Part Number: PGL36100U31A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGL
• Voltage : 600
• Amperage : 1000
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State



Product Data

• UPC : 785901571254
• GTIN : 00785901571254
• Country of Origin : Mexico
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 38.14
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
