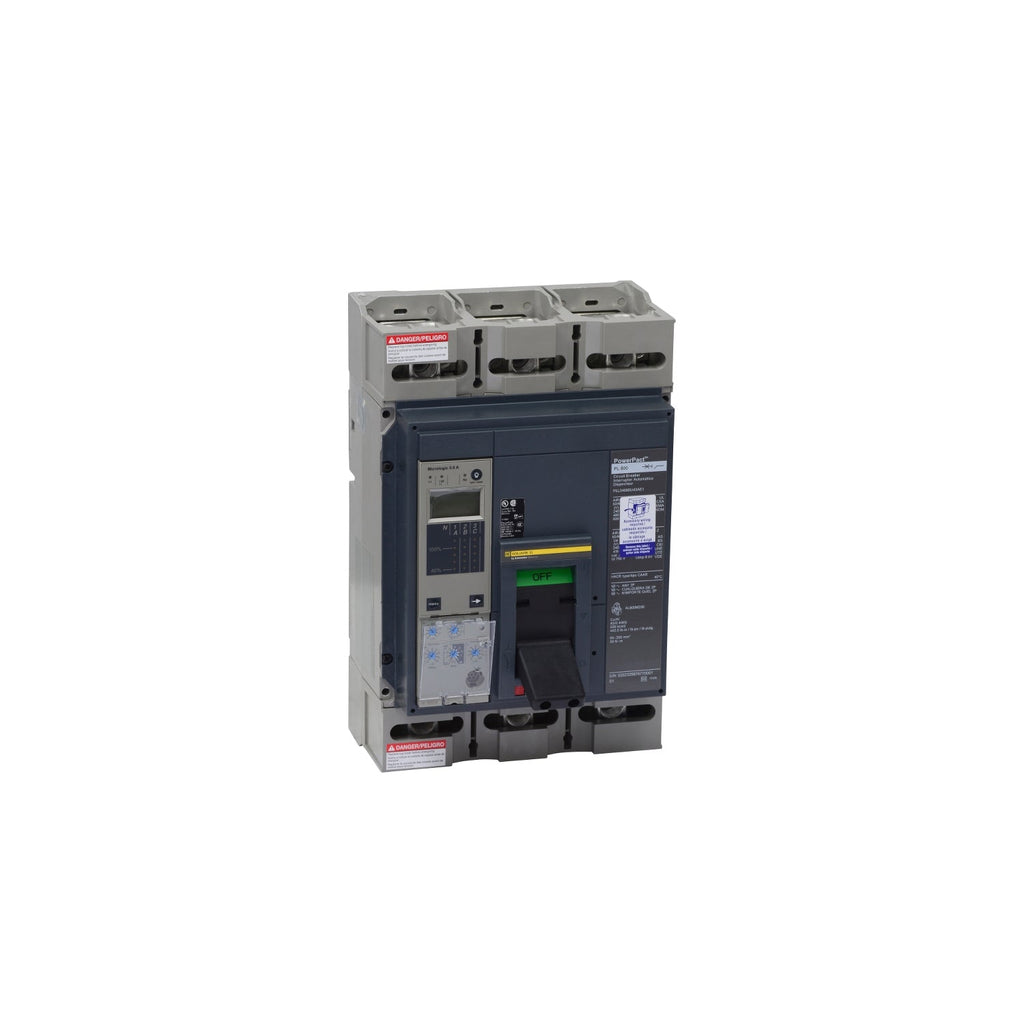

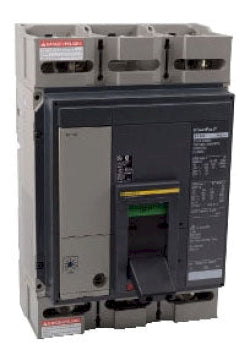

PGL36060CU44A - Square D Powerpact 600A 600V 3-Pole Molded Case Circuit Breaker

PGL36060CU44A

PGL36060CU44A is a Square D Powerpact P-frame molded case circuit breaker rated for 600 amperes at 600 volts AC with three-pole configuration and electronic trip protection. This unit mount breaker features solid-state protection technology and is designed for industrial and commercial power distribution applications with HACR rating capability. The breaker provides multiple interrupt ratings across standard voltage levels and includes feed-thru lugs for both line and load connections with toggle control operation. Key Specifications

• Amperage: 600A
• Voltage: 600V AC (50/60 Hz)
• Poles: 3-Pole
• Frame: P-Frame Powerpact
• Interrupt Rating: 65kA @ 240V, 35kA @ 480V, 18kA @ 600V
• Trip Unit: MicroLogic 6.0 A Electronic
• Mounting: Unit Mount with Feed-Thru Lugs
• Certifications: UL 489, CSA, NOM
• Control Type: Toggle
• Weight: 32 lb
• Dimensions: 8.3 in W x 8.1 in D x 16.2 in H
• Operating Temperature: -25 to 70 degrees C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs included AL800M23K

Specifications

• Part Number: PGL36060CU44A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGL
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Frame Size : P Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 785901748175
• GTIN : 00785901748175
• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 48.502
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
