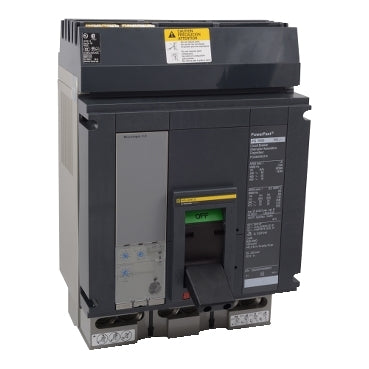

PGA36120U31AABMA - Square D 1200A 600VAC 3 Pole PowerPacT PGA Circuit Breaker I-Line Mount

PGA36120U31AABMA

PGA36120U31AABMA is a 3 pole, 1200 amp, 600VAC molded case circuit breaker from Square D's PowerPacT PGA series with I-Line mounting.This circuit breaker features a solid state trip unit with long-time and instantaneous trip functions. It has an interrupting rating of 35kA at 480V and uses an I-Line style plug-in connection for easy installation. The breaker is designed for use in three-phase electrical systems and includes line and load side lugs compatible with copper or aluminum conductors. It complies with UL, CSA, CE, IEC, NOM, RoHS, REACh, and HACR standards.

• Amperage: 1200A
• Voltage Rating: 600VAC
• Poles: 3
• Series/Frame: PowerPacT PGA
• Mounting Type: I-Line bracket
• Interrupt Rating: 35kA at 480V
• Trip Unit: Solid state with long-time and instantaneous functions
• Connection Type: I-Line style plug-in
• Terminal Connection: Line and load side lugs
• Certifications: UL, CSA, CE, IEC, NOM, RoHS, REACh, HACR
• Wire Gauge: 4x AWG 3/0 to 500 kcmil, aluminum/copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PGA36120U31AABMA
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGA
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : P Frame
• Protection : Solid State

Product Data

• Weight : 37
