PGA36120U31A - Square D 1200A 600V 3 Pole PGA Frame Molded Case Circuit Breaker, I-Line Plug-In Mount, 35kAIC, Solid State Trip Unit, UL/CSA/CE/NEMA

PGA36120U31A

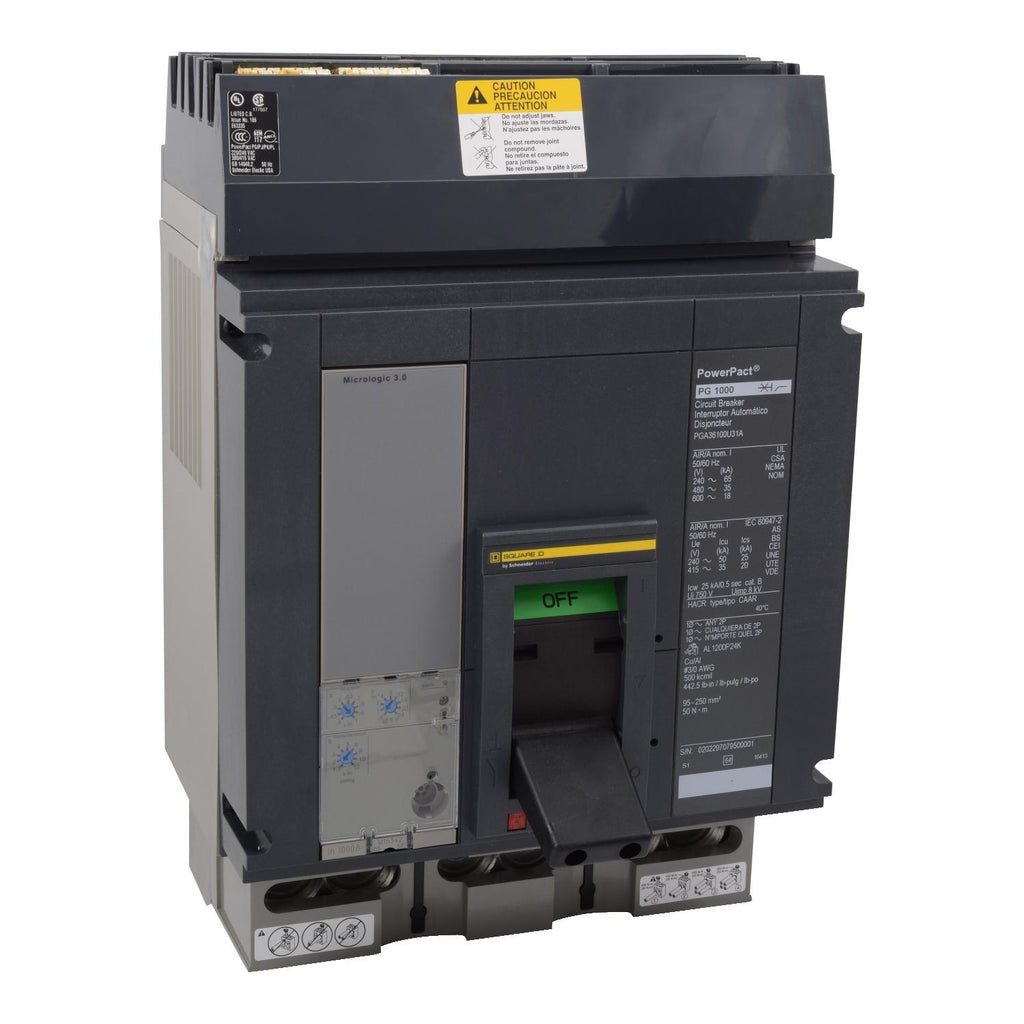

PGA36120U31A is a Square D 3 pole, 1200A, 600VAC molded case circuit breaker designed for robust electrical protection in industrial and commercial applications.

This circuit breaker features a solid state trip unit with long-time and instantaneous protection, I-Line style plug-in mounting for easy installation, and a compact PGA frame. It is engineered for reliable performance in demanding environments and carries multiple international certifications for safety and compliance.

Key Specifications
• Amperage: 1200A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: I-Line Bracket (Plug-In)
• Interrupt Rating: 35kAIC at 480V
• Series/Frame: PGA
• Trip Unit: Solid State (Electronic), Long-Time & Instantaneous
• Certifications: UL, CSA, CE, NEMA, IEC, NOM, RoHS, REACh, HACR
• Connection: Line and Load Side Lug
• Wire Gauge: 4x AWG 3/0 to 500KCmil, Aluminum/Copper
• Temperature Rating: -2 to 70 °C
• Actuator: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PGA36120U31A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGA
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long-Time and Instantaneous Trip
• Frame Size : P Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 785901550945
• GTIN : 00785901550945
• Country of Origin : Mexico
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
