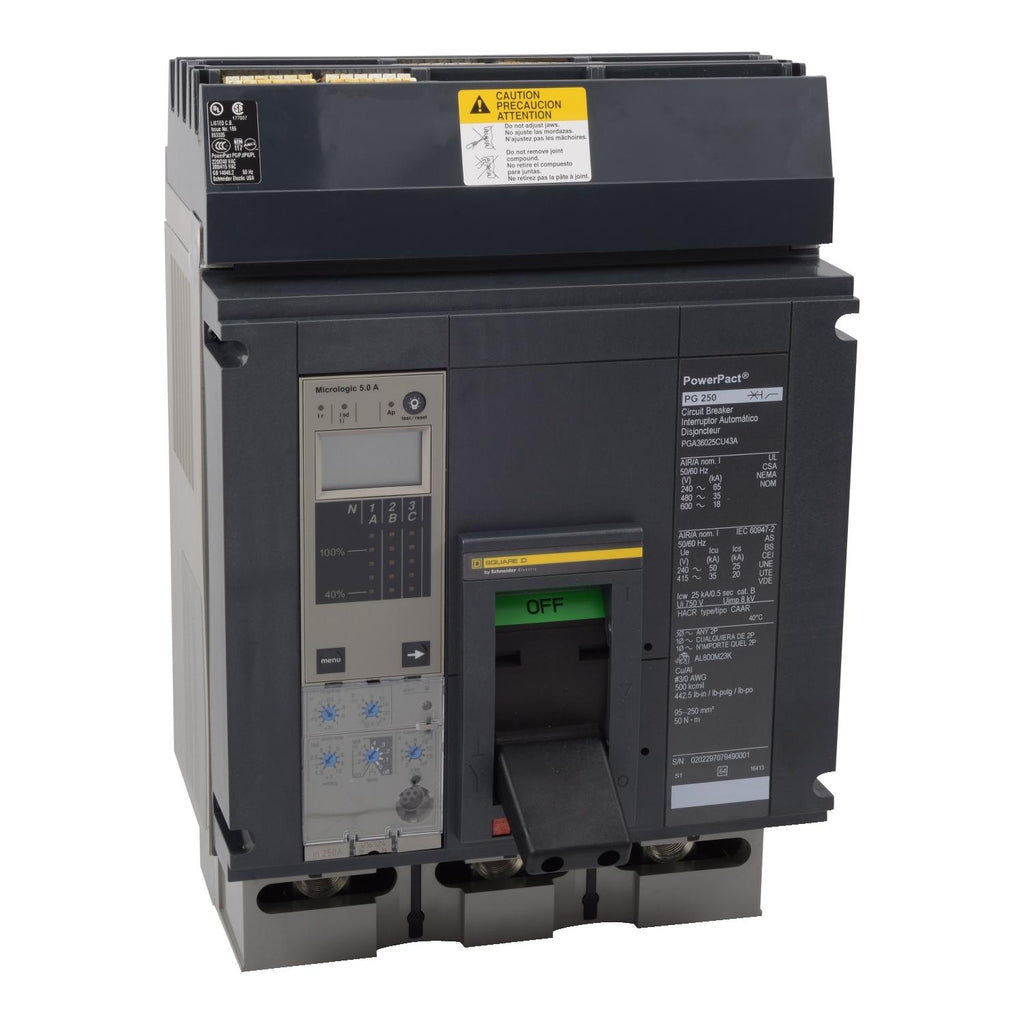

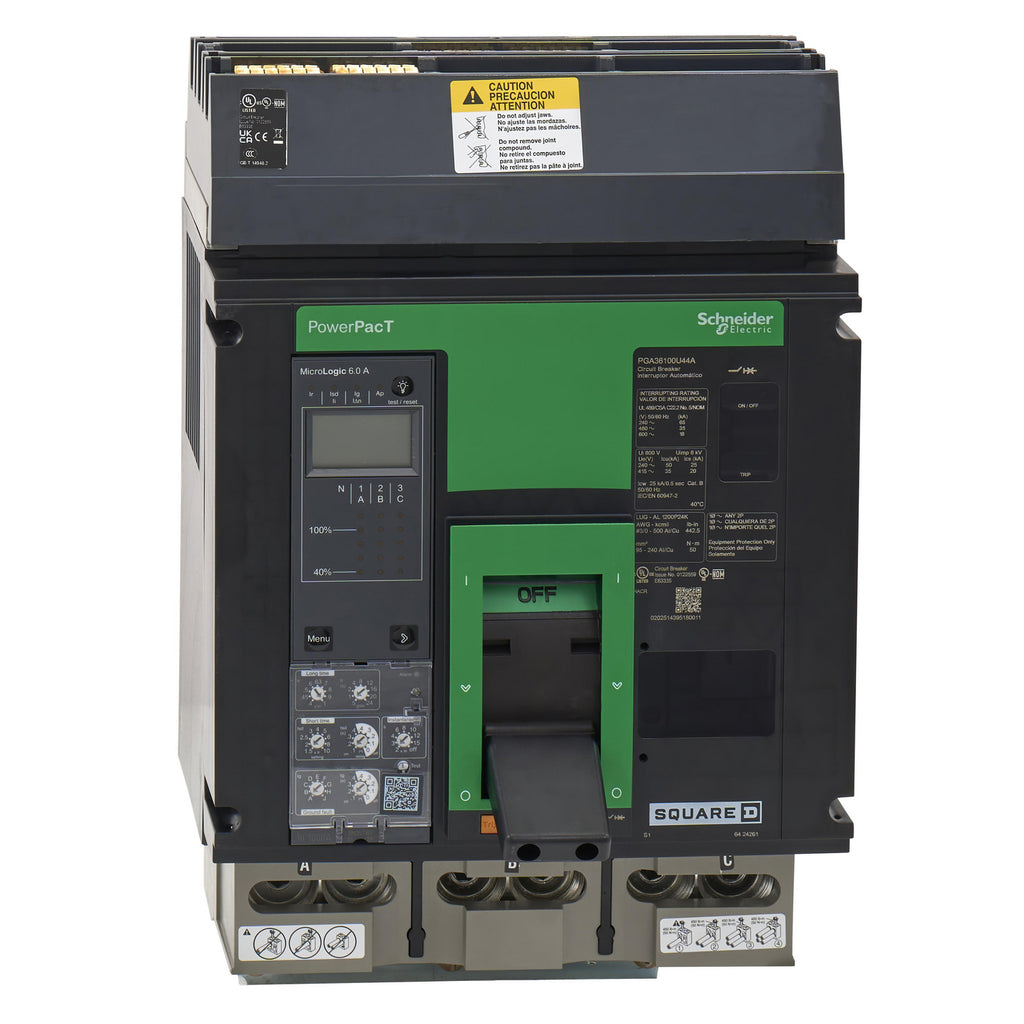

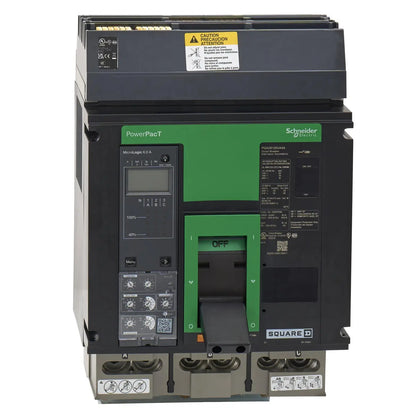

PGA36100U44A - Square D 1000A 600VAC 3 Pole I-Line Molded Case Circuit Breaker LSIG Trip

PGA36100U44A

PGA36100U44A is a 3 pole, 1000 amp, 600VAC molded case circuit breaker from Square D designed for reliable power distribution protection.This Square D PGA36100U44A circuit breaker features a solid state design with LSIG trip functions (long-time, short-time, instantaneous, and ground fault). It has an interrupt rating of 35kAIC at 480V and mounts using an I-Line bracket style with plug-in connection. Certified to UL, CSA, IEC, CE, NOM, and NEMA standards, it supports wire sizes from 3/0 AWG to 500 kcmil aluminum or copper. The breaker is rated for use in temperatures from -2 to 70 °C and includes a toggle actuator.

Key Specifications
• Amperage: 1000A
• Voltage: 600VAC
• Poles: 3
• Interrupt Rating: 35kAIC at 480V
• Mounting Type: I-Line Bracket
• Trip Unit: LSIG (Long-time, Short-time, Instantaneous, Ground Fault)
• Frame/Series: PGA
• Connection Type: I-Line Style Plug-In
• Certifications: UL, CSA, IEC, CE, NOM, NEMA
• Wire Gauge: 3/0 AWG to 500 kcmil Aluminum/Copper
• Temperature Rating: -2 to 70 °C
• Actuator Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PGA36100U44A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGA
• Voltage : 600
• Amperage : 1000
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault Trip
• Frame Size : P Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 785901694632
• GTIN : 00785901694632
• Country of Origin : Mexico
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
