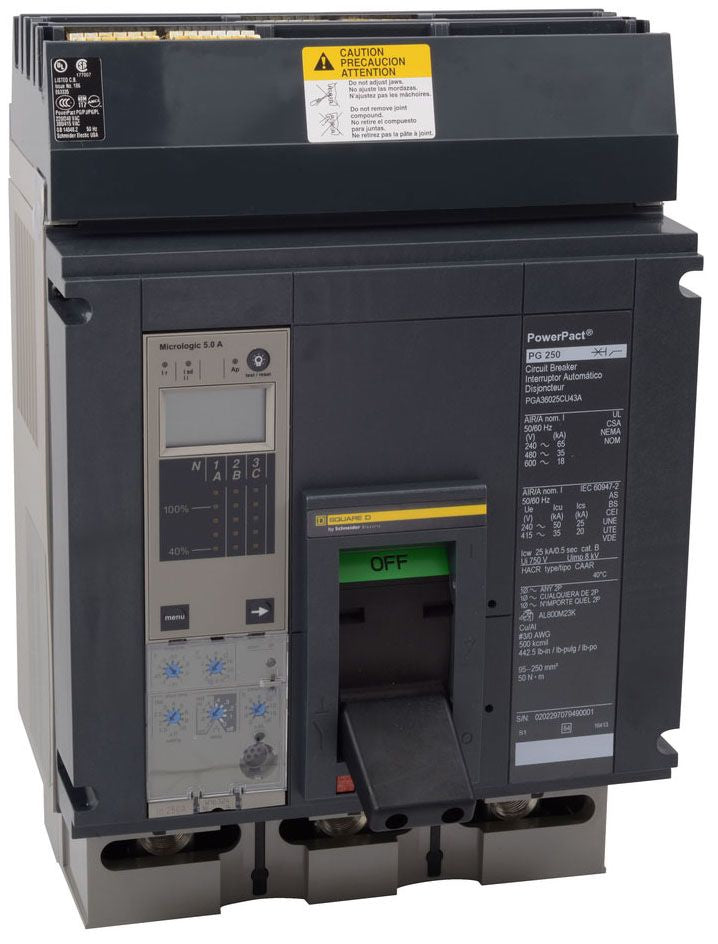

PGA36060U43A - Square D PowerPact P 600A 3-Pole Molded Case Circuit Breaker 600V 18kA

PGA36060U43A

PGA36060U43A is a 3-pole, 600A molded case circuit breaker from the Square D PowerPact P series, designed for reliable protection in commercial and industrial power distribution systems.This circuit breaker features a 600V AC rating and an interrupting capacity of 18kA at 600VAC, making it suitable for demanding electrical environments. It is built with a plug-in mounting style for easy installation and maintenance. The unit is equipped with a Micrologic 5.0A trip unit for precise protection and monitoring.

• Manufacturer: Square D
• Series: PowerPact P
• Amperage: 600A
• Voltage Rating: 600V AC
• Poles: 3
• Interrupt Rating: 18kA @ 600VAC
• Mounting Type: Plug-In
• Trip Unit: Micrologic 5.0A
• Continuous Current Rating: 80%
• Frame: P-Frame
• Application: Molded Case Circuit Breaker
• Phase: 3-Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PGA36060U43A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGA
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : P Frame
• Protection : Solid State

Product Data

• UPC : 060648628554
• GTIN : 03606486285541
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
