Product Info
- Manufacturer:Eaton
- Sub-Category:Lug Terminal Kit
Description
PDG5X1TA1201

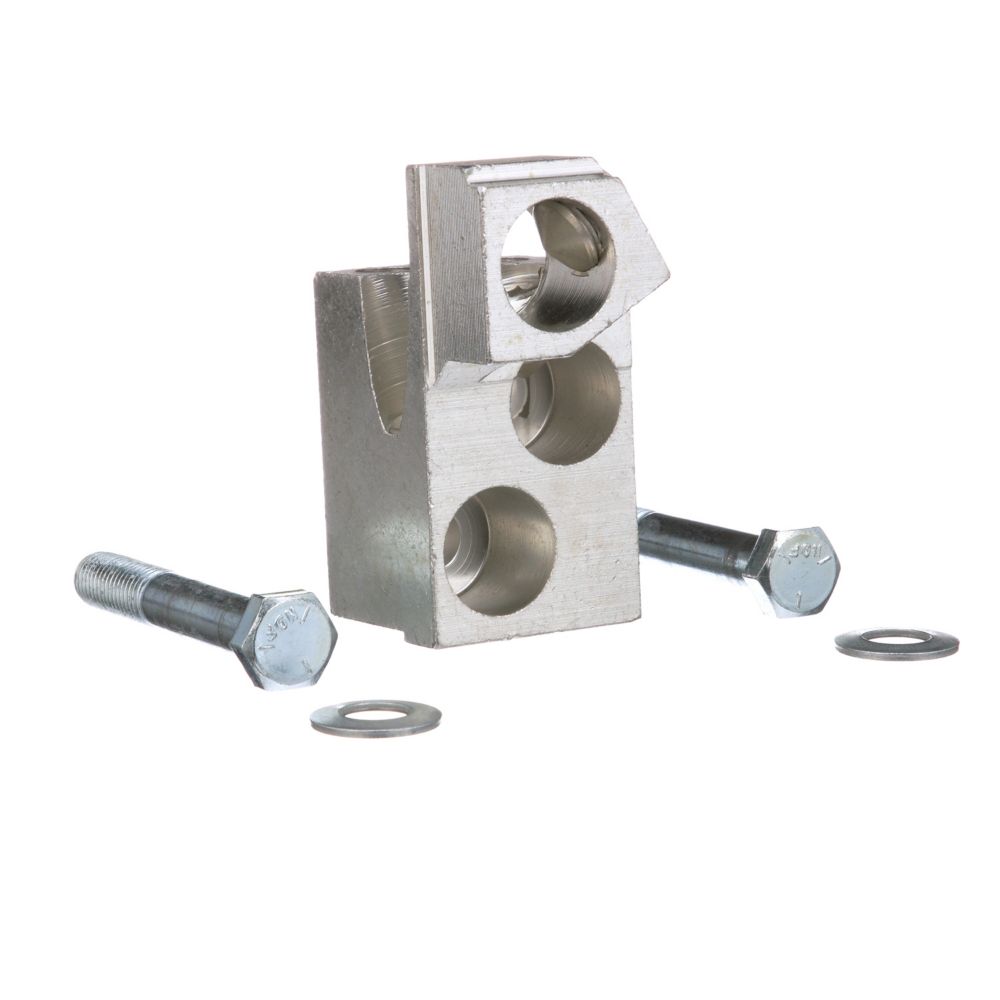

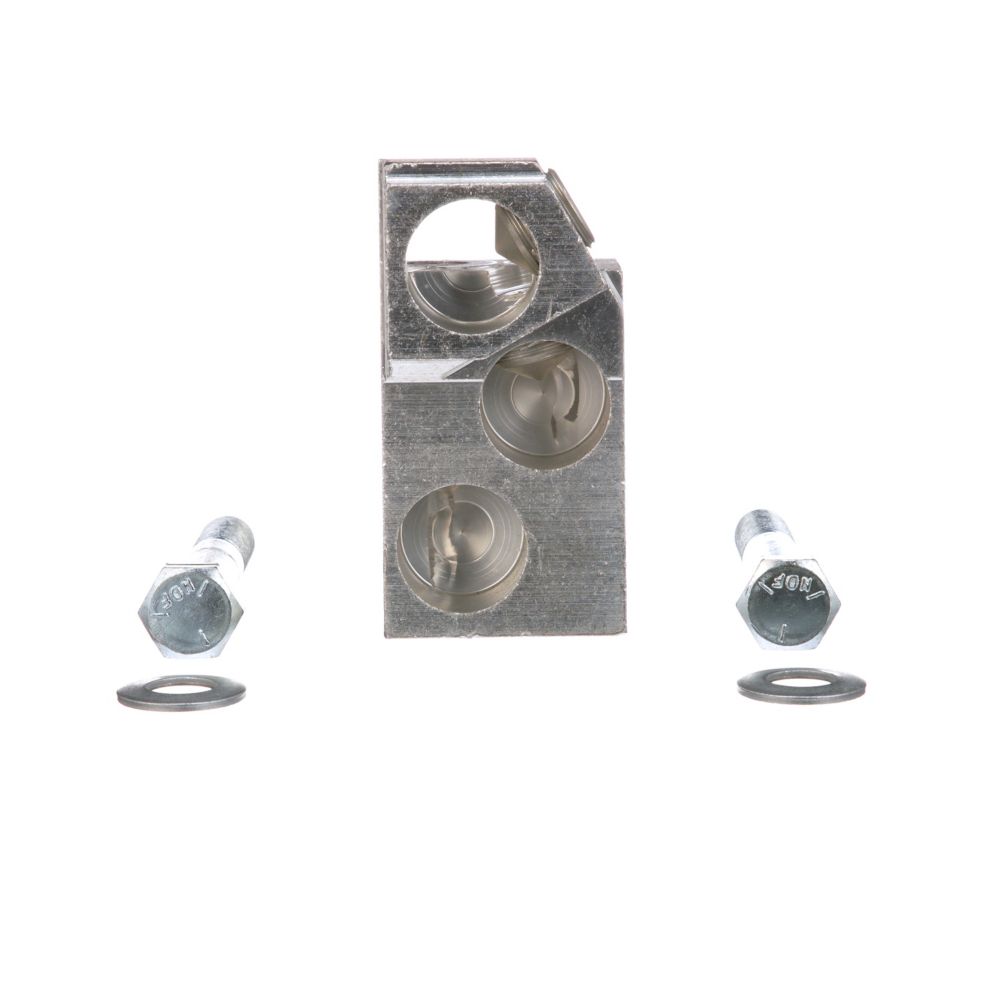

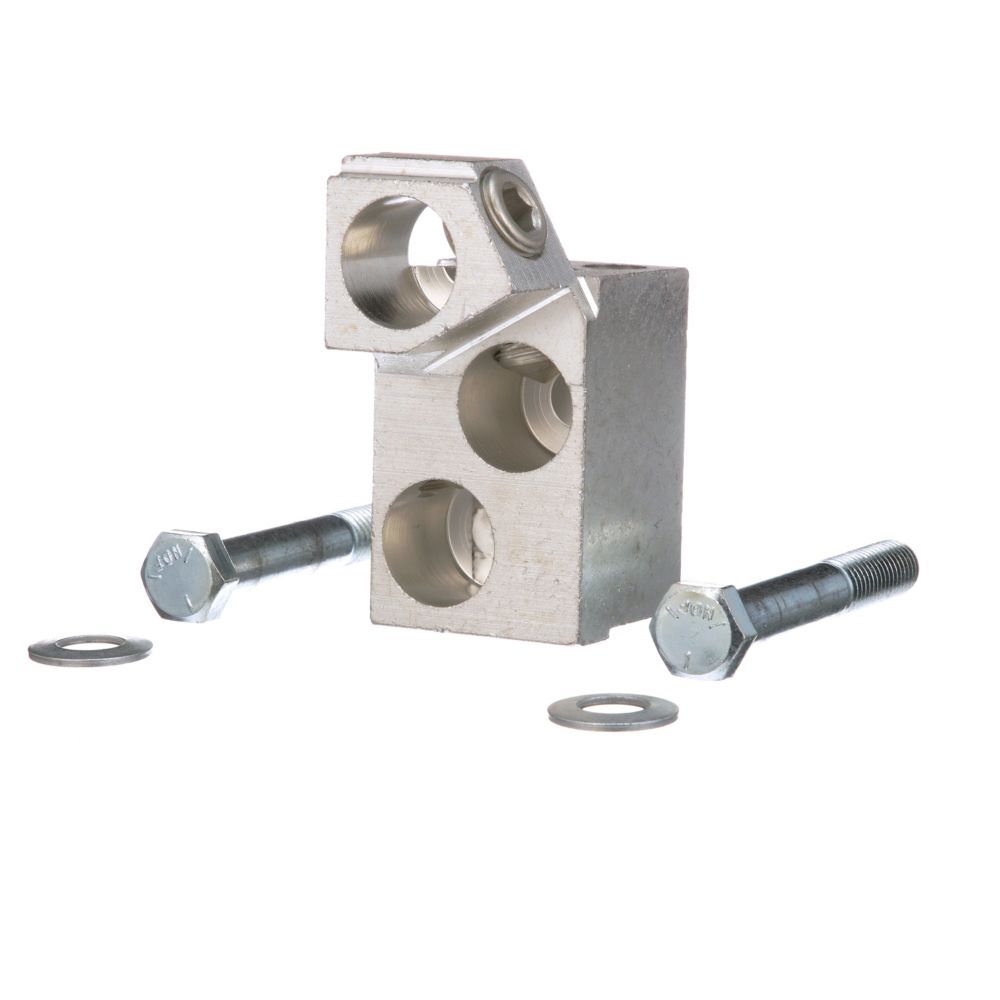

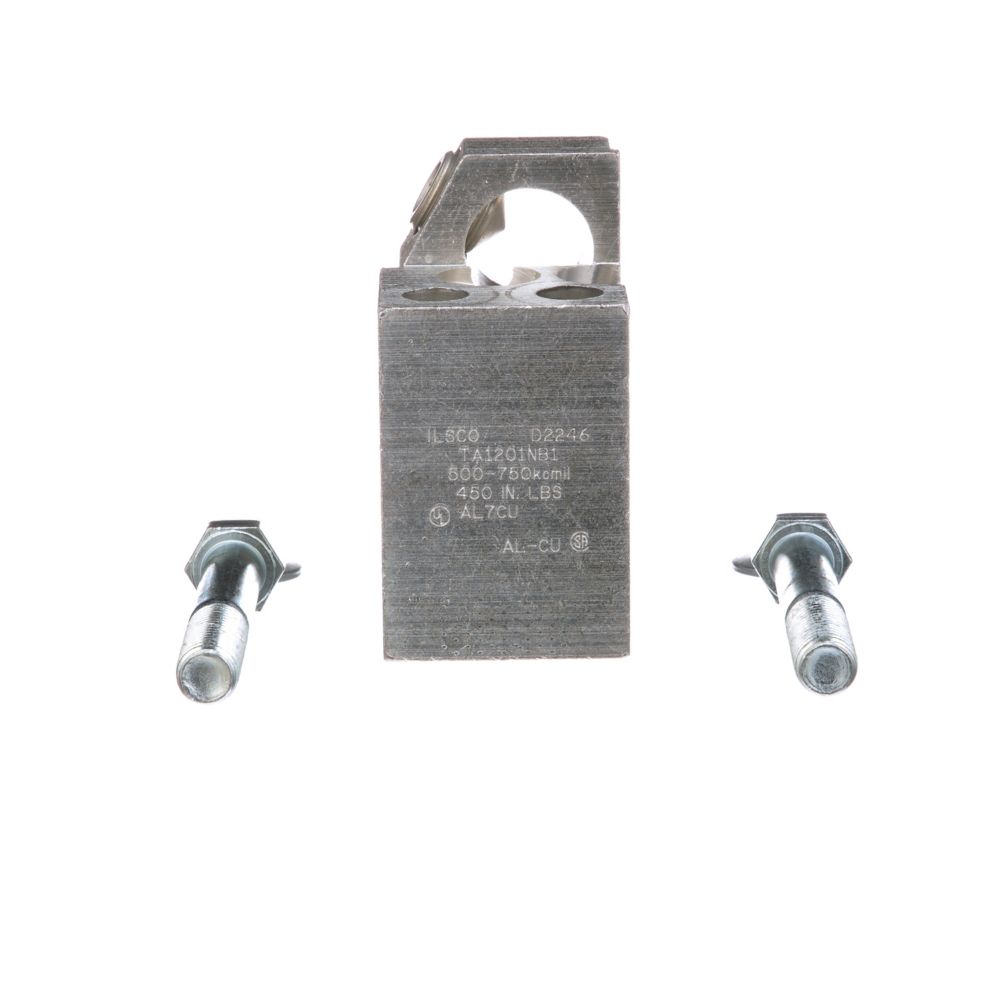

PDG5X1TA1201 is an Eaton Power Defense molded case circuit breaker terminal designed for 1200 amp applications with a Frame 5 size.
This terminal features a tunnel terminal design compatible with aluminum wire sizes ranging from 500 to 750 kcmil (AWG 3). It is part of Eaton's PD5 Global series, Class A, and is constructed with an aluminum body. The terminal is suitable for use with PDG and PDF frame circuit breakers and supports a 3-barrel lug configuration. It is RoHS compliant and carries certifications including CCC Mark, IEC 60947-2, UL 489, and CSA.
- Amperage Rating: 1200 A
- Frame Size: 5
- Series: Power Defense (PD5 Global)
- Terminal Type: Tunnel terminal
- Wire Size: (3) AWG 500–750 kcmil
- Material: Aluminum
- Class: Class A
- Certifications: CCC Mark, IEC 60947-2, UL 489, CSA
- Compliance: RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: PDG5X1TA1201
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Lug Terminal Kit
- Family : Power Defense Series
- Type : PDG
- Amperage : 1200
- MCM Size : 750
- Metal Type : Aluminum
- Compatible Frames : PDG
Product Data
- UPC : 786689318345
- GTIN : 00786689318345
- Dimensions : 63.5 mm x 63.5 mm x 111.8 mm (Length/Depth x Height x Width)
- Weight : 1.2519153
- Standards : RoHS
- Certification : UL, CSA, CCC, IEC
- Wire Size : 3x AWG 500 to AWG 750
