PDG5X1TA1200 - Eaton 1200A Power Defense Terminal Lug Kit, PD5 Global Frame J-K, Tunnel Terminal, Aluminum, Class A, Frame 5

PDG5X1TA1200

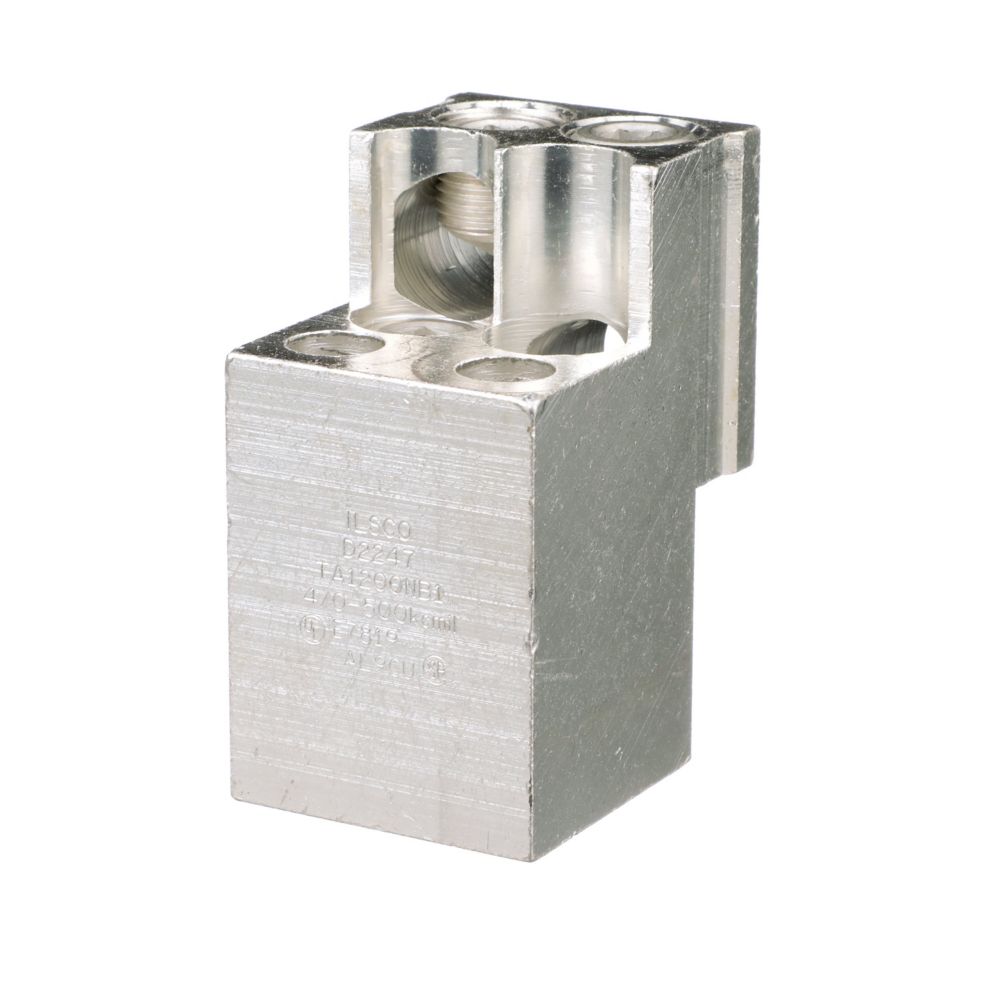

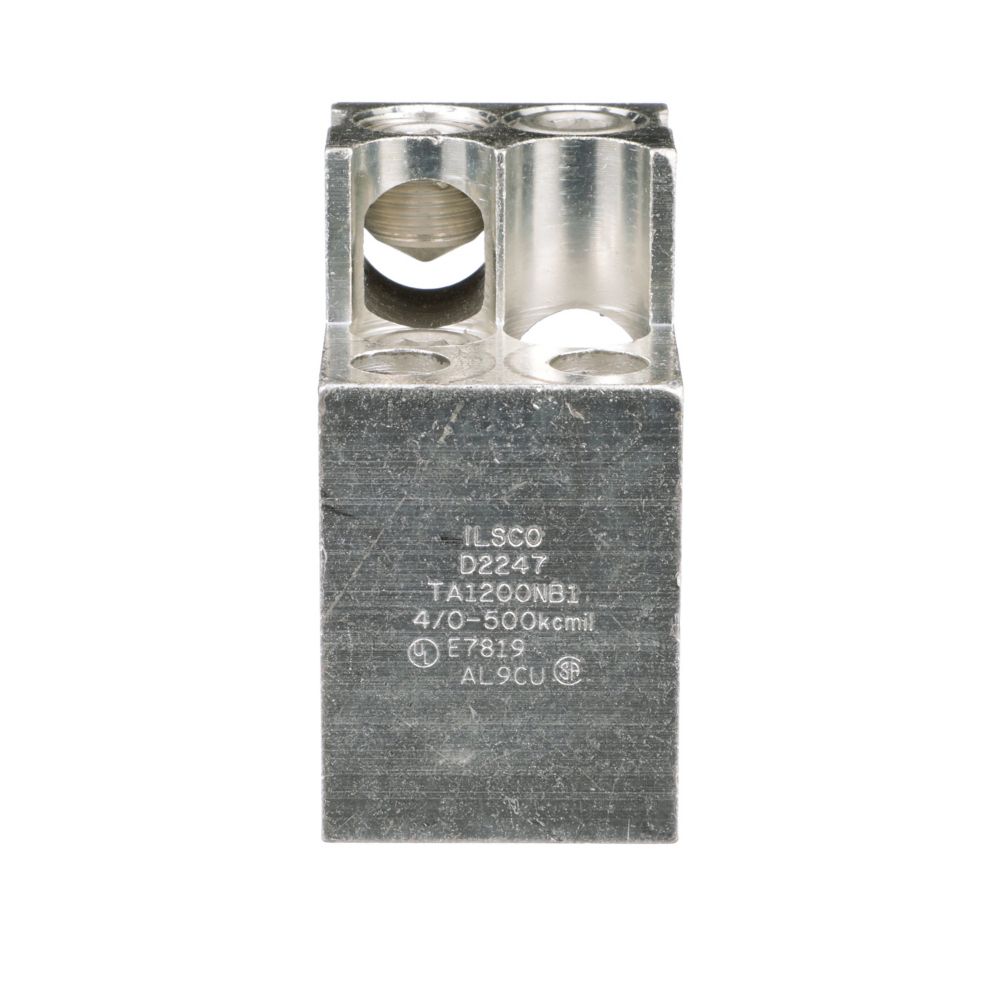

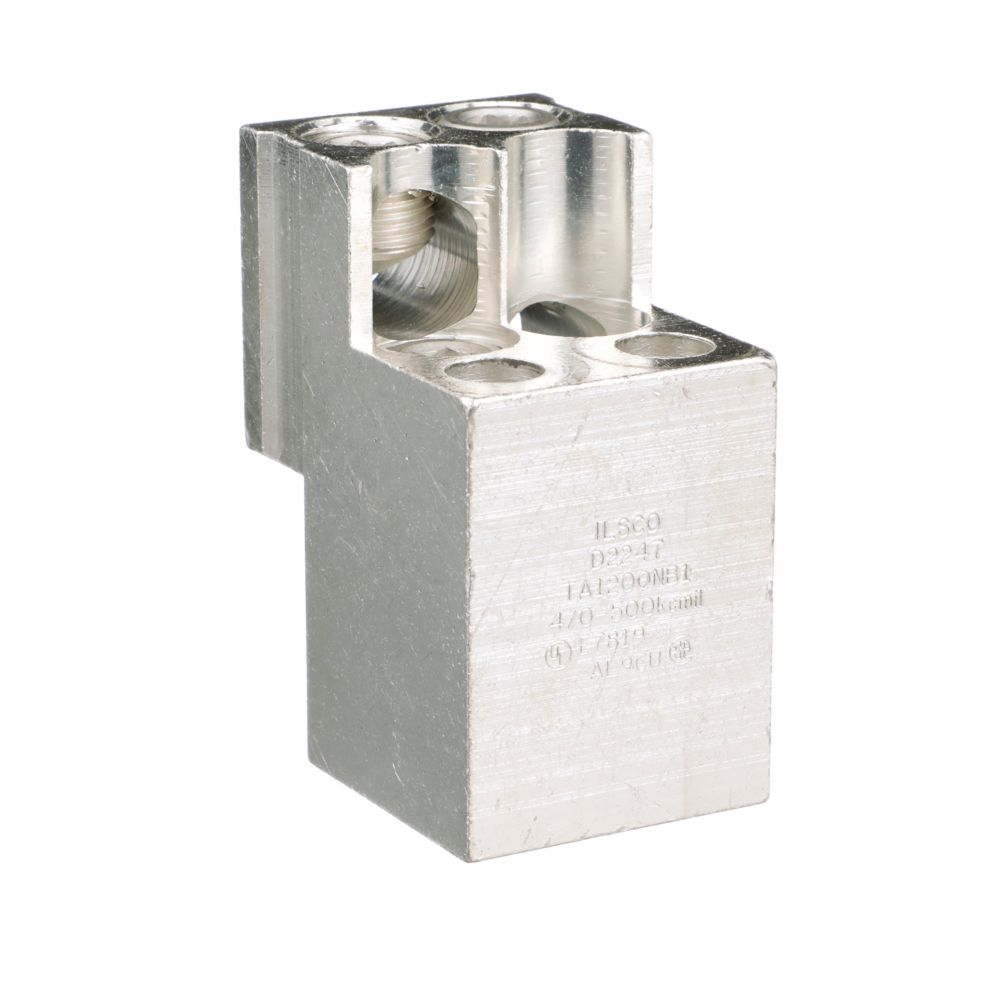

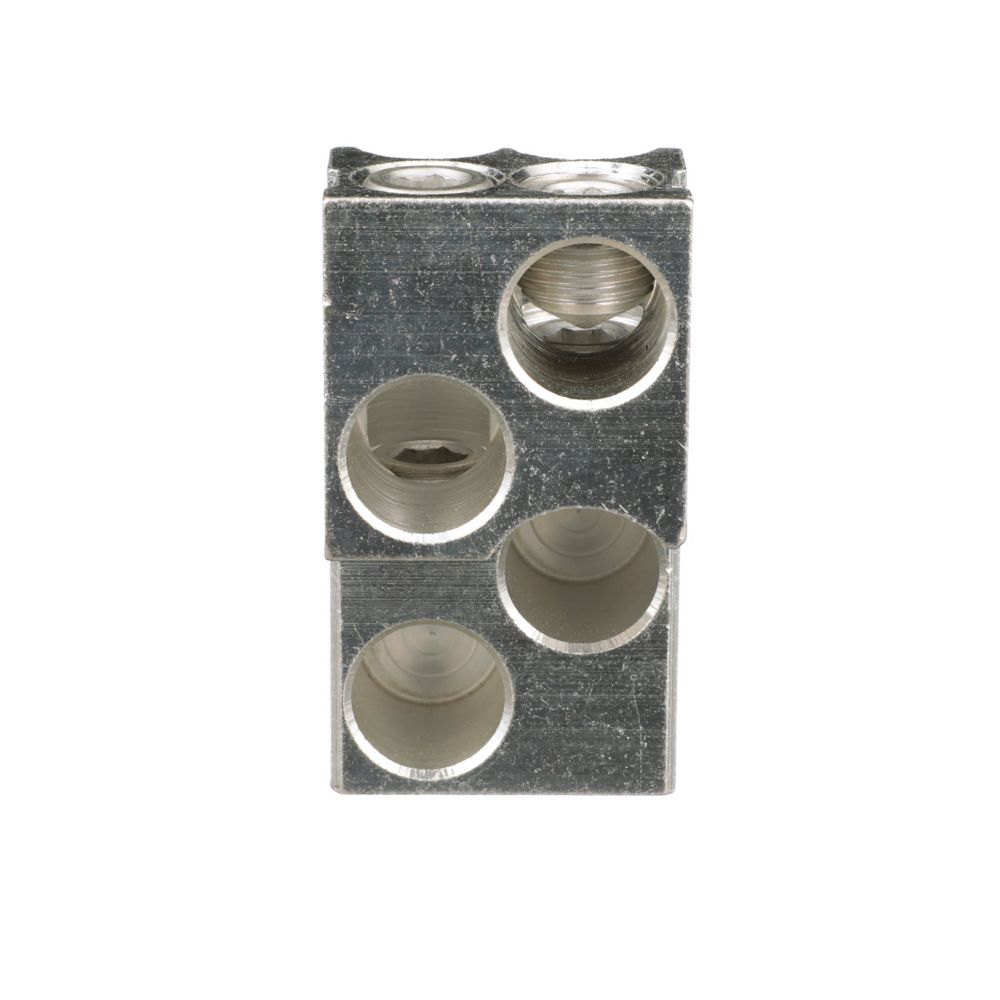

PDG5X1TA1200 is an Eaton Power Defense terminal lug kit designed for molded case circuit breakers with a 1200 Amp rating.This lug kit features a PD5 Global frame J-K type with tunnel terminal connections, supporting wire gauges from 4/0 AWG to 500 MCM. Constructed from aluminum and rated Class A, it is compatible with 1200A maximum PDG and PDF frame size 5 circuit breakers. The product meets UL, CSA, CCC, IEC certifications and RoHS standards.

Key Specifications
• Amperage: 1200A
• Frame Type: PDG, PD5 Global Frame J-K
• Terminal Connection: Tunnel Terminal
• Material: Aluminum
• Wire Gauge Range: 4x AWG 4/0 to 500 MCM
• Class Rating: Class A

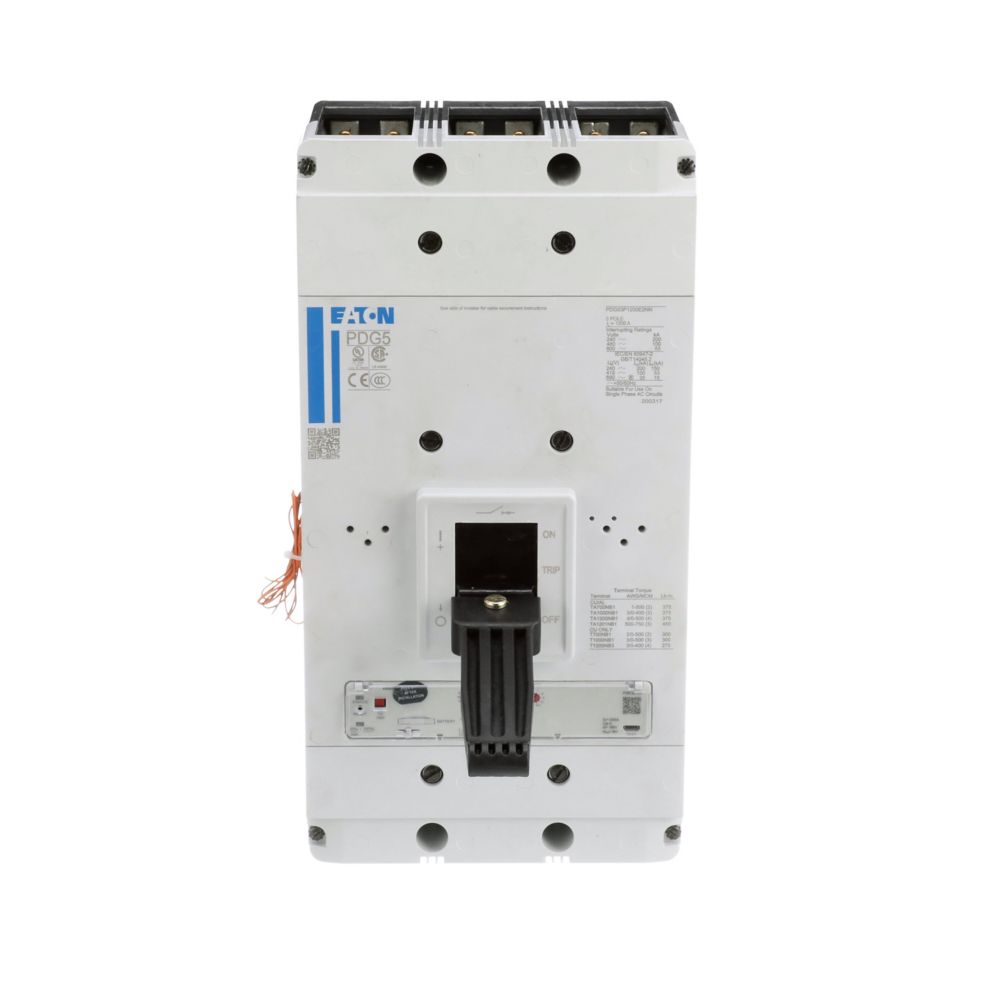

• Compatible with: 1200A Max PDG, PDF Frame Size 5 Circuit Breakers
• Certifications: UL, CSA, CCC, IEC
• Standards: RoHS Compliant
• Voltage Type: DC (130V typical)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG5X1TA1200
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Lug Terminal Kit
• Family : Power Defense Series
• Type : PDG
• Amperage : 1200
• MCM Size : 500
• Metal Type : Aluminum
• Compatible Frames : PDG

Product Data

• UPC : 786689318338
• GTIN : 00786689318338
• Dimensions : 63.5 mm x 63.5 mm x 79.375 mm (Length/Depth x Height x Width)
• Weight : 1.3041
• Standards : RoHS
• Certification : UL, CSA, CCC, IEC
• Wire Size : 4x AWG 4/0 to 500KCmil
