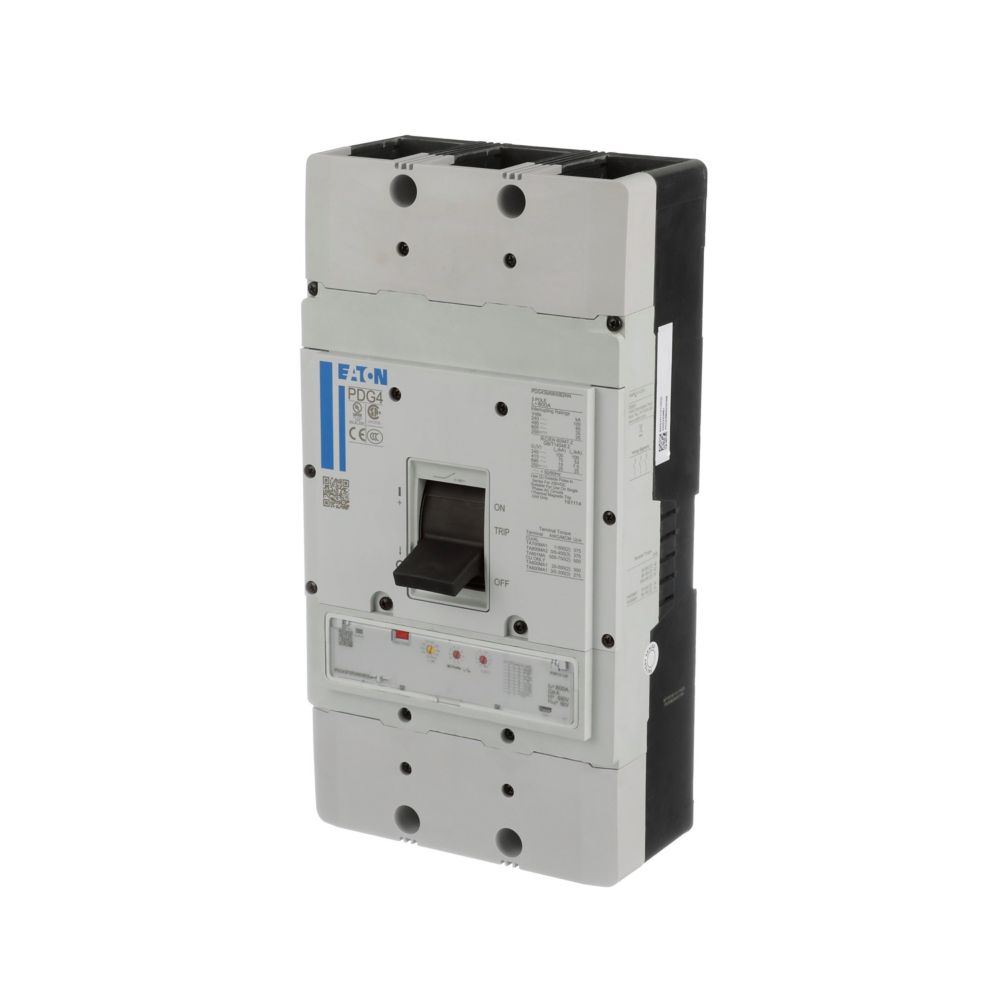

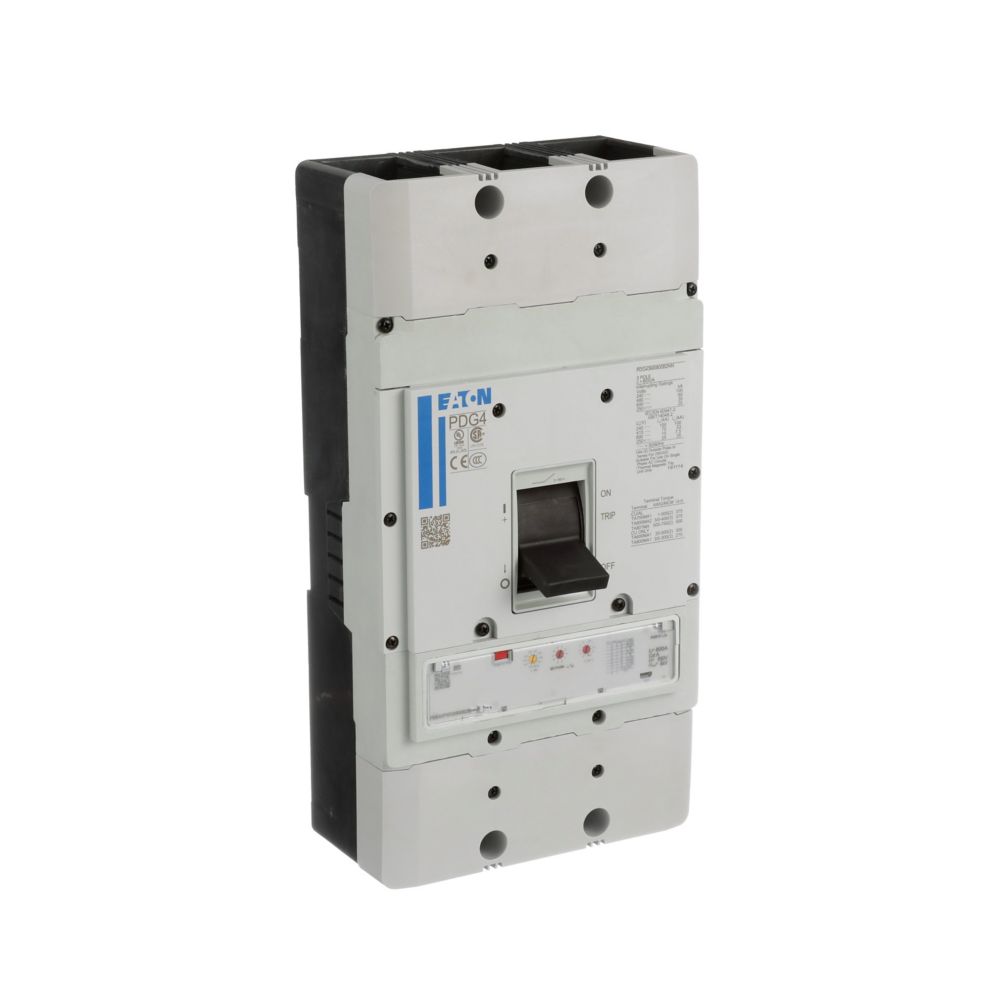

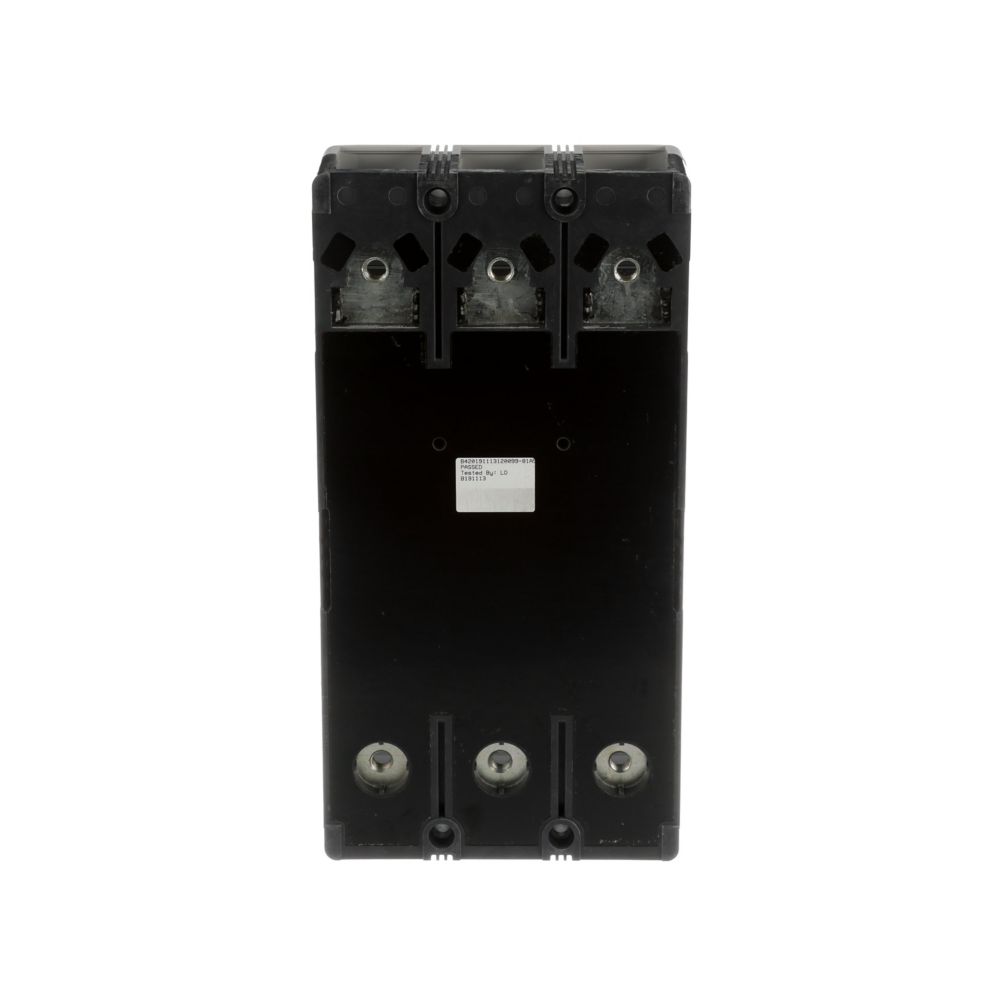

PDG43M0800B2NL - Eaton 3 Pole 800A 600V Power Defense Molded Case Circuit Breaker Frame 4

PDG43M0800B2NL

PDG43M0800B2NL is a 3 pole, 800A, 600V Eaton Power Defense molded case circuit breaker designed for high-performance power distribution applications. This breaker features a Frame 4 design, bolt-on mounting, and a globally rated interrupt rating of 65kA at 480V. The PDG43M0800B2NL is equipped with a PXR10 LSI trip unit for reliable protection and is RoHS compliant for environmental safety. Engineered for durability and safety, the PDG43M0800B2NL is ideal for industrial and commercial installations requiring robust circuit protection. Its solid-state trip technology and load-only terminals provide advanced performance and easy integration into existing systems.

• Part Number: PDG43M0800B2NL
• Manufacturer: Eaton
• Series: Power Defense
• Frame: Frame 4
• Poles: 3
• Amperage: 800A
• Voltage: 600V AC
• Interrupt Rating: 65kA @ 480V
• Mounting Type: Bolt-On
• Terminal Type: Load Only
• Trip Unit: PXR10 LSI
• Certifications: RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG43M0800B2NL
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679992920
• Country of Origin : Dominican Republic
• Dimensions : 111.2 mm x 406.4 mm x 209.6 mm (Length/Depth x Height x Width)
• Weight : 30.328
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
