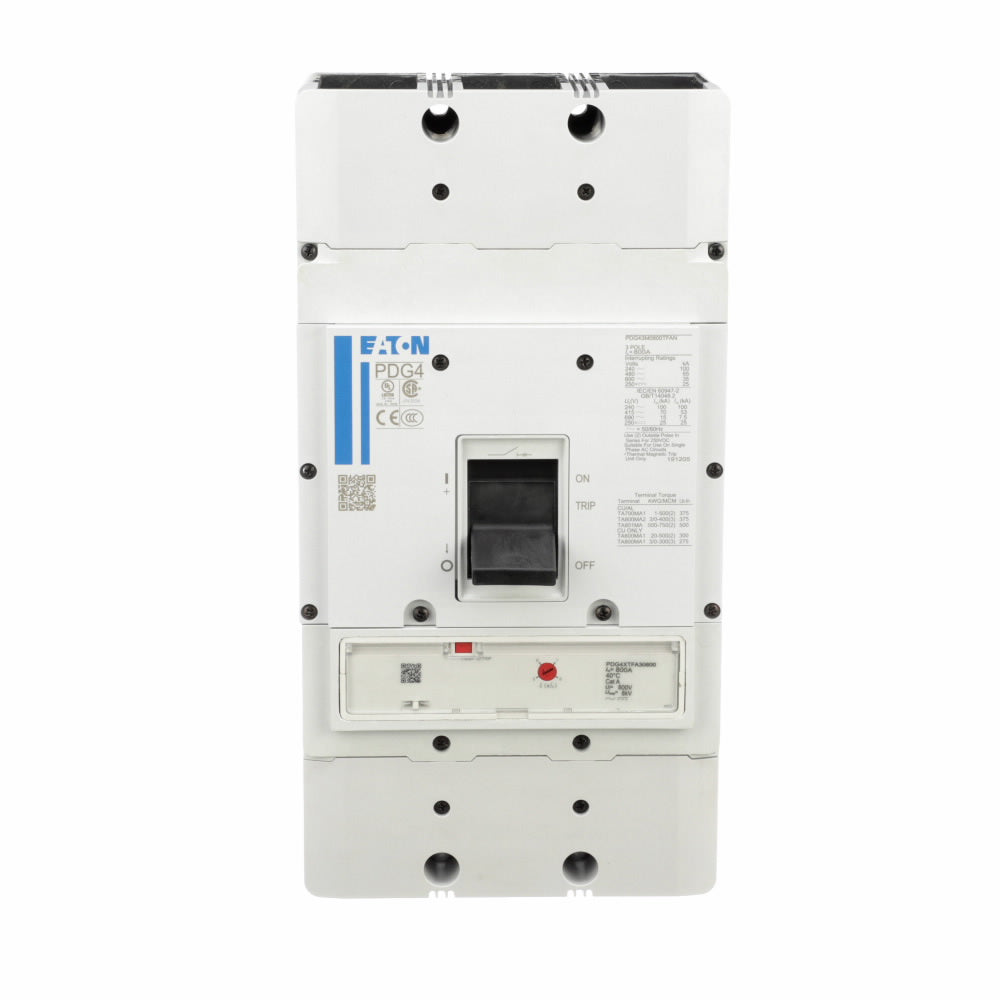

PDG43G0800TFAN - Eaton 800A 600V 3 Pole Power Defense Molded Case Circuit Breaker Frame 4 Thermal Magnetic Trip

PDG43G0800TFAN

PDG43G0800TFAN is an Eaton Power Defense Series molded case circuit breaker designed for reliable protection in electrical distribution systems.This 3 pole circuit breaker features an 800 ampere current rating and a 600 volt AC voltage rating. It utilizes a thermal magnetic trip unit with fixed-adjustable settings for precise overload and short circuit protection. The breaker has a frame size 4 and an interrupt rating of 35 kAIC at 480 volts, suitable for demanding industrial and commercial applications. It comes without terminals and is globally rated for versatile mounting.

Key Specifications
• Manufacturer: Eaton
• Part Number: PDG43G0800TFAN
• Series: Power Defense (PDG4)
• Poles: 3
• Amperage: 800 A
• Voltage Rating: 600 VAC
• Interrupt Rating: 35 kAIC @ 480 VAC
• Trip Unit: Thermal Magnetic Fixed-Adjustable
• Frame Size: 4
• Mounting Type: Bolt-On (no terminals)
• Certifications: Globally Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG43G0800TFAN
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679453360
• Country of Origin : Dominican Republic
• Dimensions : 111.2 mm x 406.4 mm x 209.6 mm (Length/Depth x Height x Width)
• Weight : 29.436
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 509
