Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG33M0400E3MJ

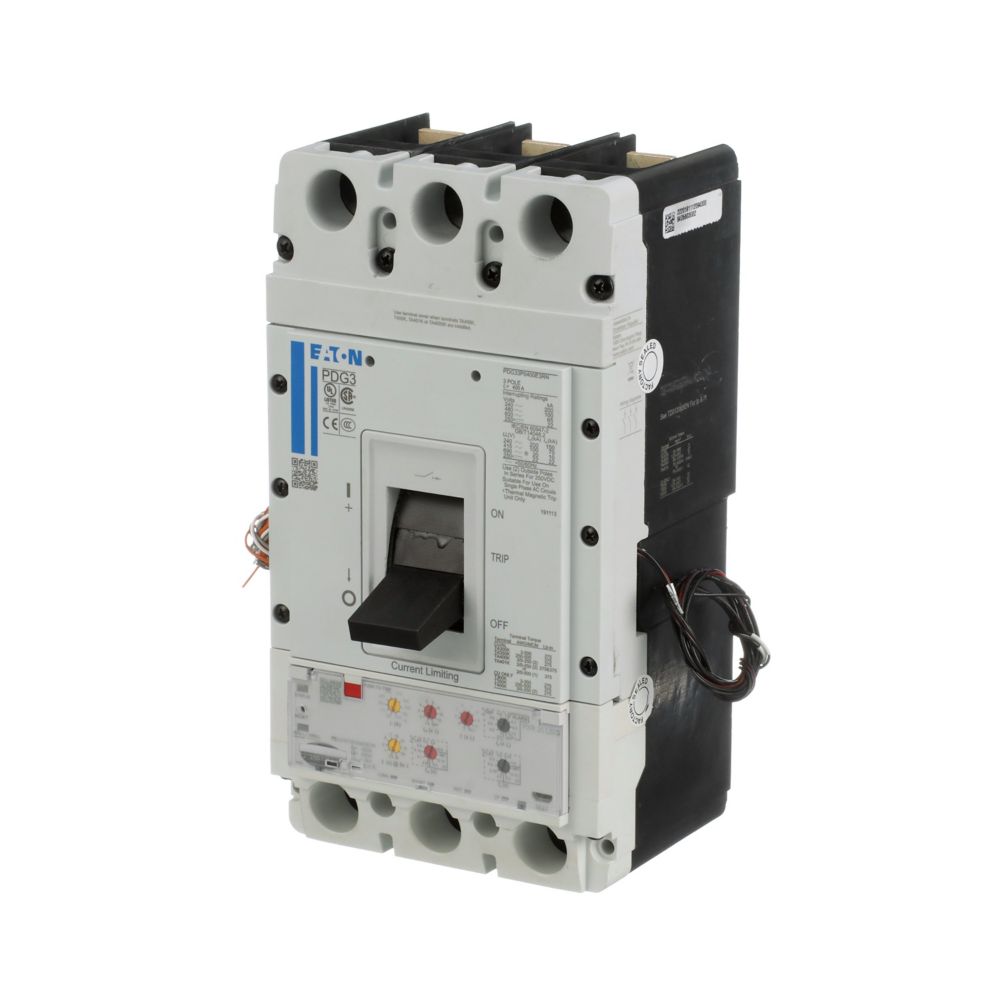

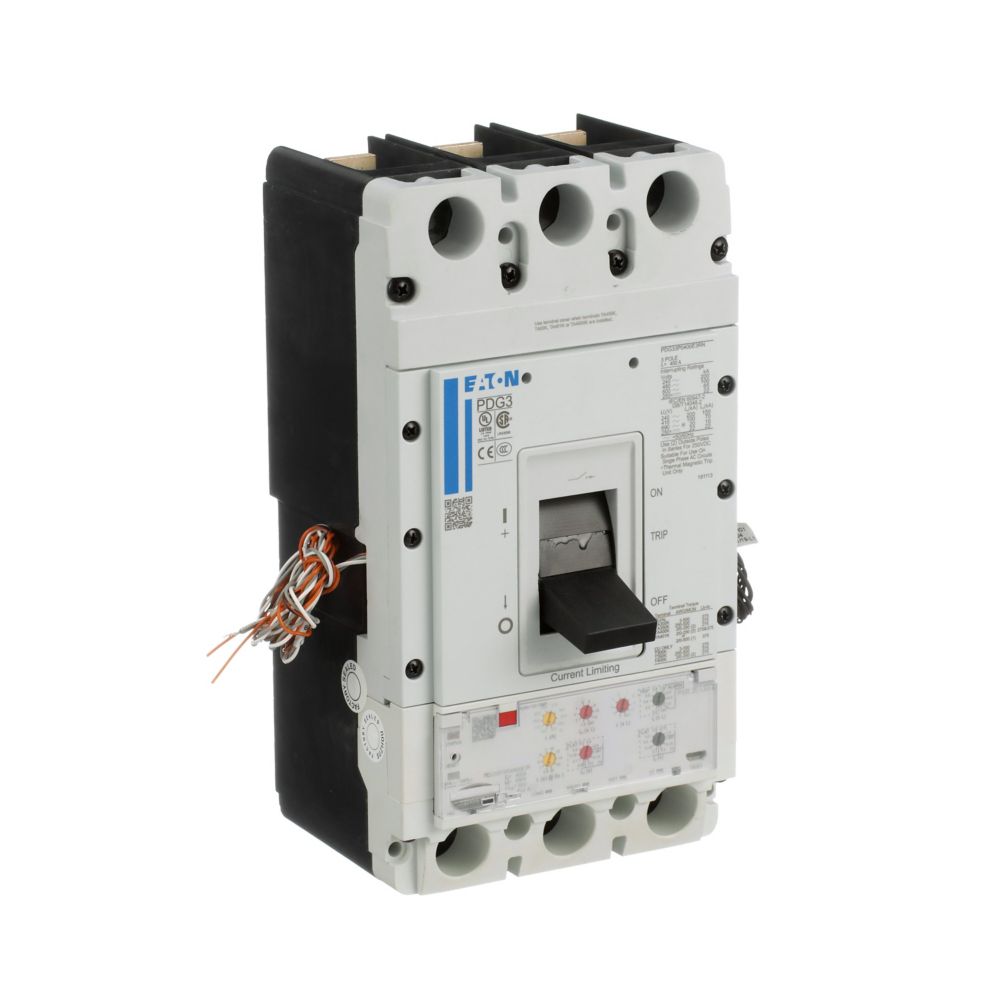

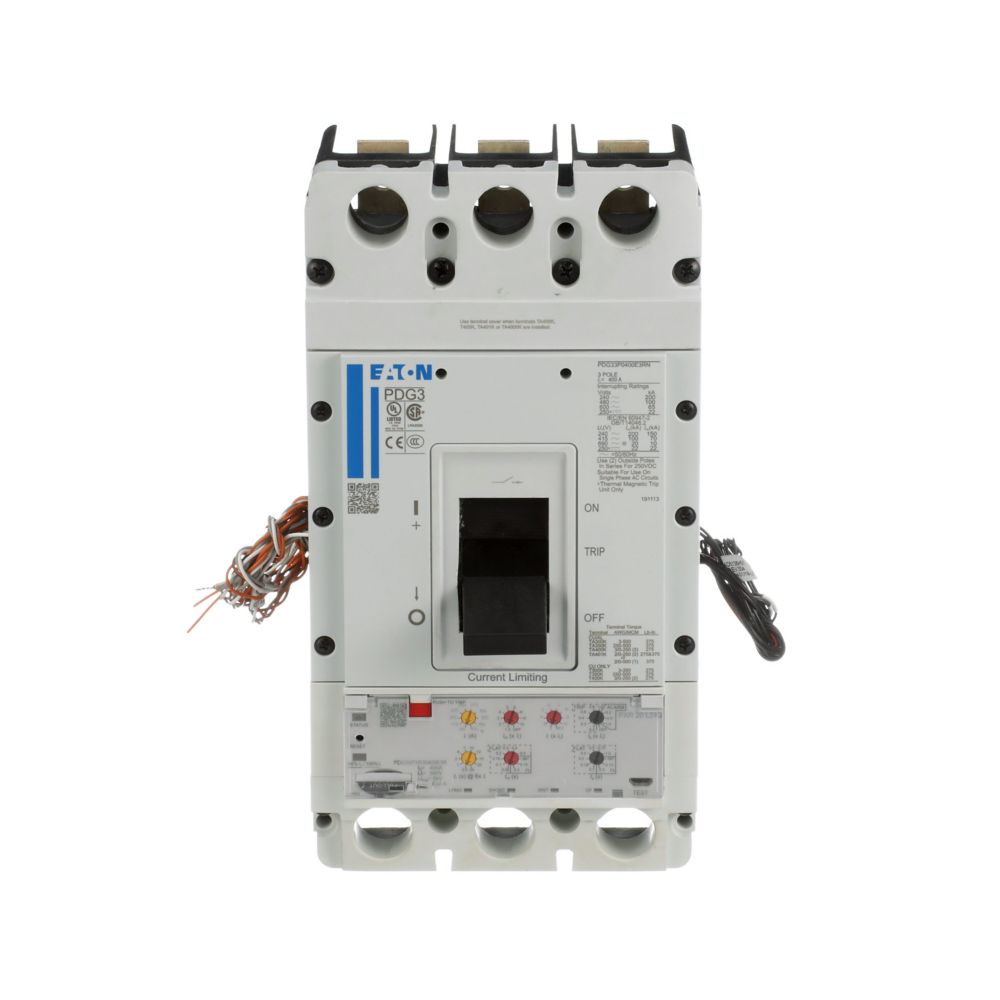

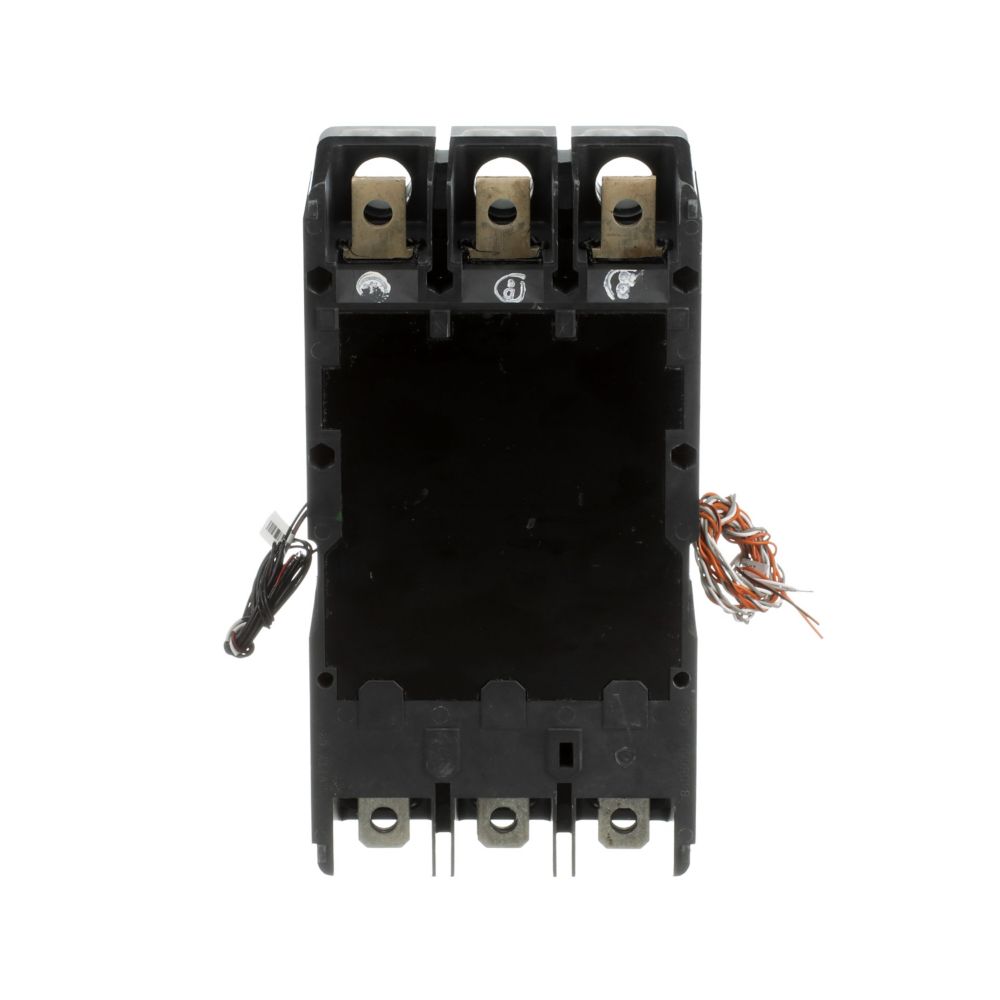

PDG33M0400E3MJ is a Power Defense molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems.This Eaton (Cutler-Hammer) breaker features a 3-pole configuration, 400A current rating, and 600VAC voltage rating. It is part of the Power Defense series, Frame 3, and supports fixed, plug-in, or drawout mounting. The unit is equipped with an LSIG electronic trip unit for advanced protection and monitoring. It is globally rated and suitable for applications requiring high interrupt capacity and robust performance.
- Part Number: PDG33M0400E3MJ
- Manufacturer: Eaton (Cutler-Hammer)
- Series/Frame: Power Defense, Frame 3
- Poles: 3
- Amperage: 400A
- Voltage: 600VAC
- Interrupt Rating: 65kA @ 600V
- Mounting Type: Fixed/Plug-In/Drawout
- Trip Unit: LSIG Electronic
- Certifications: UL Listed, Globally Rated
- Enclosure Type: IP2X
- Frequency: 50-60 Hz
Specifications
- Part Number: PDG33M0400E3MJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LSIG - Long Time, Short Time, Instantaneous and Ground Fault Trip
- Protection : Solid State
Product Data
- UPC : 786679526347
- Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
- Weight : 13.2016
