PDG33M0400E2NL - Eaton Cutler Hammer Power Defense 400A 600V 3 Pole Molded Case Circuit Breaker PXR20 LSI

PDG33M0400E2NL

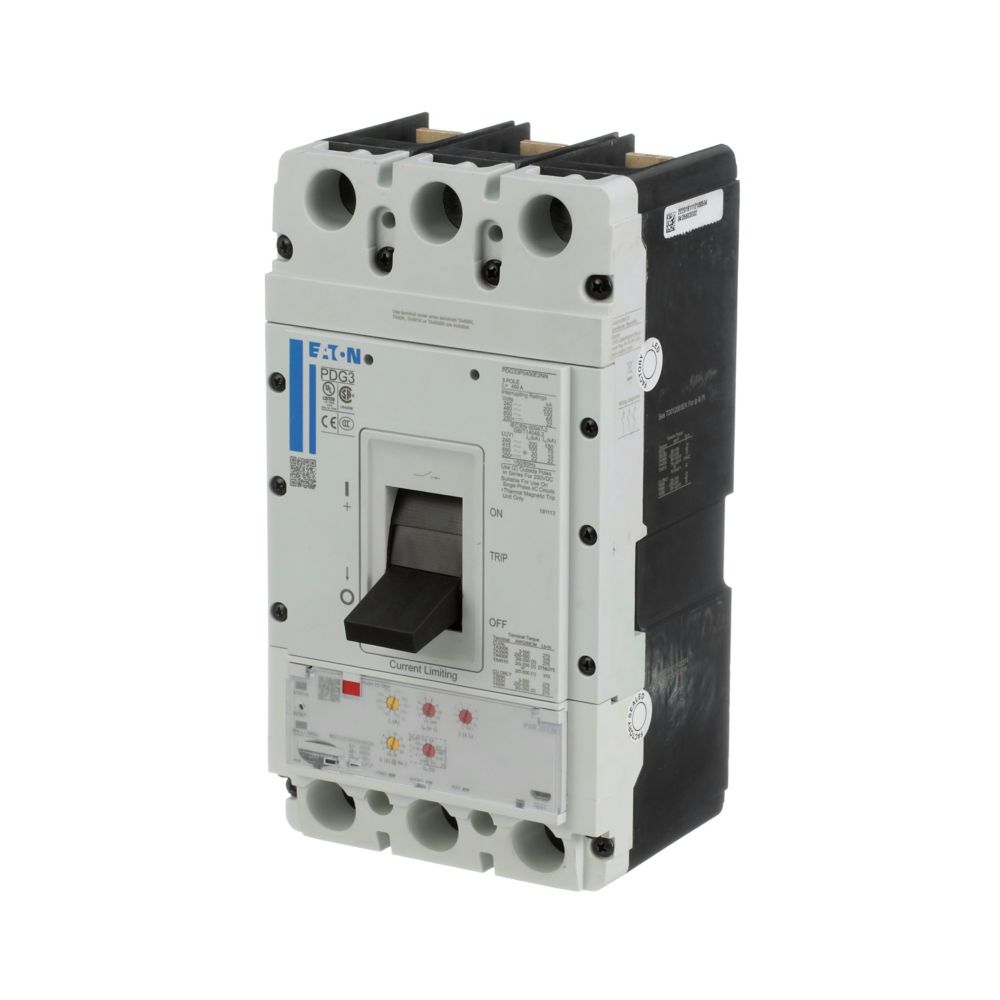

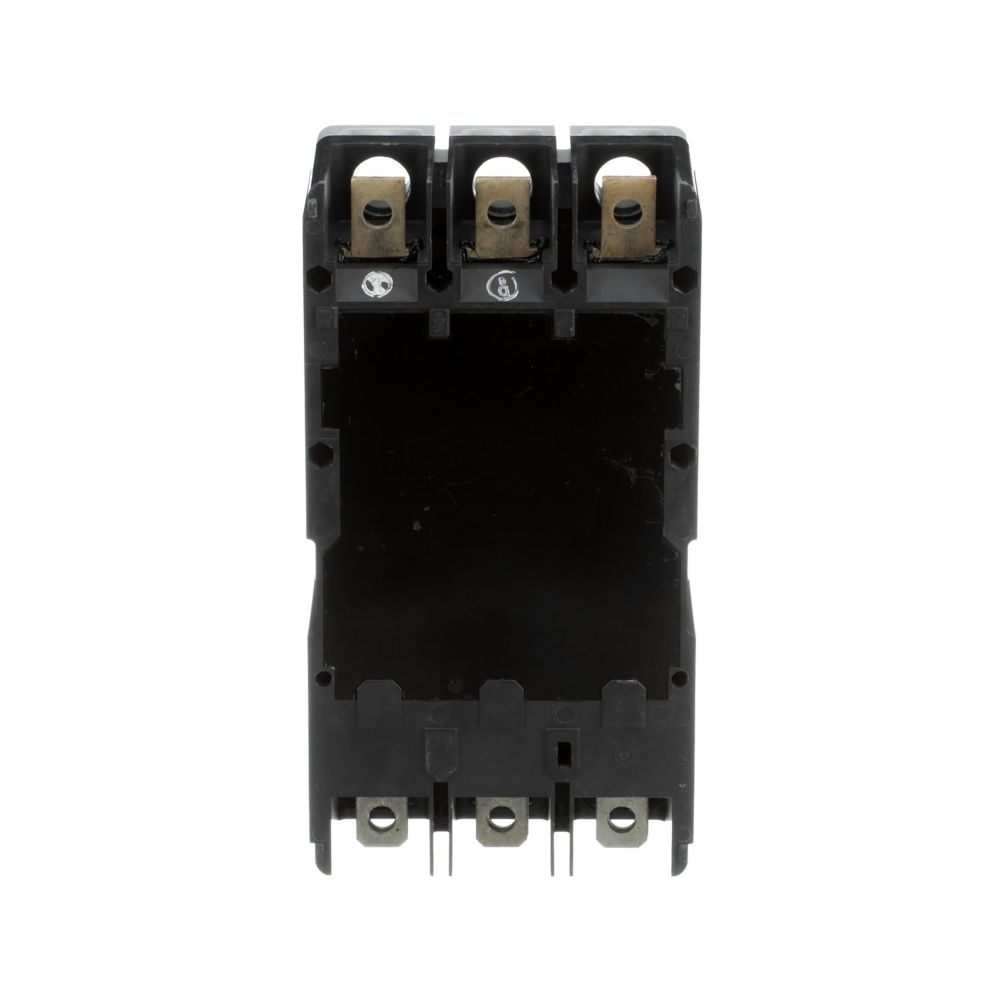

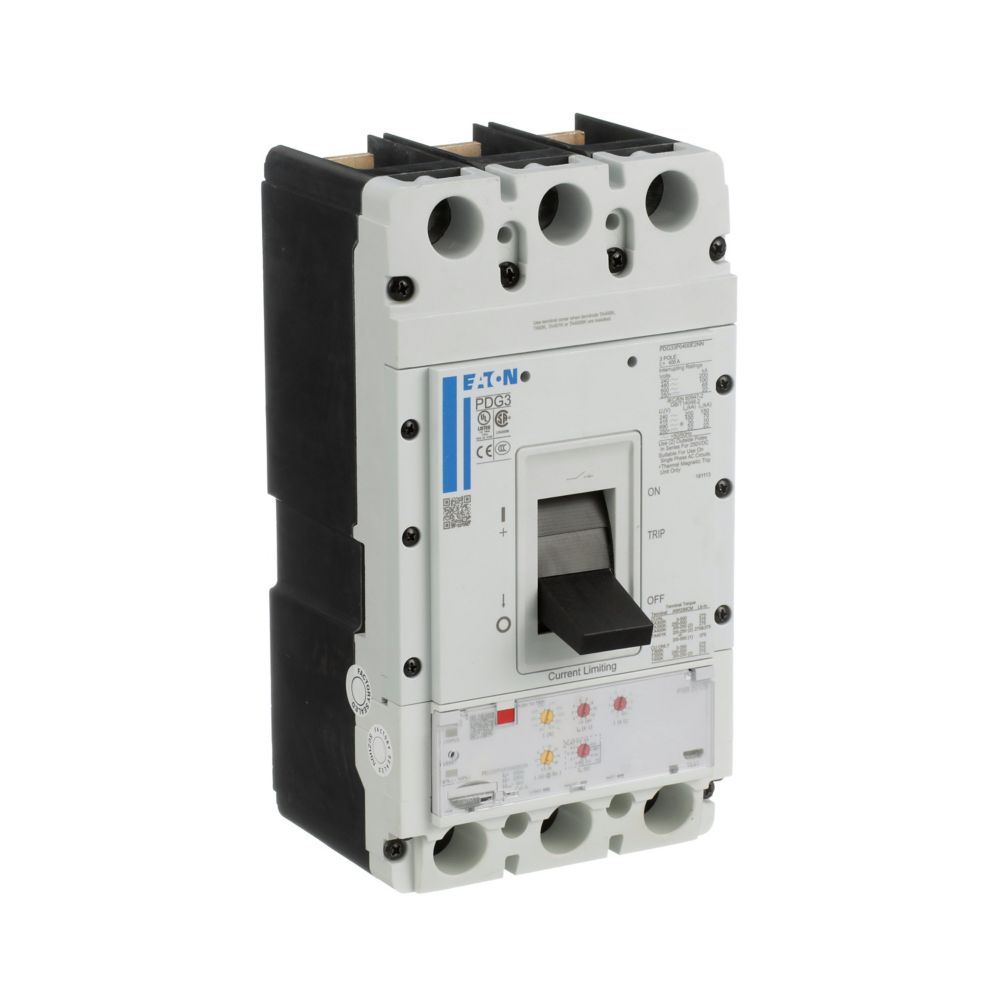

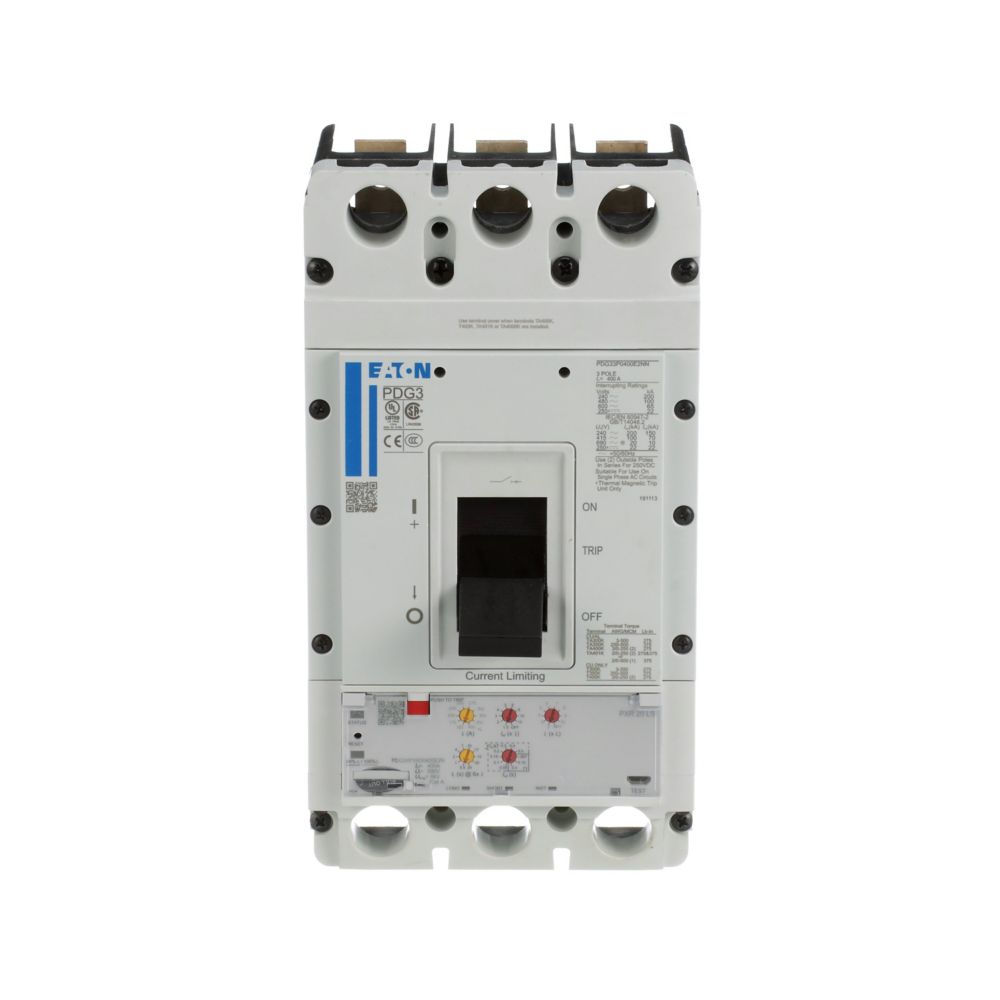

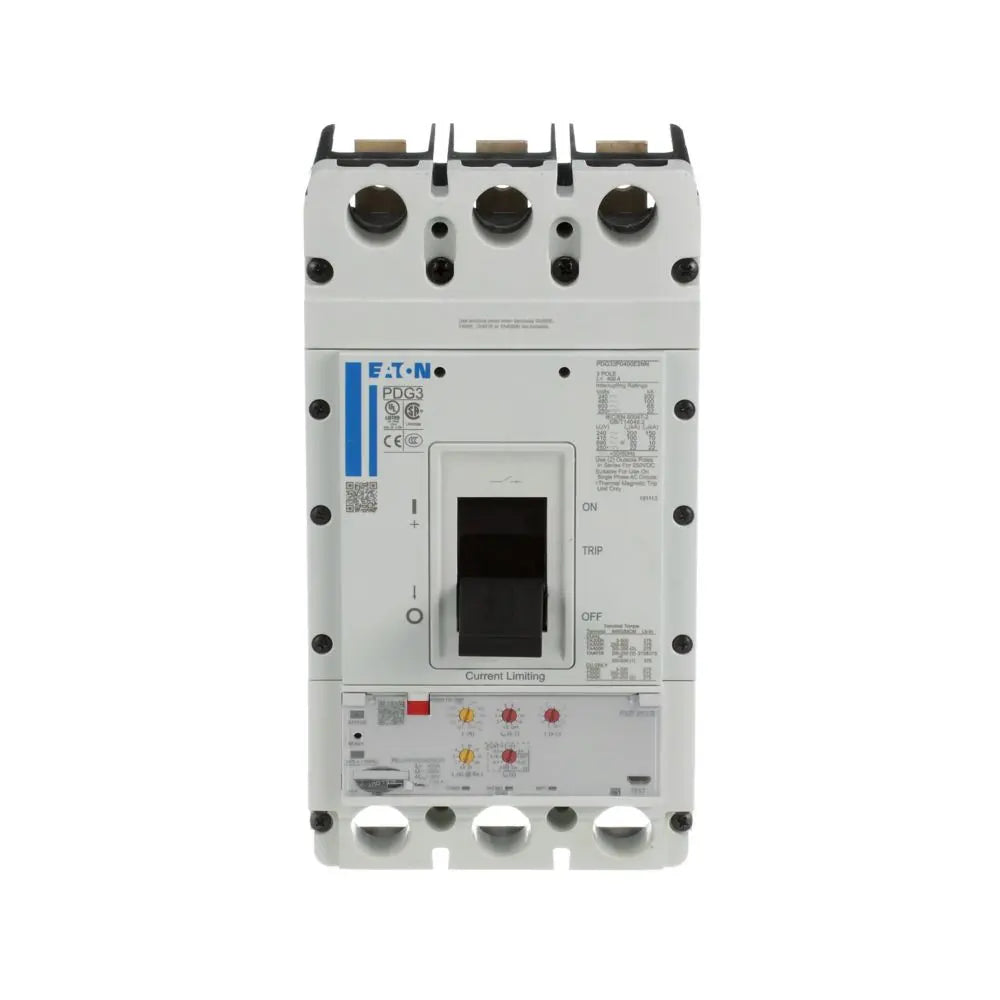

PDG33M0400E2NL is a 400 Amp, 600 Volt, 3 Pole molded case circuit breaker from Eaton Cutler Hammer's Power Defense series with PXR20 LSI electronic trip unit.

This complete breaker features a Frame 3 size, 65kA interrupt rating at 480V, and standard load-only lugs. It is globally rated for 690V IEC and designed for reliable protection with a Power Xpert release and electronic trip with long-time, short-time, and instantaneous (LSI) protection. The breaker measures approximately 12.55 in x 5.55 in x 5.25 in and is suitable for demanding industrial and commercial applications.

Key Specifications
• Amperage: 400A
• Voltage Rating: 600VAC (690V IEC)
• Poles: 3
• Frame Size: 3
• Interrupt Rating: 65kA at 480V
• Trip Unit: PXR20 LSI Electronic Trip
• Mounting Type: Bolt-On
• Terminals: Standard Load Only Lugs
• Global Certifications: IEC and UL Listed
• Dimensions: 12.55 x 5.55 x 5.25 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG33M0400E2NL
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long Time, Short Time and Instantaneous Trip
• Protection : Solid State

Product Data

• UPC : 786679791141
• Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
• Weight : 13.2016
