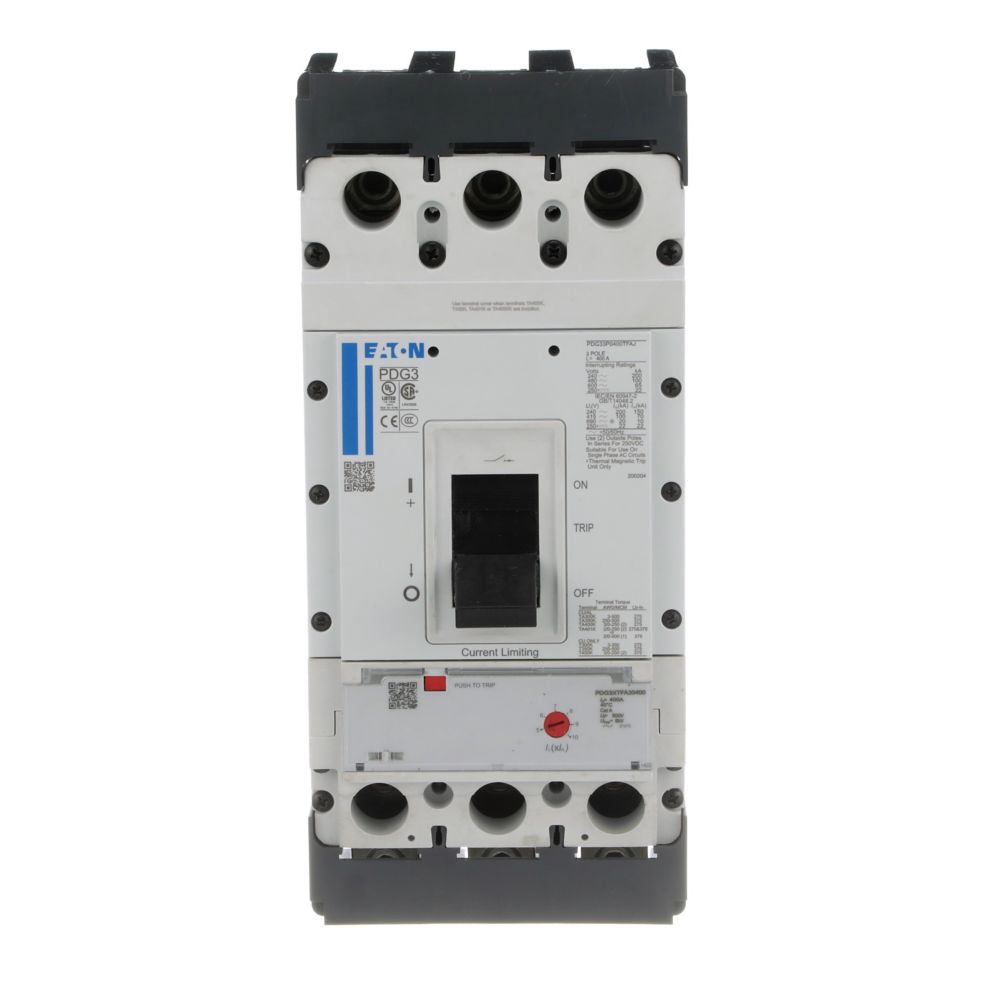

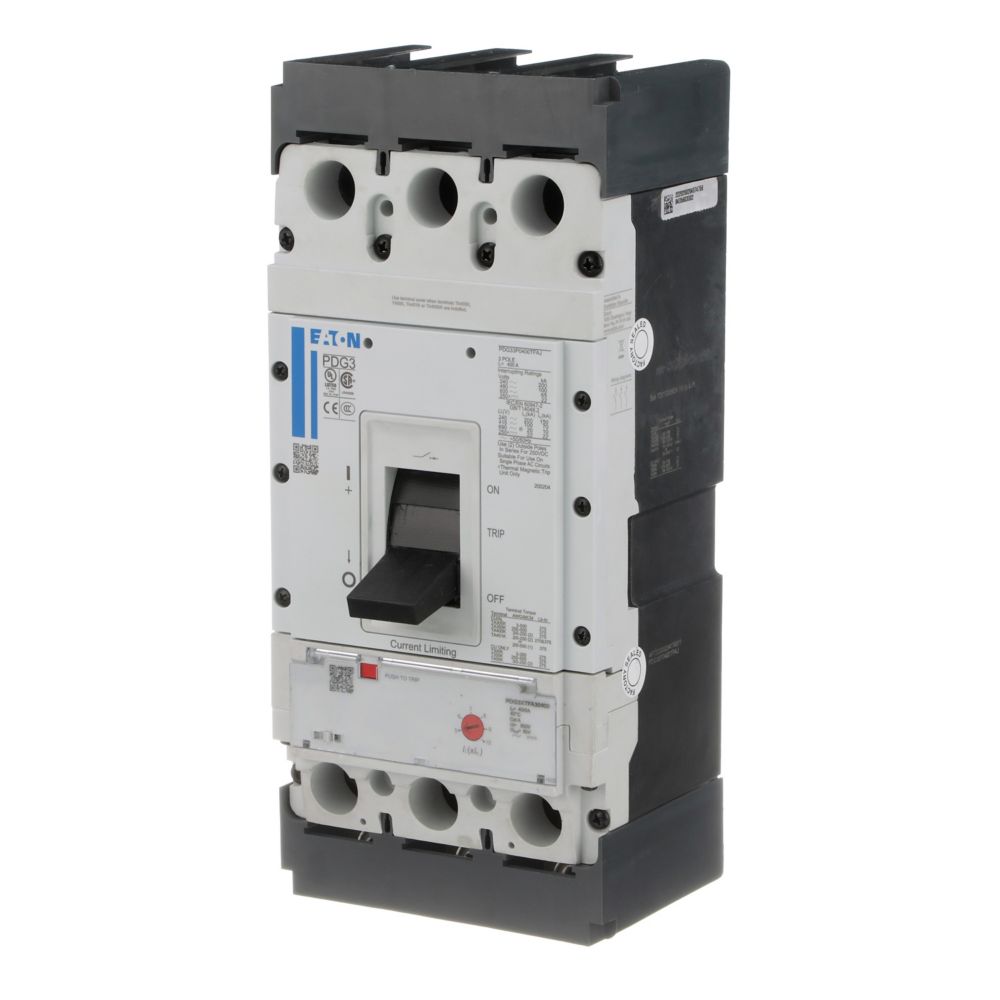

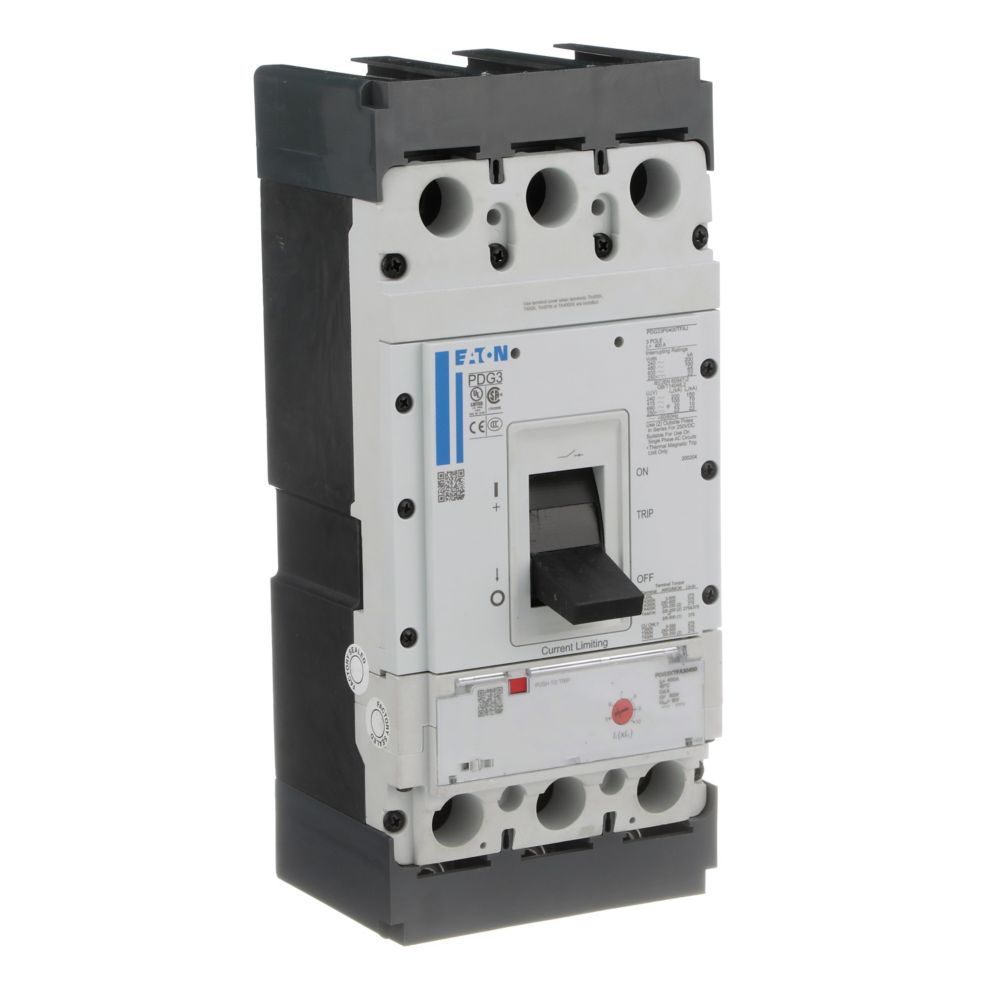

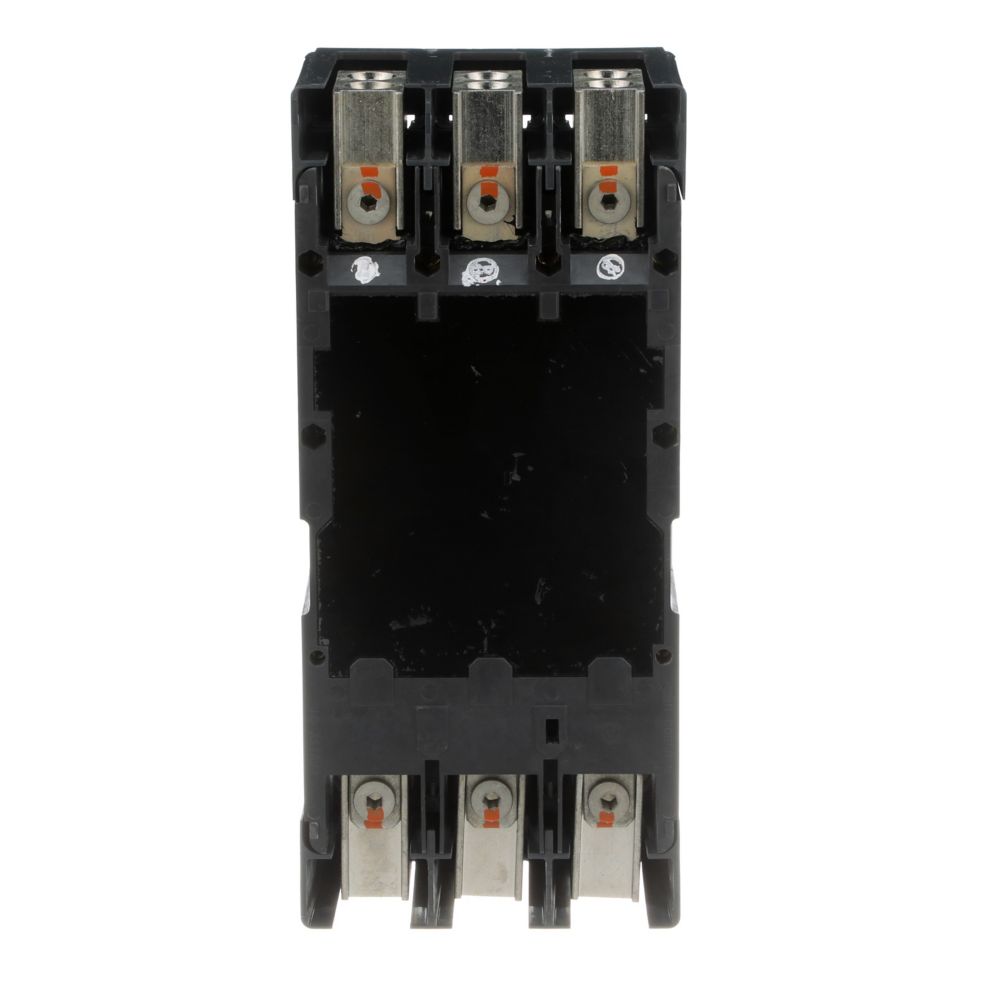

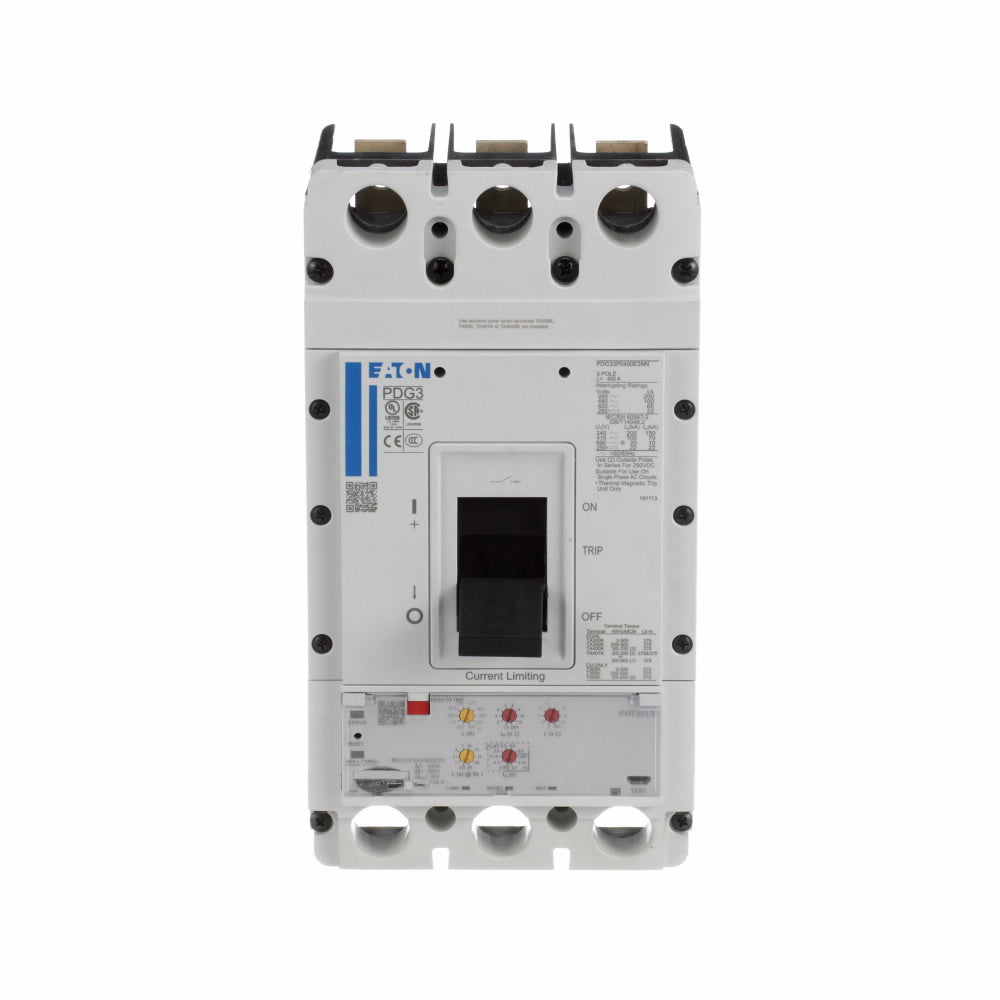

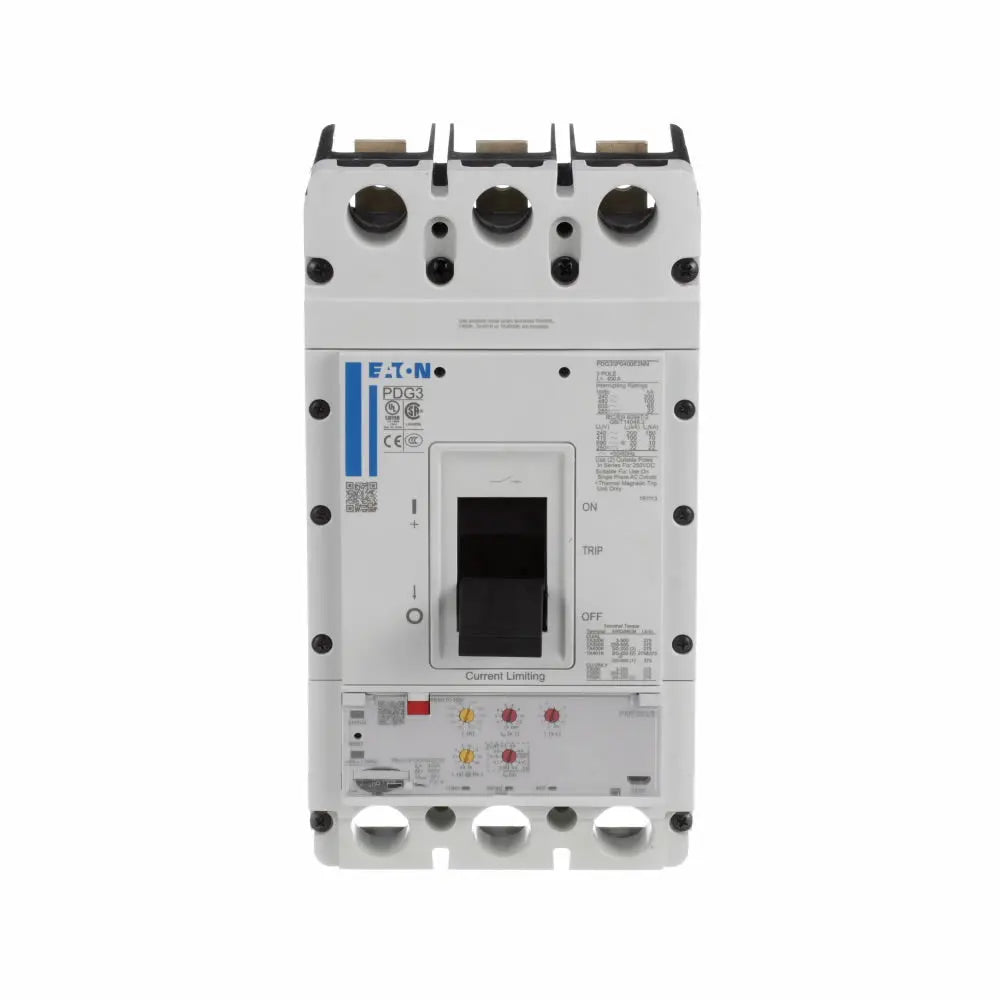

PDG33M0400E2NJ - Eaton 400 Amp 600 VAC 3 Pole Molded Case Circuit Breaker Frame 3 PXR 20 LSI Trip

PDG33M0400E2NJ

PDG33M0400E2NJ is a 400 Amp, 600 VAC, 3 Pole molded case circuit breaker from Eaton's Power Defense series with Frame 3 and PXR 20 LSI trip unit.This Eaton circuit breaker features a 65 kA interrupt rating at 480 VAC, fixed/plug-in/drawout mounting options, and complies with UL 489, CSA, IEC, and CCC certifications. It includes advanced Power Xpert Release trip units offering breaker health monitoring, load alarms, ground fault alarm, and arc flash reduction for enhanced safety and maintenance. Embedded communications and metering reduce installation costs and improve system performance.

Key Specifications
• Amperage: 400 Amp
• Voltage Rating: 600 VAC
• Poles: 3
• Frame: 3
• Interrupt Rating: 65 kA at 480 VAC
• Trip Unit: PXR 20 LSI electronic trip
• Mounting Type: Fixed/Plug-In/Drawout
• Certifications: UL 489, CSA, IEC, CCC
• Series: Power Defense (PDG3)
• Weight: Approx. 13 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG33M0400E2NJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 78667951529
• GTIN : 00786679515297
• Country of Origin : Dominican Republic
• Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
• Weight : 13.2016
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
