PDG33M0200TFAJ - Eaton 200A 600VAC 3-Pole Power Defense Molded Case Circuit Breaker

PDG33M0200TFAJ

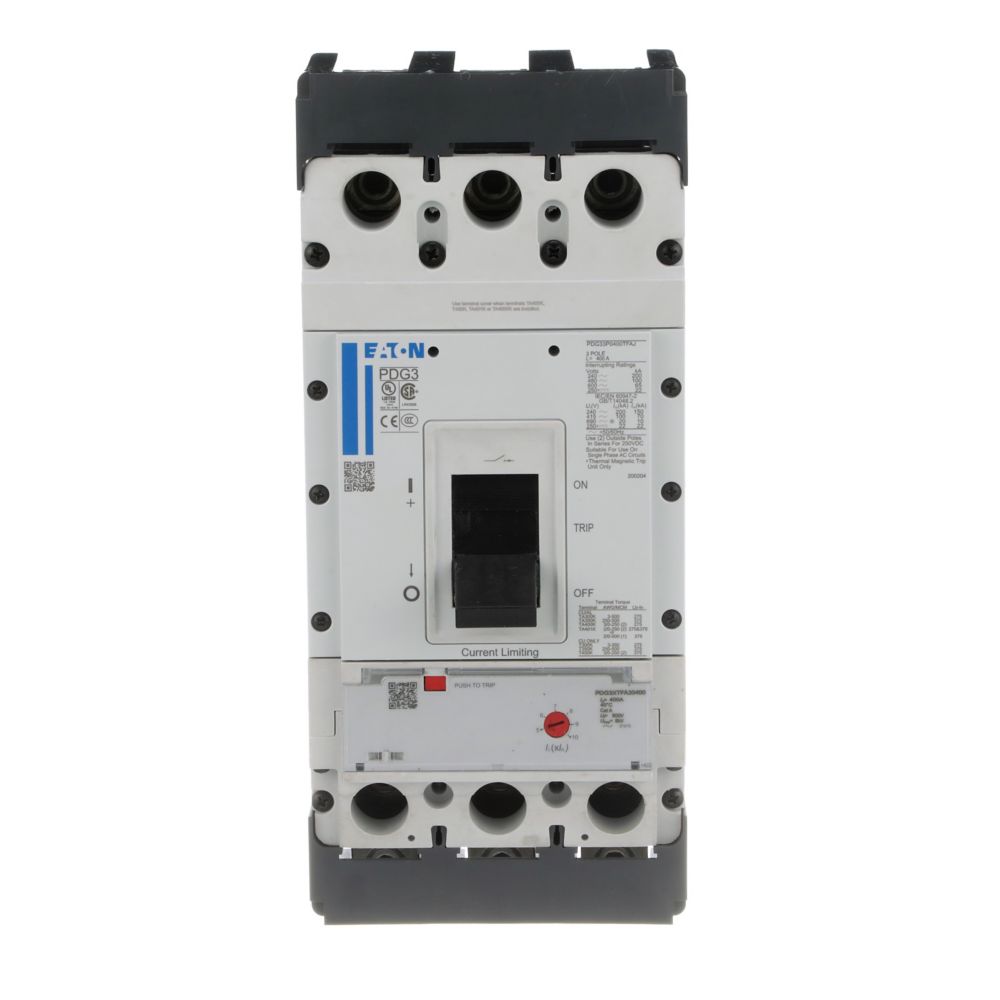

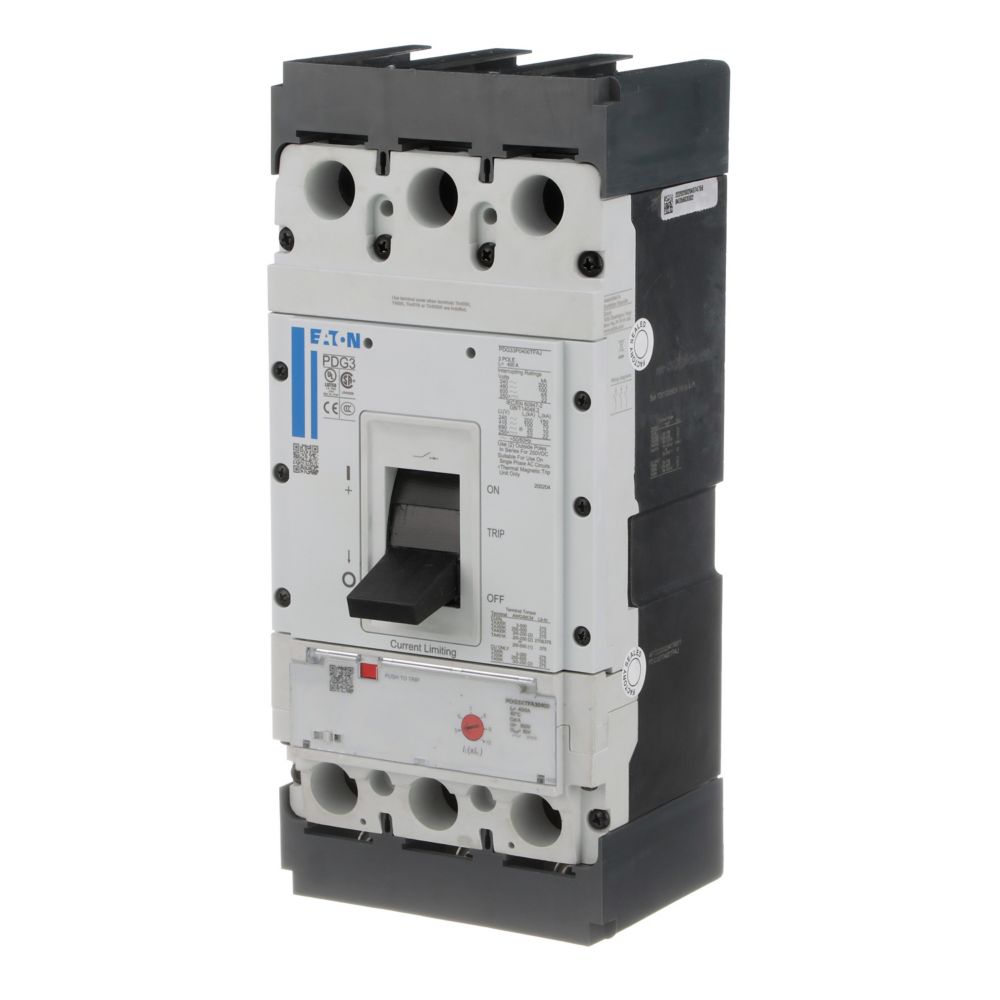

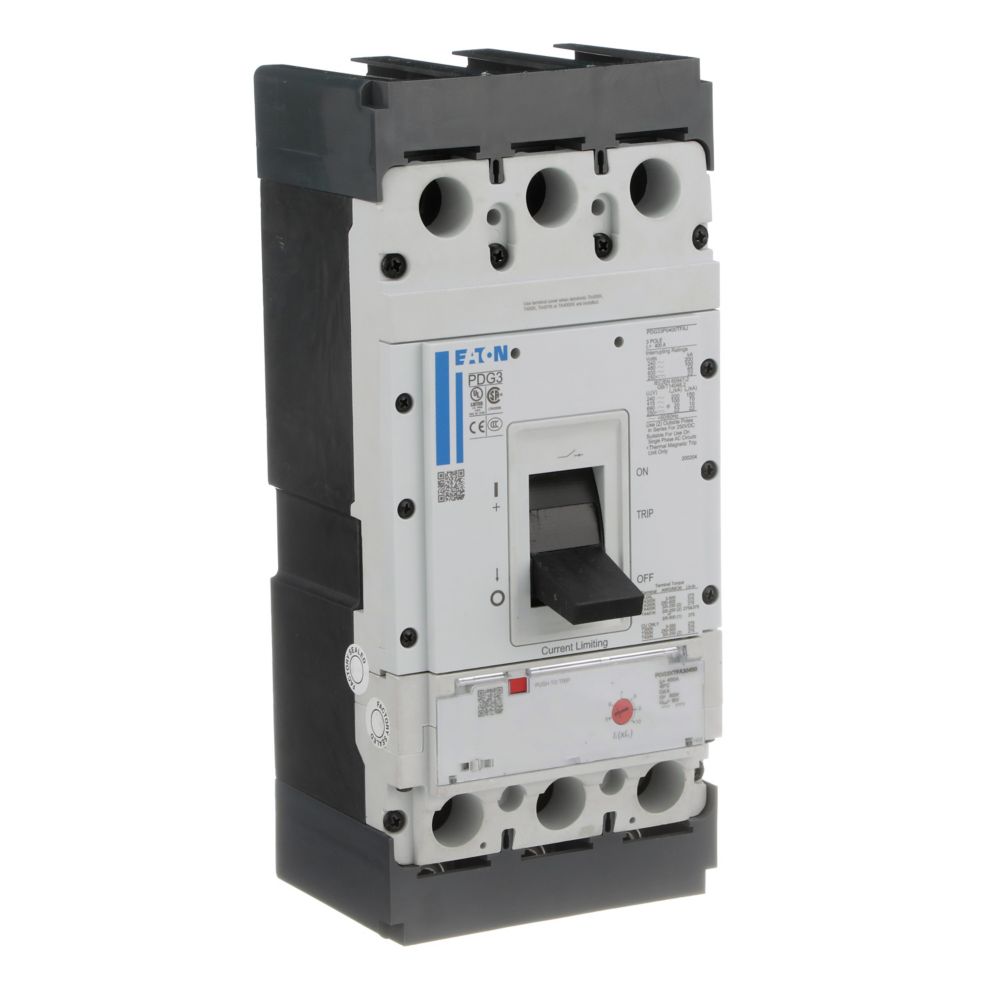

PDG33M0200TFAJ is a 3-pole Eaton Power Defense molded case circuit breaker rated for 200 amps and 600 volts AC.

This circuit breaker features a thermal magnetic trip unit with long time and instantaneous functions, a 65kA interrupting rating at 480VAC, and panel mounting with line and load side lug connections. It is UL, CSA, IEC, CCC, and CE certified, designed for reliable protection in industrial and commercial power distribution applications.

Key Specifications
• Amperage: 200 A
• Voltage Rating: 600 VAC
• Poles: 3
• Interrupting Rating: 65kA at 480 VAC
• Mounting Type: Panel mount
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous functions

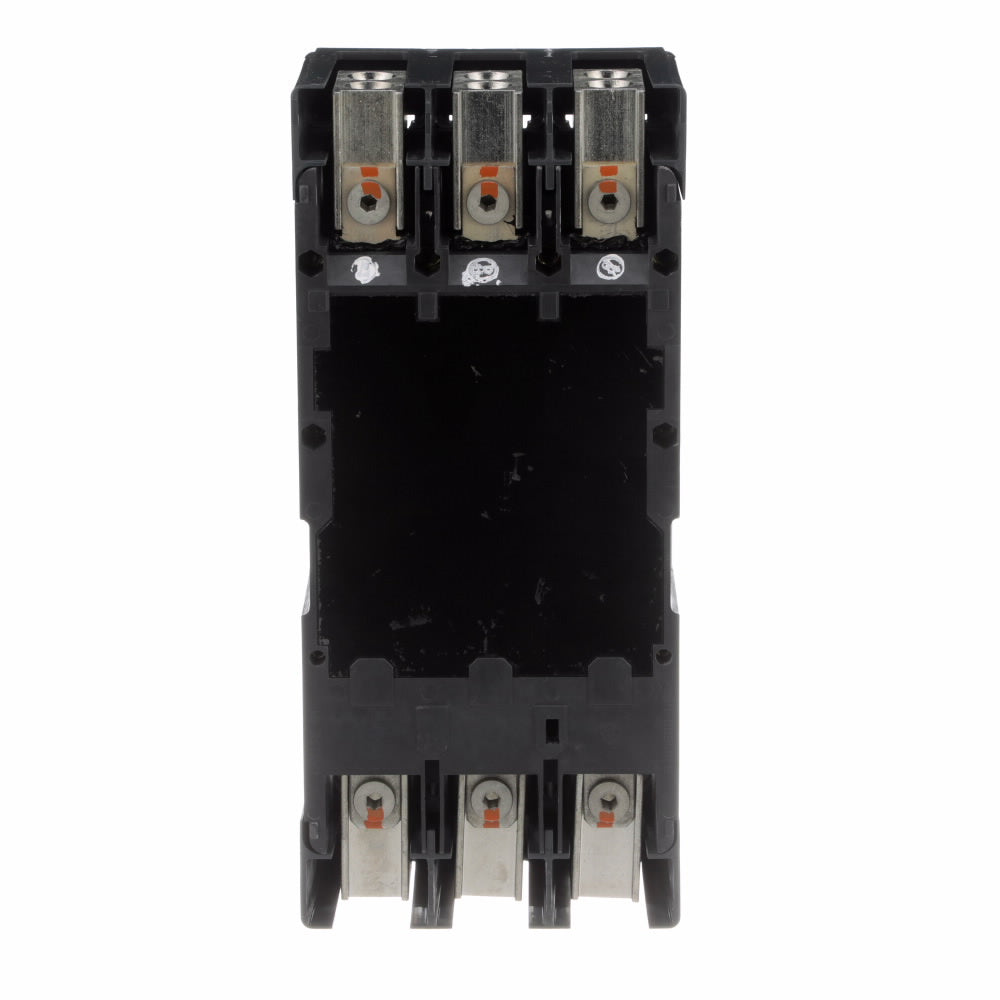

• Connection Type: Feed-Thru with line and load side lugs
• Series/Frame: Power Defense, Frame 3
• Certifications: UL, CSA, IEC, CCC, CE
• Standards: RoHS compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG33M0200TFAJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679471630
• Country of Origin : Dominican Republic
• Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
• Weight : 12.5103
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
