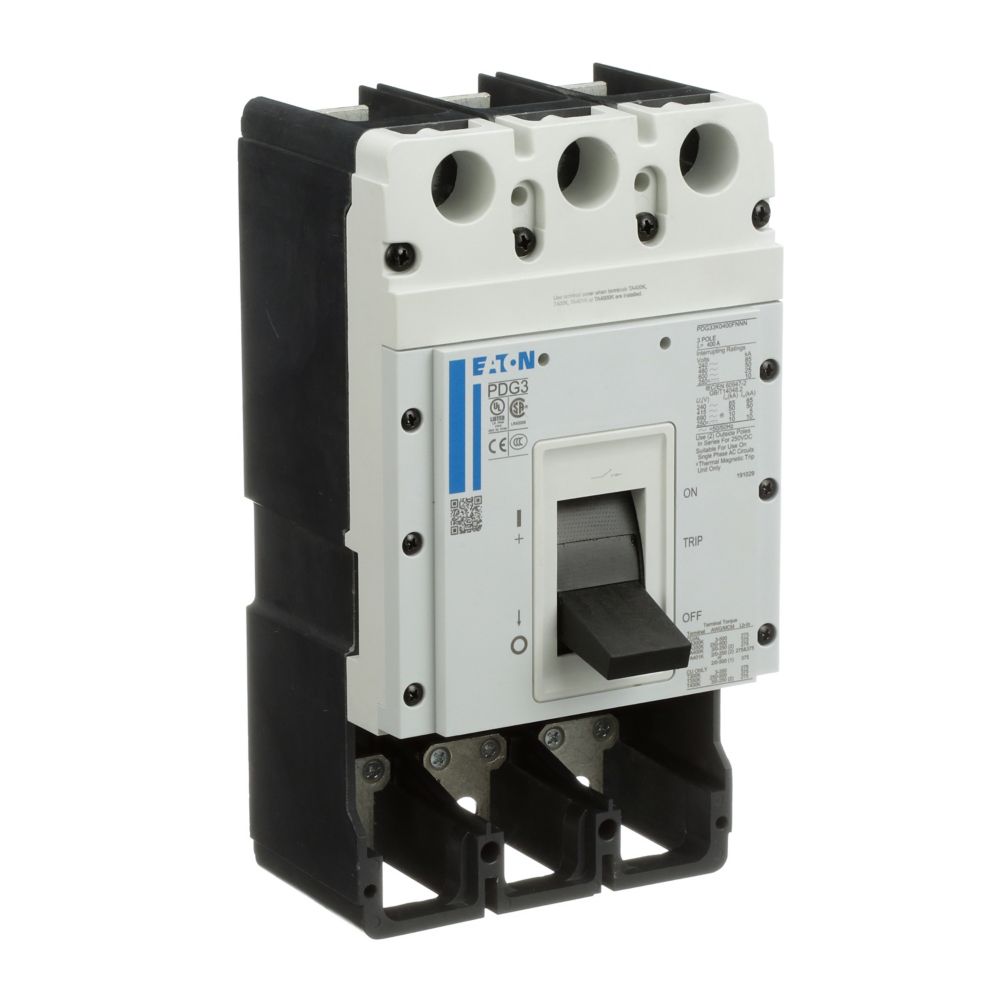

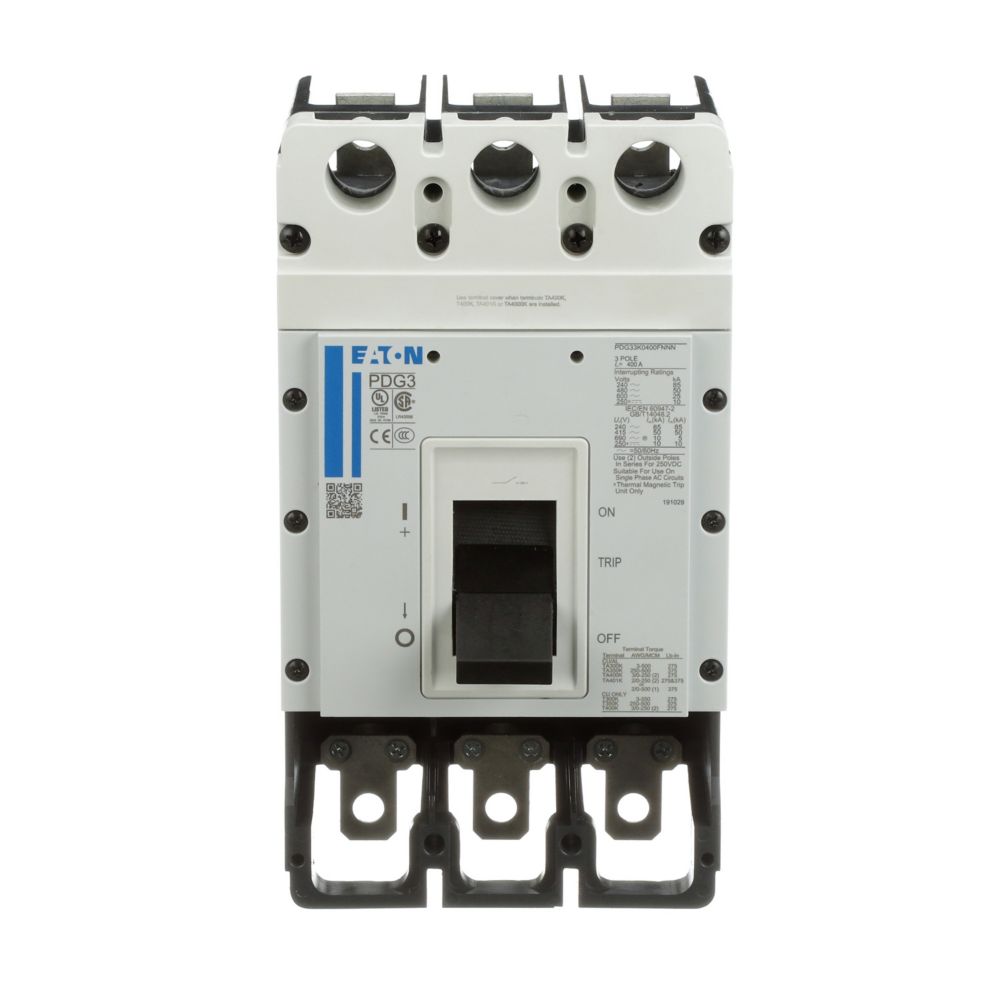

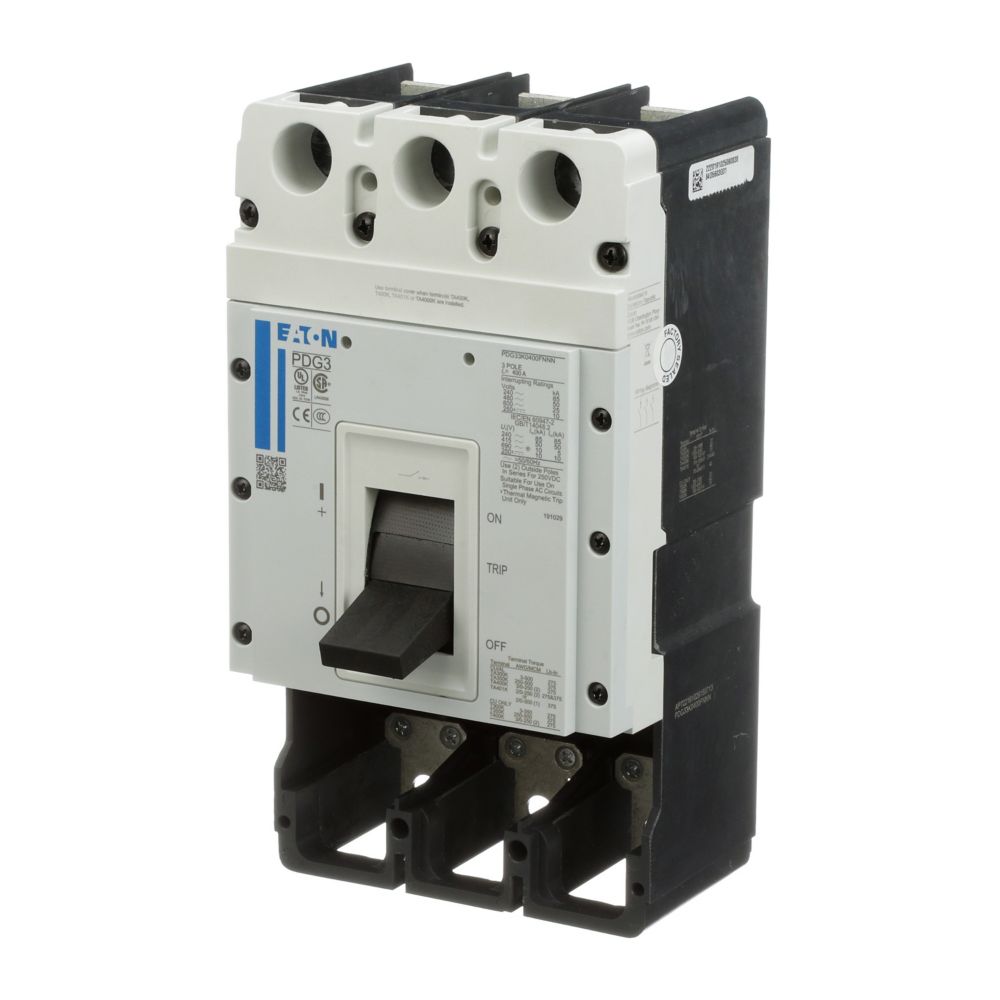

PDG33G0400FNNN - Eaton Power Defense 400A 600VAC 3 Pole Molded Case Circuit Breaker Frame 3

PDG33G0400FNNN

PDG33G0400FNNN is a 3 pole, 400 amp, 600 VAC molded case circuit breaker from Eaton's Power Defense series designed for panel mounting.This Eaton circuit breaker features thermal magnetic protection with long time and instantaneous trip functions. It has a 35kA interrupting rating at 480 VAC and a bolt-on connection type. The breaker is Frame 3 size, UL, CSA, CCC, IEC, and CE certified, and RoHS compliant. It is supplied as frame only with no terminals included.

Key Specifications
• Amperage: 400 Amps
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Type: 3
• Interrupt Rating: 35kA at 480 VAC
• Mounting Type: Panel Mount
• Connection Type: Bolt-On
• Protection: Thermal Magnetic
• Trip Functions: Long Time and Instantaneous (LI)
• Certifications: UL, CSA, CCC, IEC, CE
• Standards: RoHS Compliant
• Circuit Breaker Type: PD3 Global Power Defense

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG33G0400FNNN
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 400
• AIC rating : 35kA@480V
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 78667925112
• GTIN : 00786679251126
• Dimensions : 109.1 mm x 171.45 mm x 138.9 mm (Length/Depth x Height x Width)
• Weight : 10.42867818
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
