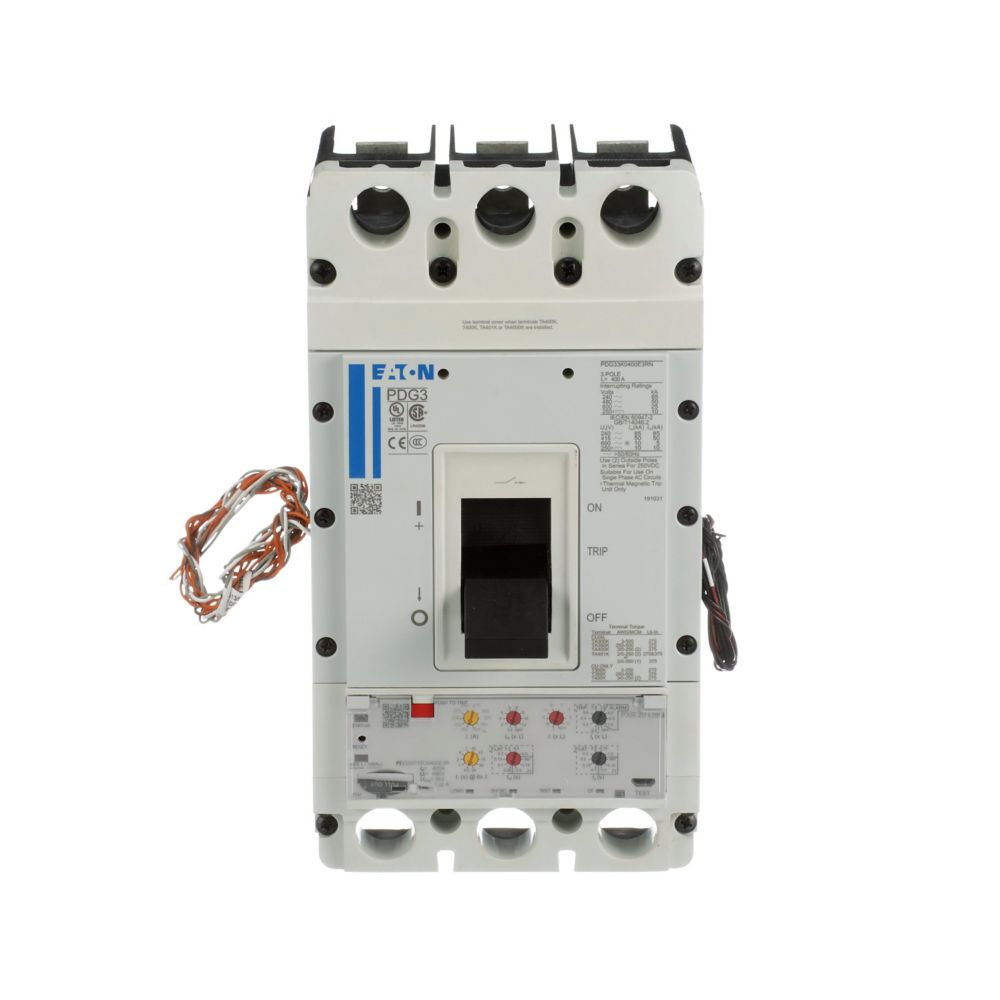

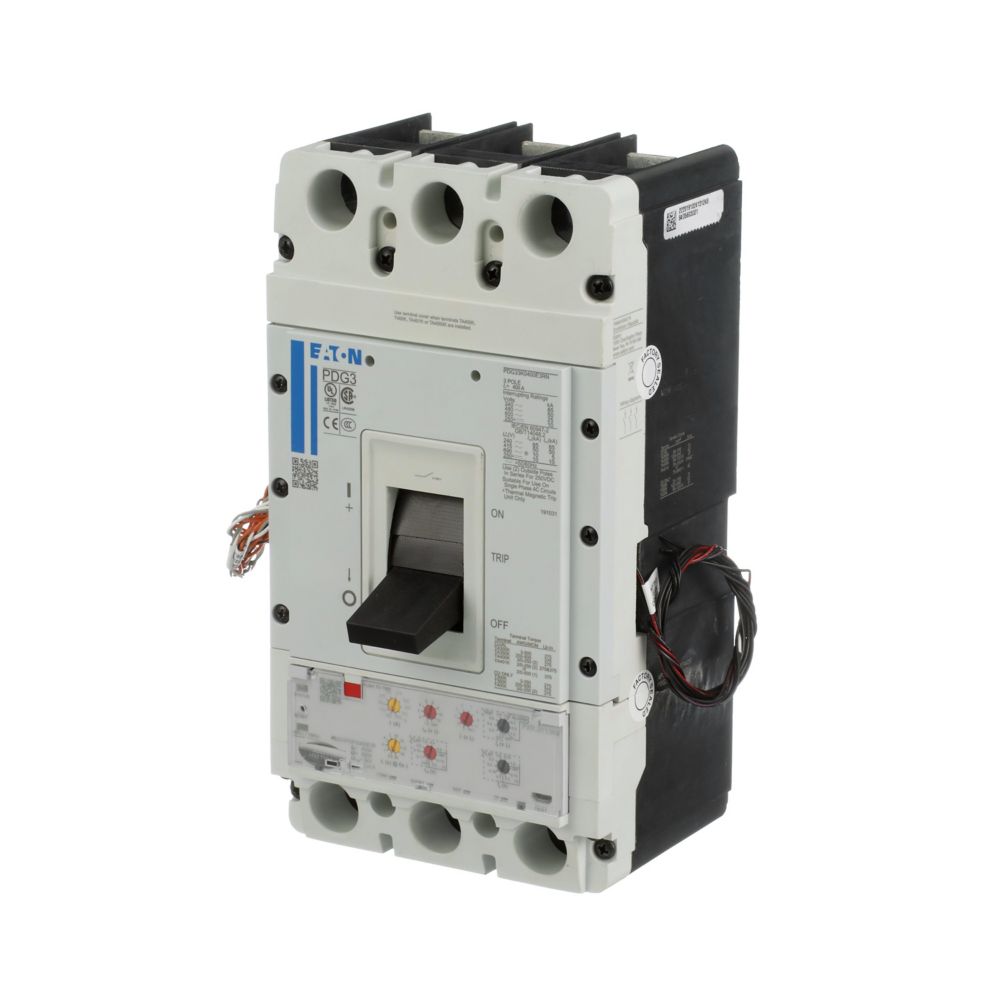

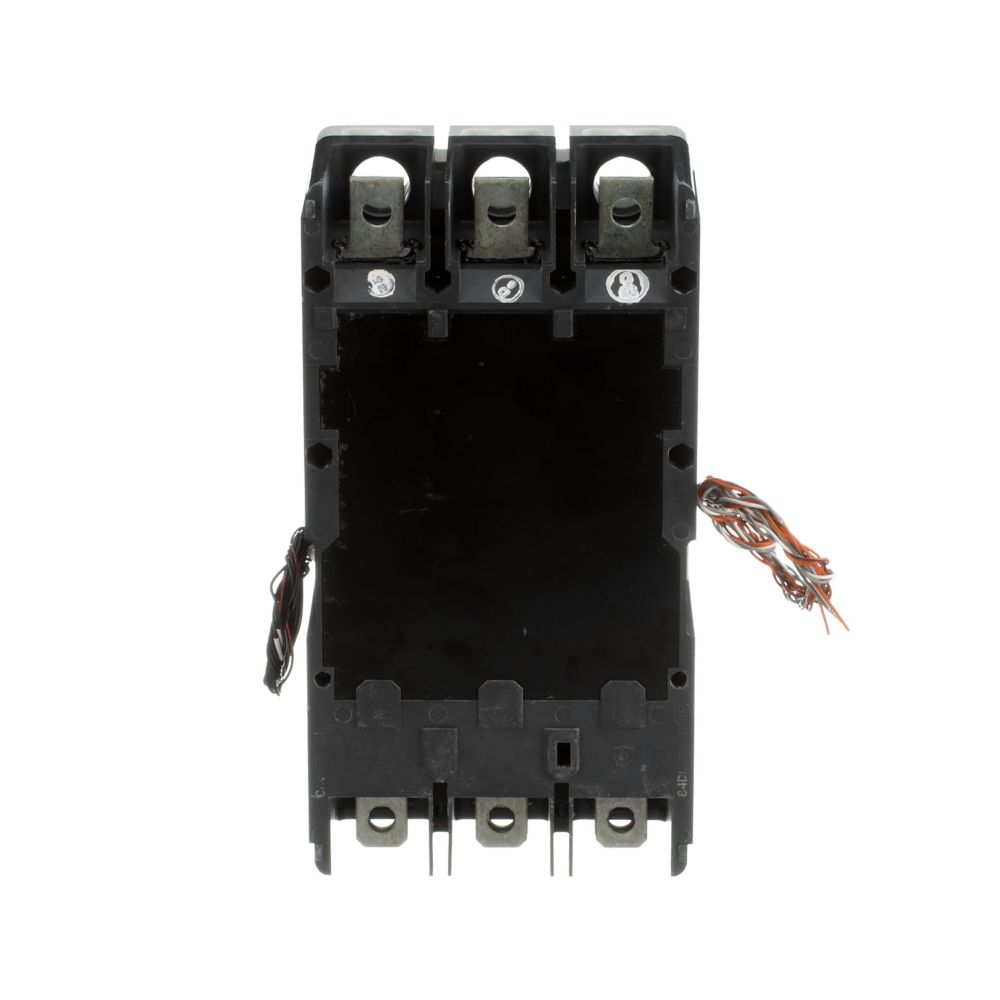

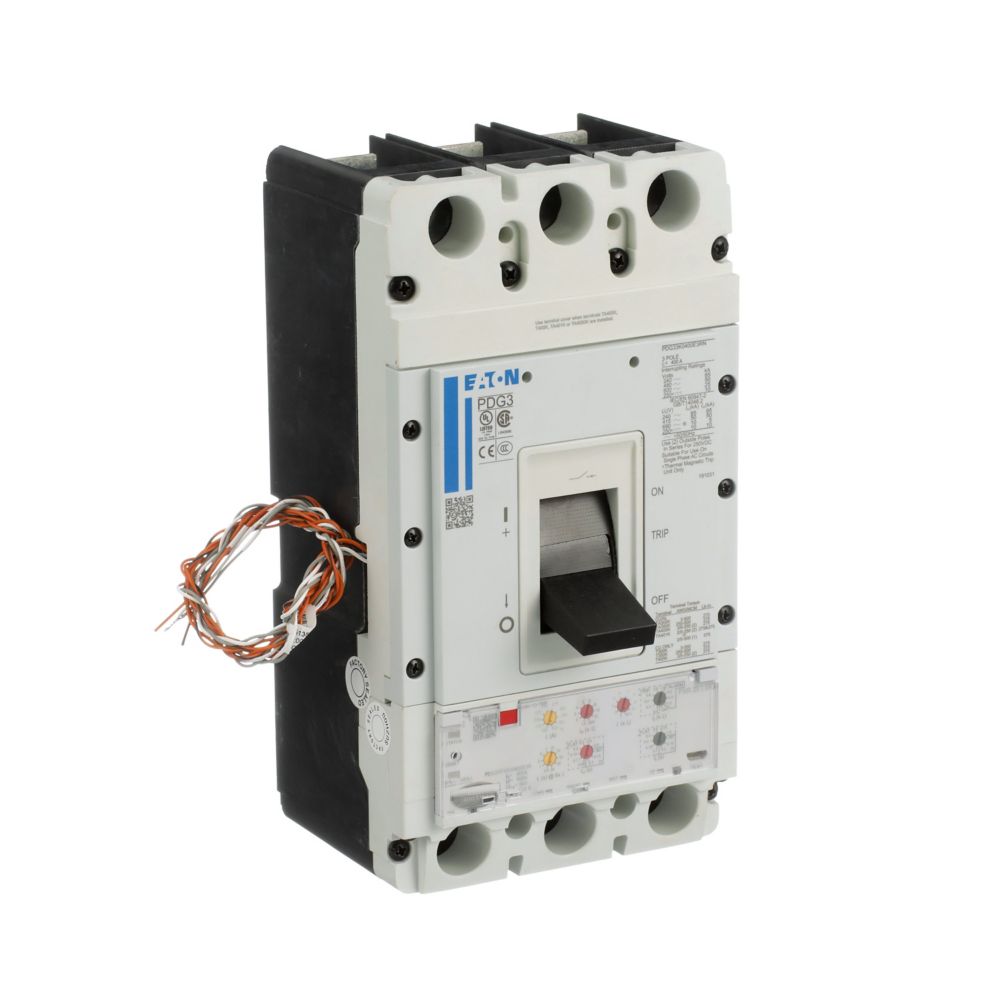

PDG33G0400E3MJ - Eaton 400A 600V 3 Pole 35kA Power Defense PD3 Global Frame Circuit Breaker, PXR20 LSIG Trip Unit, RoHS, IEC 60947-2

PDG33G0400E3MJ

PDG33G0400E3MJ is an Eaton Power Defense molded case circuit breaker designed for robust electrical protection in commercial and industrial applications.

This 3-pole, 400 amp breaker features a 600V AC voltage rating and a 35kA interrupt rating at 480V. It is built on the PD3 Global frame and comes complete with a PXR20 LSIG electronic trip unit for advanced protection. The breaker is RoHS compliant and certified to IEC 60947-2, ensuring international safety and environmental standards are met.

Key Specifications
• Amperage: 400A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Complete breaker (ready to install)
• Interrupt Rating: 35kA at 480V
• Series/Frame: Power Defense, PD3 Global
• Trip Unit: PXR20 LSIG (Long, Short, Instantaneous, Ground Fault)
• Communication: Modbus RTU
• Class: Class A
• Certifications: RoHS Compliant, IEC 60947-2
• Product Height: 257.1 mm
• Product Weight: 5.92 kg

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG33G0400E3MJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground fault Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679470411
• Country of Origin : Dominican Republic
• Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
• Weight : 13.2016
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
