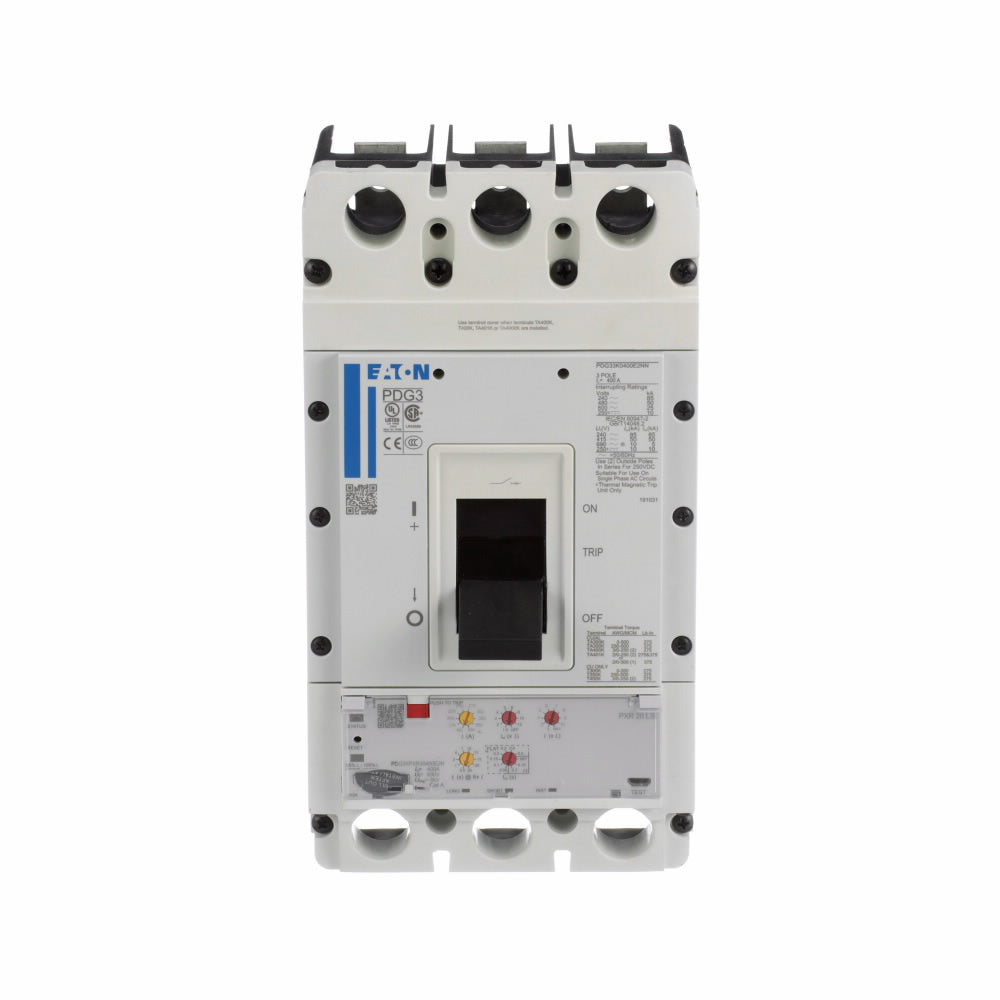

PDG33G0400E2NJ - Eaton 400A 600V 3 Pole Power Defense Circuit Breaker 35kA@480V

PDG33G0400E2NJ

PDG33G0400E2NJ is a 3 pole, 400 amp, 600V Power Defense molded case circuit breaker designed for reliable protection in commercial and industrial applications. This Eaton circuit breaker features a globally rated frame 3 design, 35kA interrupt rating at 480V, and is equipped with a PXR20 LSI trip unit for precise overload and short-circuit protection. The breaker is feed-thru style, suitable for standard line and load terminal connections, and is UL listed for safety and compliance.

• Part Number: PDG33G0400E2NJ
• Manufacturer: Eaton
• Series: Power Defense PD3 Global
• Frame: 3
• Amperage Rating: 400A
• Voltage Rating: 600V AC
• Poles: 3
• Interrupt Rating: 35kA @ 480V
• Mounting Type: Feed-Thru
• Terminal Type: Standard Line/Load
• Tripping Unit: PXR20 LSI
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG33G0400E2NJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 78667948526
• GTIN : 00786679485262
• Country of Origin : Dominican Republic
• Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
• Weight : 13.2016
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
