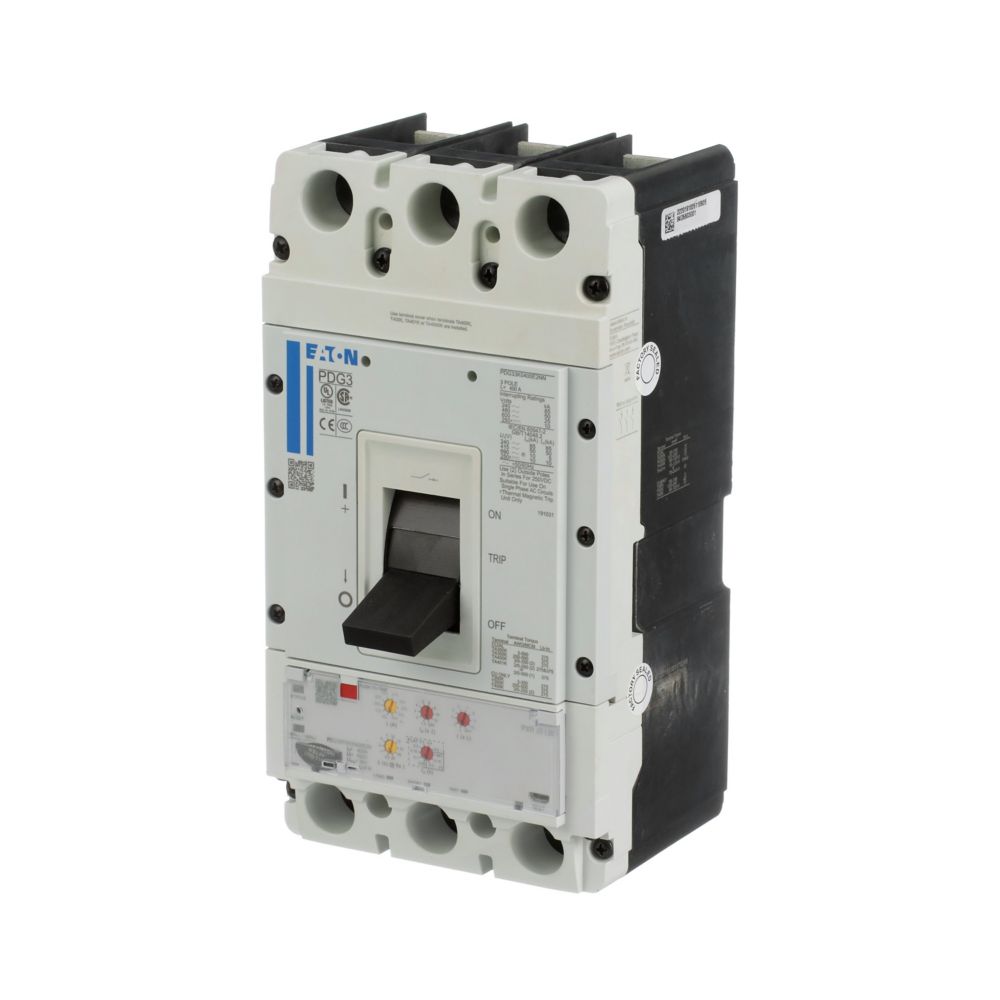

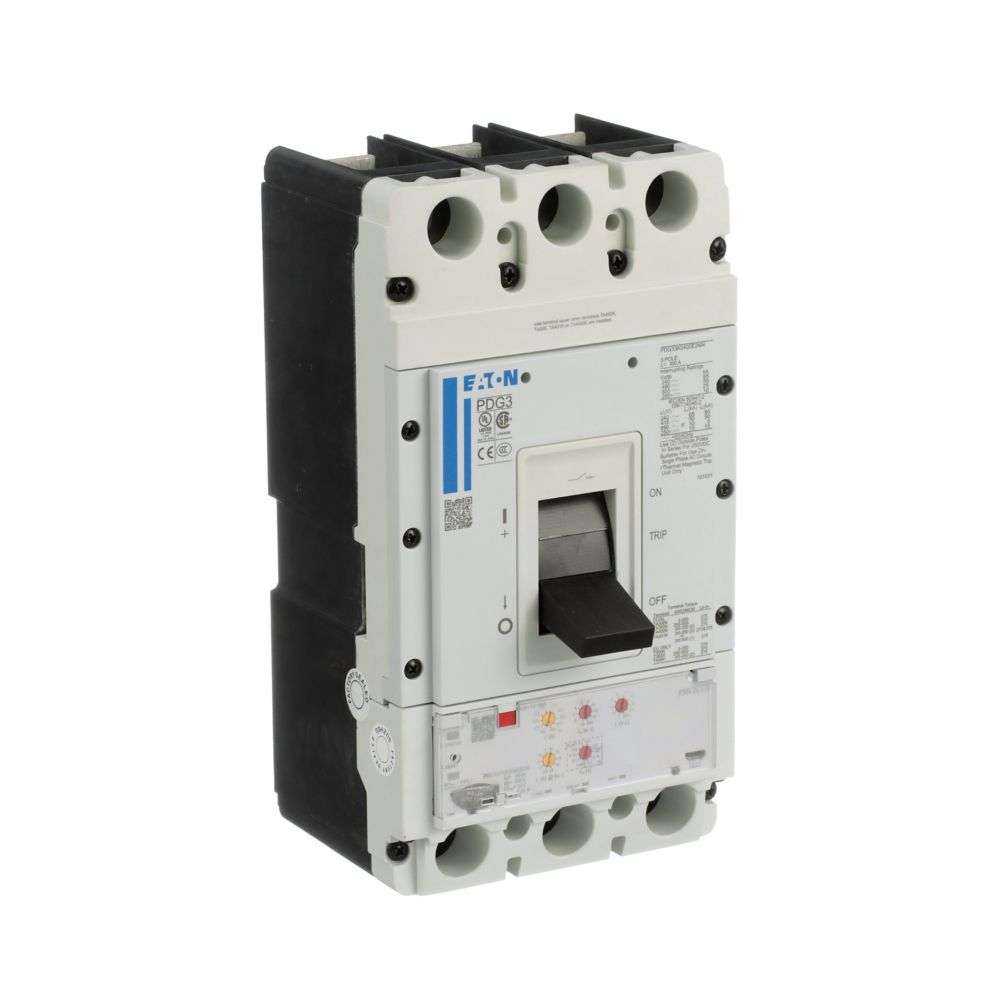

PDG33G0400E2MJ - Cutler Hammer Eaton Power Defense 400A 600V 3P 35kA@480V Feed-Thru Molded Case Circuit Breaker PDG3 Frame PXR20 LSI Trip

PDG33G0400E2MJ

PDG33G0400E2MJ is a Cutler Hammer (Eaton) Power Defense series molded case circuit breaker designed for robust electrical protection in commercial and industrial applications.

This three-pole, feed-thru style breaker features a 400A amperage rating, 600V AC voltage rating, and a 35kA interrupt rating at 480V. It is part of the PDG3 frame series and is equipped with a PXR20 LSI electronic trip unit for precise protection. The breaker is globally rated, includes Modbus RTU and relay options, and meets industry standards for safety and performance.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 400A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Feed-Thru
• Interrupt Rating: 35kA at 480V
• Series/Frame: PDG3
• Trip Unit: PXR20 LSI (Long, Short, Instantaneous)
• Certifications: UL Listed, globally rated
• Material: Glass polyester
• Terminals: Standard line and load
• Communication: Modbus RTU and relays (optional)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG33G0400E2MJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long Time, Short Time and Instantaneous Trip
• Protection : Solid State

Product Data

• UPC : 786679524350
• Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
• Weight : 13.2016
