Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG33F0500TFAJ

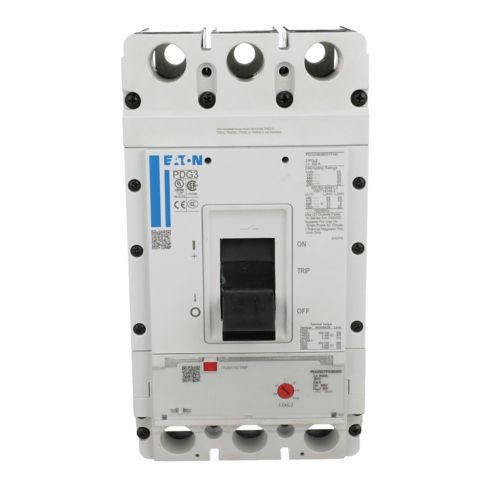

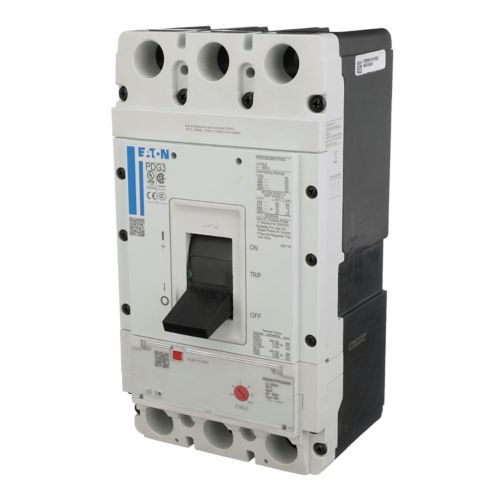

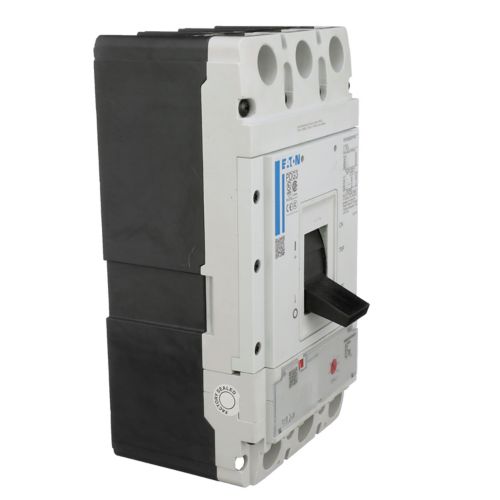

PDG33F0500TFAJ is a 3 pole, 500A, 600V molded case circuit breaker from Eaton's Power Defense series, designed for reliable protection in commercial and industrial power distribution systems. This Eaton Power Defense circuit breaker features a thermal-magnetic trip unit, globally rated frame, and a 25kAIC interrupt rating at 480V, making it suitable for a wide range of applications requiring robust overcurrent protection. The breaker is designed for standard line and load terminal connections and is part of the globally recognized Power Defense family.
- Part Number: PDG33F0500TFAJ
- Manufacturer: Eaton (Cutler-Hammer)
- Series: Power Defense
- Frame: 3
- Poles: 3
- Amperage: 500A
- Voltage: 600VAC
- Interrupt Rating: 25kAIC at 480V
- Mounting Type: Standard
- Trip Unit: Thermal-Magnetic (Fixed-Adjustable)
- Terminal Type: Standard Line/Load
- Certifications: Globally Rated
Specifications
- Part Number: PDG33F0500TFAJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 500
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 786679571828
- Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
- Weight : 12.5103
