Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG33F0400TFAJ

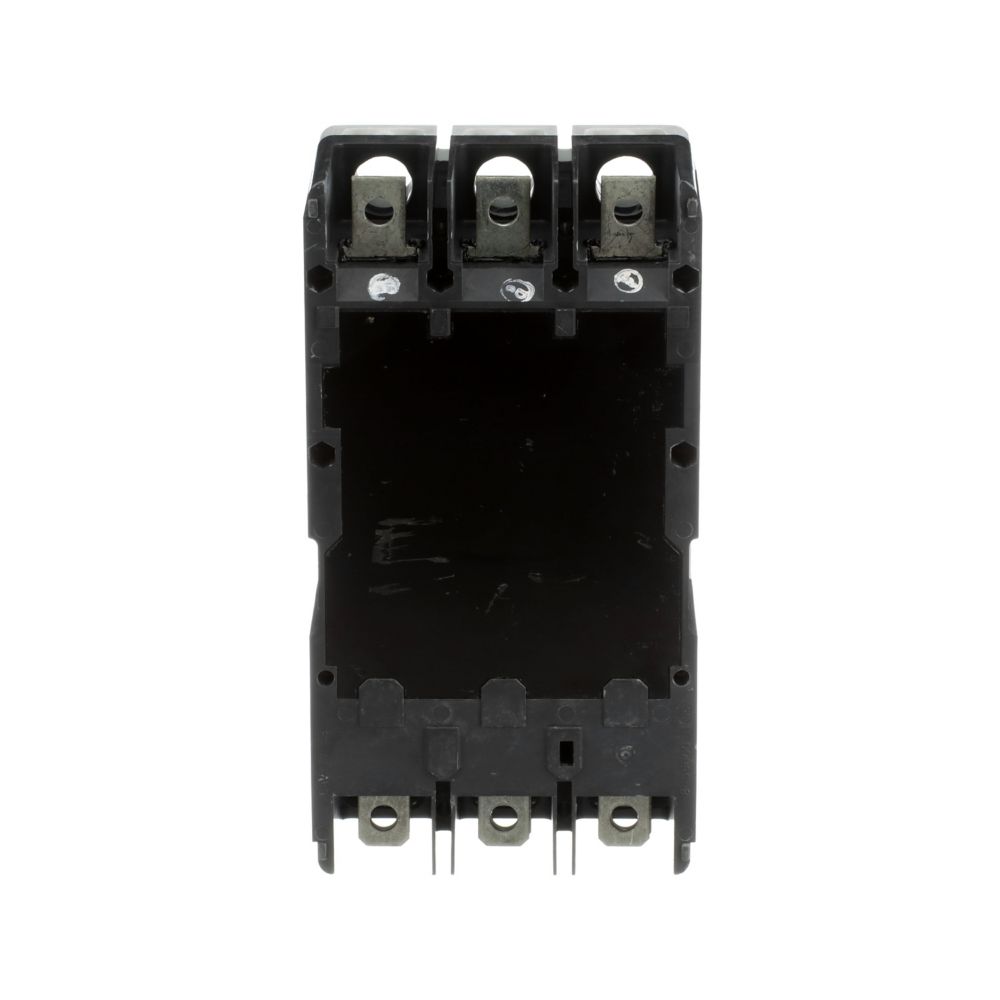

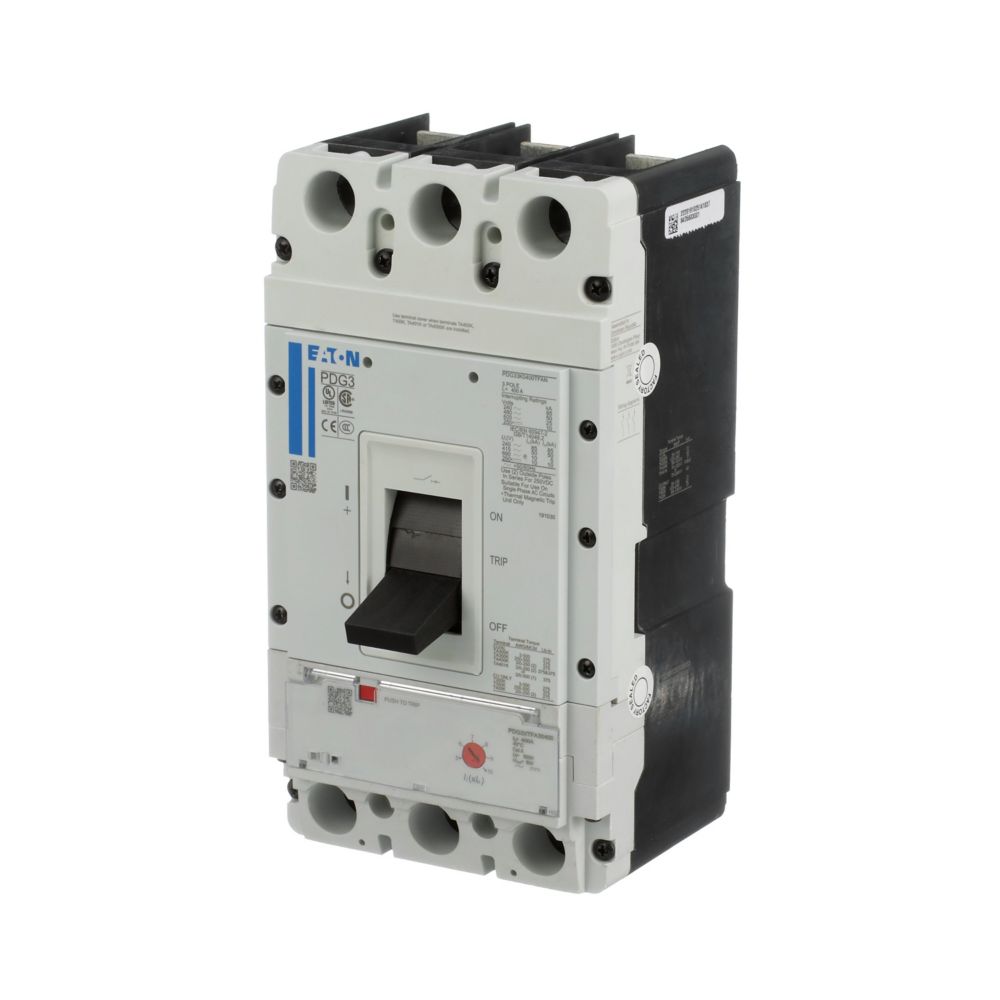

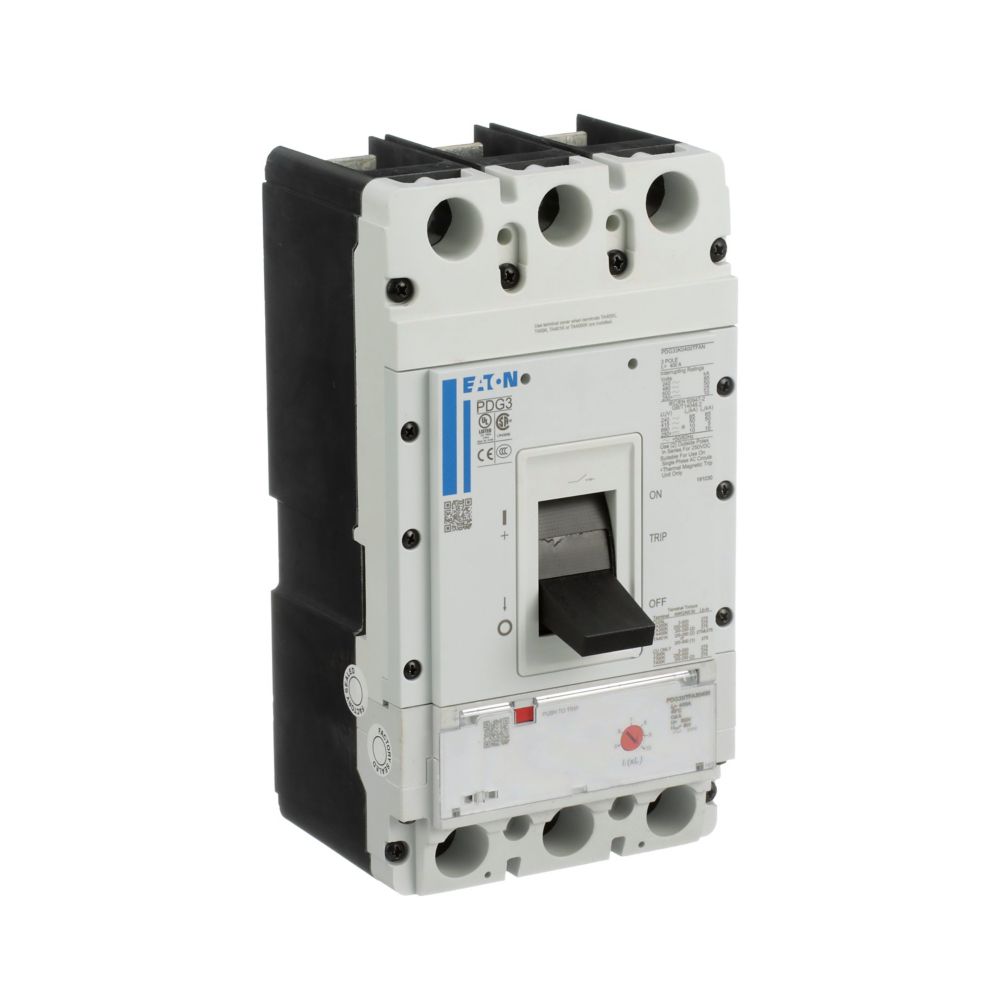

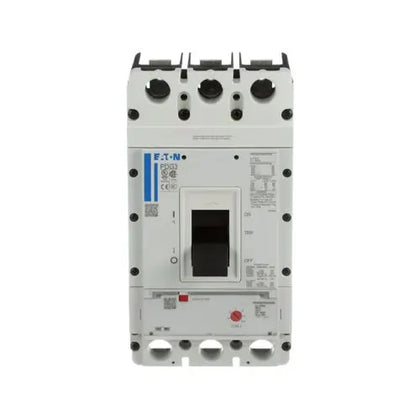

PDG33F0400TFAJ is a 3 pole molded case circuit breaker from Eaton's Power Defense series, rated for 400A and 600VAC with a 25kA interrupt rating. This Eaton PDG33F0400TFAJ circuit breaker features a thermal-magnetic trip unit with fixed thermal and adjustable magnetic settings, designed for reliable protection in commercial and industrial power distribution applications. The breaker is constructed with a glass polyester housing and is suitable for fixed mounting in compatible switchgear.
- Part Number: PDG33F0400TFAJ
- Manufacturer: Eaton
- Series/Frame: Power Defense, PDG Frame
- Poles: 3
- Amperage Rating: 400A
- Voltage Rating: 600VAC
- Interrupt Rating: 25kAIC at 480VAC
- Mounting Type: Fixed
- Trip Unit: Thermal-Magnetic, Fixed Thermal/Adjustable Magnetic
- Material: Glass Polyester
- UL Listed: Yes
- Application: Commercial and Industrial Power Distribution
Specifications
- Part Number: PDG33F0400TFAJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679573457
- Country of Origin : Dominican Republic
- Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
- Weight : 12.5103
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
