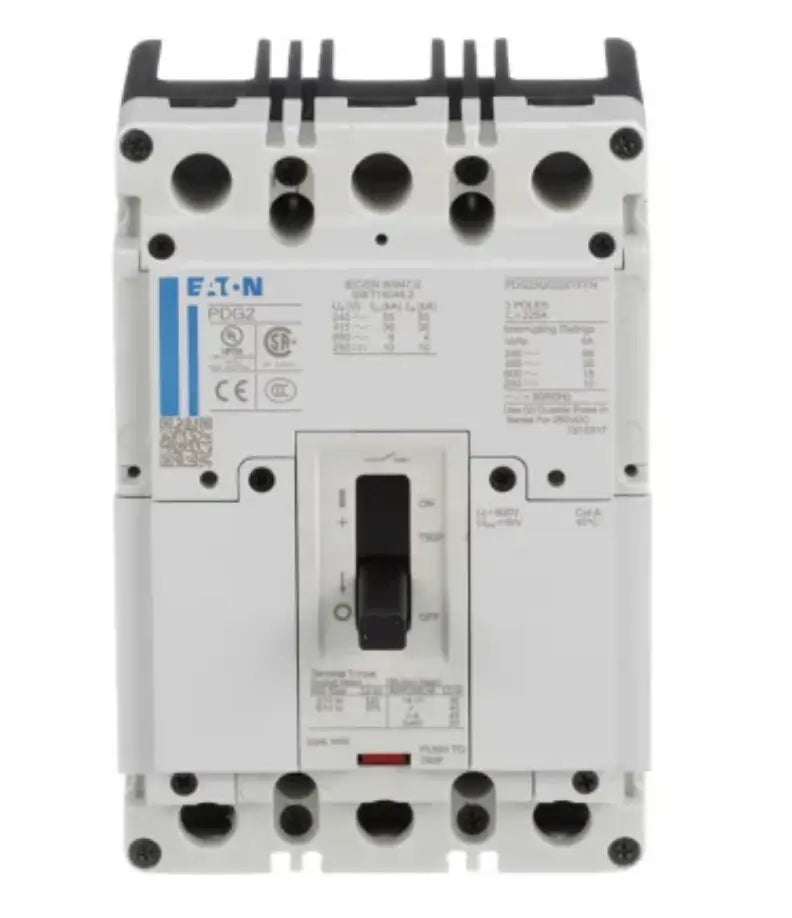

PDG23G0150TFFL - Eaton Power Defense 150A 600VAC 3 Pole Molded Case Circuit Breaker Frame 2 35kAIC

PDG23G0150TFFL

PDG23G0150TFFL is a 150 Amp, 600VAC, 3 Pole molded case circuit breaker from Eaton's Power Defense series designed for reliable circuit protection.This Eaton PDG23G0150TFFL breaker features a Frame 2 design with thermal magnetic protection, long time and instantaneous trip functions, and a 35kA interrupting rating at 480VAC. It supports 3-phase power systems, mounts on a DIN rail, and includes bolt-on connections with standard load side lugs. Certified to UL, CSA, IEC, and CCC standards, it is suitable for motor control centers and complies with RoHS.

• Amperage: 150A
• Voltage Rating: 600VAC, 250VDC
• Poles: 3
• Frame Type: Frame 2 (Power Defense)
• Interrupt Rating: 35kA at 480VAC
• Mounting Type: DIN Rail
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Connection Type: Bolt-On with Standard Load Side Lug
• Certifications: UL 489, CSA, IEC 60947-2, CCC
• Phase: 3
• Temperature Rating: -4 to 158 °F
• Max Wire Size: AWG 1/0

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG23G0150TFFL
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Frame Size : 225A/Frame 2
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679911594
• GTIN : 00786679911594
• Country of Origin : Dominican Republic
• Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
• Weight : 4.0586 lb
• Standards : CCC, CSA, IEC 60947-2, UL 489
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
