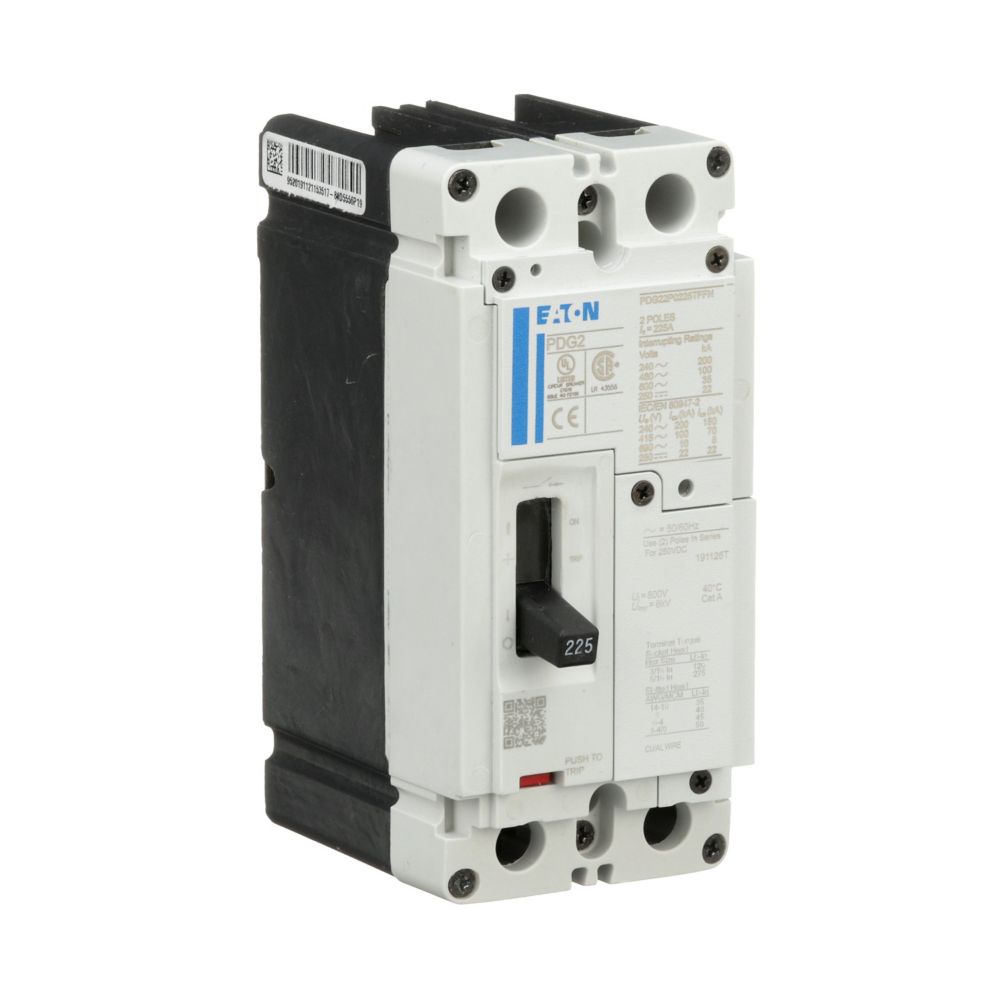

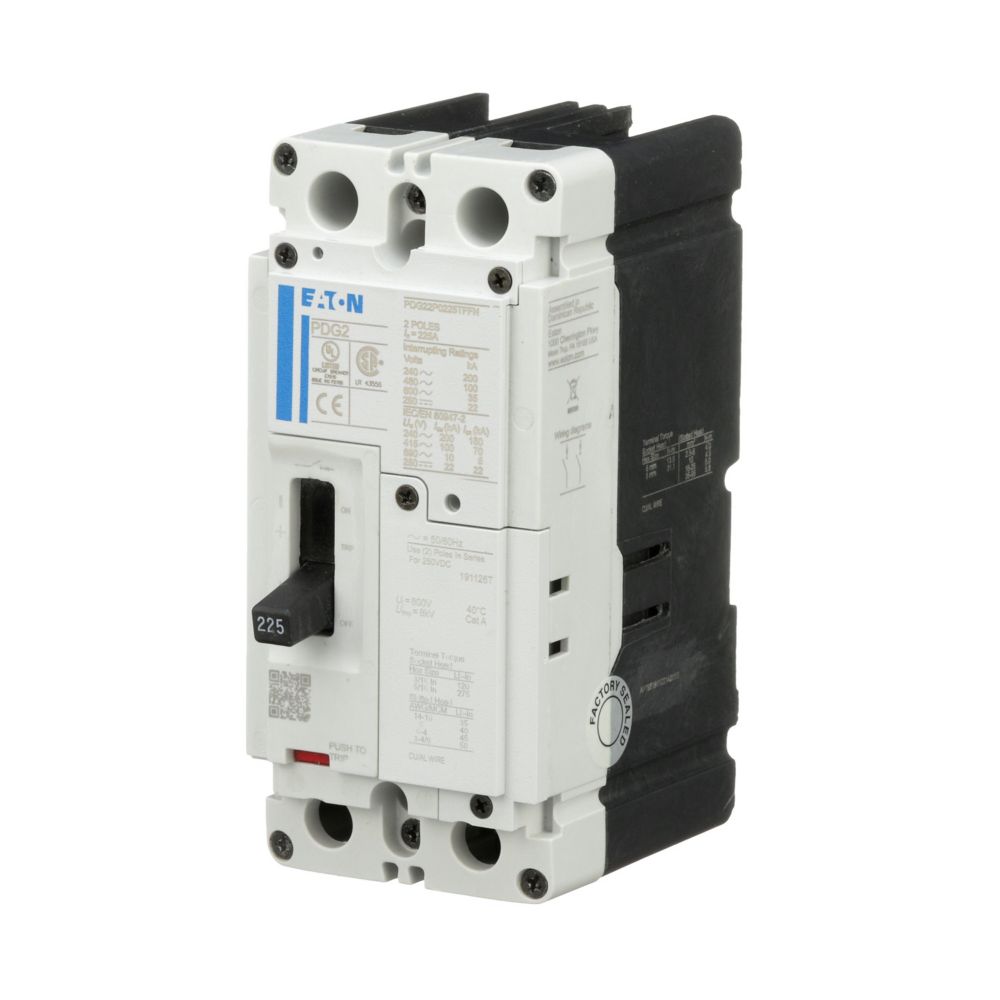

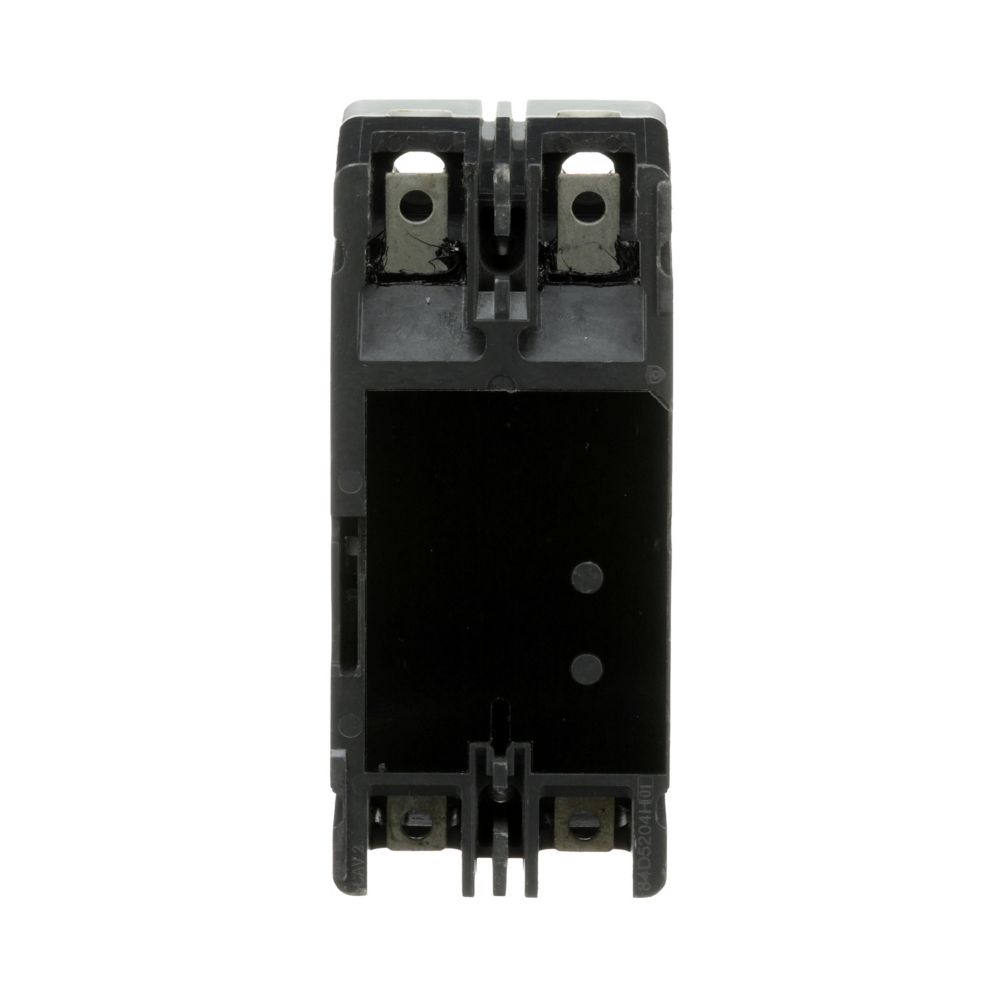

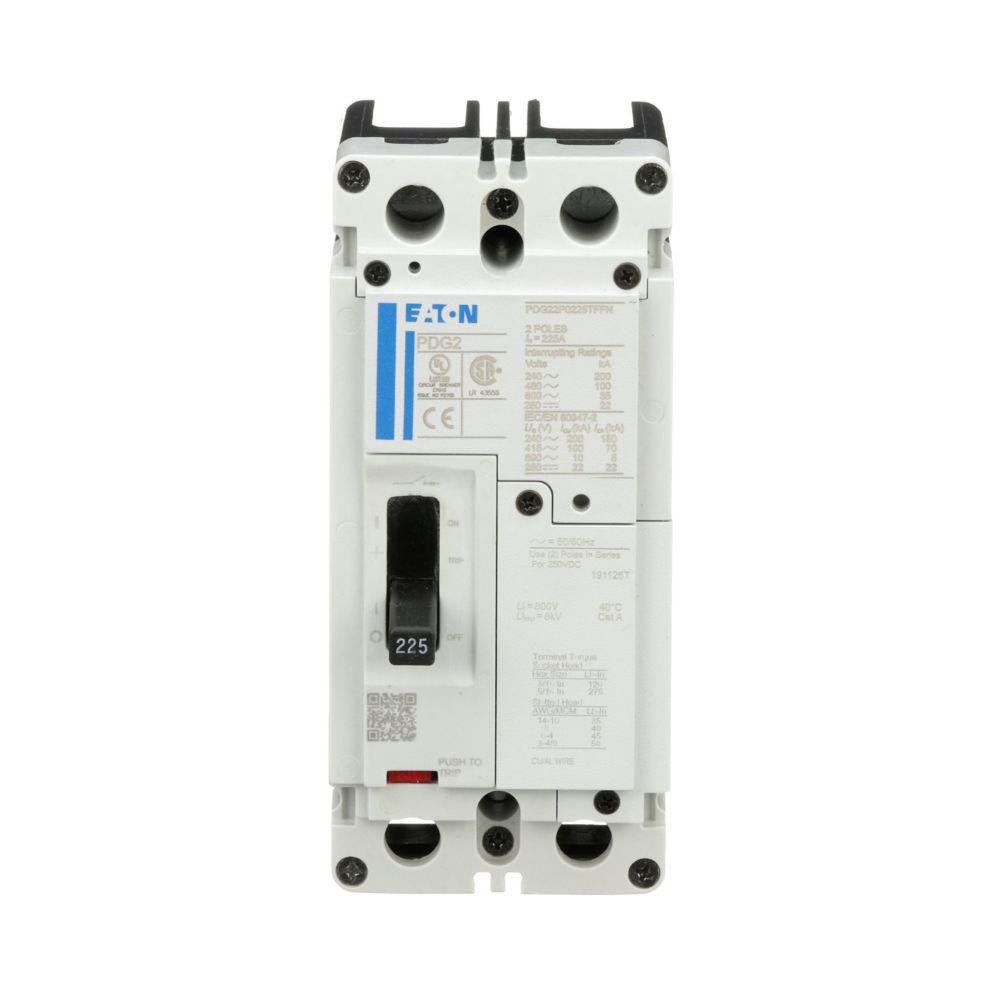

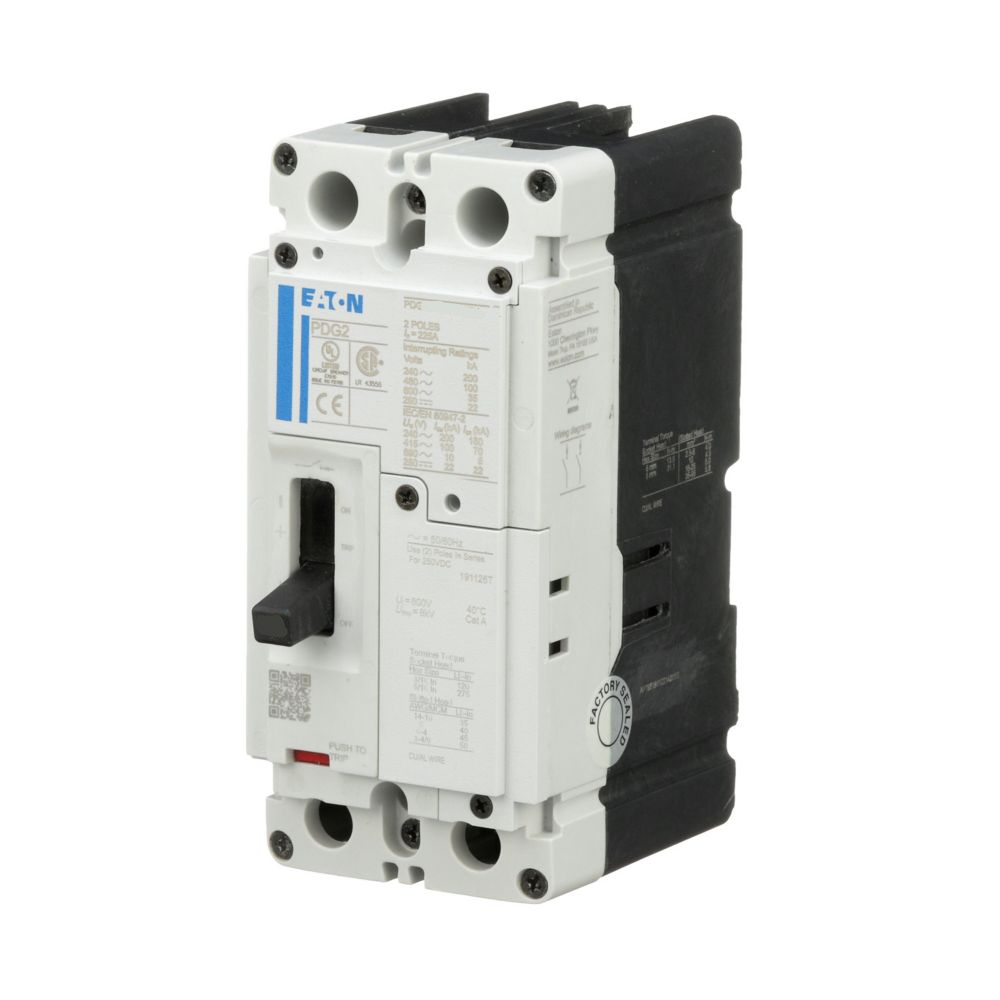

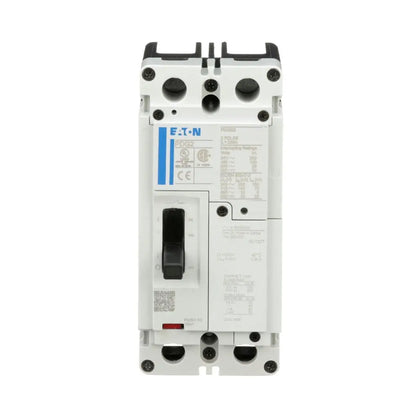

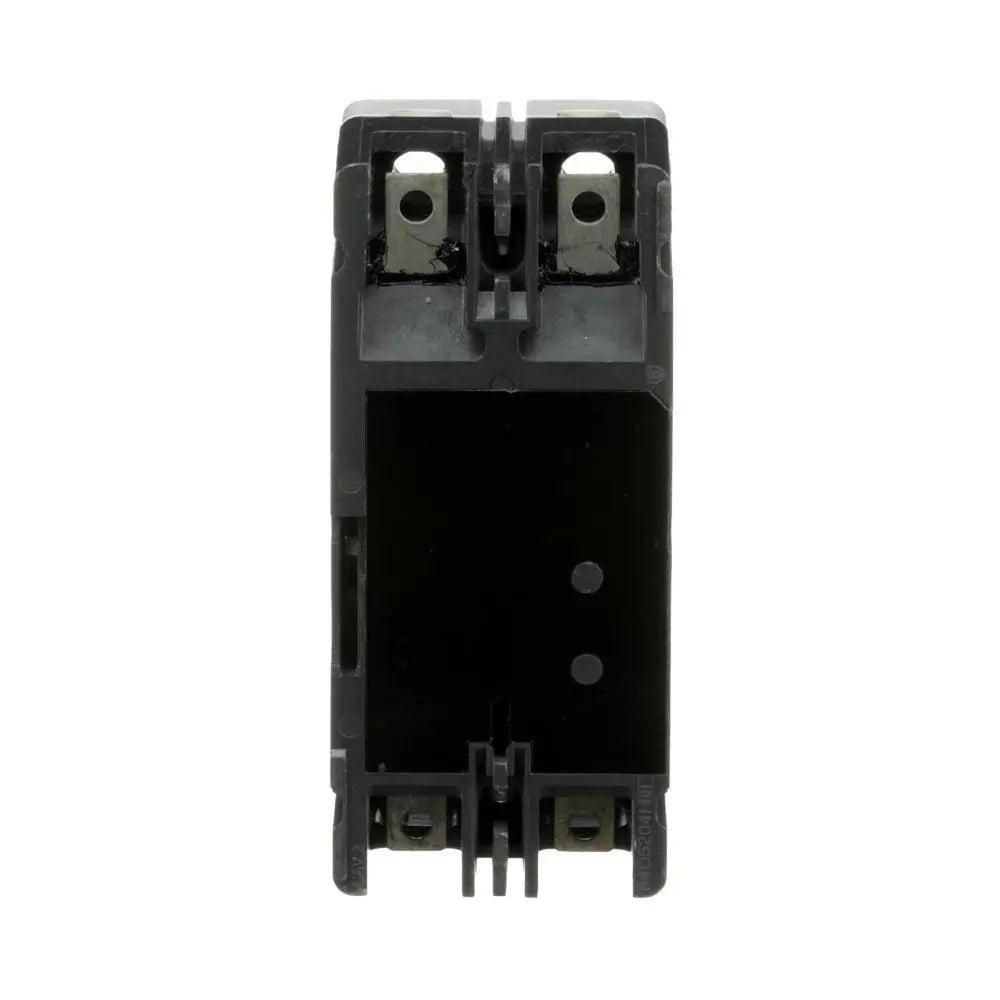

PDG22M0100TFFL - Eaton Power Defense 100A 2 Pole 600VAC Molded Case Circuit Breaker Frame 2

PDG22M0100TFFL

PDG22M0100TFFL is a Power Defense molded case circuit breaker from Eaton, designed for reliable protection in commercial and industrial power distribution systems. This 2-pole breaker features a 100A current rating, 600VAC maximum voltage, and a robust 65 kAIC interrupt rating at 480VAC. It is built with a thermomagnetic trip unit and is suitable for bolt-on mounting applications. Engineered for durability and safety, the PDG22M0100TFFL is globally rated and meets UL, CSA, IEC, and CCC standards. Its compact design and feed-thru connection make it ideal for panel upgrades and new installations.

• Part Number: PDG22M0100TFFL
• Manufacturer: Eaton (Cutler-Hammer)
• Series: Power Defense
• Frame: 2
• Poles: 2
• Amperage: 100A
• Voltage: 600VAC
• Interrupt Rating: 65 kAIC at 480VAC
• Mounting: Bolt-On
• Connection: Feed-Thru
• Trip Unit: Thermomagnetic (Fxd-Fxd)
• Certifications: UL, CSA, IEC, CCC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG22M0100TFFL
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786687047339
• Country of Origin : Dominican Republic
• Dimensions : 88.9 mm x 152.4 mm x 69.9 mm (Length/Depth x Height x Width)
• Weight : 3.33798625
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
