Description
PDG22M0100TFFJ

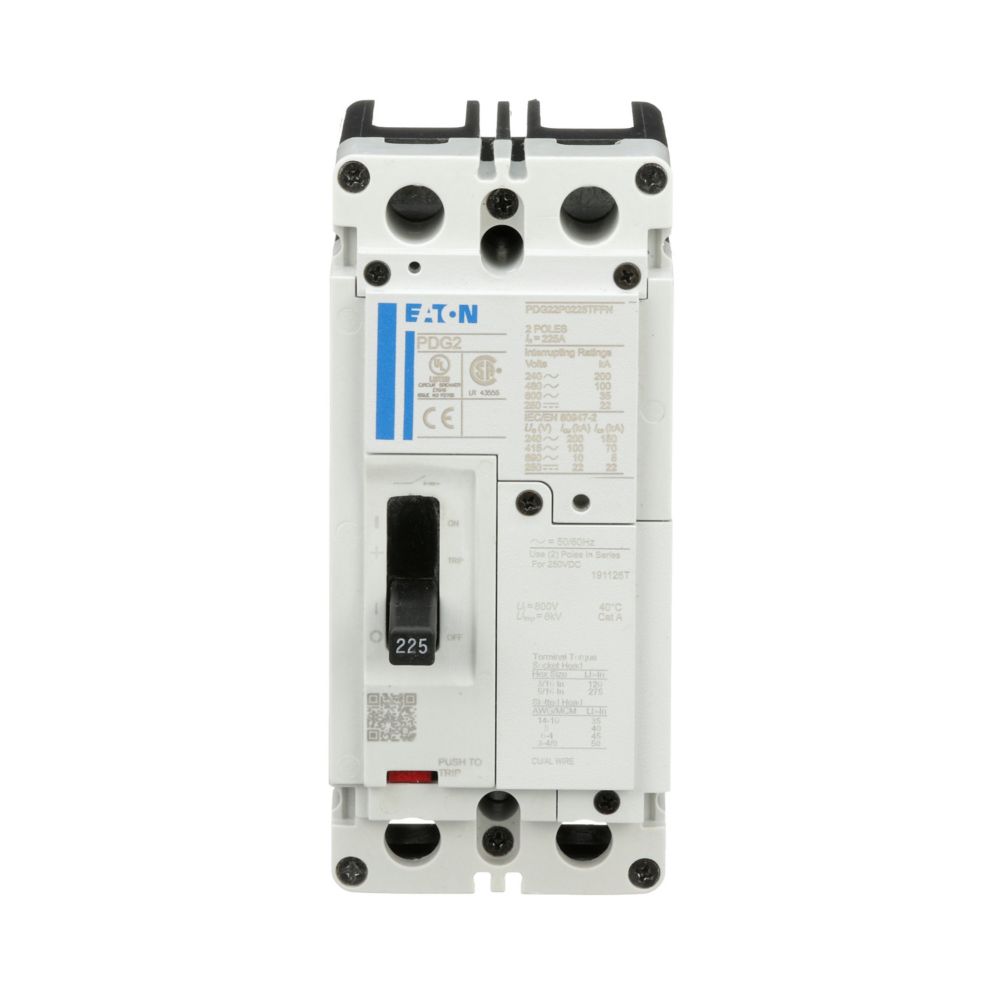

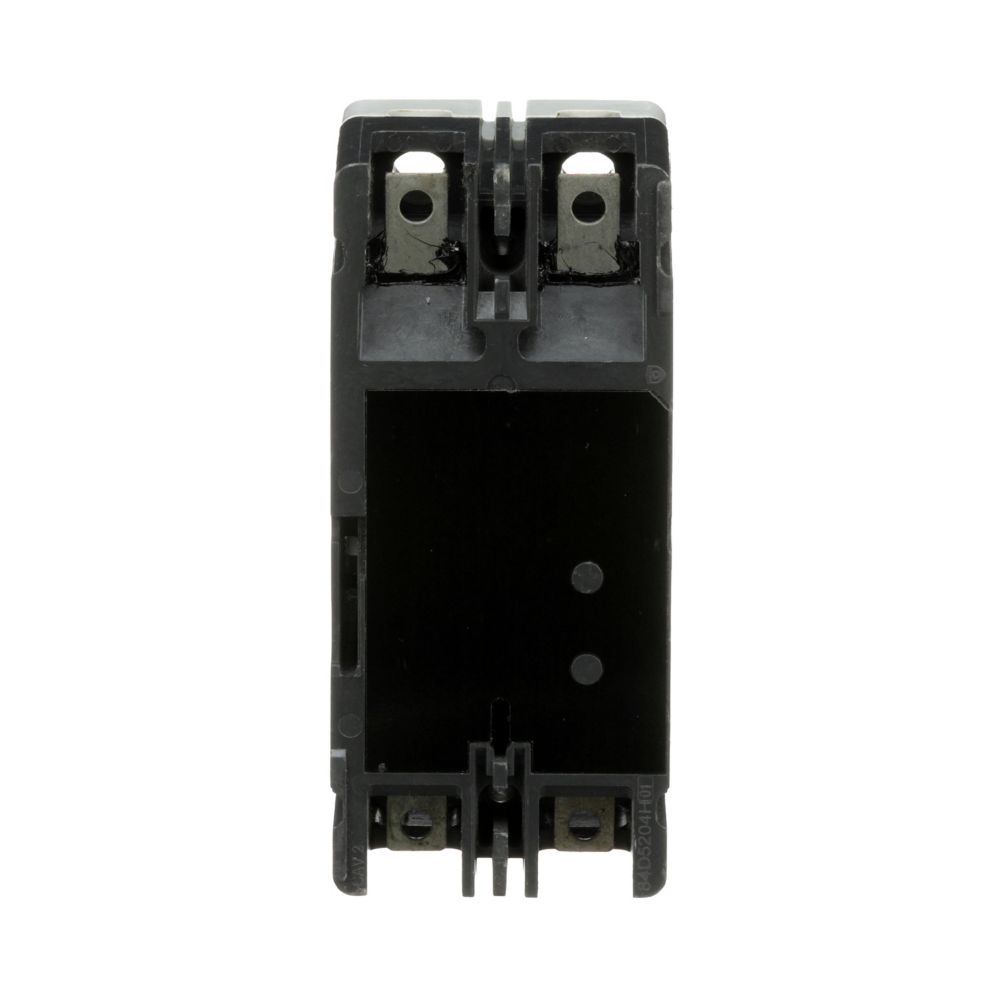

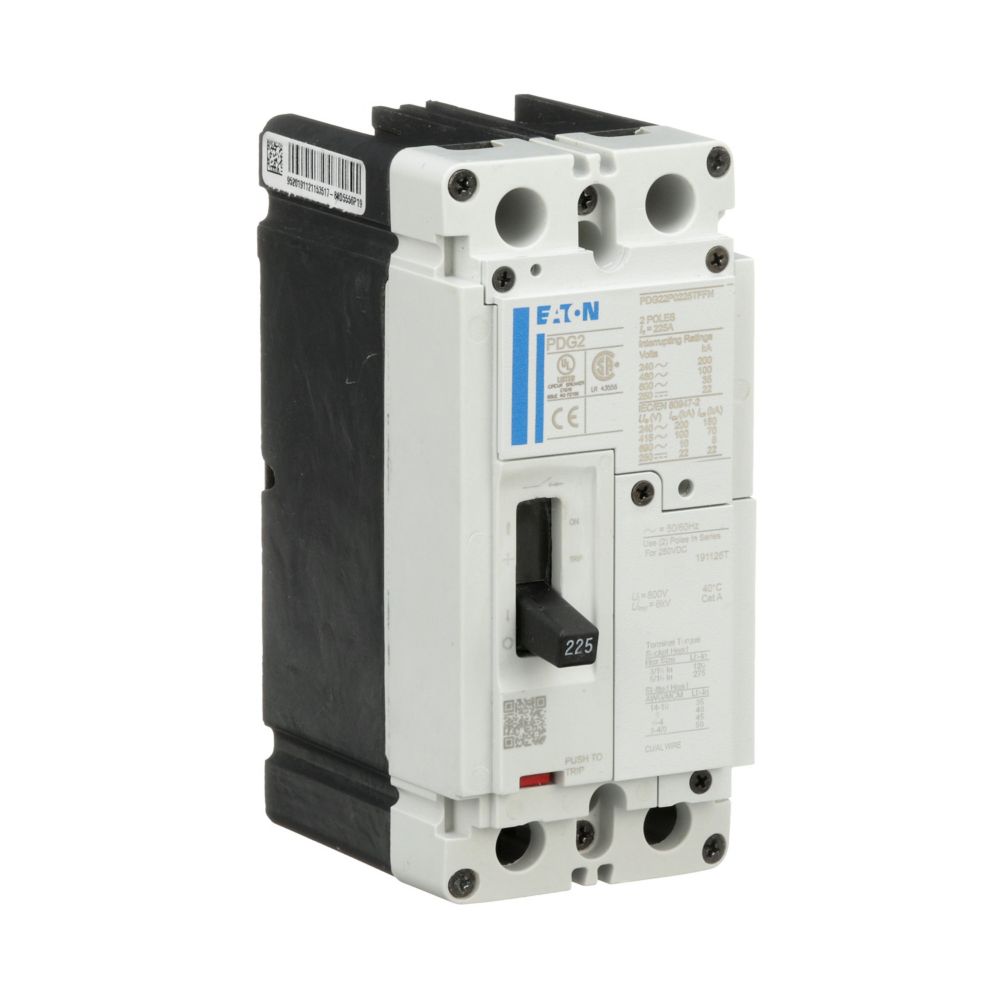

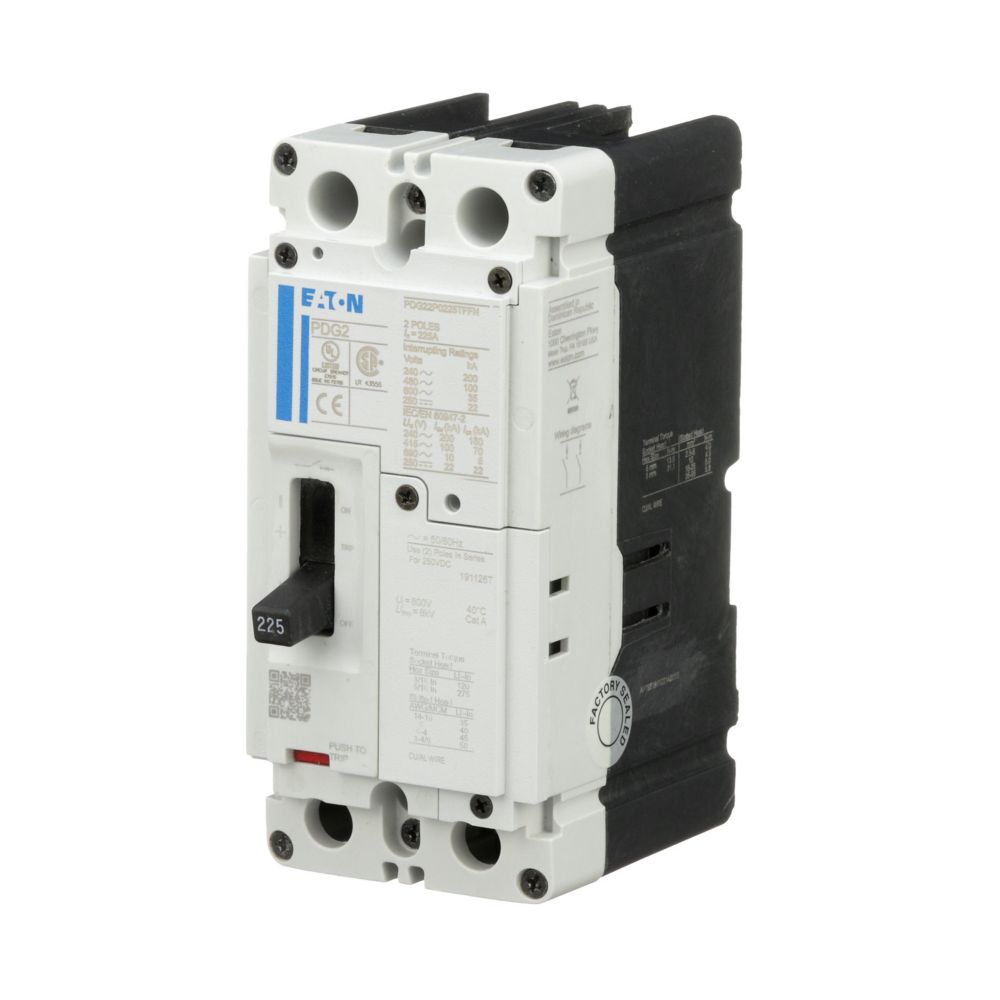

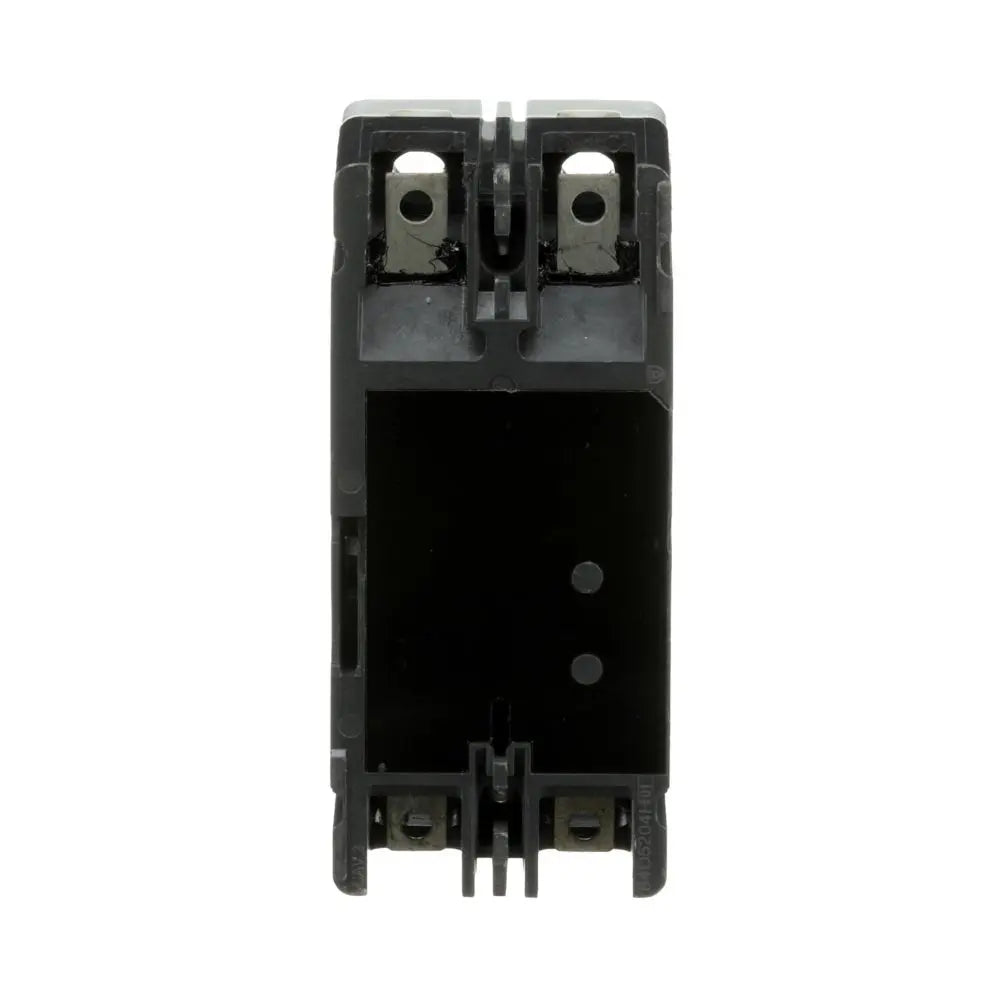

PDG22M0100TFFJ is a 2 pole, 100 amp circuit breaker from Cutler Hammer designed for panel mounting in PDG frame applications.
This molded case circuit breaker supports 600VAC and 250VDC operation with a 65kA interrupting rating at 480VAC. It features thermal magnetic protection with LI (long time and instantaneous) trip functions and feed-thru connection type. The breaker is UL, CSA, IEC, CCC, and CE certified and RoHS compliant, ensuring reliable and safe performance in industrial and commercial electrical systems.
- Key Specifications
- Manufacturer: Cutler Hammer
- Part Number: PDG22M0100TFFJ
- Amperage: 100A
- Voltage: 600VAC, 250VDC
- Poles: 2
- Frame Type: PDG
- Mounting Type: Panel
- Interrupt Rating: 65kAIC at 480VAC
- Trip Unit: Thermal Magnetic with LI functions
- Connection Type: Feed-Thru
- Certifications: UL, CSA, IEC, CCC, CE
- Compliance: RoHS
- Part Number: PDG22M0100TFFJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long Time and Instantaneous
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 786679231937
- GTIN : 00786679231937
- Country of Origin : Dominican Republic
- Dimensions : 88.9 mm x 152.4 mm x 69.9 mm (Length/Depth x Height x Width)
- Weight : 4.55143
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
