Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG21G0050TFFJ

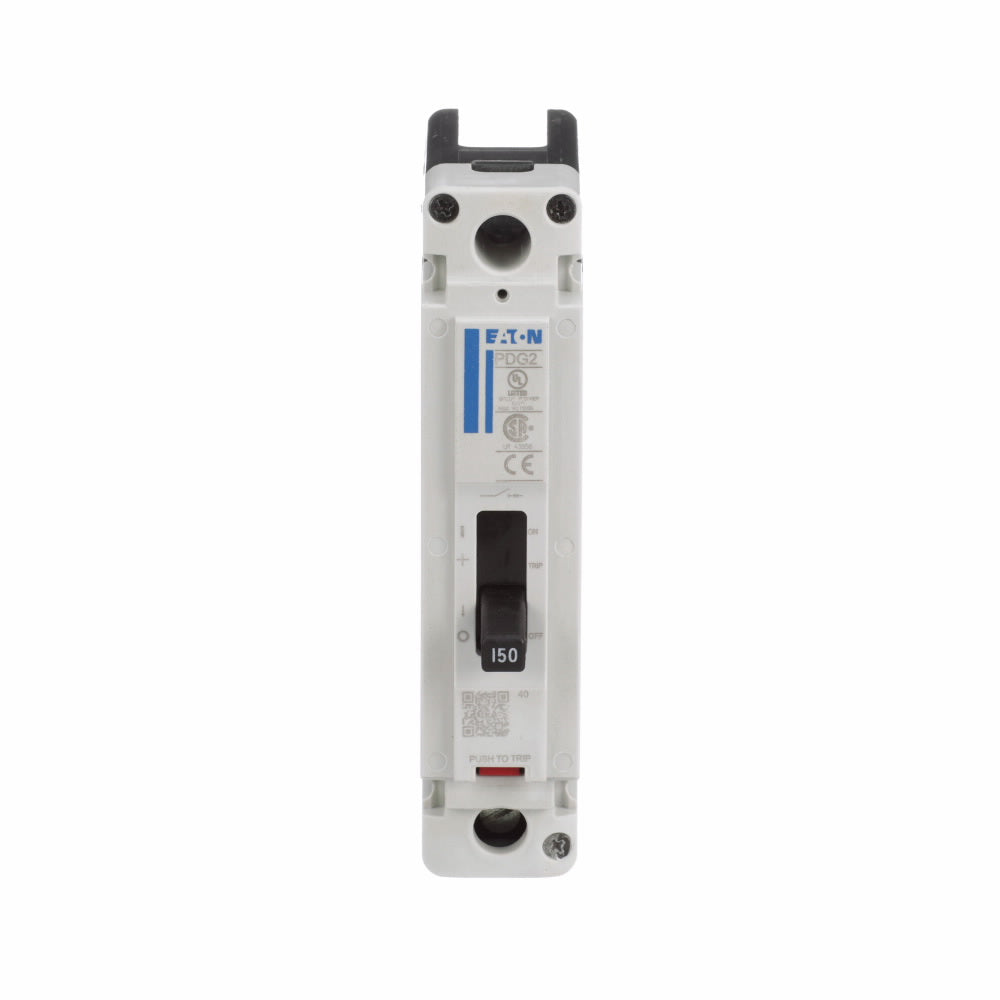

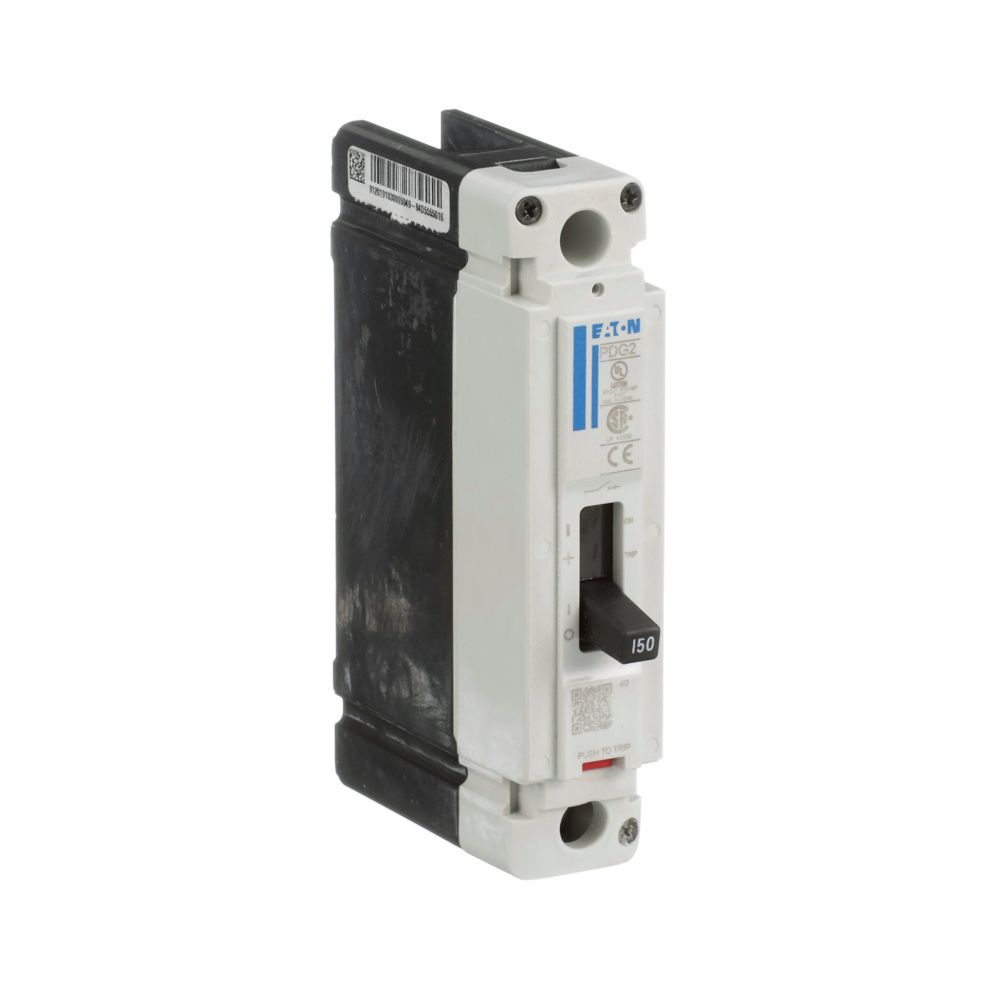

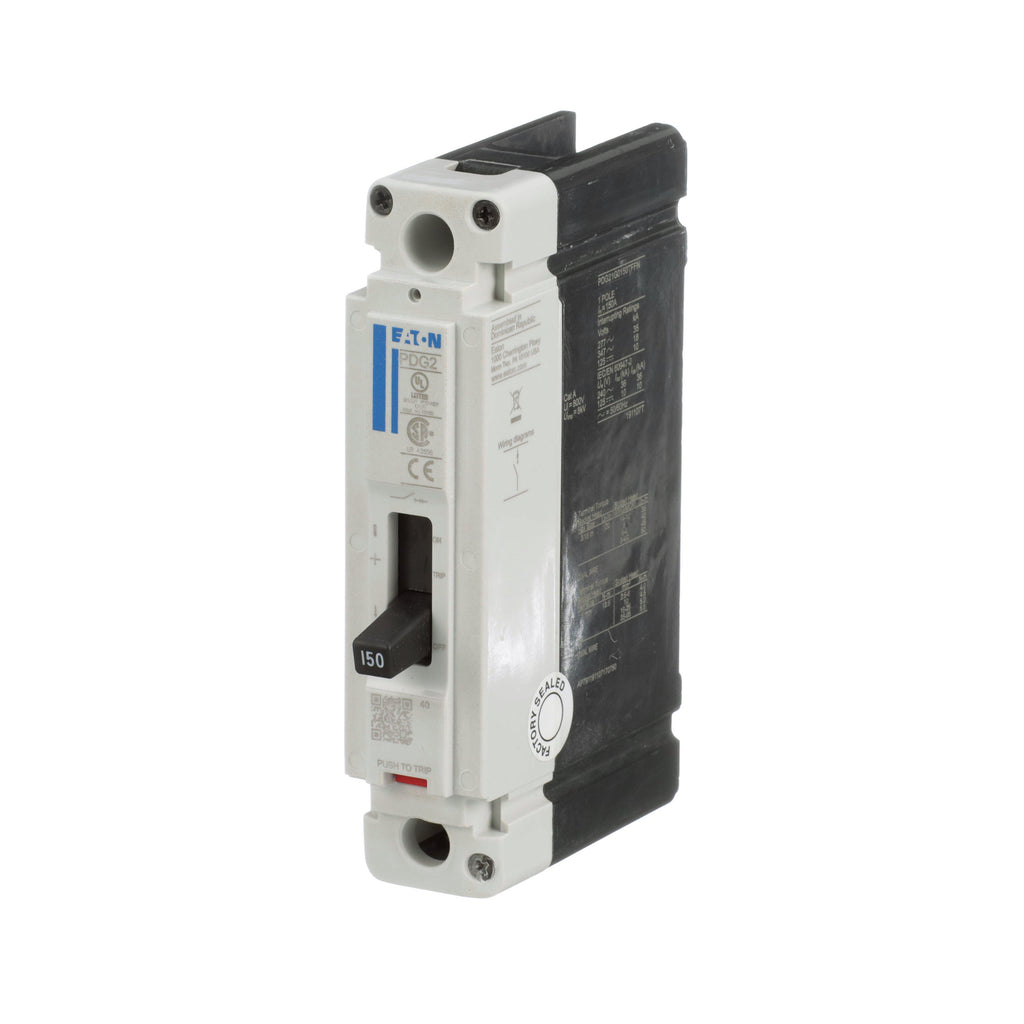

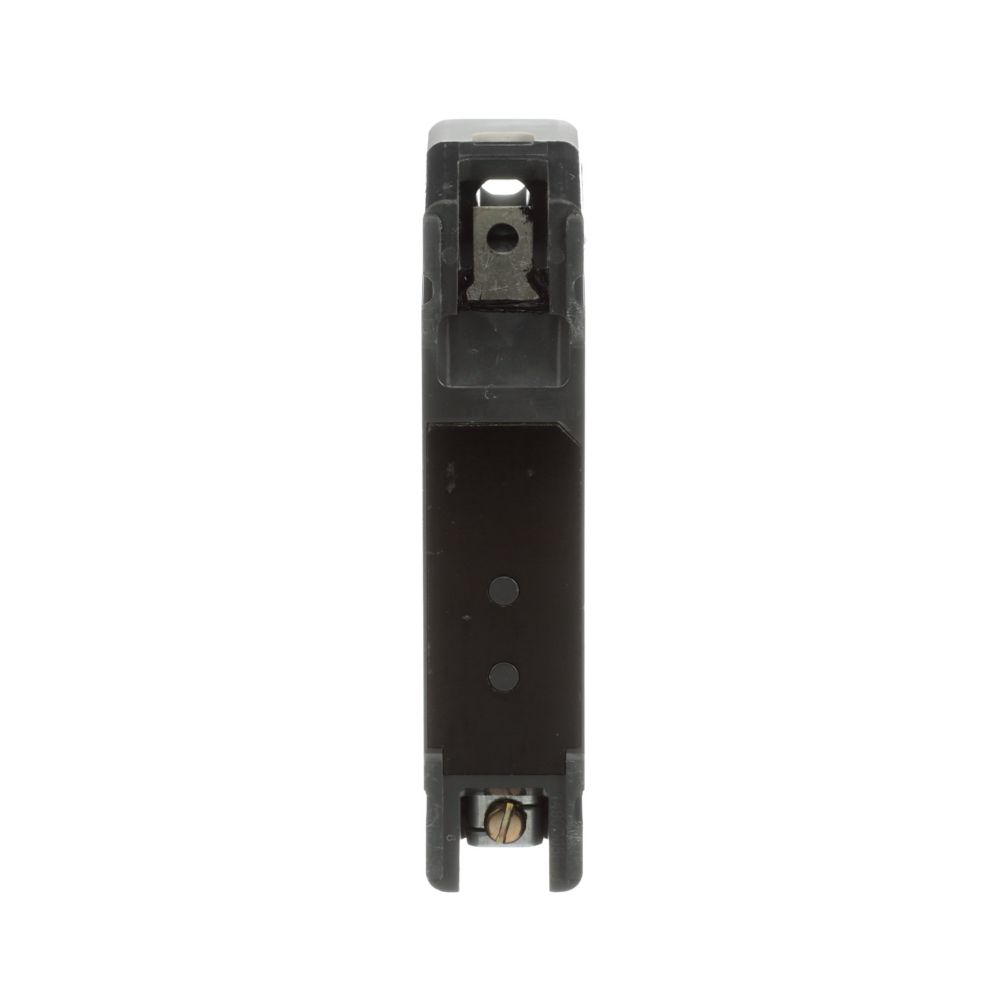

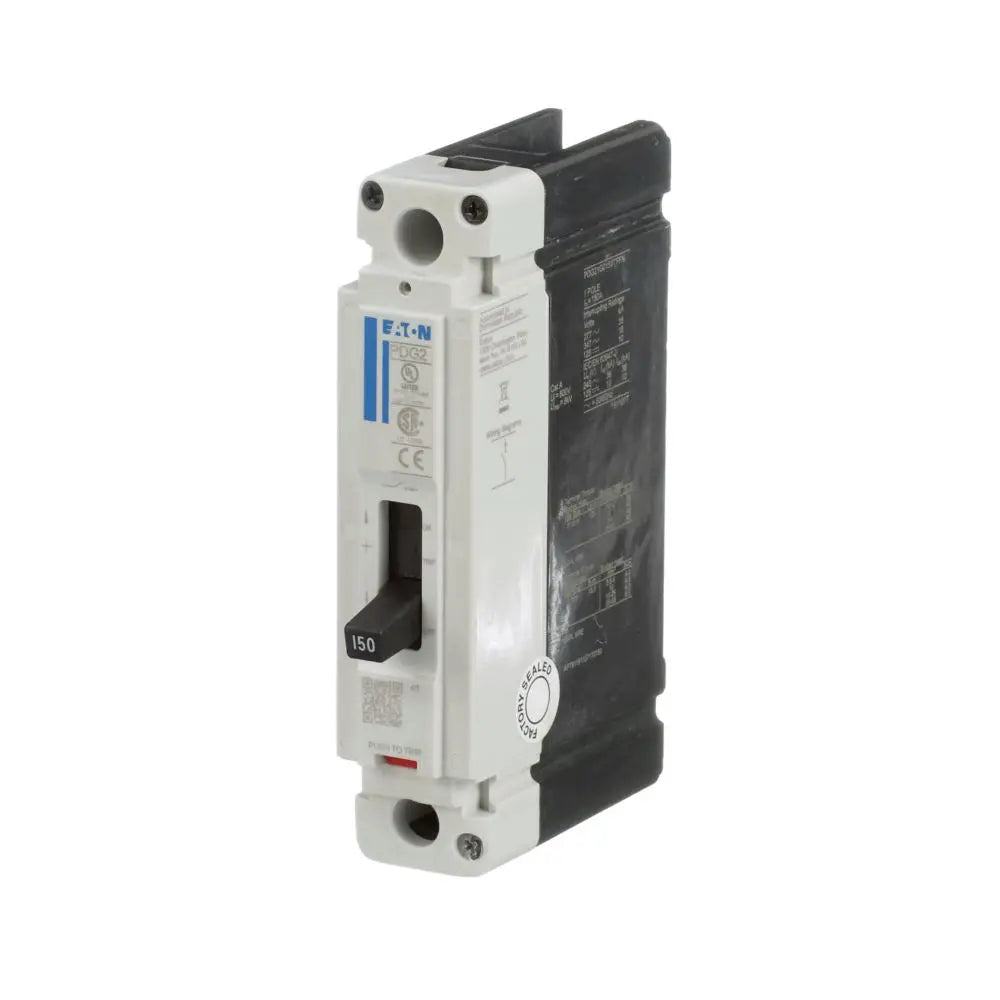

PDG21G0050TFFJ is a single pole, 50 amp, 600 volt molded case circuit breaker from Cutler Hammer, designed for reliable circuit protection in commercial and industrial applications. This breaker features a 35kA interrupt rating at 480V and is part of the Power Defense PDG2 series, offering global ratings and robust thermal magnetic trip performance. The feed-thru connection type and compact frame make it suitable for a wide range of panelboard installations. This molded case circuit breaker is engineered for durability and safety, with RoHS compliance and an IP2X enclosure rating. It supports both line and load connections, operates at 50/60 Hz, and is rated for temperatures from -20°C to 70°C. The breaker is designed for easy mounting and integration into standard electrical panels.
- Part Number: PDG21G0050TFFJ
- Manufacturer: Cutler Hammer (Eaton)
- Series/Frame: Power Defense PDG2
- Amperage: 50A
- Voltage Rating: 600V AC
- Poles: 1 Pole
- Interrupt Rating: 35kA @ 480V
- Mounting Type: Feed-Thru
- Connection Type: Line/Load
- Trip Unit: Thermal Magnetic
- Certifications: RoHS Compliant, IP2X Enclosure
- Frequency Rating: 50/60 Hz
Specifications
- Part Number: PDG21G0050TFFJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 50
- Phase : 1
- Poles : 1
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long Time and Instantaneous Trip
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679217832
- GTIN : 00786679000000
- Country of Origin : Dominican Republic
- Dimensions : 88.9 mm x 152.4 mm x 35.1 mm (Length/Depth x Height x Width)
- Weight : 4.55143
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
