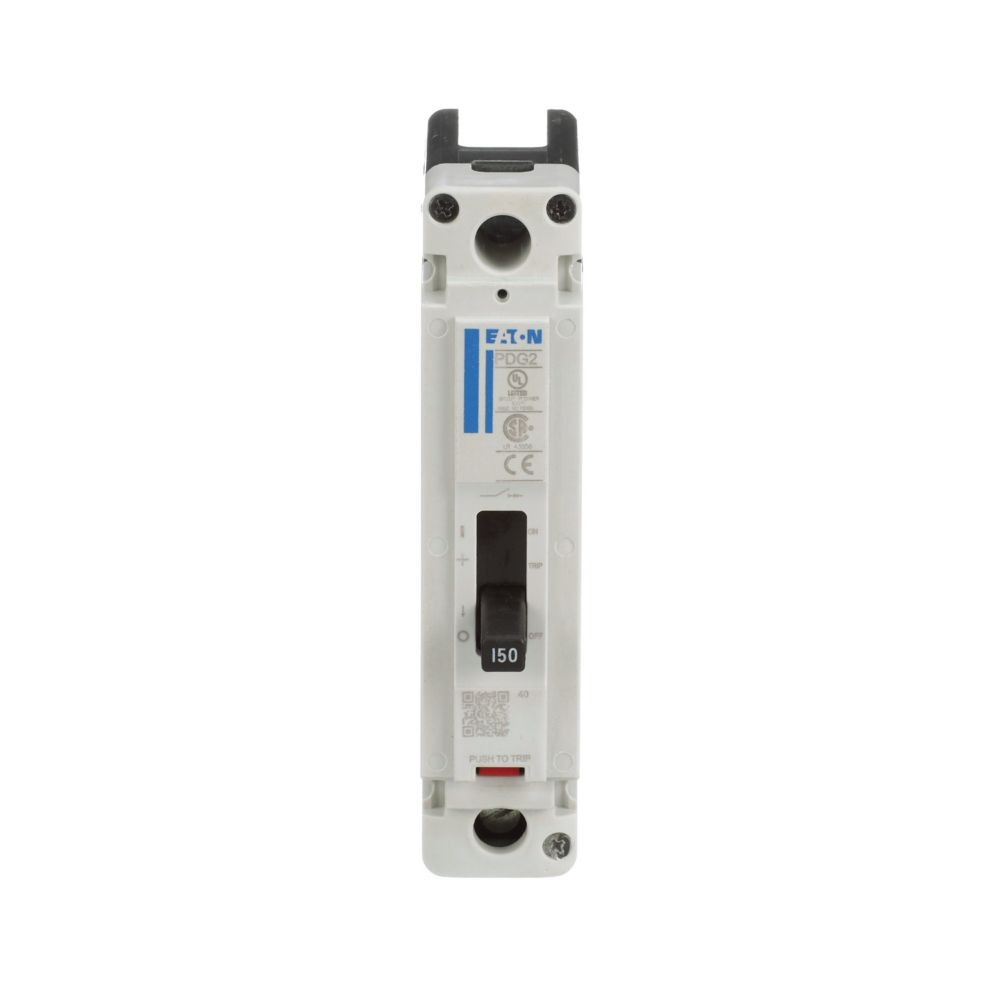

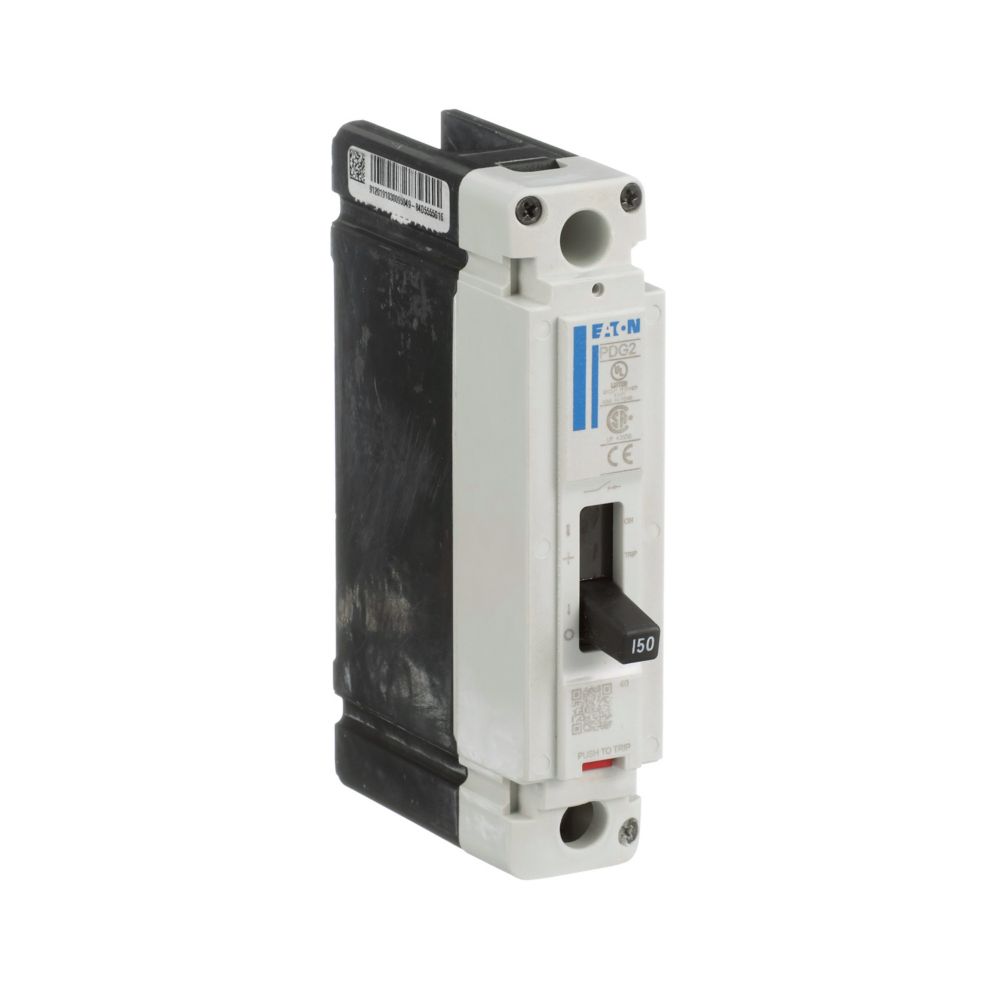

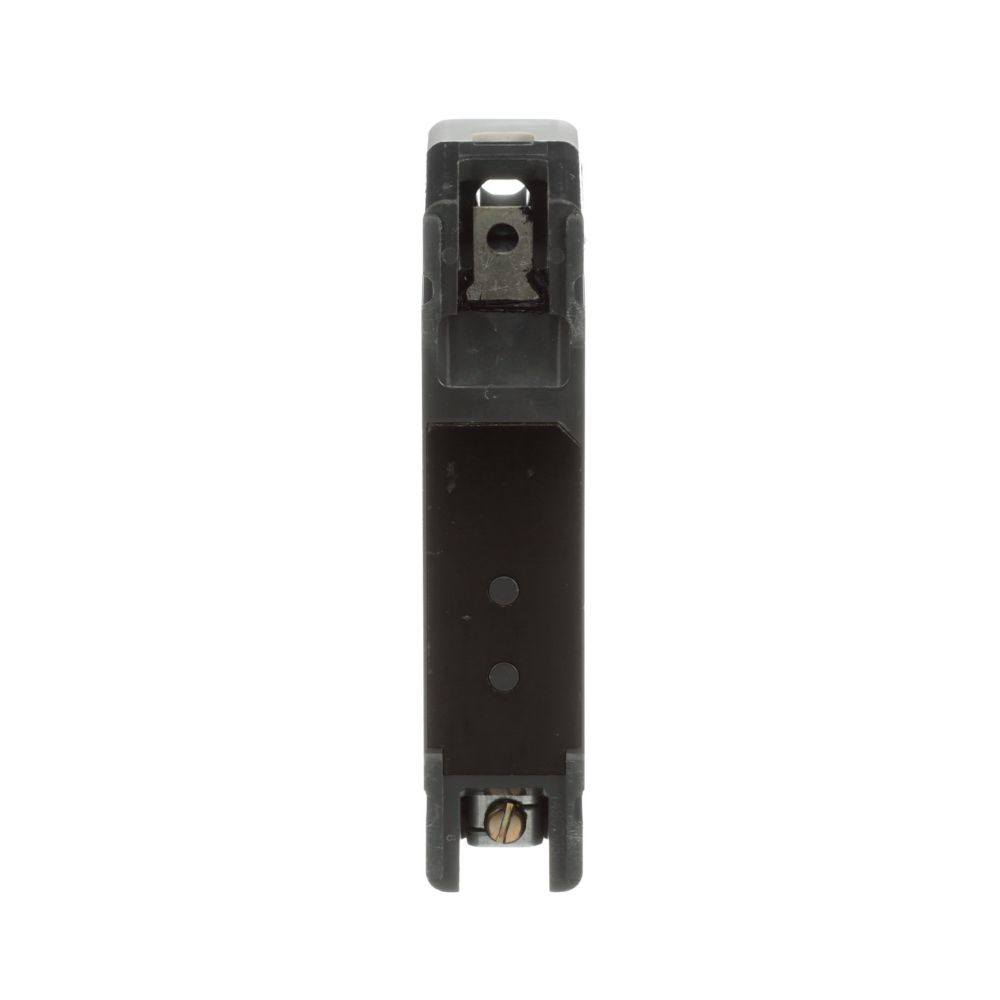

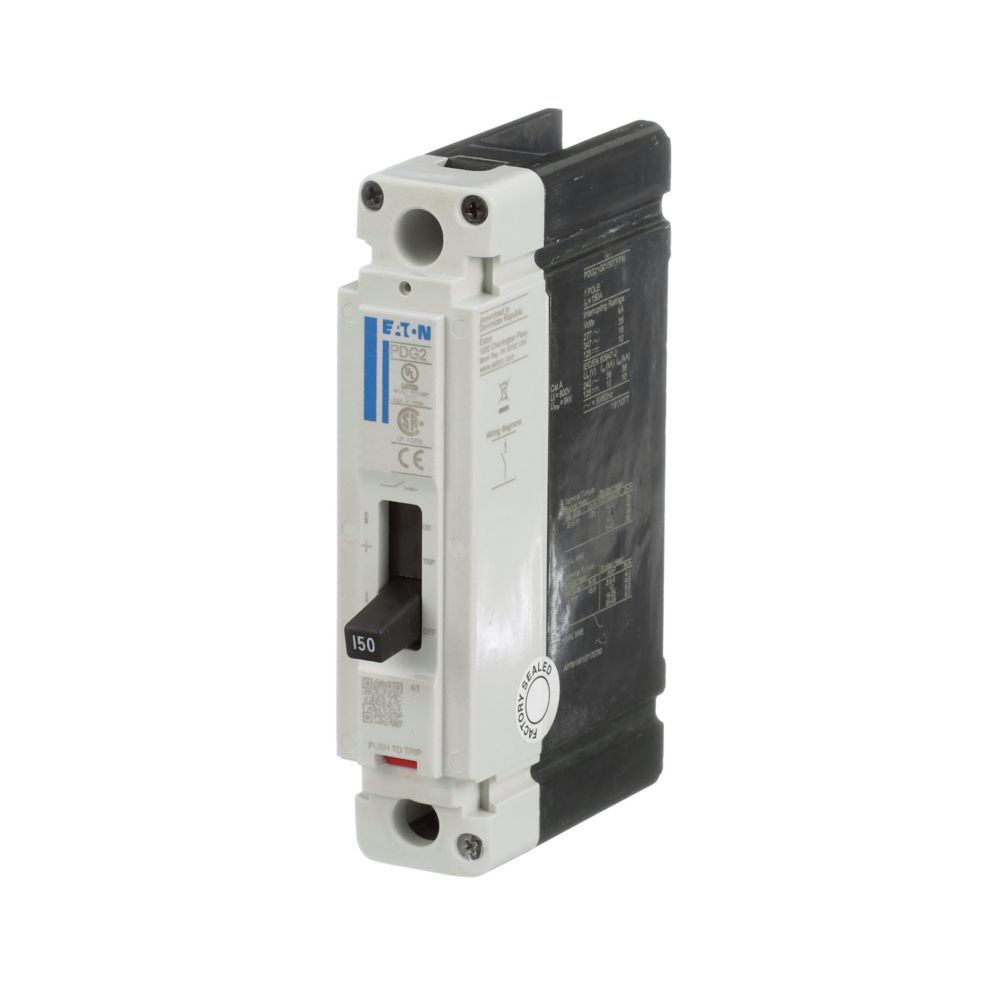

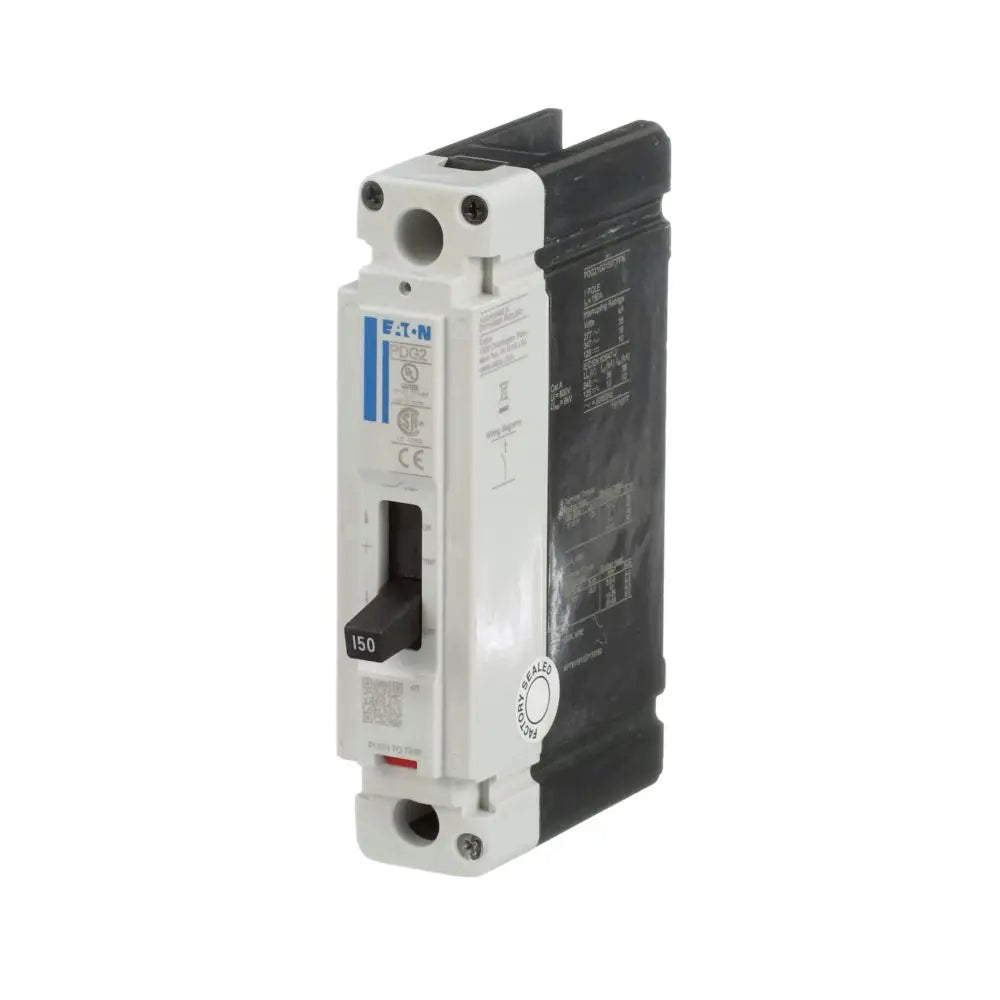

PDG21G0015TFFL - Eaton Power Defense Molded Case Circuit Breaker 15A 600V 1 Pole 35kA Frame 2 TM Trip

PDG21G0015TFFL

PDG21G0015TFFL is an Eaton Power Defense molded case circuit breaker designed for reliable protection in electrical systems.This circuit breaker features a 15 ampere rating, 600 volt capacity, and single pole configuration. It belongs to Eaton's Frame 2 Power Defense series and offers a 35kA interrupt rating at 480 volts. The breaker uses a thermal magnetic (TM) fixed-fixed trip unit for long-time and instantaneous protection. It is globally rated and includes standard line and load terminals for feed-thru connection.

• Manufacturer: Eaton (Cutler Hammer division)
• Part Number: PDG21G0015TFFL
• Amperage: 15A
• Voltage Rating: 600 VAC
• Poles: 1
• Interrupt Rating: 35kA at 480V
• Frame/Series: Power Defense Frame 2
• Trip Unit: Thermal Magnetic (TM) Fixed-Fixed
• Connection Type: Load and Line Terminals (Feed-Thru)
• Certifications: UL, CSA, IEC, CCC
• Dimensions: 3.5 in x 6 in x 1.38 in
• Weight: Approximately 4.49 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG21G0015TFFL
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786687041634
• Country of Origin : Dominican Republic
• Dimensions : 88.9 mm x 50.8 mm x 35.1 mm (Length/Depth x Height x Width)
• Weight : 1.82071918
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
