Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG21G0020TFFJ

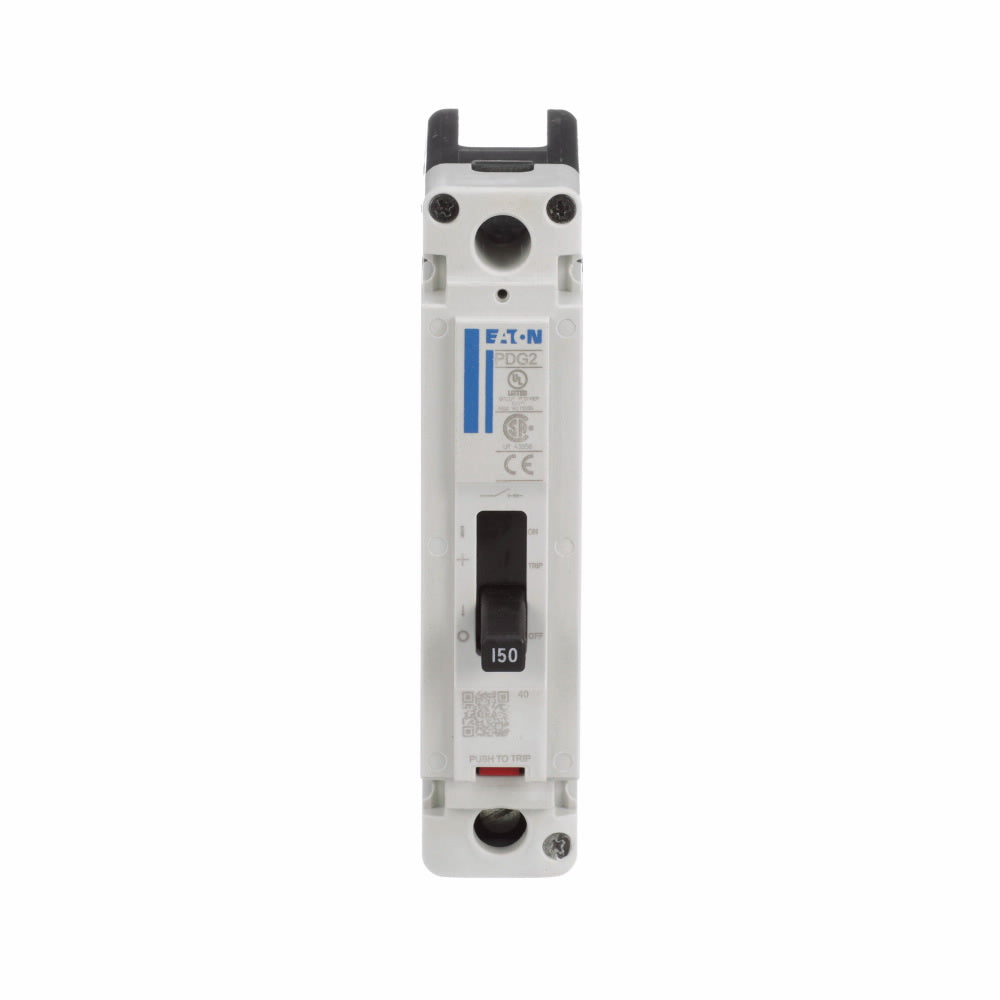

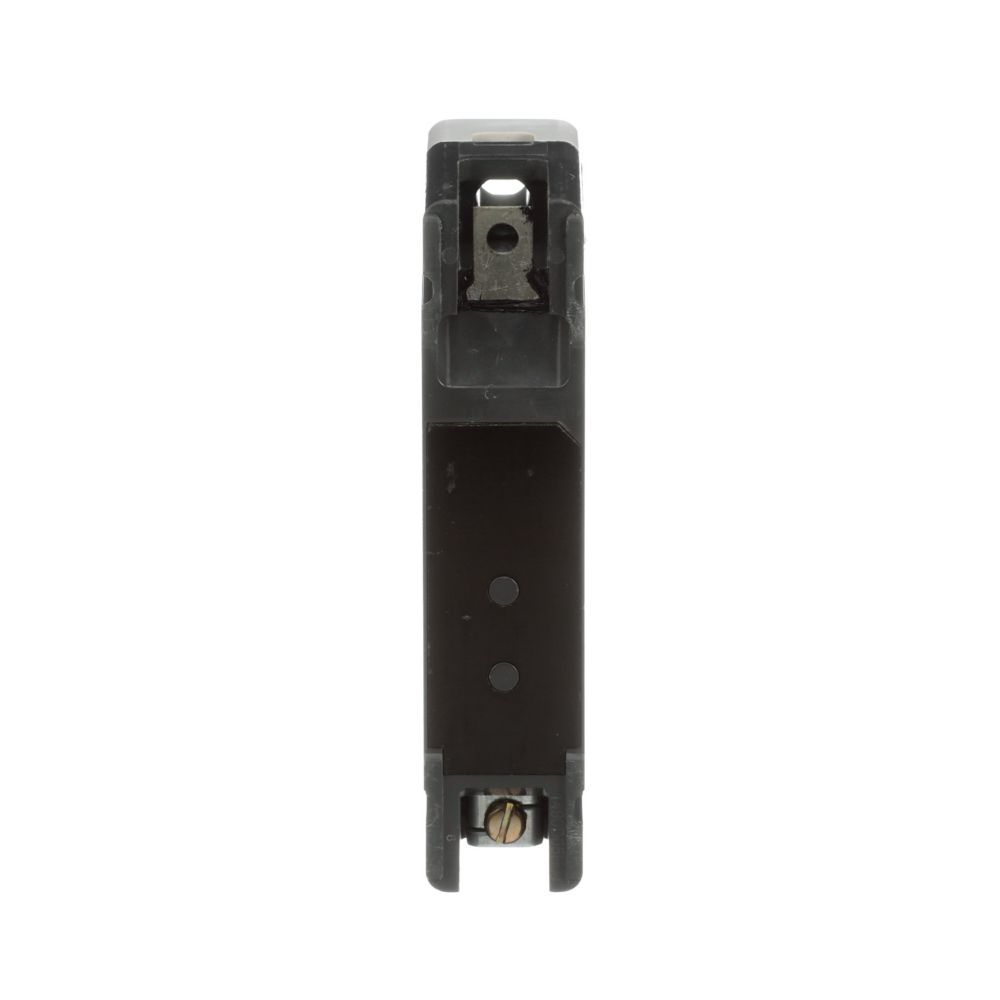

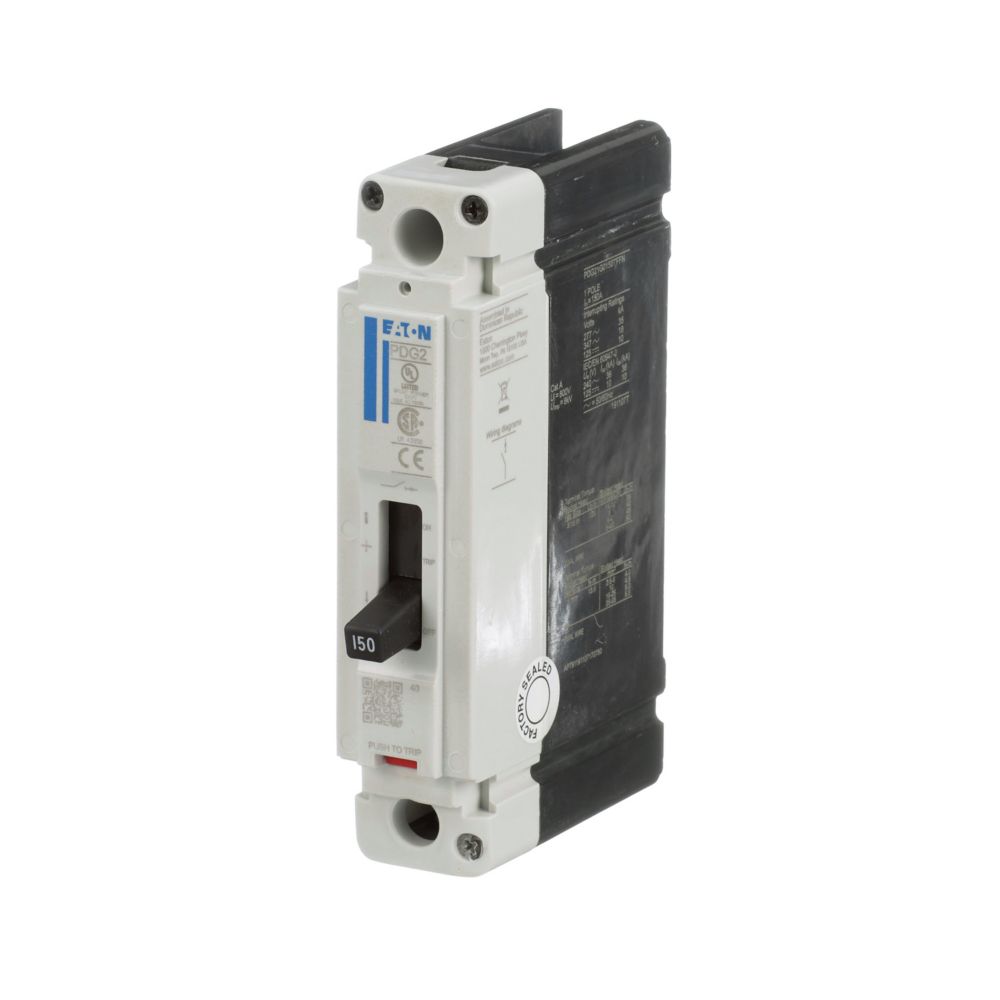

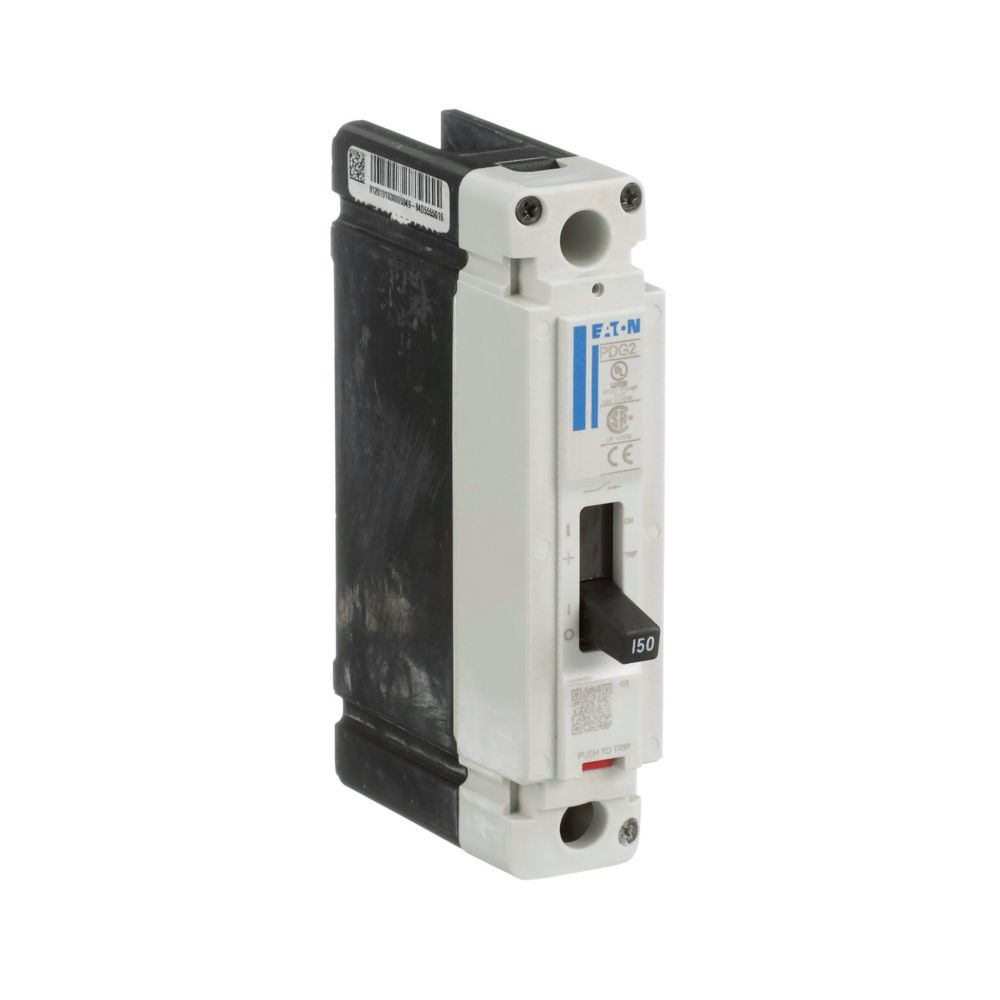

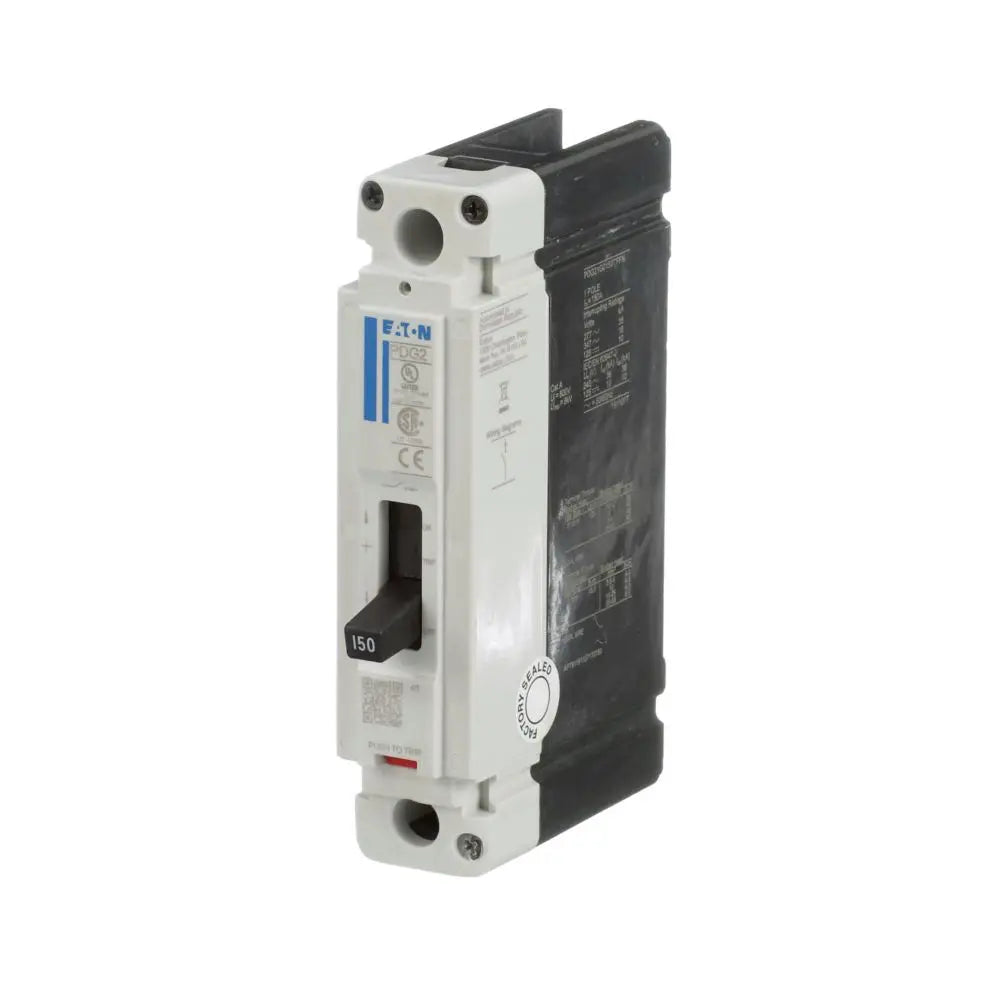

PDG21G0020TFFJ is a Cutler Hammer Power Defense molded case circuit breaker designed for reliable protection in electrical distribution systems.This 1 pole breaker features a 20 ampere rating and supports voltages up to 600 VAC and 250 VDC. It includes a thermal magnetic trip unit with a fixed-fixed (T-M) trip setting and a frame size 2. The breaker has a 35 kA interrupt rating at 480 volts, making it suitable for demanding industrial and commercial applications. It is feed-thru capable and globally rated for safety and performance.
- Key Specifications
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: PDG21G0020TFFJ
- Amperage: 20 Amp
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 1 Pole
- Interrupt Rating: 35 kA at 480 V
- Frame: 2
- Trip Unit: Thermal Magnetic (Fixed-Fixed)
- Mounting Type: Molded Case, Feed-Thru
- Series: Power Defense
- Certifications: Globally Rated
- Part Number: PDG21G0020TFFJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long Time and Instantaneous
- Protection : Thermal Magnetic
- UPC : 786679245668
- GTIN : 00786679000000
- Dimensions : 88.9 mm x 152.4 mm x 35.1 mm (Length/Depth x Height x Width)
- Weight : 4.55143
