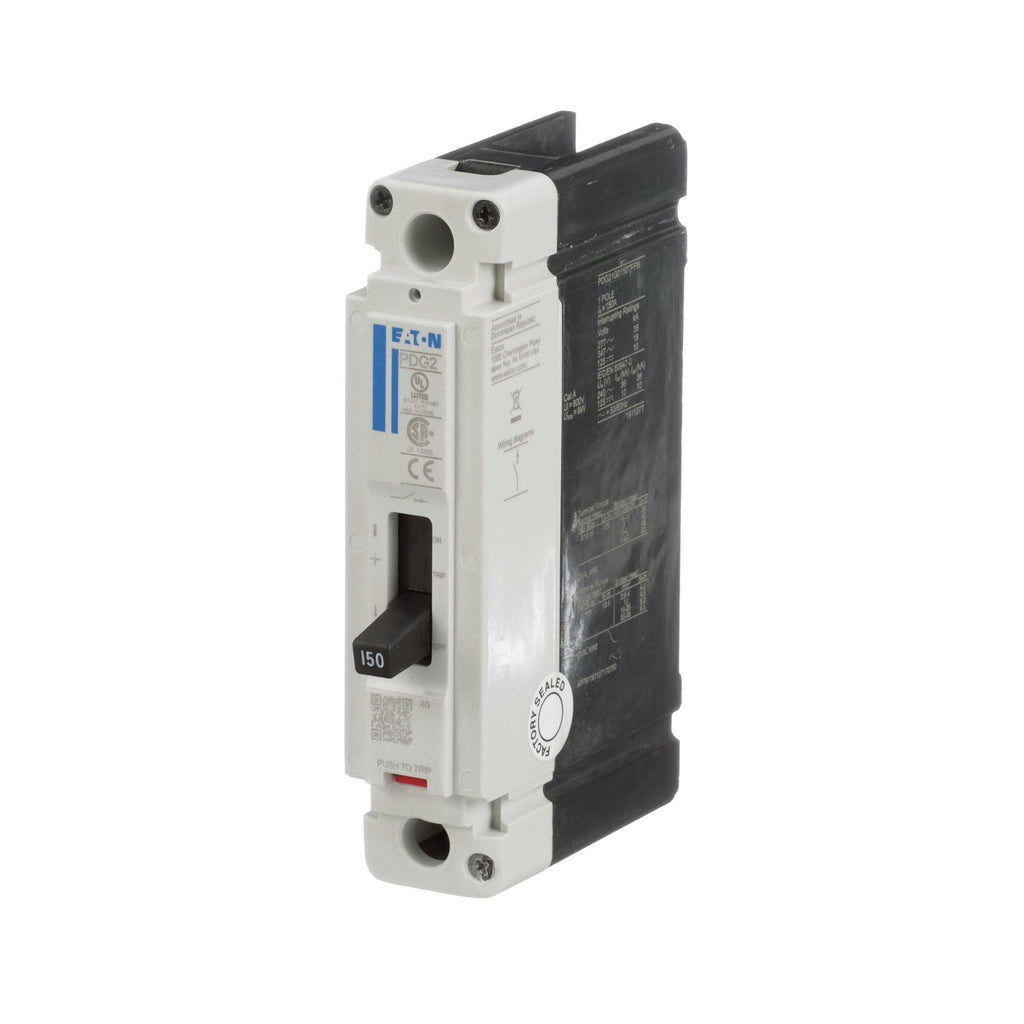

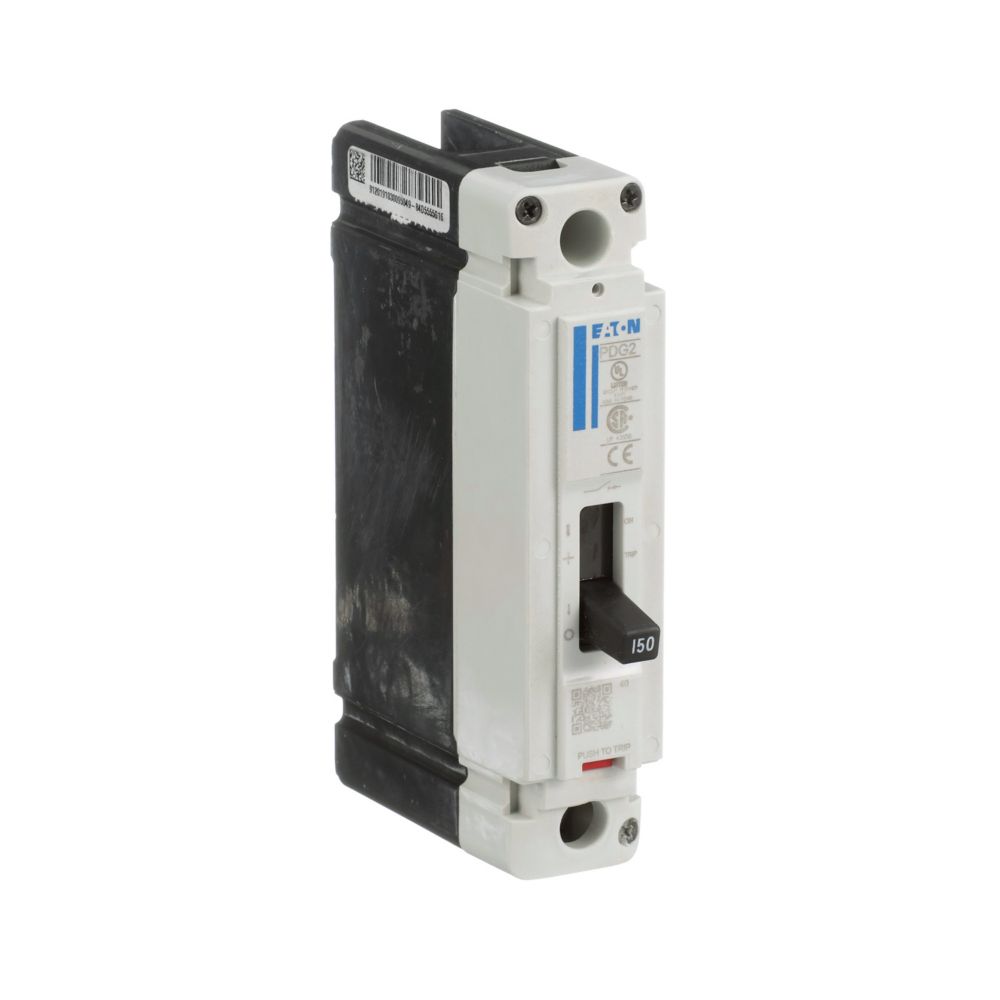

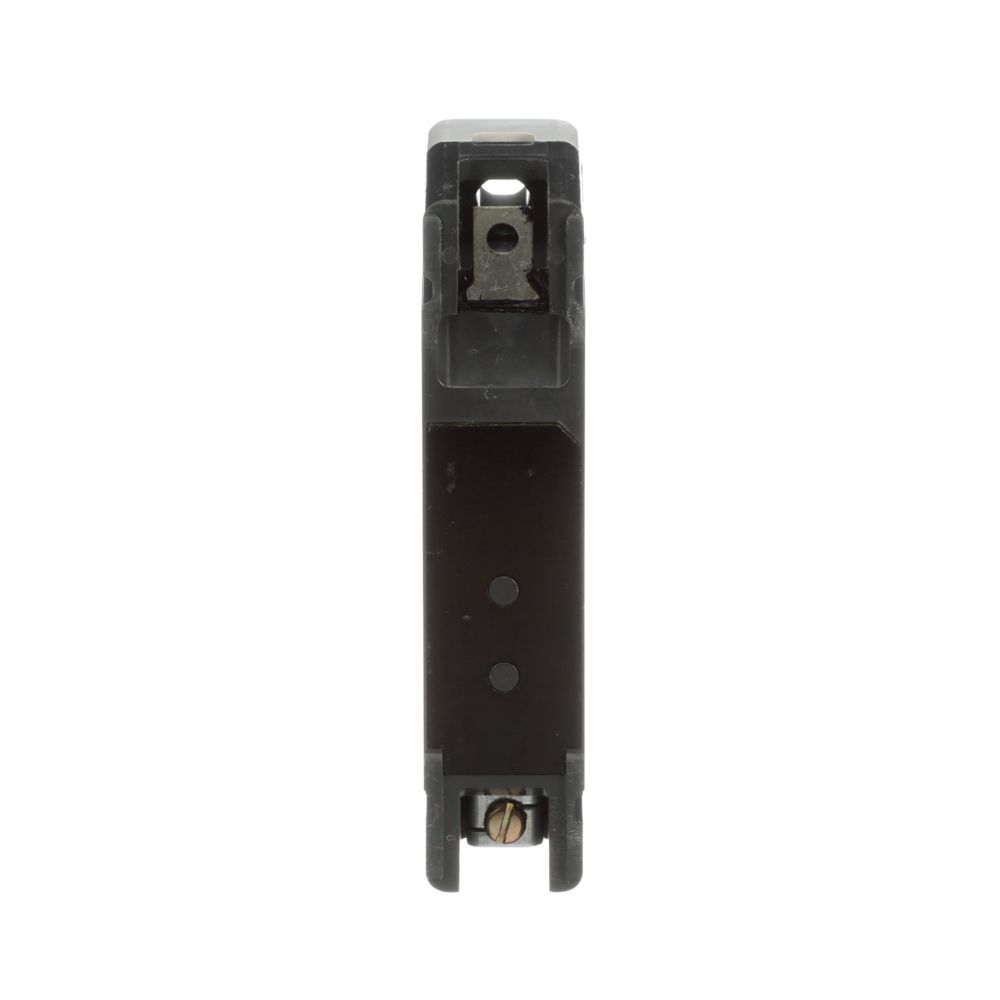

PDG21G0020TFFL - Cutler Hammer 20A 600V 1 Pole Molded Case Circuit Breaker Power Defense Series

PDG21G0020TFFL

PDG21G0020TFFL is a Cutler Hammer molded case circuit breaker from the Power Defense series designed for reliable circuit protection.This 1 pole circuit breaker is rated for 20 amps and 600 volts AC, featuring thermal magnetic protection with long-time and instantaneous trip functions. It has a 35kA interrupting rating at 480VAC and a bolt-on mounting type. The breaker complies with UL, CSA, IEC, and CCC certifications and supports feed-thru or load side connections.

Key Specifications
• Amperage: 20A
• Voltage Rating: 600VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 35kA at 480VAC
• Series/Frame: Power Defense (PDG)
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous (LI) functions
• Certifications: UL, CSA, IEC, CCC
• Phase: Single
• Connection Type: Feed-Thru / Load Side
• Dimensions: 3.5 x 6 x 1.38 inches
• Weight: 4.49 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG21G0020TFFL
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786687041641
• GTIN : 00786687041641
• Country of Origin : Dominican Republic
• Dimensions : 88.9 mm x 55.88 mm x 35.1 mm (Length/Depth x Height x Width)
• Weight : 1.82071918
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
