Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG21G0015TFFJ

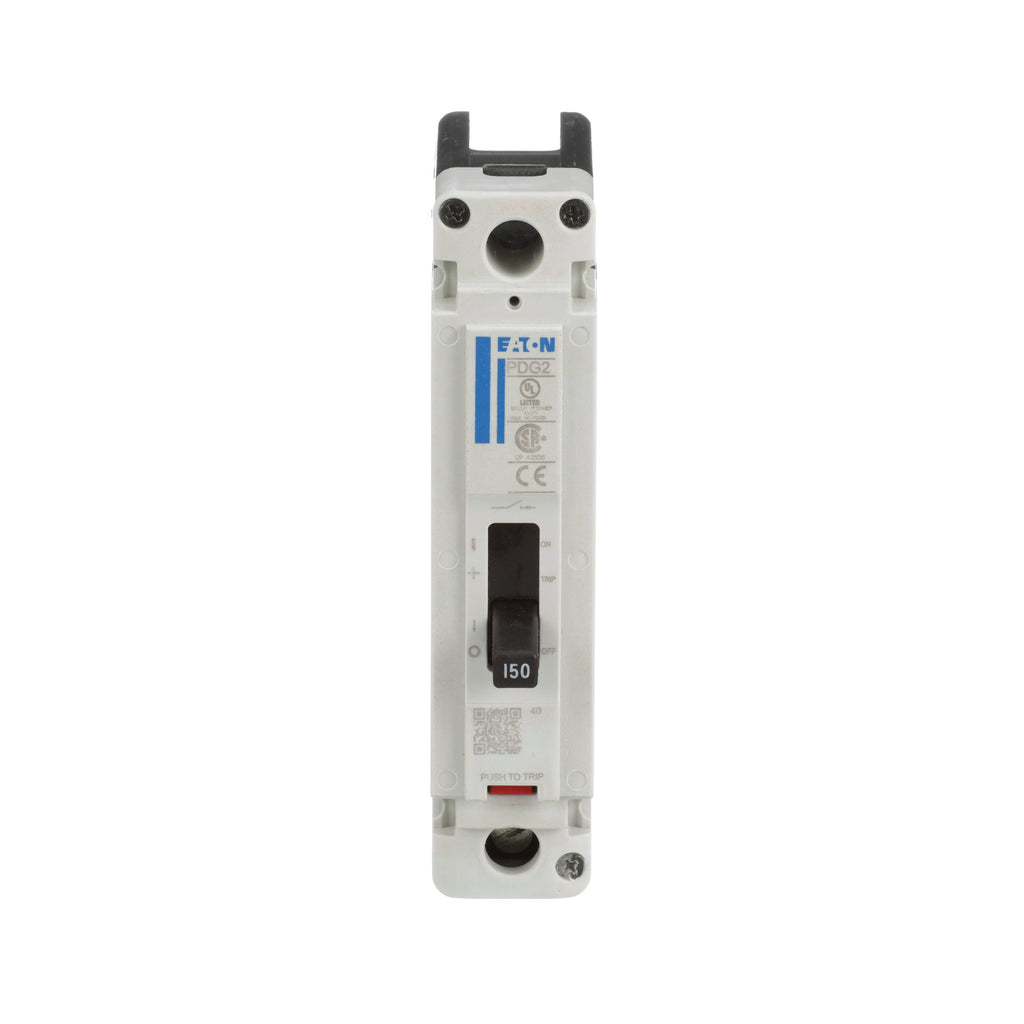

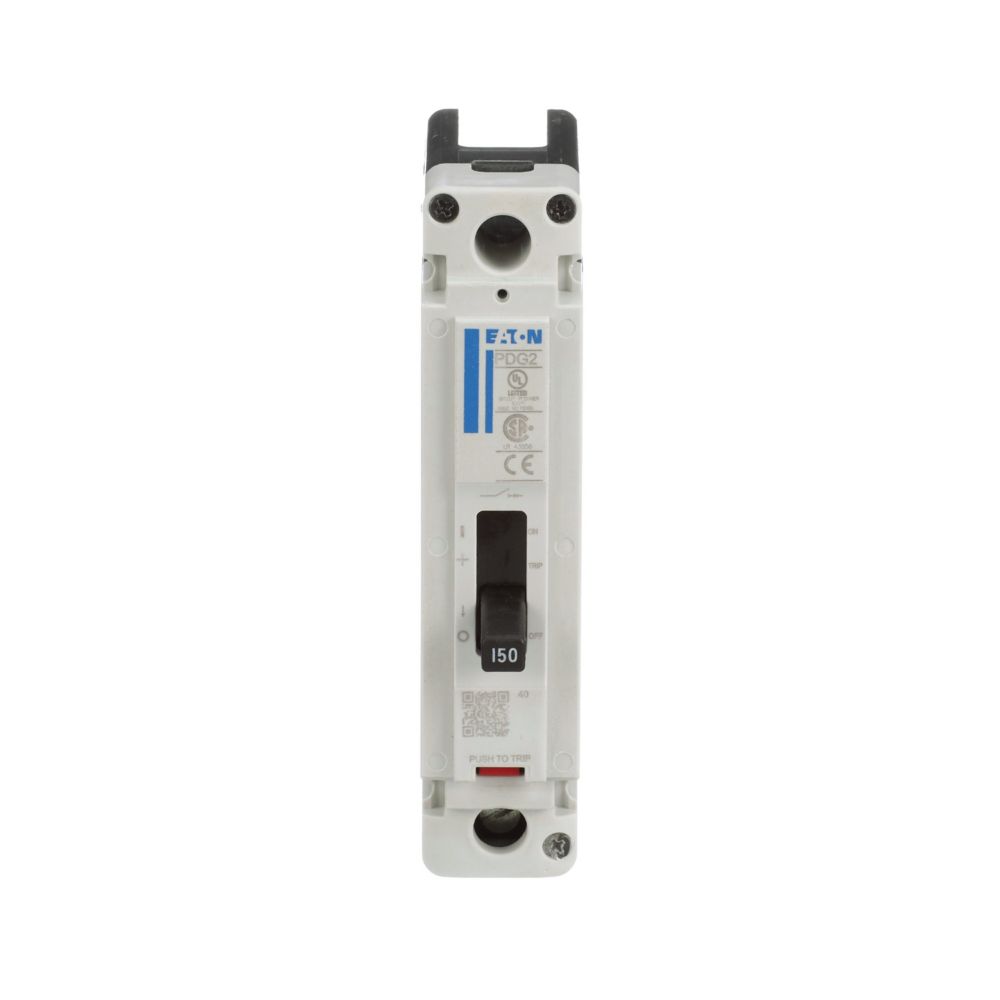

PDG21G0015TFFJ is a 1 pole, 15 amp, 600 volt circuit breaker from Cutler Hammer designed for reliable power protection.This molded case circuit breaker features a feed-thru connection type, a 35kA interrupt rating at 480V, and fixed thermal/magnetic trip units. It belongs to the PDG series/frame and is suitable for panel mounting applications.
- Amperage: 15A
- Voltage: 600 VAC
- Poles: 1
- Interrupt Rating: 35kA at 480V
- Mounting Type: Panel
- Connection Type: Feed-Thru
- Series/Frame: PDG
- Trip Unit: Fixed Thermal / Fixed Magnetic
- Manufacturer: Cutler Hammer (Eaton)
- Type: Molded Case Circuit Breaker
Specifications
- Part Number: PDG21G0015TFFJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long Time and Instantaneous
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679210031
- GTIN : 00786679000000
- Country of Origin : Dominican Republic
- Dimensions : 88.9 mm x 152.4 mm x 35.1 mm (Length/Depth x Height x Width)
- Weight : 4.55143
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
