PDG13M0070TFFJ - Eaton 70A 600VAC 3-Pole Power Defense Molded Case Circuit Breaker Frame 1 Thermal Magnetic

PDG13M0070TFFJ

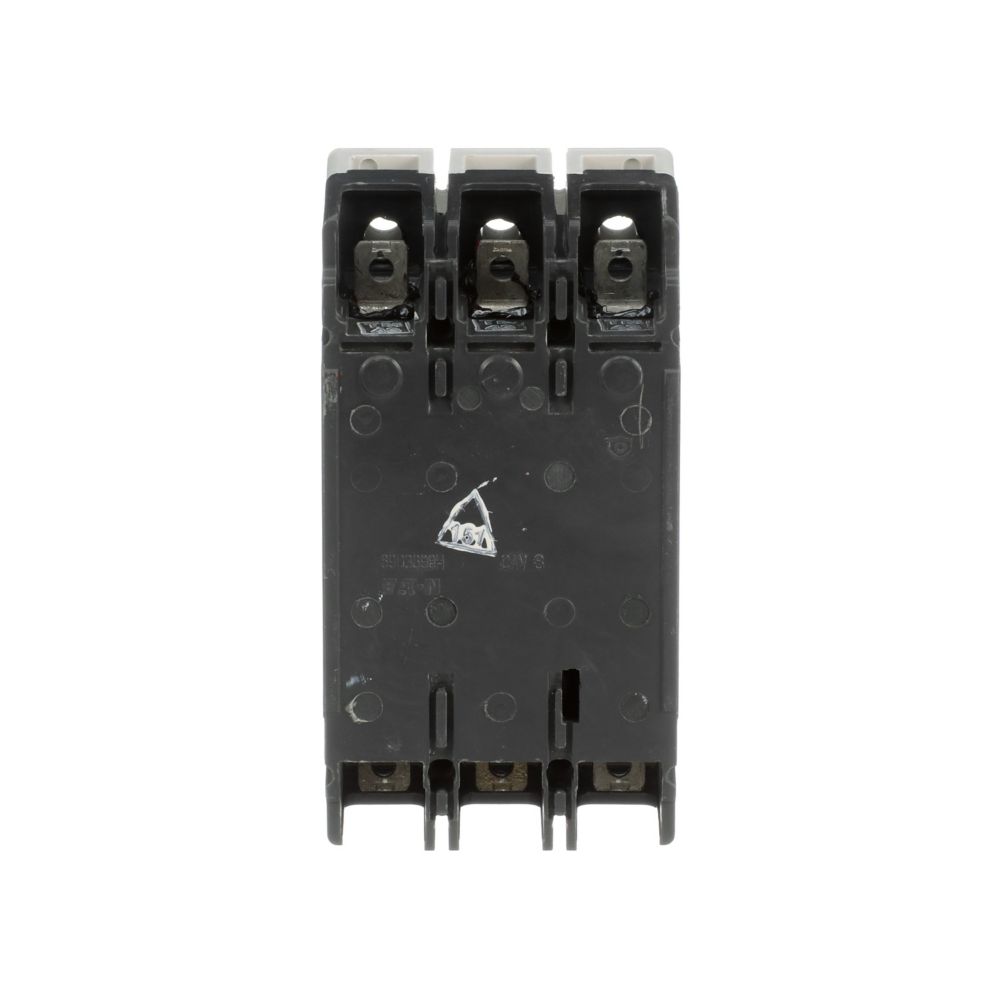

PDG13M0070TFFJ is a 3-pole Eaton Power Defense molded case circuit breaker with a 70 ampere rating and 600 VAC voltage rating designed for reliable circuit protection.This Eaton circuit breaker features a thermal magnetic trip unit with fixed-fixed (Fxd-Fxd) trip settings, a frame 1 design, and a high interrupt rating of 65 kA at 480 VAC. It supports both AC and DC voltages up to 600 VAC and 250 VDC respectively, and includes a lever actuator for manual operation. The breaker is globally rated and certified for industrial applications.

Key Specifications
• Amperage: 70 A
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 3
• Interrupt Rating: 65 kA at 480 VAC
• Frame: 1
• Trip Unit: Thermal Magnetic (T-M) Fixed-Fixed
• Mounting Type: Molded Case
• Actuator Type: Lever
• Certifications: Globally Rated
• Series: Power Defense

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG13M0070TFFJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679270851
• GTIN : 00786679270851
• Country of Origin : Dominican Republic
• Dimensions : 76 mm x 139.7 mm x 76.2 mm (Length/Depth x Height x Width)
• Weight : 3.0328 lb
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
