Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG13M0030TFFJ

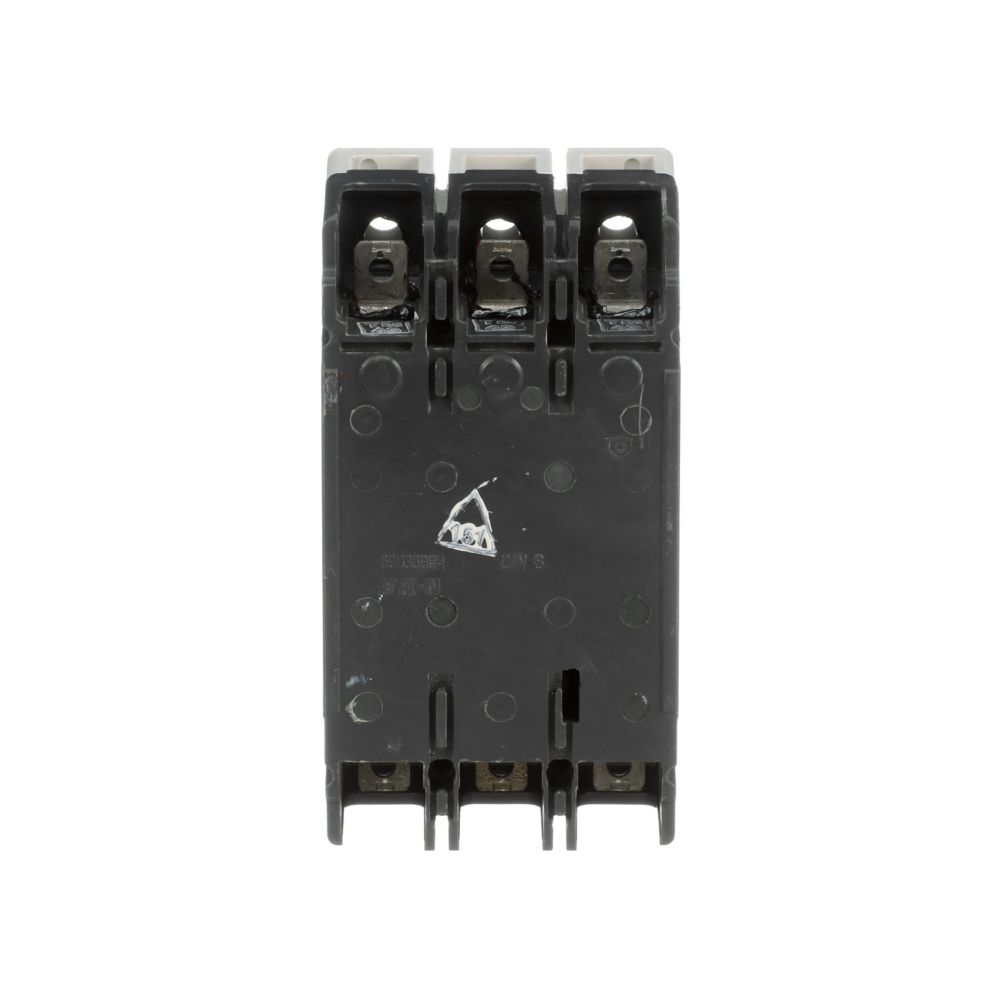

PDG13M0030TFFJ is a 3 pole, 30A, 600V molded case circuit breaker from Eaton's Power Defense Series, designed for reliable circuit protection in industrial and commercial applications. This breaker features a thermal magnetic trip unit and a robust interrupt rating for demanding environments. The PDG13M0030TFFJ is a chassis mount, fixed trip, molded case breaker with standard line and load lugs. It is part of the Power Defense Series, frame 1, and is rated for 65kAIC at 480VAC. The breaker is suitable for use in systems requiring high short-circuit protection and dependable performance.
- Part Number: PDG13M0030TFFJ
- Manufacturer: Eaton
- Series: Power Defense
- Frame: 1
- Poles: 3
- Amperage Rating: 30A
- Voltage Rating: 600VAC
- Interrupt Rating: 65kAIC at 480VAC
- Mounting Type: Chassis Mount
- Trip Unit: Thermal Magnetic
- Line/Load Lugs: Standard
- Certifications: UL Listed
Specifications
- Part Number: PDG13M0030TFFJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 78667923489
- GTIN : 00786679234891
- Country of Origin : Dominican Republic
- Dimensions : 76 mm x 139.7 mm x 76.2 mm (Length/Depth x Height x Width)
- Weight : 2.75
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
