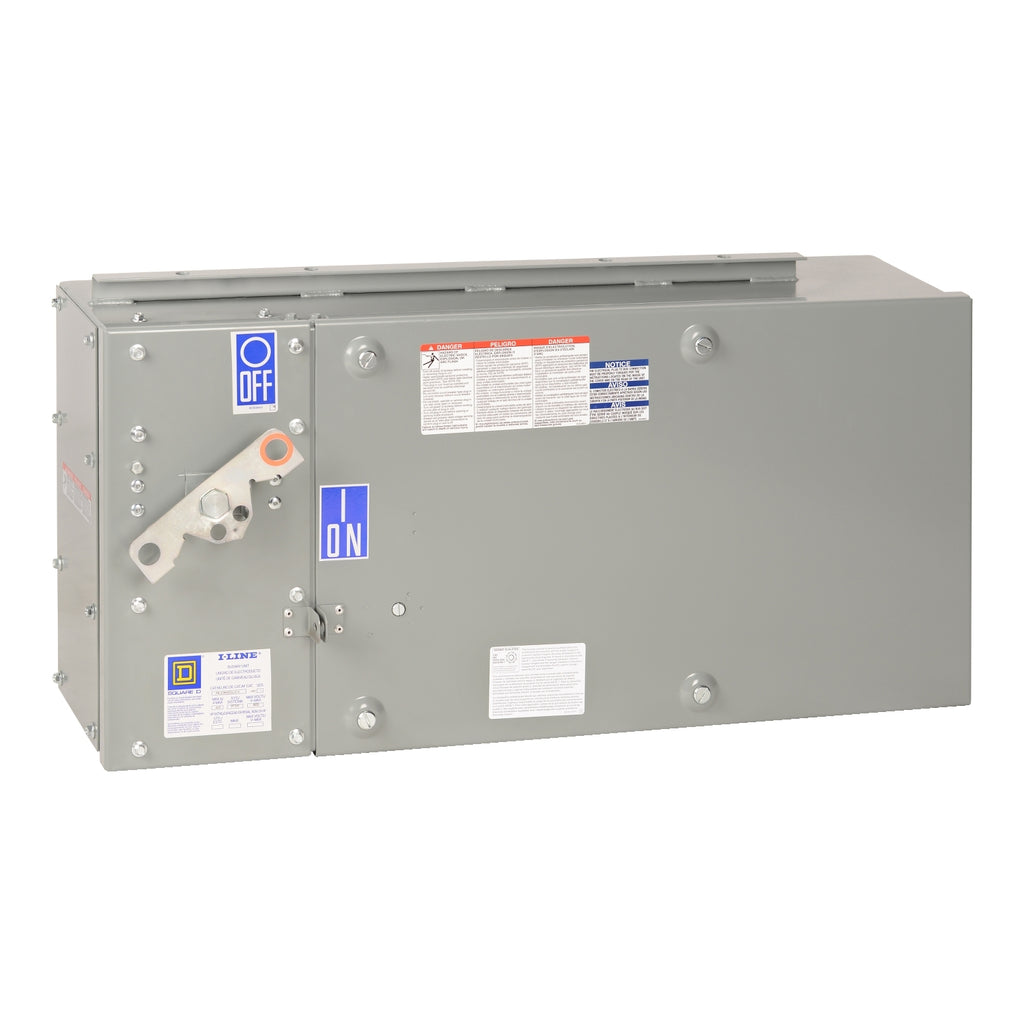

PBLA36400GN - Square D 400A 600V 4-Pole I-Line Breaker Type Bus Plug with Ground

PBLA36400GN

PBLA36400GN is a Square D breaker type bus plug designed for 400 amps and 600 volts, featuring a 4-pole, 4-wire configuration with ground for I-Line busway systems.This bus plug includes an LA thermal magnetic molded case circuit breaker rated at 30kA interrupting capacity at 480 volts and is suitable for use up to 600 volts AC. It plugs into one plug-in opening but requires space equal to two openings on the bus duct. The plug has mechanical lugs standard and a ground stab for connection to the bus duct ground bar, ensuring reliable and safe electrical distribution.

Key Specifications
• Amperage: 400 Amps
• Voltage Rating: 600 Volts AC
• Poles: 4 (3 Phase + Ground)
• Series: I-Line
• Breaker Frame: LA Thermal Magnetic
• Interrupt Rating: 30kA at 480 Volts
• Mounting Type: Plug-in Busway
• Wire: 4-wire with Ground
• Mechanical Lugs: Standard
• Required Mounting Clearance: 15 inches
• Ground Tab: Yes
• Condition: Reconditioned

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PBLA36400GN
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Breaker Type
• Family : I-Line
• Type : PBLA
• Voltage : 600
• Amperage : 400
• Phase : 3
• AIC rating : 30kA@480V
• Wire : 4

Product Data

• GTIN : 00785901473190
• Country of Origin : United States
• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 150
• Certification : CSA C22.2 No 27 - UL listed file E22182
