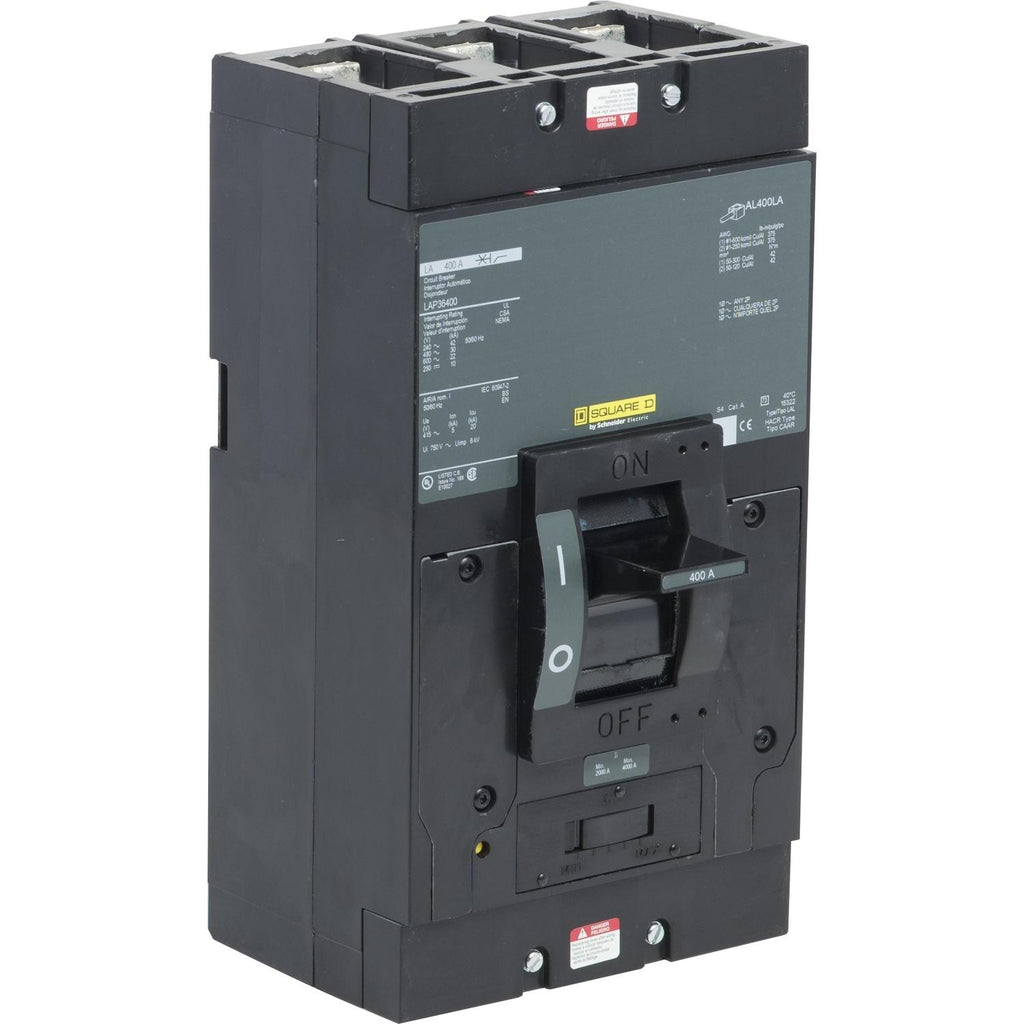

LAP36400 - Square D 400 Amp 600 Volt 3 Pole Molded Case Circuit Breaker Thermal Magnetic

LAP36400

LAP36400 is a 400 Amp, 600 Volt, 3 Pole molded case circuit breaker from Square D designed for reliable thermal magnetic protection.This Square D LAP36400 circuit breaker features a thermal-magnetic trip unit for overload and short-circuit protection, suitable for industrial and commercial applications. It is a bolt-on type breaker with an LA frame, HACR rated, and UL listed for safety and performance. The breaker supports a 30kA interrupt rating at 480V AC and includes a push-to-trip feature for manual testing without exposure to live parts.

• Amperage: 400 Amps
• Voltage Rating: 600 Volts AC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 30kA at 480V AC
• Frame/Series: LA Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, HACR Rated

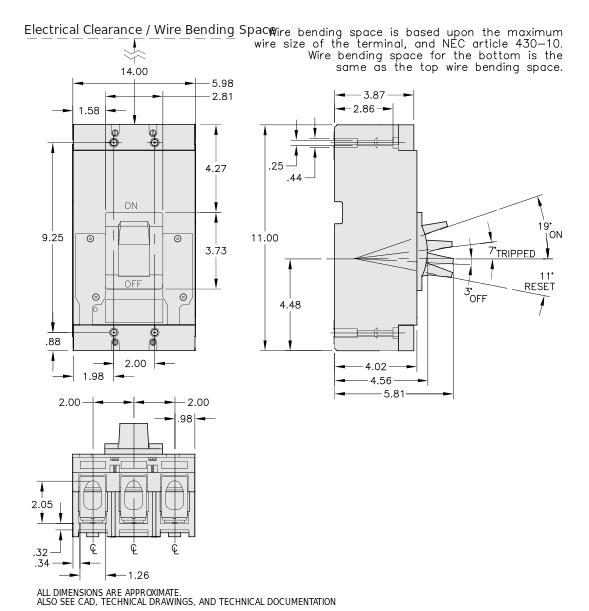

• Dimensions: 11 x 6 x 5.84 inches (HxWxD)
• Weight: Approximately 15.7 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LAP36400
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAP Series
• Type : LAP
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal
• Frame Size : A
• Protection : Thermal Magnetic

Product Data

• UPC : 785901424000
• GTIN : 00785901424000
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 15.81
• Standards : UL Listed, CSA, IEC
• Certification : UL Listed, CSA, IEC
• Wire Size : AWG 1...600 kcmil aluminium/copper)1, AWG 1...250 kcmil aluminium/copper)2
