Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description

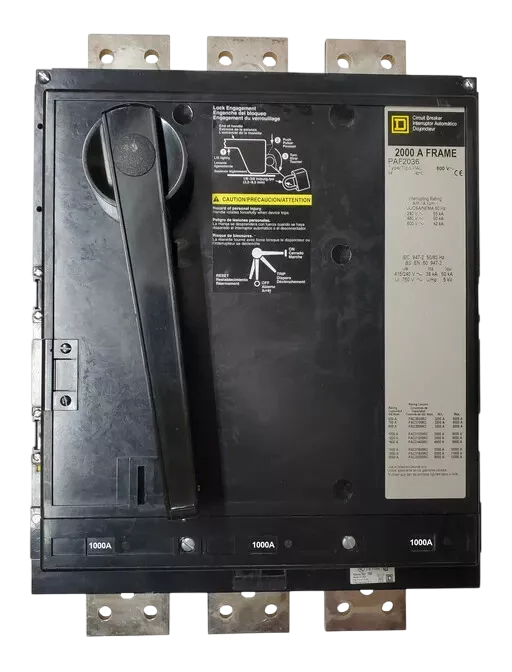

PAF2036-1600A
PAF2036-1600A is a 3 pole, 600 volt, 1600 ampere rated molded case circuit breaker manufactured by Square D. This thermal magnetic circuit breaker from the PAF series features a 2000 ampere frame with interchangeable rating columns, making it configurable for various amperage ratings. The breaker is designed for bolt-on installation and is commonly used as a main switchboard breaker throughout industrial and commercial applications. Key Specifications
- Part Number: PAF2036-1600A
- Manufacturer: Square D
- Poles: 3
- Voltage Rating: 600 VAC
- Amperage Rating: 1600A
- Frame Size: 2000A PAF Frame
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 42 kA at 600V, 50 kA at 480V, 65 kA at 240V
- Mounting: Bolt-On
- Terminal Type: Lug
Specifications
- Part Number: PAF2036-1600A
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : PAF Series
- Type : PAF
- Voltage : 600
- Amperage : 1600
- Phase : 3
- Poles : 3
- AIC rating : 42kA@600V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : P Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 74
