Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Fusible
Description
P3F362RGNH

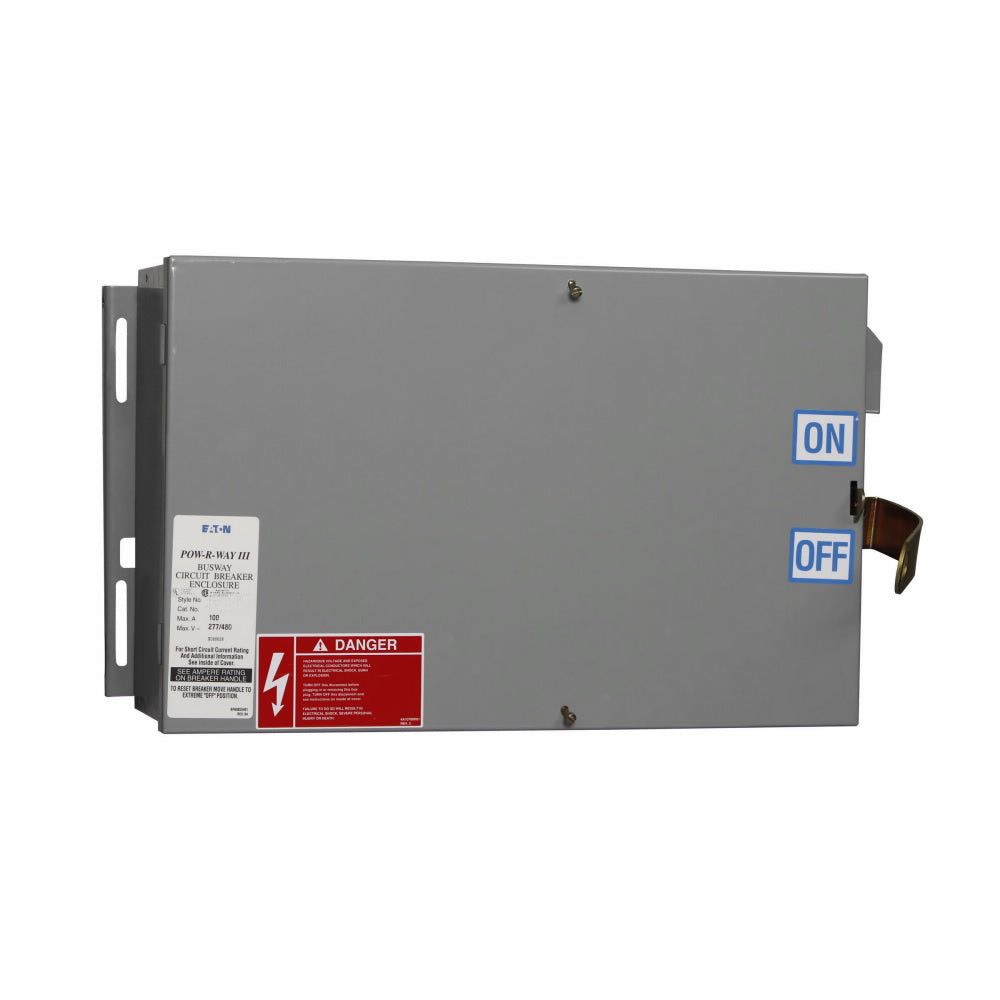

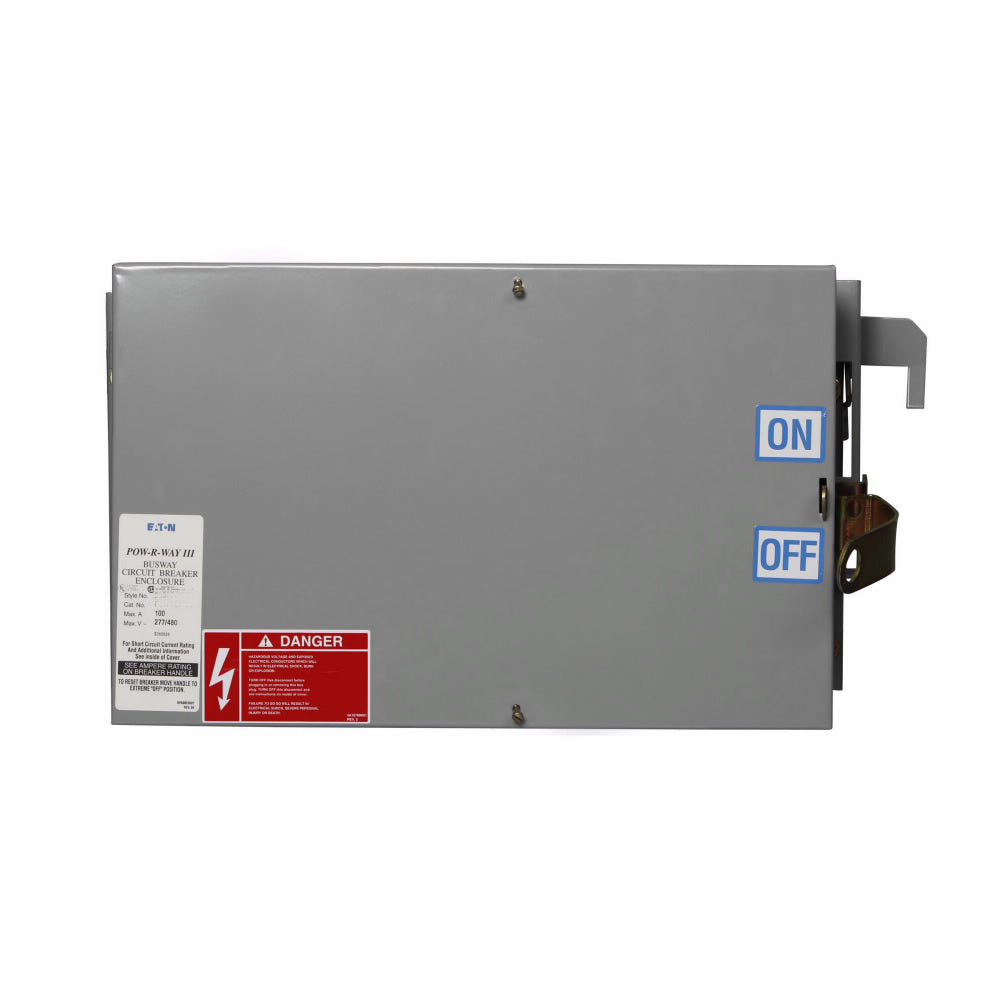

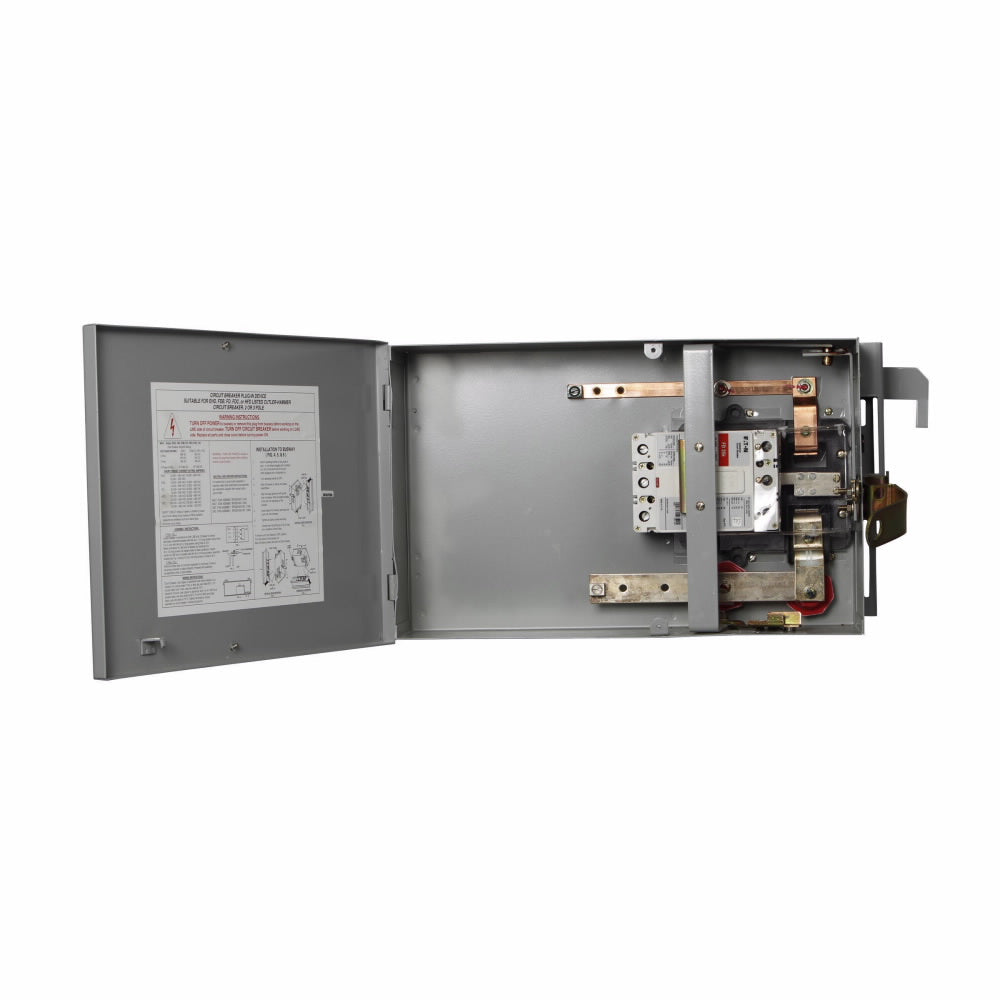

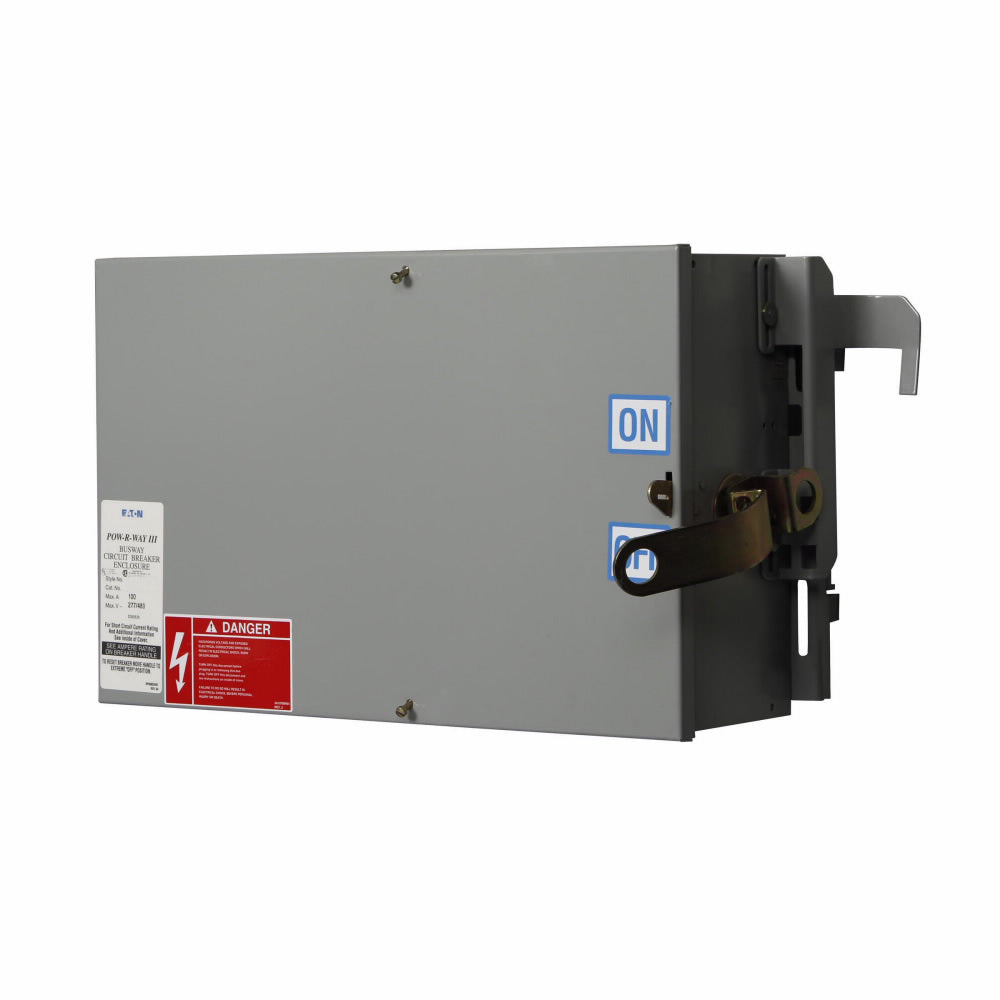

P3F362RGNH is a Cutler Hammer fusible bus plug designed for Pow-R-Way III busway systems, rated at 60 Amps and 600 Volts.This 3-pole, 4-wire bus plug features a horizontal mounting type and accepts R class fuses. It has a 200kA interrupting rating at 600V and includes 50% internal grounding with 100% neutral. The unit is suitable for aluminum and copper busway systems and is certified to ANSI, UL 857, IEEE, CSA, and NEMA standards.
- Manufacturer: Cutler Hammer (Eaton)
- Series: Pow-R-Way III
- Amperage: 60A
- Voltage: 600VAC
- Poles: 3
- Wires: 4 (3 phase + neutral)
- Mounting Type: Horizontal hanger
- Interrupt Rating: 200kAIC at 600V
- Fuse Type: R class fusible
- Grounding: 50% internal ground
- Neutral: 100%
- Certifications: ANSI, UL 857, IEEE, CSA, NEMA compliant
Specifications
- Part Number: P3F362RGNH
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : Pow-R-Way III
- Type : P3F
- Voltage : 600
- Amperage : 60
- Phase : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Wire : 4
Product Data
- UPC : 786685483054
- GTIN : 00786685483054
- Country of Origin : Mexico
- Dimensions : 17.92 in x 14.88 in x 8.37 in (Length/Depth x Height x Width)
- Weight : 40
- Certification : ANSI UL 857 IEEE Certified CSA Certified
