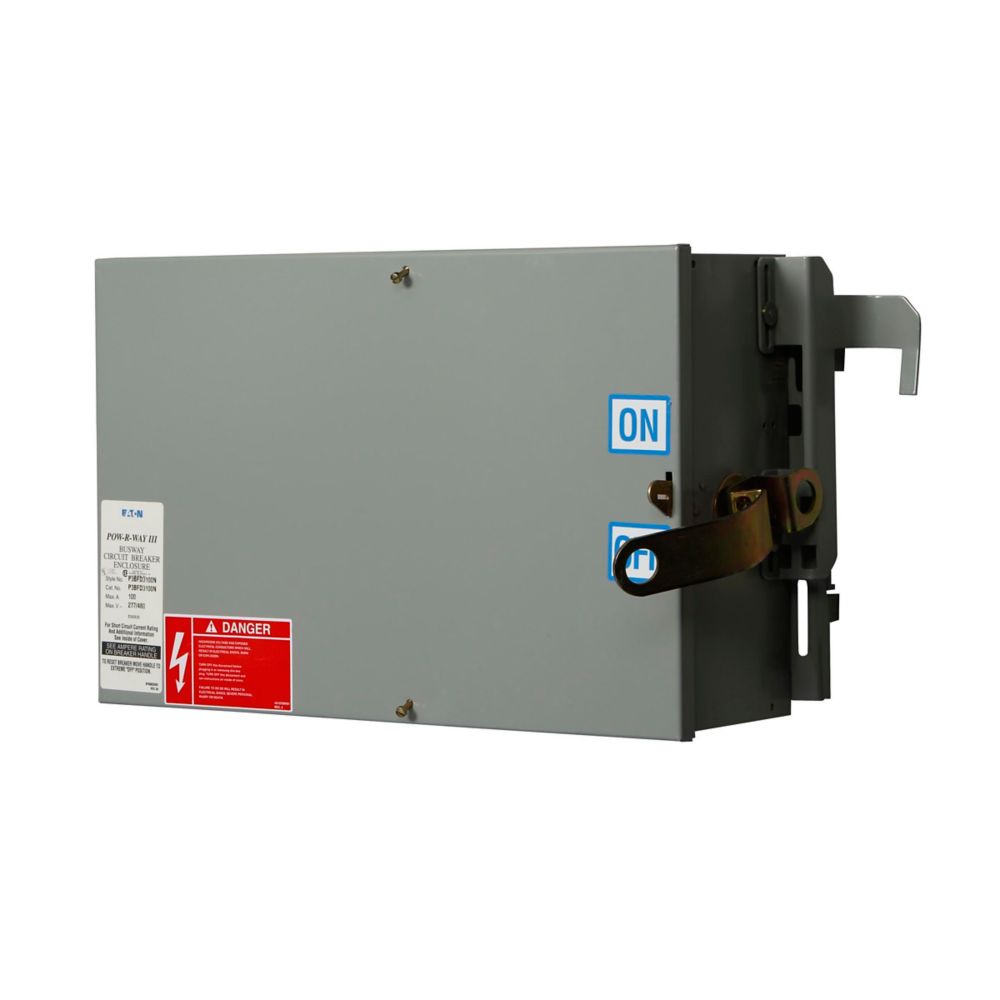

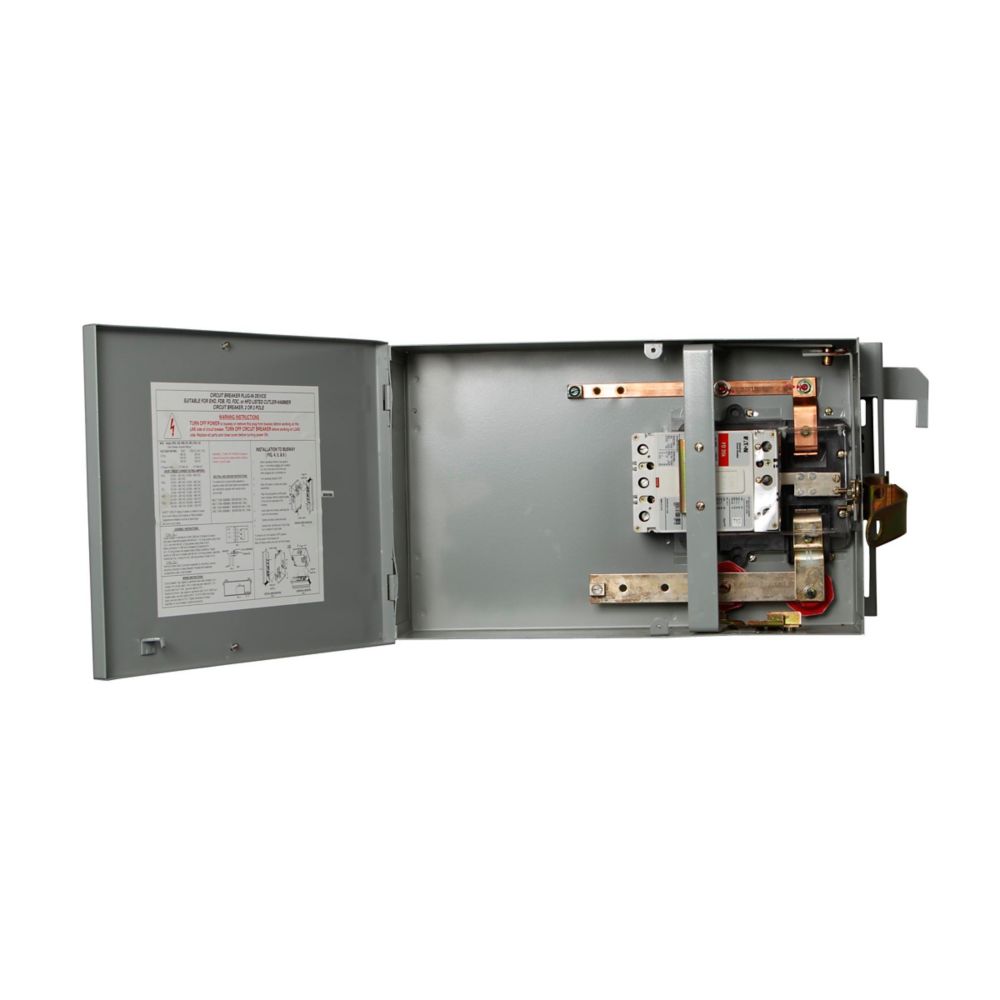

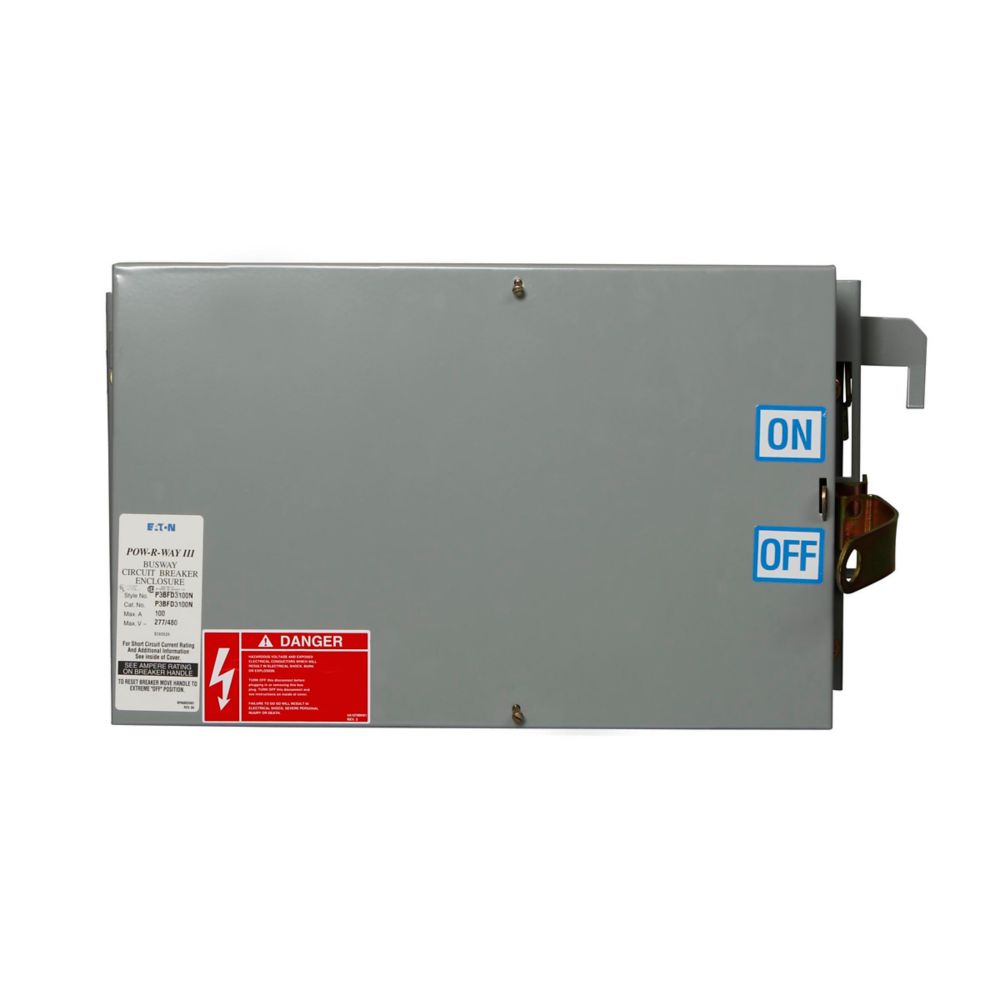

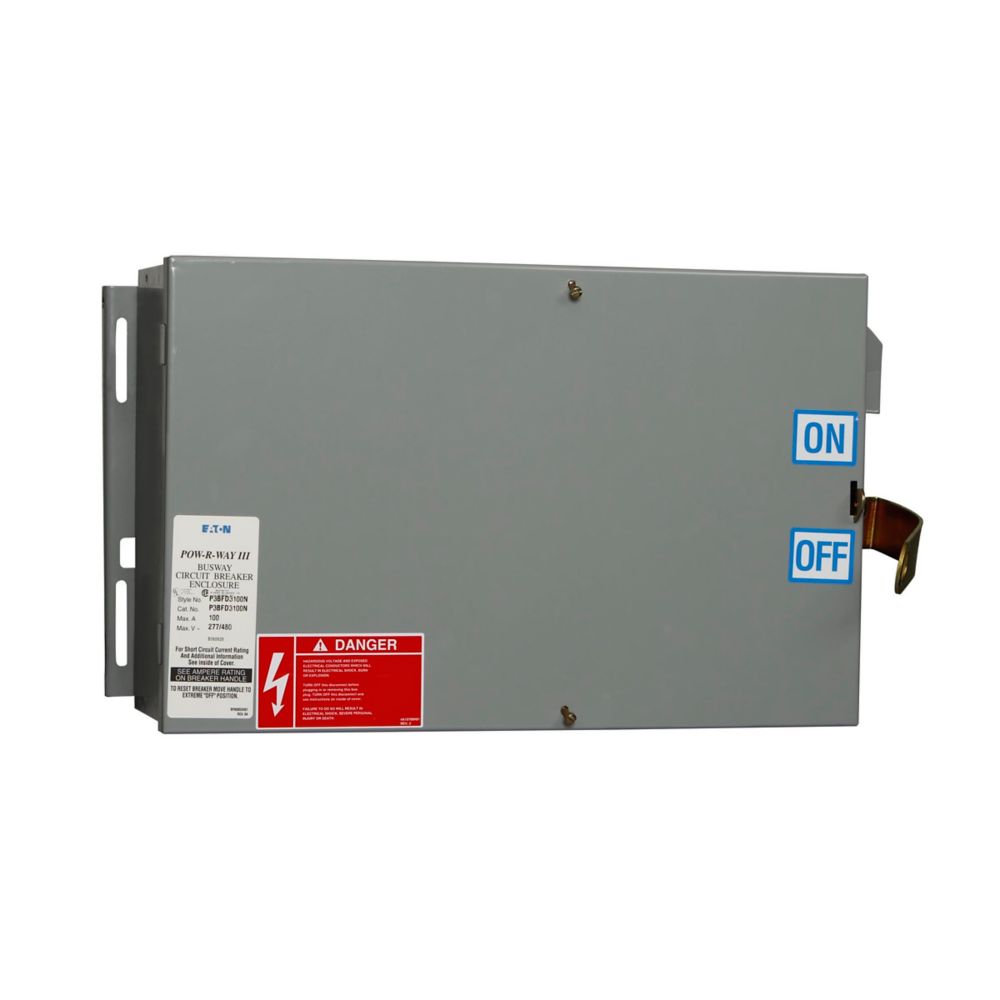

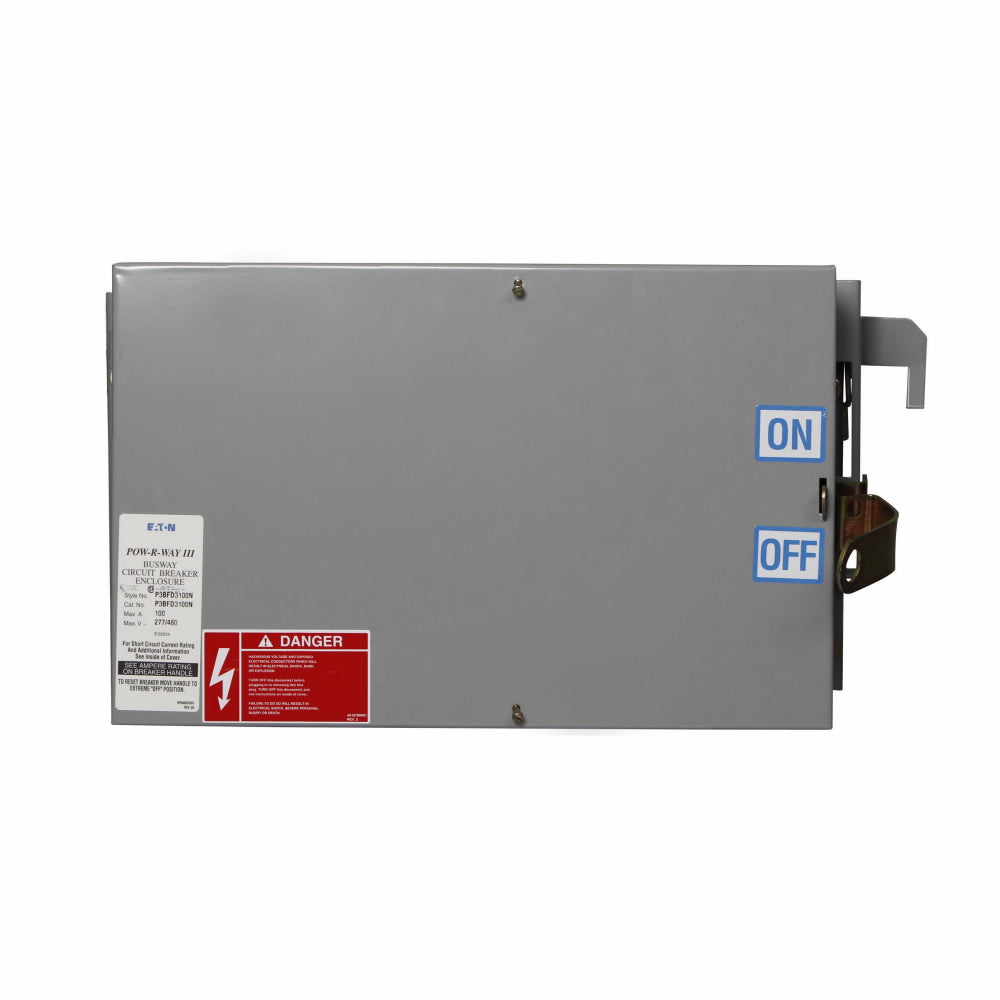

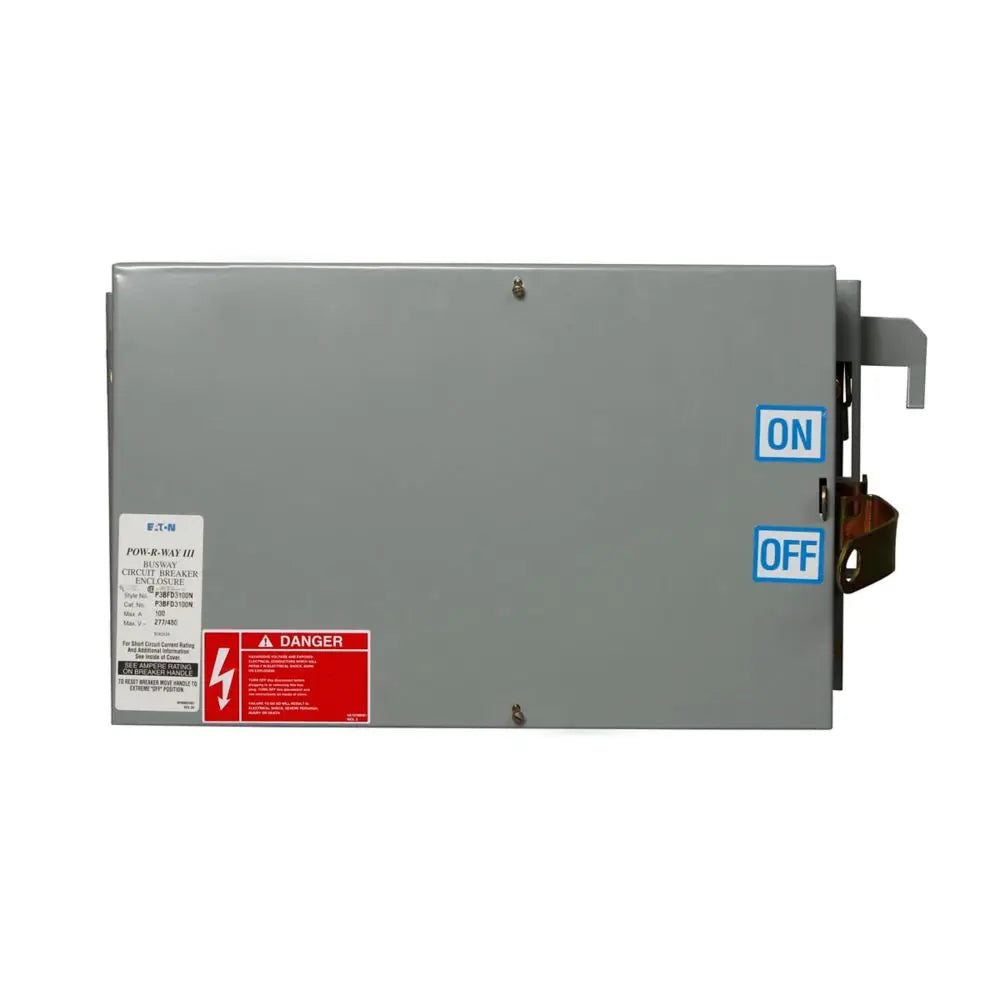

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Fusible
- Series
- POW-R-WAY III
- Frame
- P3F
- Rated current
- 200
- Voltage
- 240V
- Phases
- 3
- Interrupting rating
- 200kA@240V
- Wires
- 4
- Fuse class
- R
- Country of origin
- Mexico
- UPC
- 786685482620
- GTIN
- 00786685482620
Show all specifications (3 more)
- Dimensions
- 21.98 in x 17.42 in x 8.52 in (Length/Depth x Height x Width)
- Weight
- 53
- Certification
- ANSI CSA Certified IEEE Certified UL 857
Product description & additional details
P3F324RGNH
P3F324RGNH is a 200 Amp, 240 Volt, 3-pole, 4-wire fusible bus plug from Eaton's POW-R-WAY III series designed for reliable power distribution.This Eaton Cutler Hammer bus plug features R class fuses, a 200kA interrupting rating at 240V, and supports 50% internal ground with 100% neutral. It is a horizontal mount plug-in unit suitable for busway applications requiring high interrupt capacity and safety.
- Amperage: 200A
- Voltage: 240V
- Poles: 3
- Wires: 4 (3 phase + neutral)
- Fuse Type: R class
- Interrupt Rating: 200kA at 240V
- Series/Frame: POW-R-WAY III
- Mounting Type: Horizontal plug-in
- Internal Ground: 50%
- Neutral: 100%
- Manufacturer: Eaton (Cutler Hammer, Westinghouse)
- Application: Busway power distribution
Specifications
- Part Number: P3F324RGNH
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : POW-R-WAY III
- Type : P3F
- Voltage : 240
- Amperage : 200
- Phase : 3
- AIC rating : 200kA@240V
- Fuse Class : R
- Wire : 4
Product Data
- UPC : 786685482620
- GTIN : 00786685482620
- Country of Origin : Mexico
- Dimensions : 21.98 in x 17.42 in x 8.52 in (Length/Depth x Height x Width)
- Weight : 53
- Certification : ANSI CSA Certified IEEE Certified UL 857
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
