Description
NO.663-R

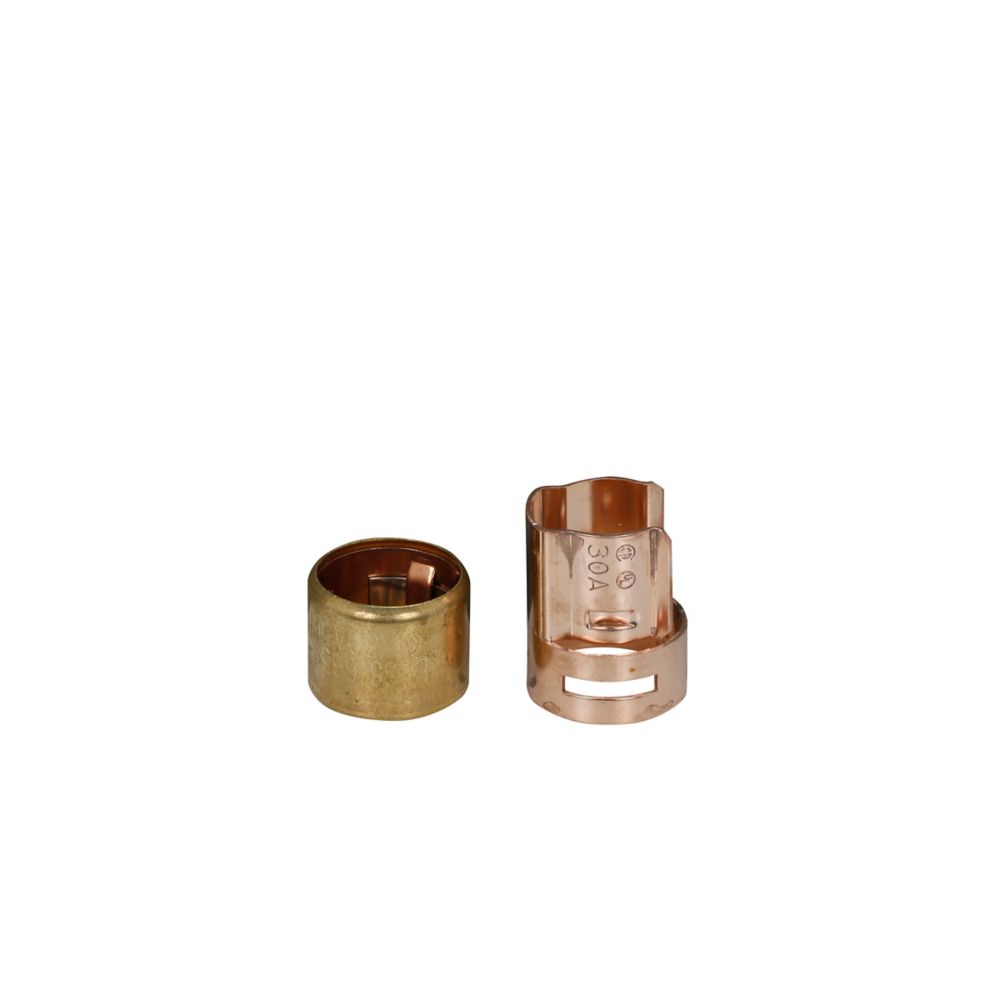

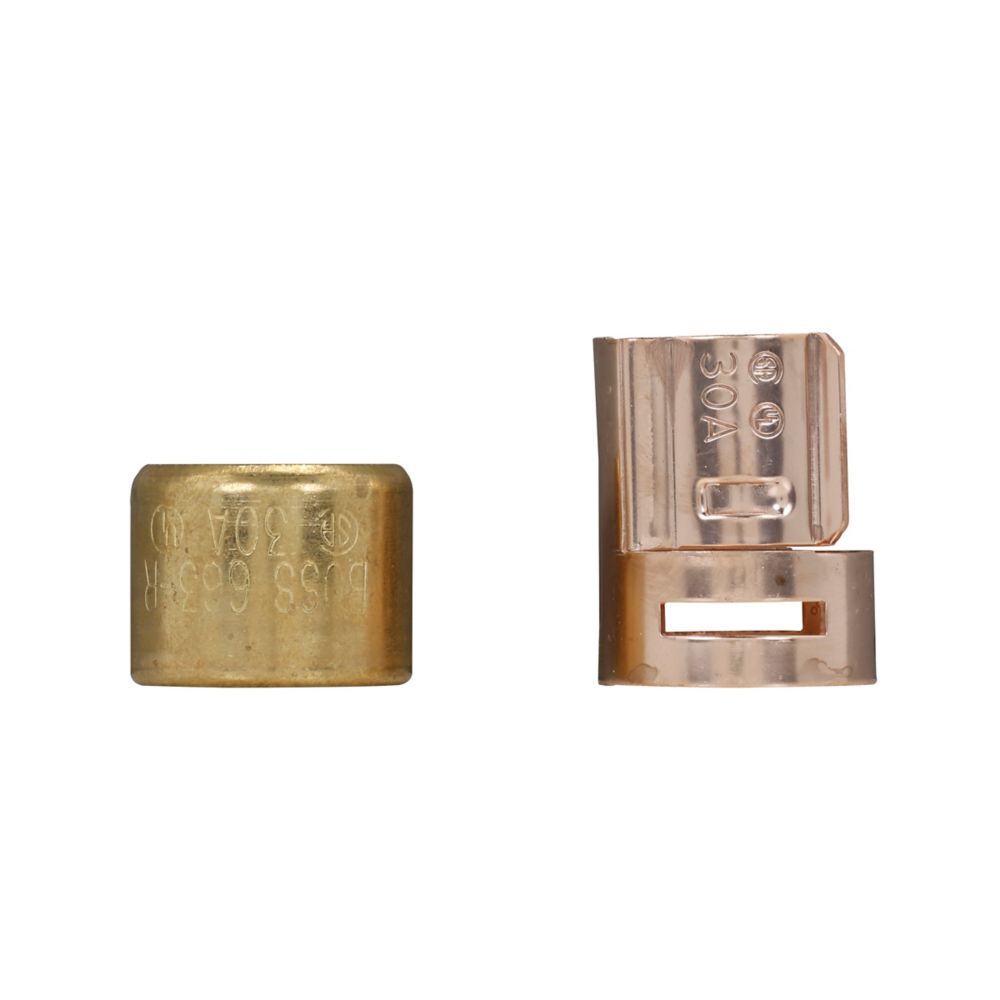

NO.663-R is an Eaton Bussmann Class R fuse reducer rated for 60 amps and 600 volts, designed to adapt lower amperage fuses to higher amp fuse blocks.
This non-indicating fuse reducer allows a 1 to 30 amp Class R fuse to fit into a 60 amp fuse block, compatible with FRN-R, LPN-RK, FRS-R, LPS-RK, KTN-R, and KTS-R series fuses. It features a compact design with dimensions approximately 2.6 inches deep, 1.8 inches wide, and 1.4 inches high, weighing 0.1 pounds. The NO.663-R is ideal for applications requiring fuse size adaptation while maintaining Class R fuse protection standards.
- Key Specifications
- Amperage Rating: 60 A
- Voltage Rating: 600 V
- Fuse Class: Class R
- Type: Fuse Reducer (Non-Indicating)
- Compatible Fuse Sizes: 1 to 30 A fuses
- Compatible Fuse Series: FRN-R, LPN-RK, FRS-R, LPS-RK, KTN-R, KTS-R
- Dimensions: 2.6 in (Depth) x 1.8 in (Width) x 1.4 in (Height)
- Weight: 0.1 lb
- Mounting: Fits 60 A fuse blocks
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: NO.663-R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Reducer
- Family : Class R
- Type : NO-R
- Voltage : 600
Product Data
- UPC : 05171261373
- GTIN : 00051712613736
- Country of Origin : Mexico
- Dimensions : 2.6 in x 1.4 in x 1.8 in (Length/Depth x Height x Width)
- Weight : 0.1
- Certification : CSA Certified (CLR47235), UL Listed (E12853)
