Description
J-16

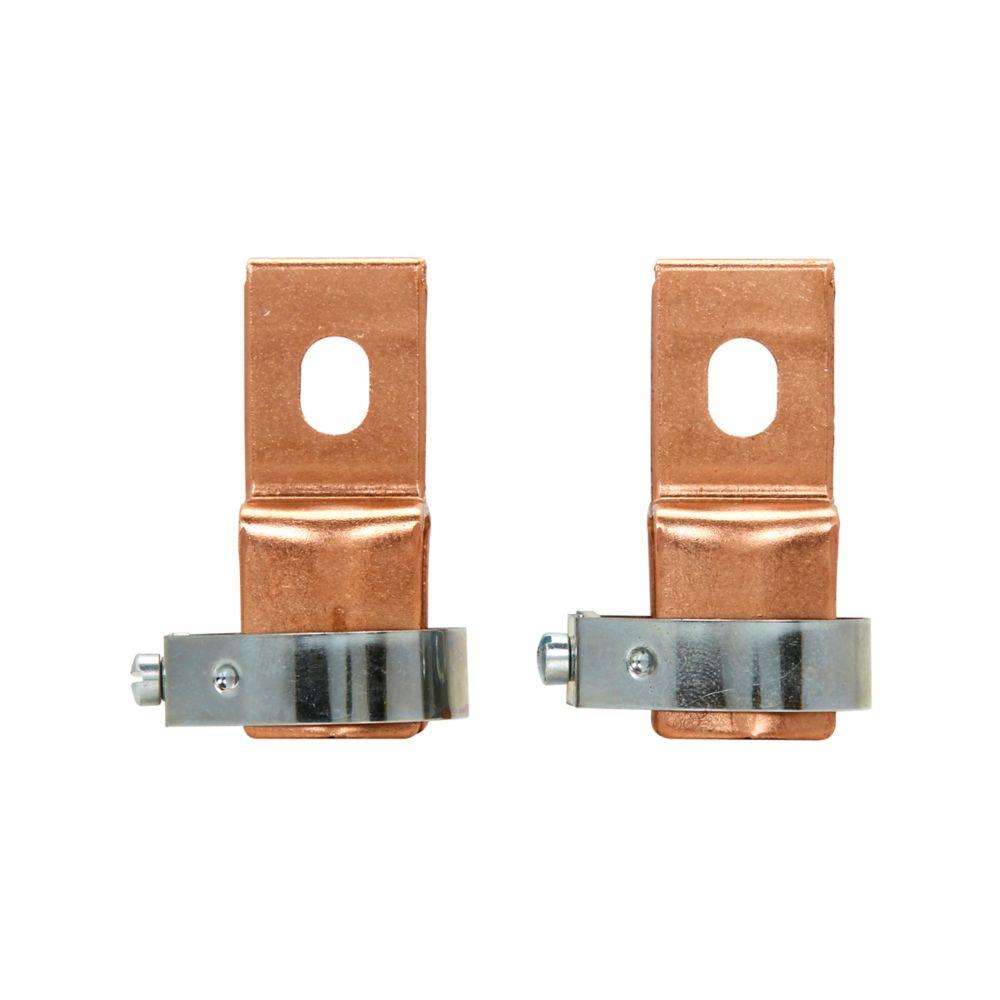

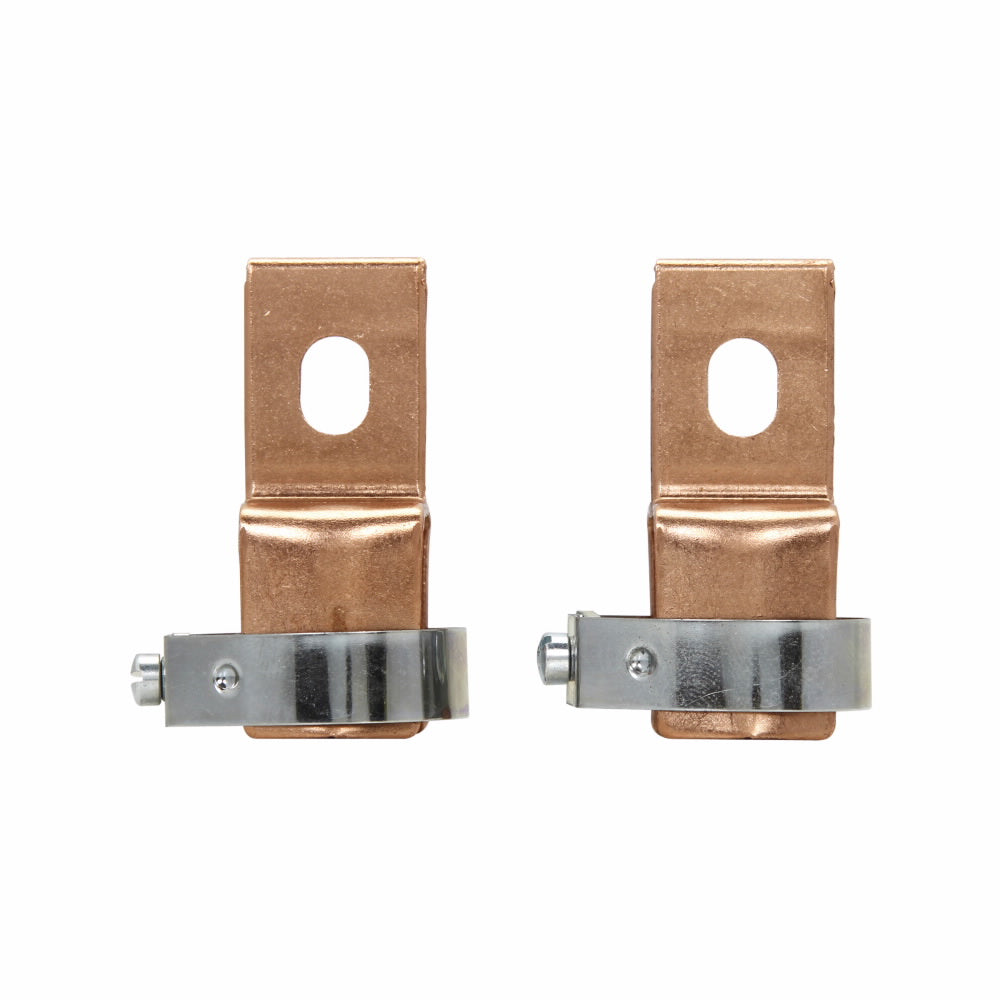

J-16 is an Eaton Bussmann Class J fuse reducer designed for use with LPJ, DFJ, and JKS dimension fuses, providing a 100 amp rating and 600 volt maximum voltage.This fuse reducer allows installation of smaller size fuses (35 to 60 amps) into fuse clips designed for larger fuses, maintaining strong mechanical and electrical contact. It features a bolt-on mounting style and is non-indicating. The J-16 supports a short-circuit current rating up to 200 amps and complies with RoHS standards.
- Manufacturer: Eaton Bussmann
- Part Number: J-16
- Class: Class J
- Amperage Rating: 100 A
- Voltage Rating: 600 V AC
- Compatible Fuse Types: LPJ, DFJ, JKS
- Mounting Type: Bolt-On
- Fuse Size Range: 35 to 60 A
- Interrupt Rating: Up to 200 A (not for bolt-on fuse applications)
- Non-indicating
- RoHS Compliant
- Dimensions: 1.97" W x 1.38" H x 1.38" D
Specifications
- Part Number: J-16
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Reducer
- Family : Class J
- Type : J
- Voltage : 600
- Amperage Maximum : 60
- Amperage Minimum : 35
Product Data
- UPC : 051712714167
- GTIN : 00051712714167
- Country of Origin : Mexico
- Dimensions : 1.38 in x 1.38 in x 1.97 in (Length/Depth x Height x Width)
- Weight : 0.8
- Certification : RoHS Compliant
