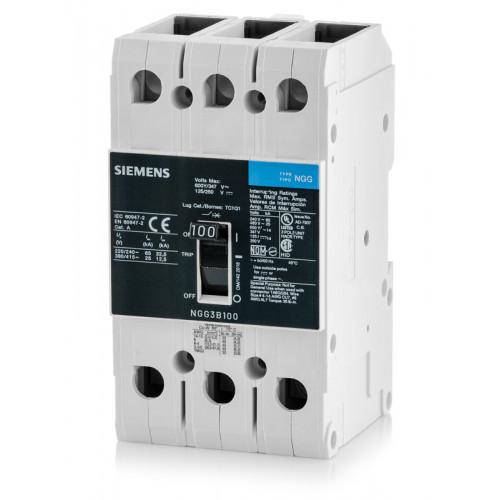

NGG3B100L - Siemens 100A 3 Pole 600V Molded Case Circuit Breaker GG Frame Thermal Magnetic Trip

NGG3B100L

NGG3B100L is a Siemens 100A 3 Pole molded case circuit breaker designed for reliable protection in commercial and industrial electrical systems. This GG frame circuit breaker features thermal-magnetic trip technology and is UL listed for safety and performance. It is suitable for DIN rail or screw mounting and includes line and load lugs for easy installation. The breaker is rated for 600VAC and offers a 25kA interrupting rating at 480V, making it ideal for reverse feed applications and standard power distribution needs. This Siemens NGG3B100L circuit breaker provides long-time and instantaneous trip functions for optimal overload and short-circuit protection. It is compatible with a wide range of wire sizes and is designed for use in low-voltage power distribution panels. The compact design and robust construction ensure reliable operation in demanding environments.

• Part Number: NGG3B100L
• Manufacturer: Siemens
• Series/Frame: NGG / GG
• Amperage: 100A
• Poles: 3
• Voltage Rating: 600VAC
• Mounting Type: DIN Rail / Screw
• Interrupting Rating: 25kA @ 480V
• Trip Unit: Thermal Magnetic (LI)
• Terminal Connection: Feed-Thru
• Wire Range: 8 AWG to 1/0 AWG (Cu/Al)
• Certifications: UL Listed, NEMA 25kA @ 480V

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NGG3B100L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : VL Series
• Type : NGG
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : GG Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 783643413900
• GTIN : 00783643413900
• Country of Origin : Mexico
• Weight : 2.919
• Wire Size : AWS 8 to AWS 1/0, Cu/Al
