Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NGG3B015L

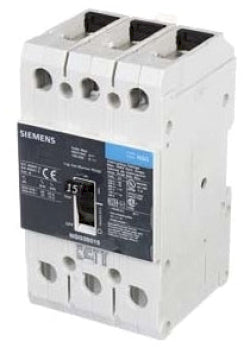

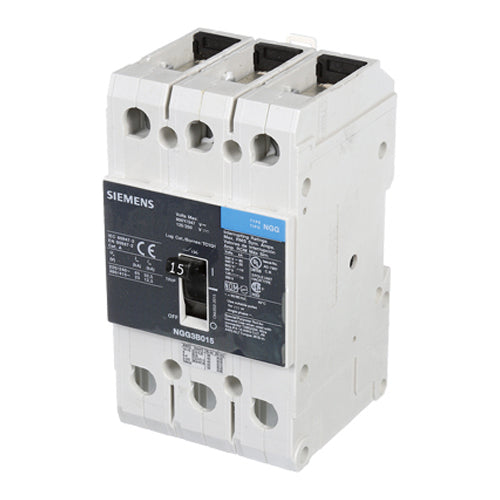

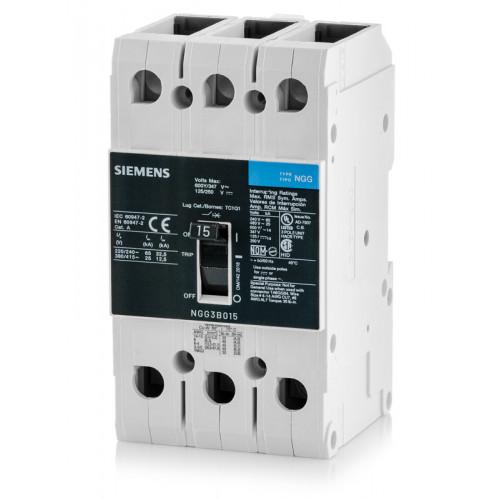

NGG3B015L is a Siemens 15 Amp, 600 Volt, 3-Pole molded case circuit breaker with a thermal magnetic trip unit designed for low voltage applications.This Siemens NGG3B015L circuit breaker features a NGG frame type with feed-thru mounting, suitable for reverse feed applications. It offers a high interrupting rating of 25kA at 480V AC and 14kA at 600/347V AC. The breaker supports wire sizes from #14 to #6 AWG copper and #12 to #6 AWG aluminum. It includes line and load side lug terminals and can be mounted using screws or DIN rail.
- Amperage: 15 A
- Voltage: 600 V AC (600Y/347V AC)
- Poles: 3
- Frame Type: NGG
- Mounting Type: Feed-Thru, screws or DIN rail compatible
- Interrupting Rating: 25 kA @ 480 V, 14 kA @ 600/347 V
- Trip Unit: Thermal Magnetic
- Wire Size: #14 to #6 AWG copper, #12 to #6 AWG aluminum
- Line & Load Side Lug Terminals
- Suitable for reverse feed applications
- Certifications: UL 489
Specifications
- Part Number: NGG3B015L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NGG
- Voltage : 600
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : GG Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643413788
- GTIN : 00783643413788
- Country of Origin : Mexico
- Weight : 2.782
