Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NGG3B090L

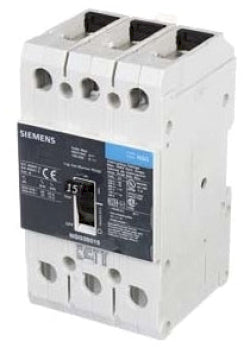

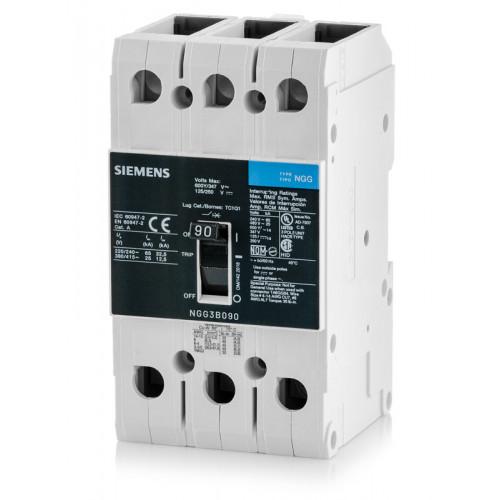

NGG3B090L is a Siemens 3 pole molded case circuit breaker rated for 90 amps and 600 volts AC, designed for reliable circuit protection.This Siemens NGG3B090L circuit breaker features thermal magnetic trip protection with long-time and instantaneous trip functions. It supports feed-thru connection and is suitable for reverse fed applications. The breaker has a 25kA interrupt rating at 480V and mounts on DIN rail or screw. It includes line and load side lug terminals and is UL listed with NGG frame type.
- Amperage: 90A
- Voltage: 600 VAC
- Poles: 3
- Frame Type: NGG
- Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
- Interrupt Rating: 25kA at 480V
- Mounting: DIN Rail or Screw
- Connection: Feed-Thru
- Line & Load Side Lug Terminals
- Suitable for Reverse Fed Applications
- UL Listed
Specifications
- Part Number: NGG3B090L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NGG
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : GG Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643413894
- GTIN : 00783643413894
- Country of Origin : Mexico
- Weight : 2.811
