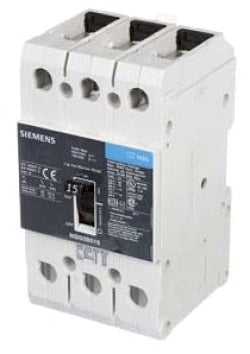

NGG3B080L - Siemens 80A 600VAC 3 Pole Bolt-On/DIN Rail Mount Circuit Breaker G-Frame

NGG3B080L

NGG3B080L is a Siemens 3 Pole, 80 Amp, 600VAC circuit breaker with bolt-on and DIN rail mounting options designed for reliable power distribution protection.This Siemens NGG3B080L circuit breaker features a thermal magnetic trip unit, G-Frame construction, and a 25kA interrupt rating at 480VAC. It supports wire sizes from 14 AWG to 1/0 AWG copper or aluminum with a lug kit. Certified to UL489 standards, it is suitable for panelboard mounting and offers a compact 3 inch wide by 4.5 inch high form factor.

• Manufacturer: Siemens
• Part Number: NGG3B080L
• Amperage: 80A
• Voltage Rating: 600VAC (600Y/347V AC)
• Poles: 3
• Mounting Type: Bolt-On and DIN Rail
• Interrupt Rating: 25kA @ 480VAC, 100kA @ 240VAC
• Frame Type: NGG (G-Frame)
• Trip Unit: Thermal Magnetic
• Certifications: UL489
• Wire Size Range: #14 AWG to 1/0 AWG Copper/Aluminum
• Dimensions: 3" W x 4.5" H x 3.3" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NGG3B080L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : VL Series
• Type : NGG
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : GG Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 783643413887
• GTIN : 00783643413887
• Country of Origin : Mexico
• Weight : 2.886
• Wire Size : AWS 8 to AWS 1/0, Cu/Al
