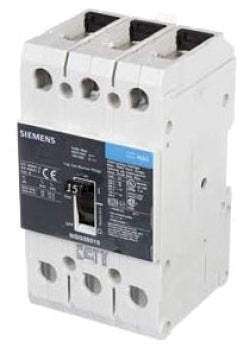

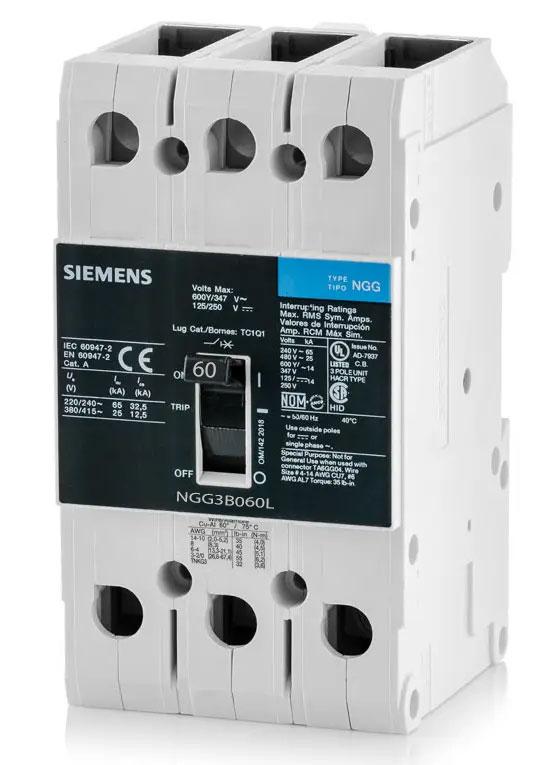

NGG3B060L - Siemens 60A 600V 3-Pole Thermal Magnetic Molded Case Circuit Breaker NGG Frame

NGG3B060L

NGG3B060L is a Siemens 3-pole thermal magnetic molded case circuit breaker rated for 60 amps and 600 volts AC, designed for reliable circuit protection.NGG3B060L features a NGG frame with a thermal-magnetic trip unit, suitable for mounting on DIN rail or screw mounting. It offers a standard interrupt rating of 25kA at 480V and 14kA at 600Y/347V, making it ideal for low voltage applications requiring robust protection. This breaker is UL listed and supports line and load lug connections.

• Amperage: 60 Amps
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: DIN Rail or Screw Mount
• Interrupt Rating: 25kA at 480V, 14kA at 600Y/347V
• Frame/Series: NGG
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed
• Line and Load Lug Connections
• Standard Breaking Capacity
• Dimensions approx. 7" L x 5" W x 4" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NGG3B060L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : VL Series
• Type : NGG
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : GG Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 783643413863
• GTIN : 00783643413863
• Country of Origin : Mexico
• Weight : 2.89
• Wire Size : AWS 8 to AWS 1/0, Cu/Al
