Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NGG3B040L

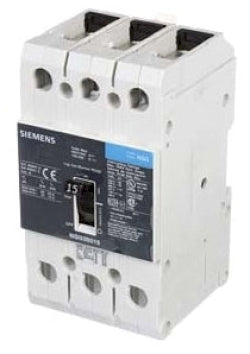

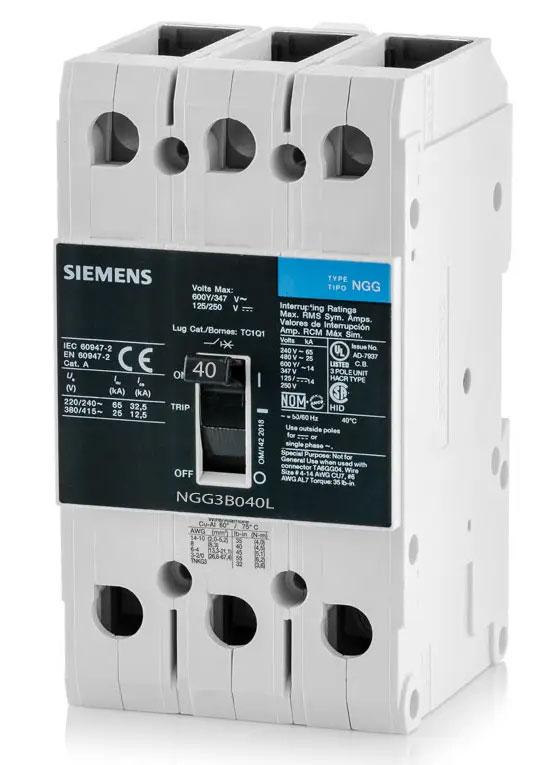

NGG3B040L is a Siemens 3-pole molded case circuit breaker designed for low voltage applications with a 40 amp rating and 600 volt AC capability.This Siemens NGG3B040L circuit breaker features a thermal-magnetic trip unit, NGG frame, and is rated for 25 kA interrupt capacity at 480 volts. It supports feed-thru wiring with line and load side lug terminals and is suitable for reverse fed applications. The breaker can be mounted using screws or DIN rail, making it versatile for various electrical installations.
- Key Specifications
- Amperage: 40 A
- Voltage: 600 V AC
- Number of Poles: 3
- Frame Type: NGG
- Interrupt Rating: 25 kA at 480 V
- Trip Unit: Thermal-Magnetic
- Mounting Type: Screw or DIN Rail
- Feed-Thru Wiring: Yes
- Line & Load Side Lug Terminals
- Suitable for Reverse Fed Applications
- Certification: UL Listed
- Part Number: NGG3B040L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NGG
- Voltage : 600
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : GG Frame
- Protection : Thermal Magnetic
- UPC : 783643413832
- GTIN : 00783643413832
- Country of Origin : Mexico
- Weight : 2.886
- Wire Size : AWS 8 to AWS 1/0, Cu/Al
