Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NGG2B125L

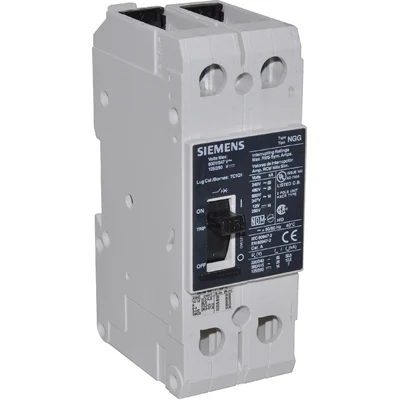

NGG2B125L is a Siemens 2-pole molded case circuit breaker rated for 125 amps and 600 volts AC with thermal magnetic trip protection.
This Siemens NGG2B125L circuit breaker features a 2-pole design suitable for 600Y/347/480 VAC systems, with an interrupt rating of 14 kA at 600Y/347V and 25 kA at 480V. It uses a thermal magnetic trip unit and mounts with line and load side lugs. The breaker fits the NGG frame series and is UL listed for industrial applications, supporting wire sizes from 8 AWG to 1/0 AWG. It is designed for reliable protection in low voltage power distribution systems.
- Key Specifications
- Amperage: 125 A
- Voltage Rating: 600Y/347/480 VAC
- Poles: 2
- Interrupt Rating: 14 kA at 600Y/347V, 25 kA at 480V
- Trip Unit: Thermal Magnetic
- Mounting Type: Line and Load Side Lugs
- Frame/Series: NGG
- Wire Size Range: 8 AWG to 1/0 AWG
- UL Listed
- Application: Industrial
- Part Number: NGG2B125L
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Voltage : 600
- Amperage : 125
- Phase : 1
- Poles : 2
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 783643413771
- Country of Origin : Mexico
- Dimensions : 5.4 in H x 2 in W x 2.8 in D
- Weight : 1.956
- Wire Size : AWS 8 to AWS 1/0, Al/Cu
