Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NGB3B125V

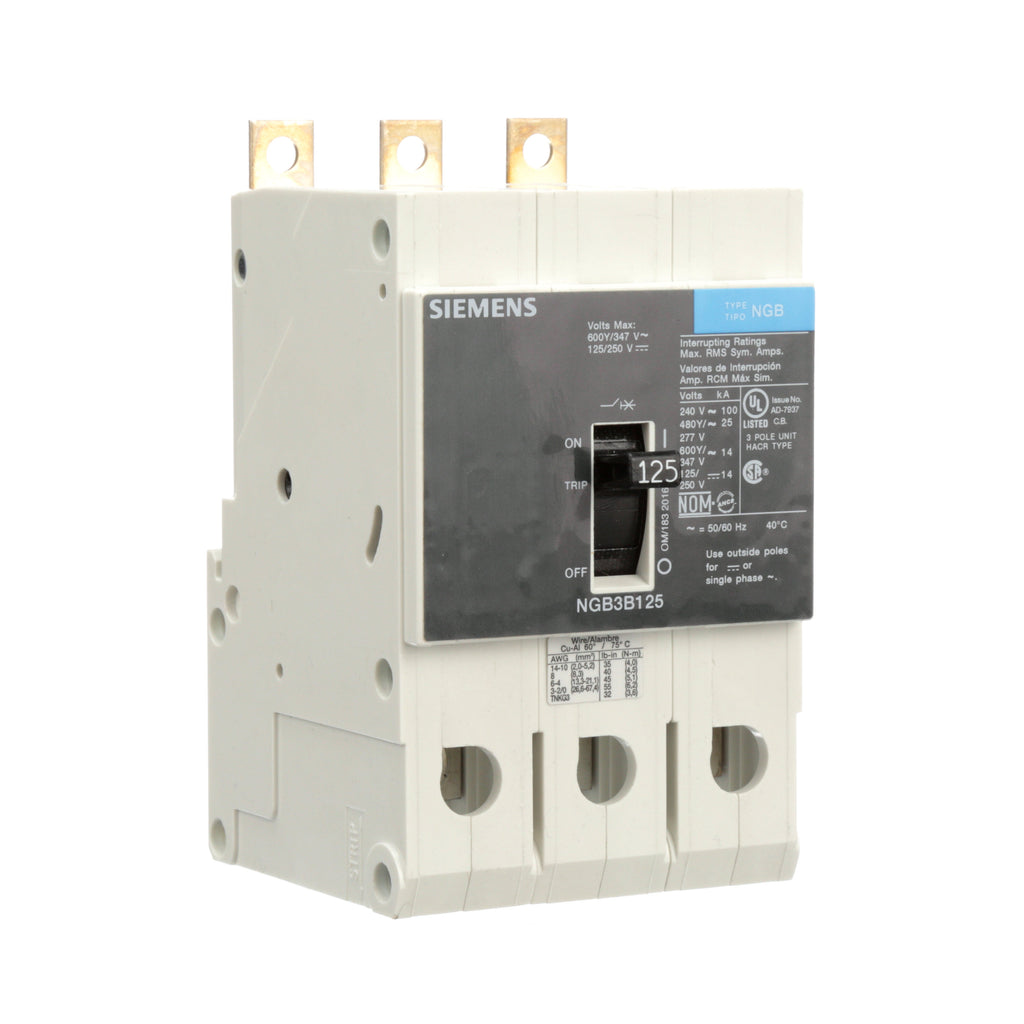

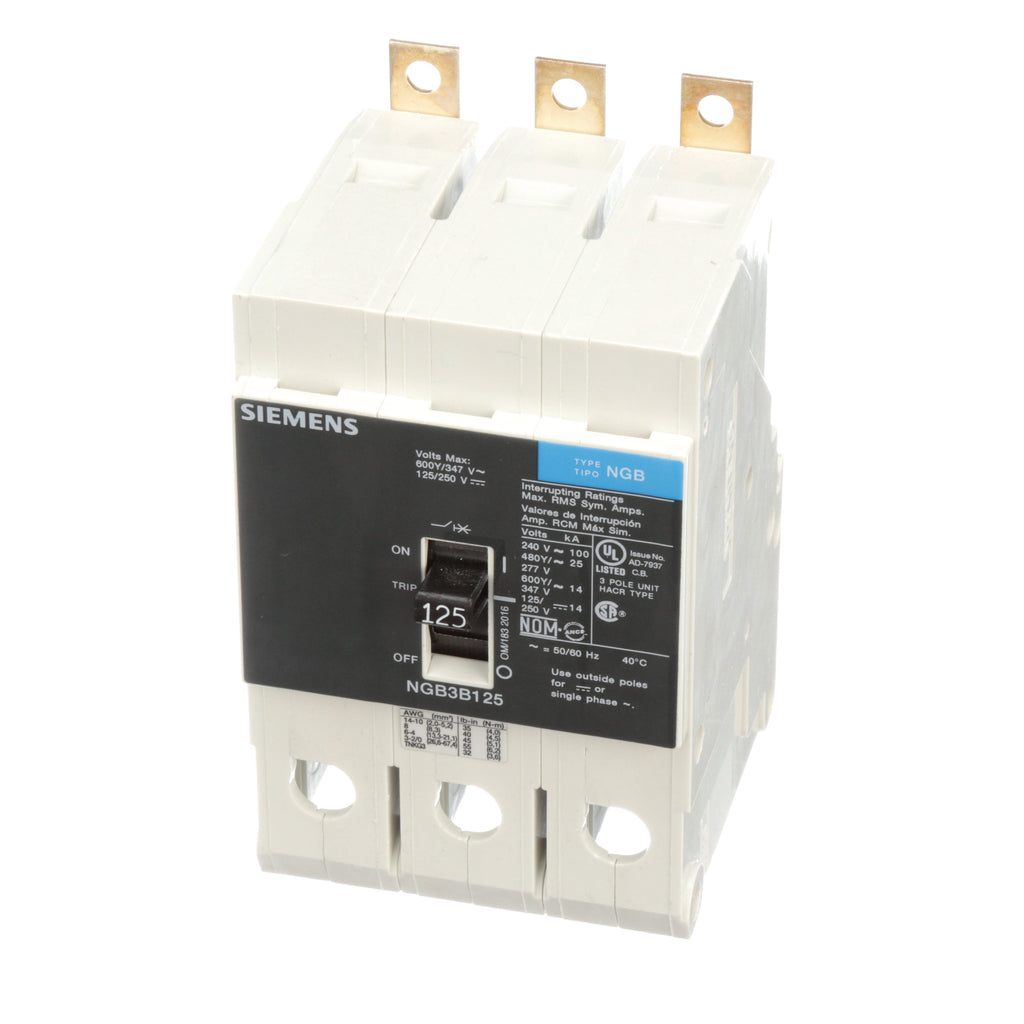

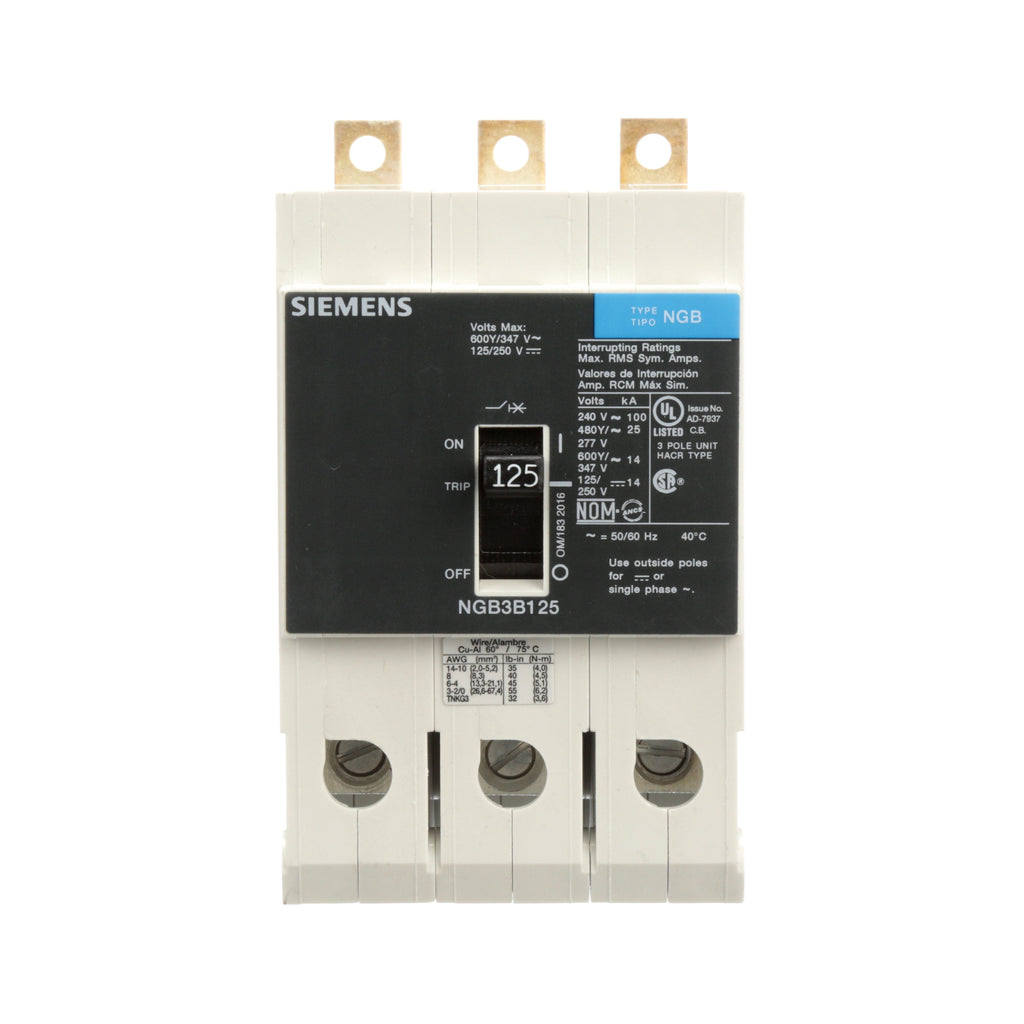

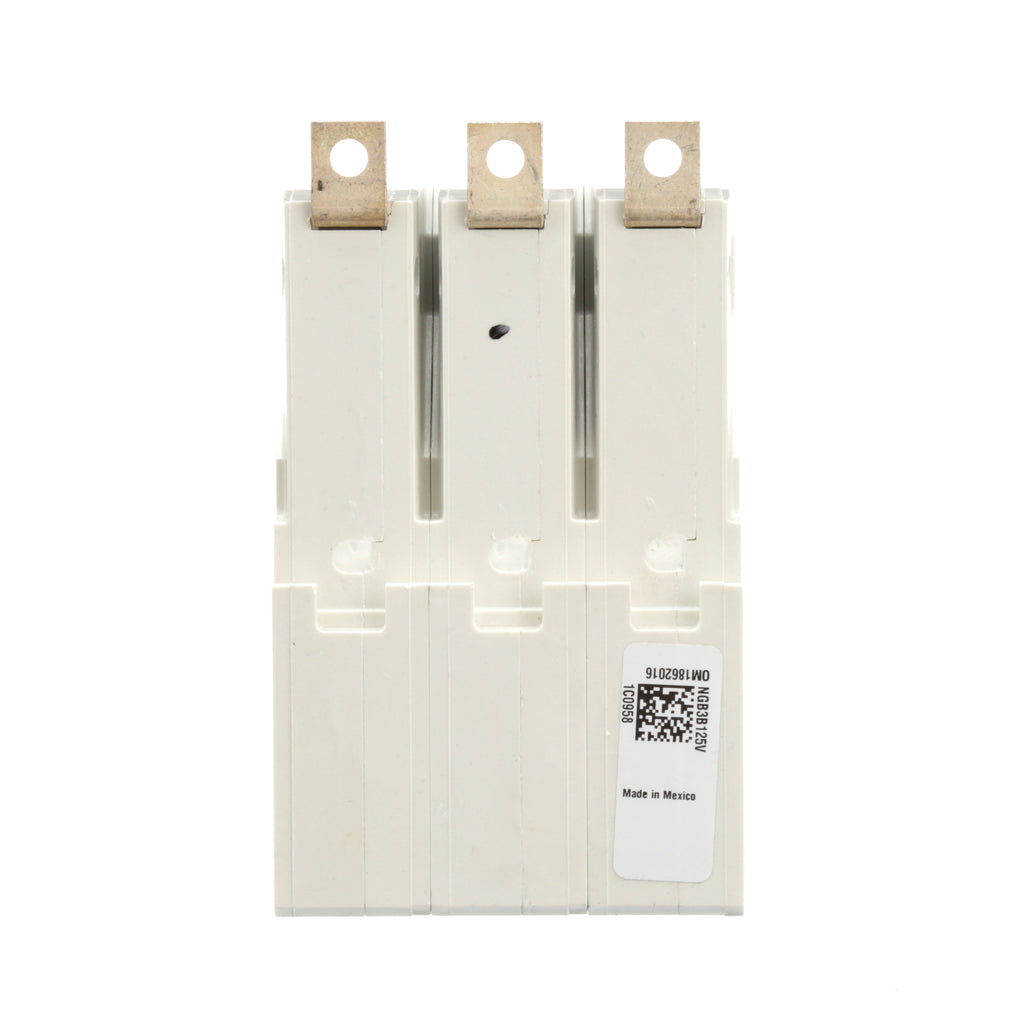

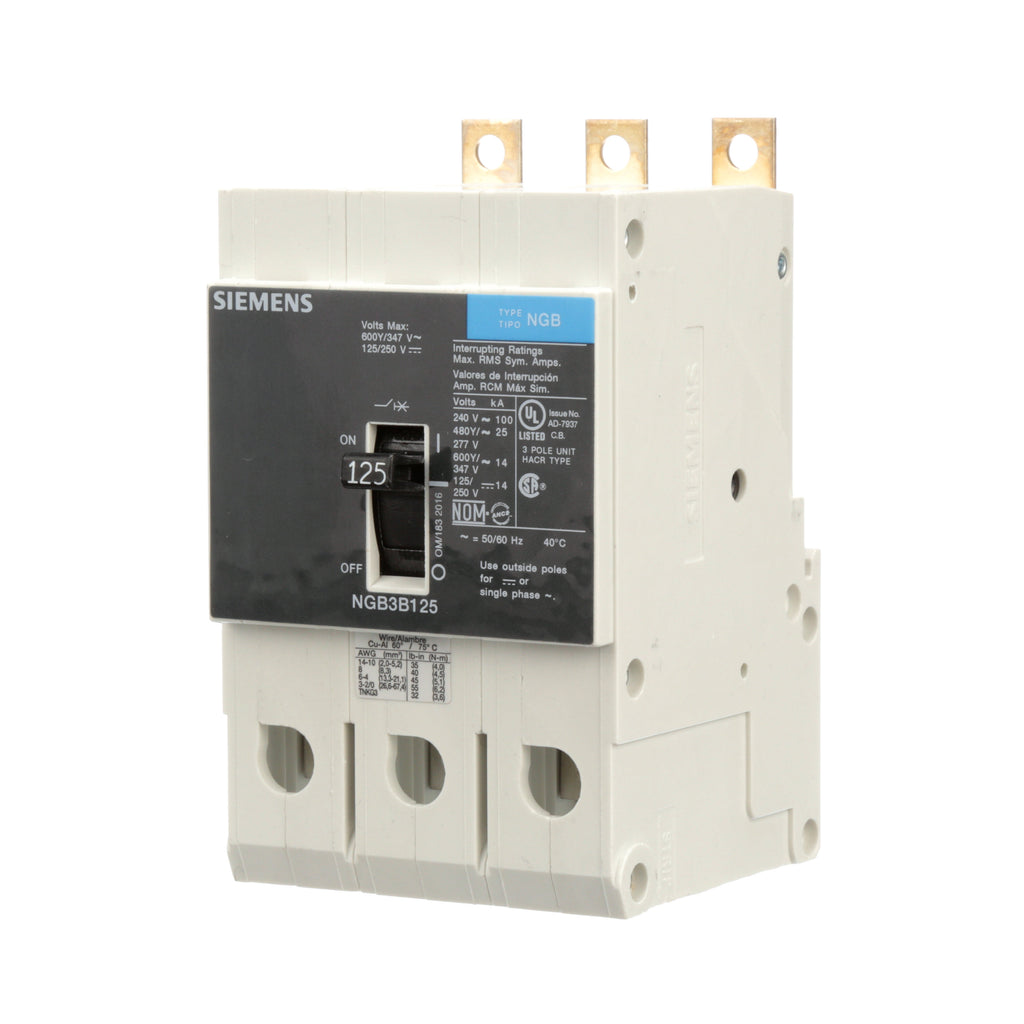

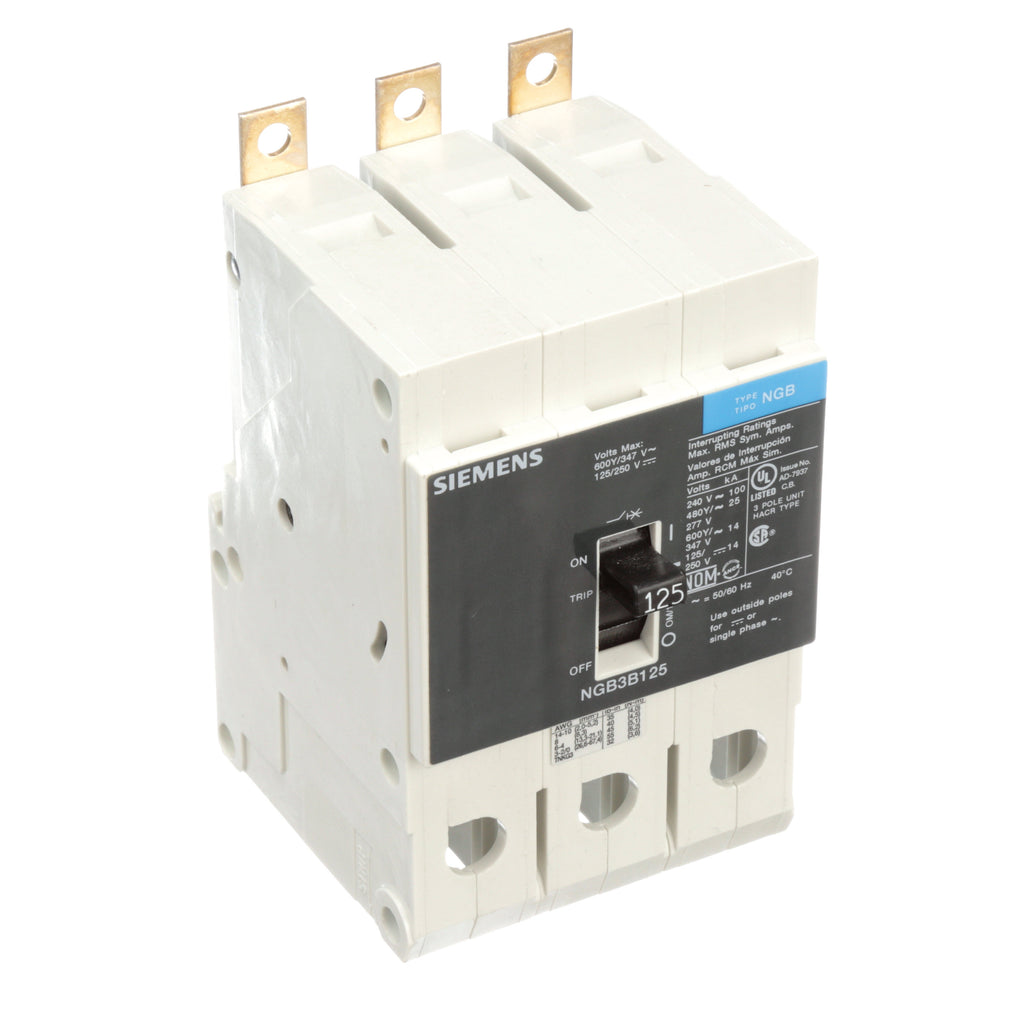

NGB3B125V is a Siemens 3-pole molded case circuit breaker rated at 125A for industrial applications.The NGB3B125V features a NGB frame with thermal-magnetic trip unit, bolt-on mounting, and 25kA interrupt rating at 480V. It supports 480Y/347V systems and provides reliable overcurrent protection.
- Part Number: NGB3B125V
- Manufacturer: Siemens
- Amperage: 125A
- Voltage: 480Y/347V
- Poles: 3
- Frame/Series: NGB
- Mounting Type: Bolt-On
- Interrupt Rating: 25kA at 480V
- Trip Unit: Thermal-Magnetic
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: NGB3B125V
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NGB
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : GG Frame
- Temp Rating : -13¡F-158¡F
- Protection : Thermal Magnetic
Product Data
- UPC : 783643555464
- GTIN : 00783643555464
- Country of Origin : Mexico
- Weight : 2.205
- Certification : UL, IEC
