2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NGB3B125B

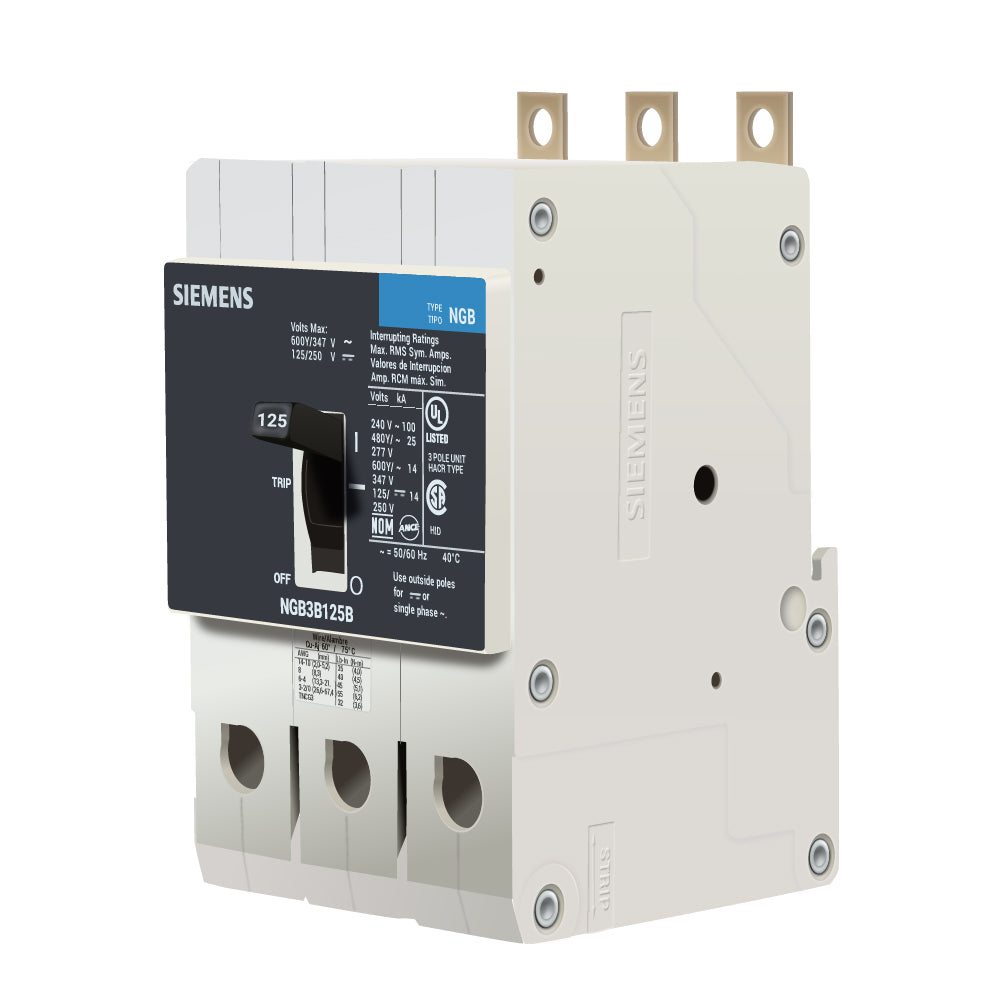

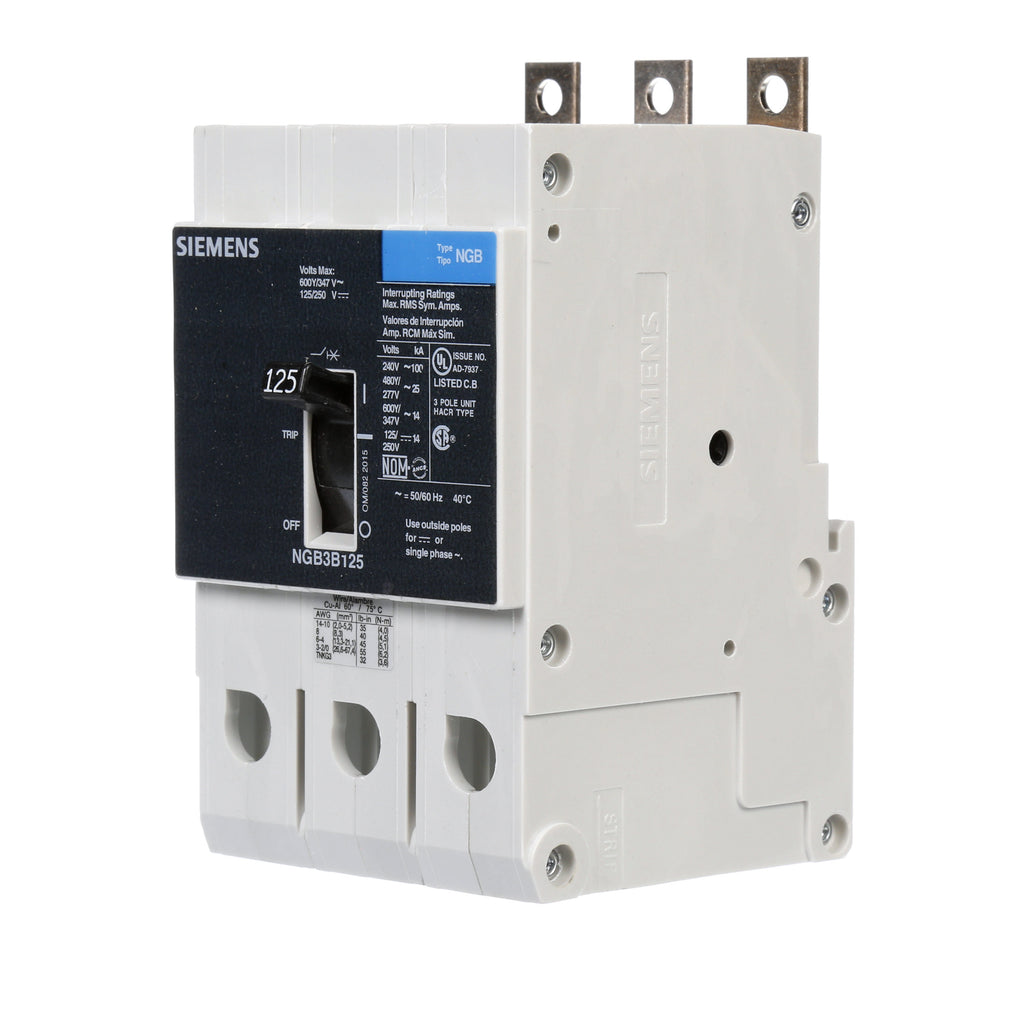

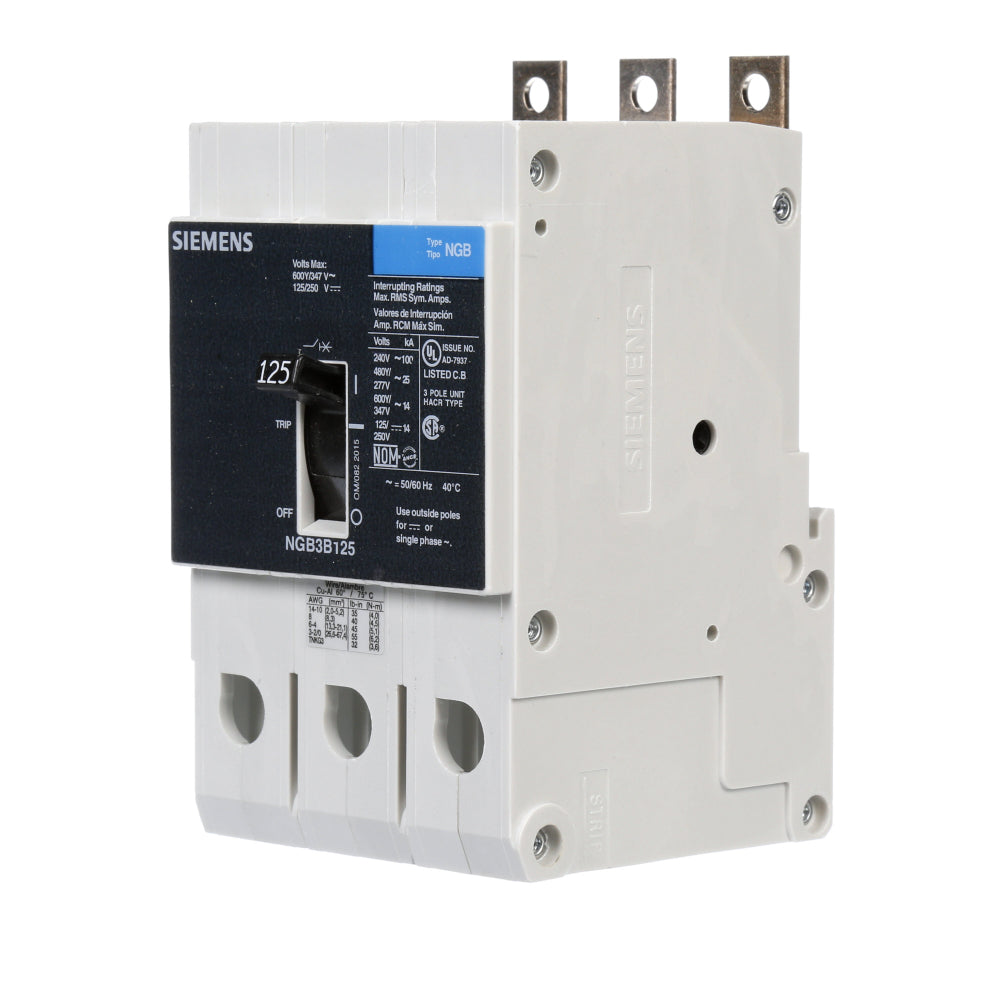

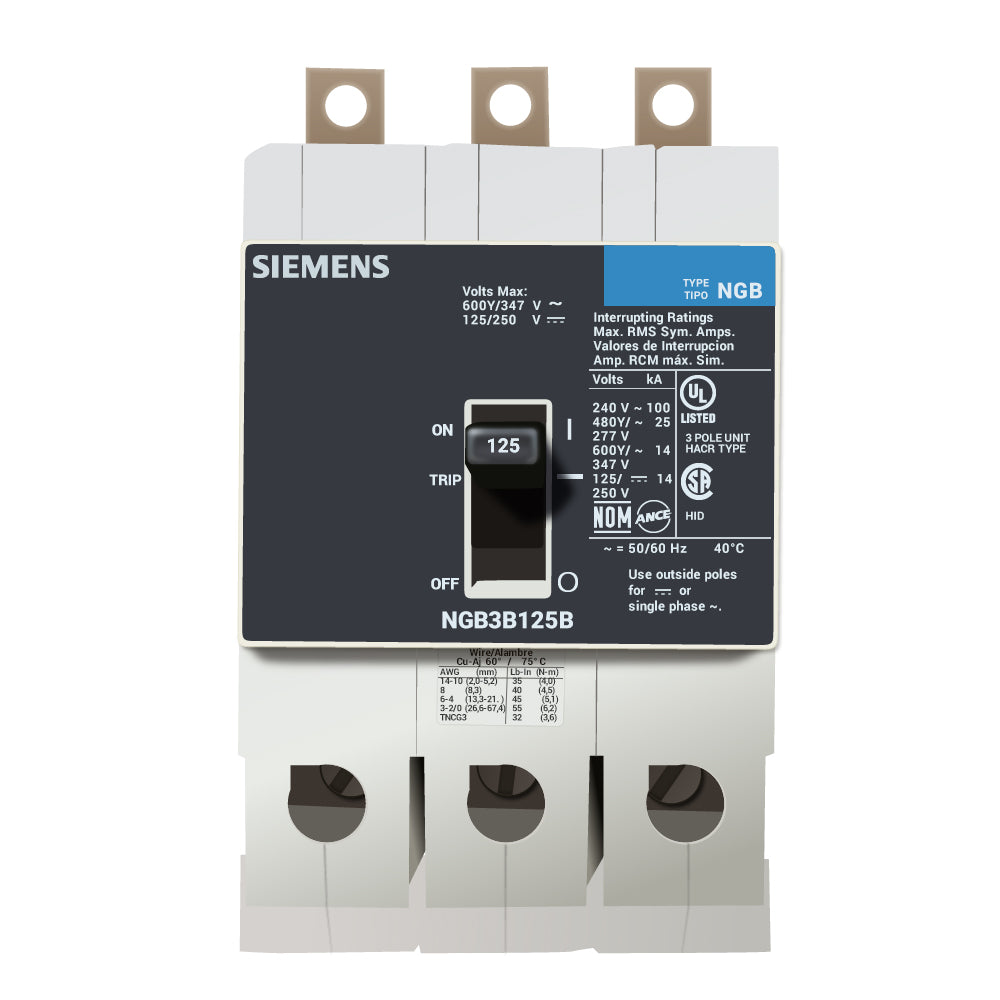

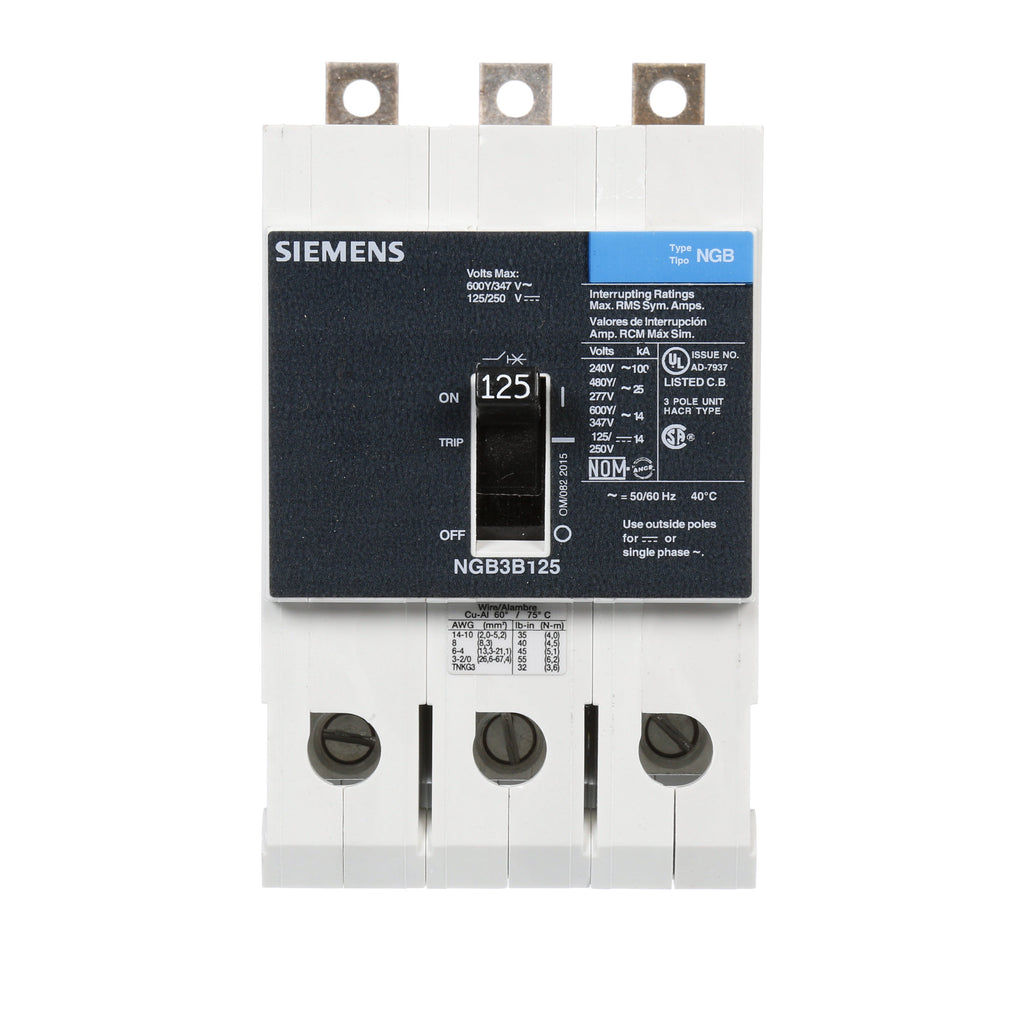

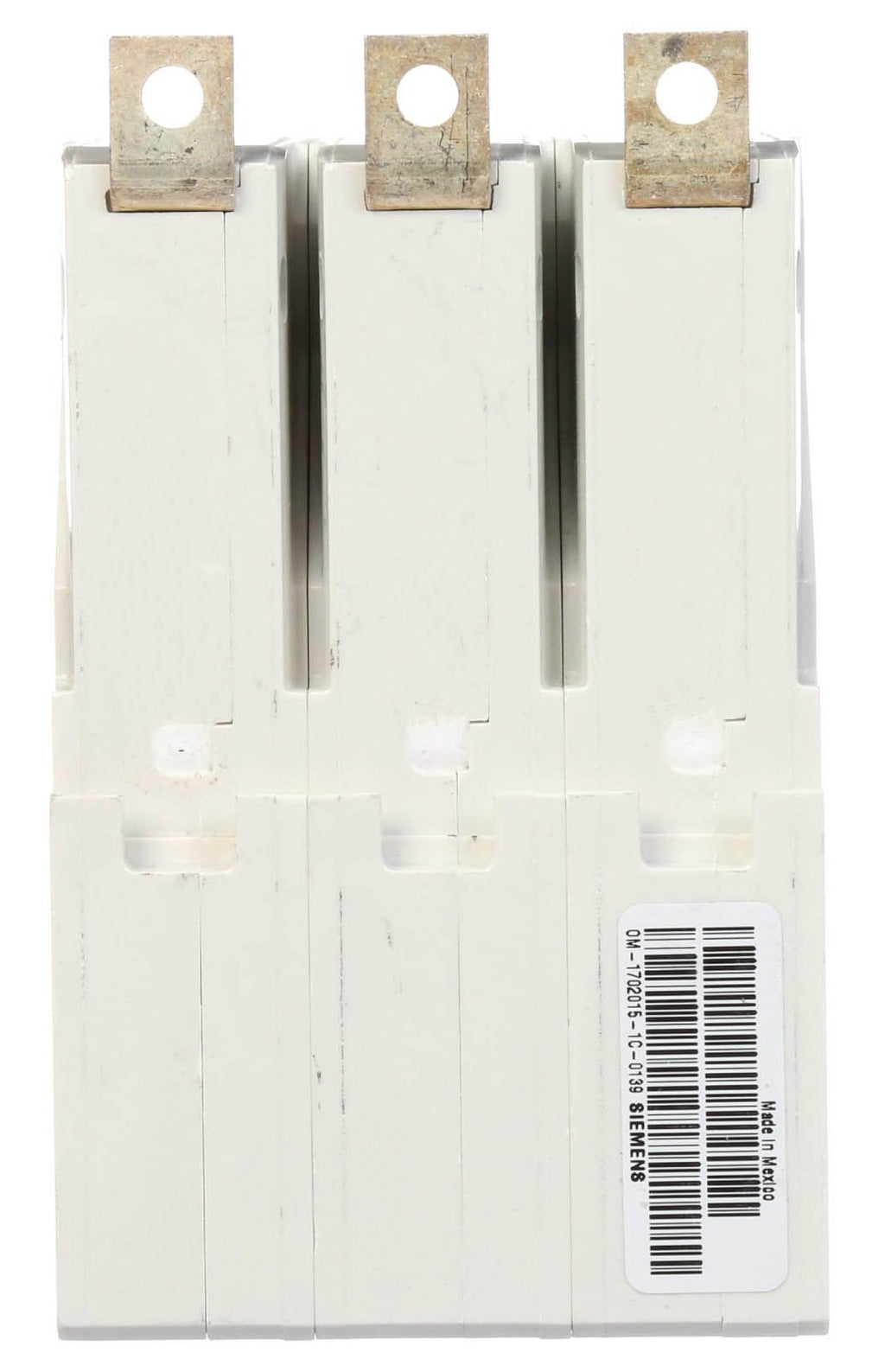

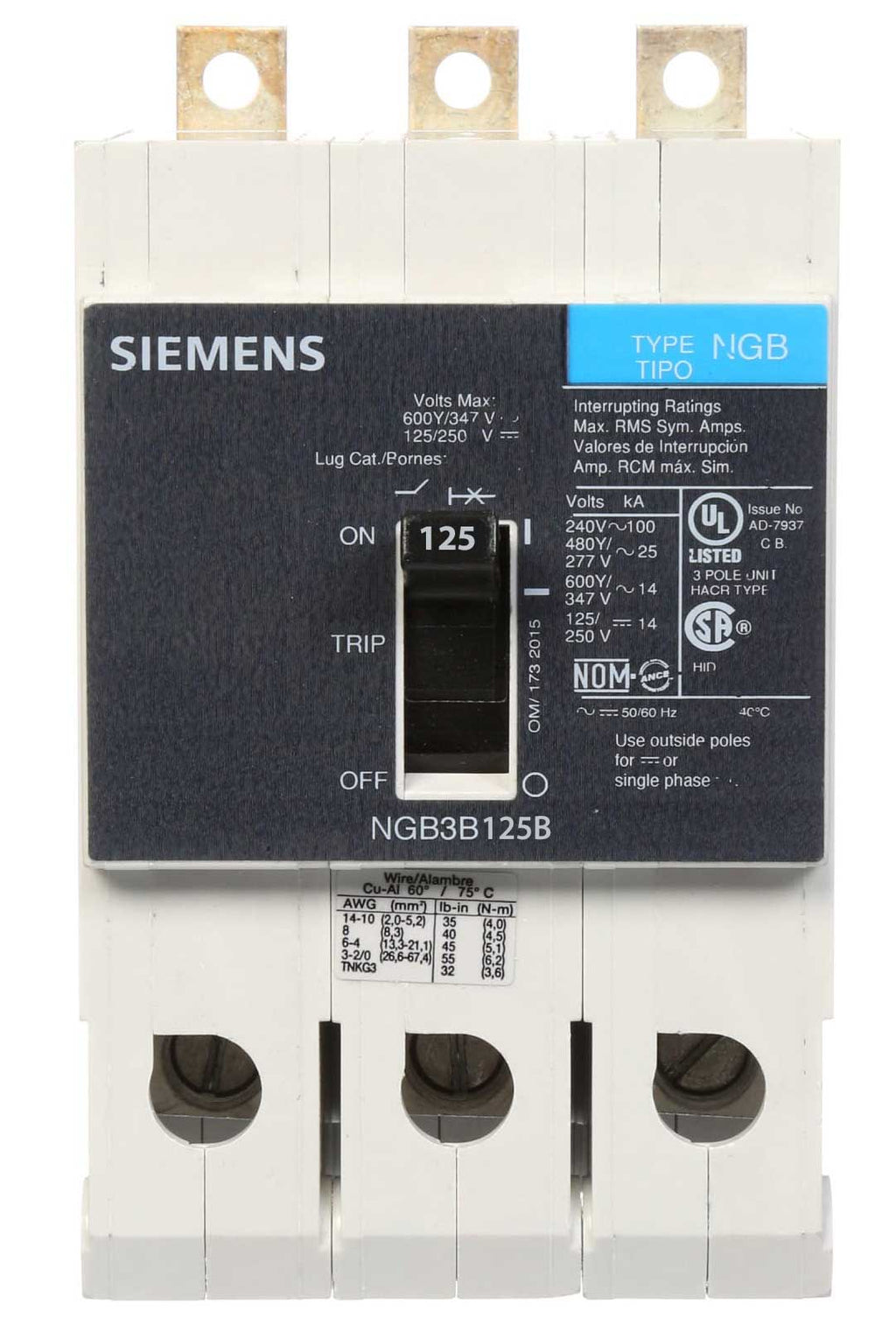

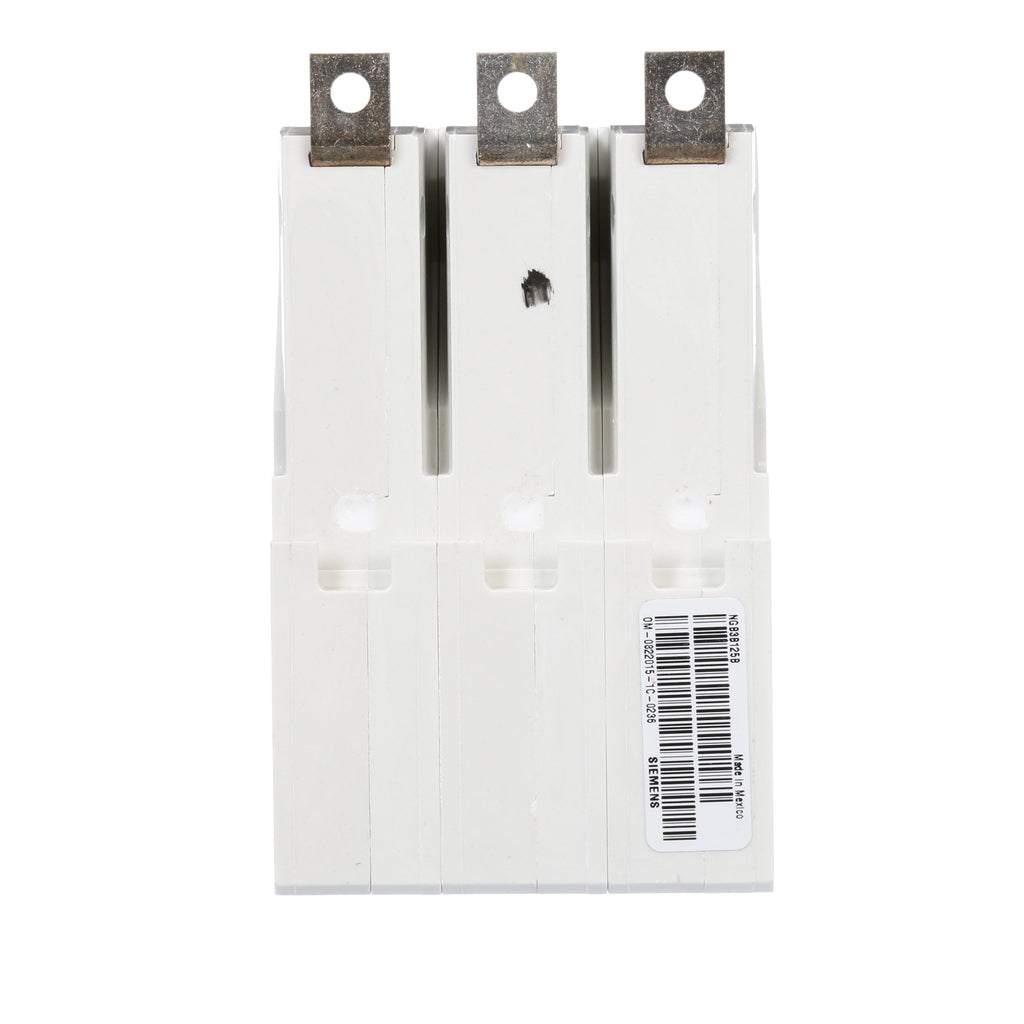

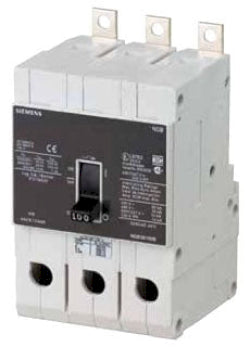

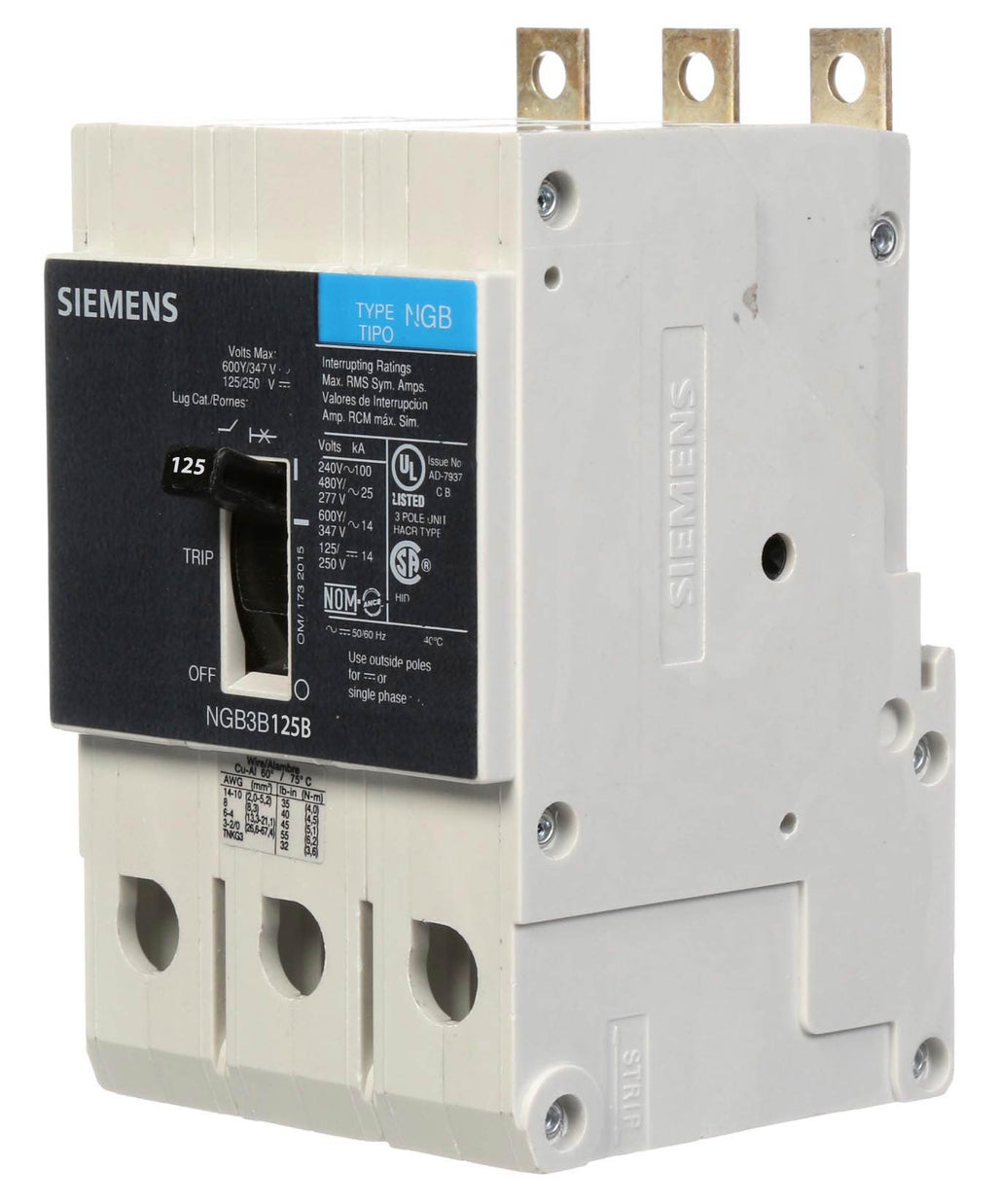

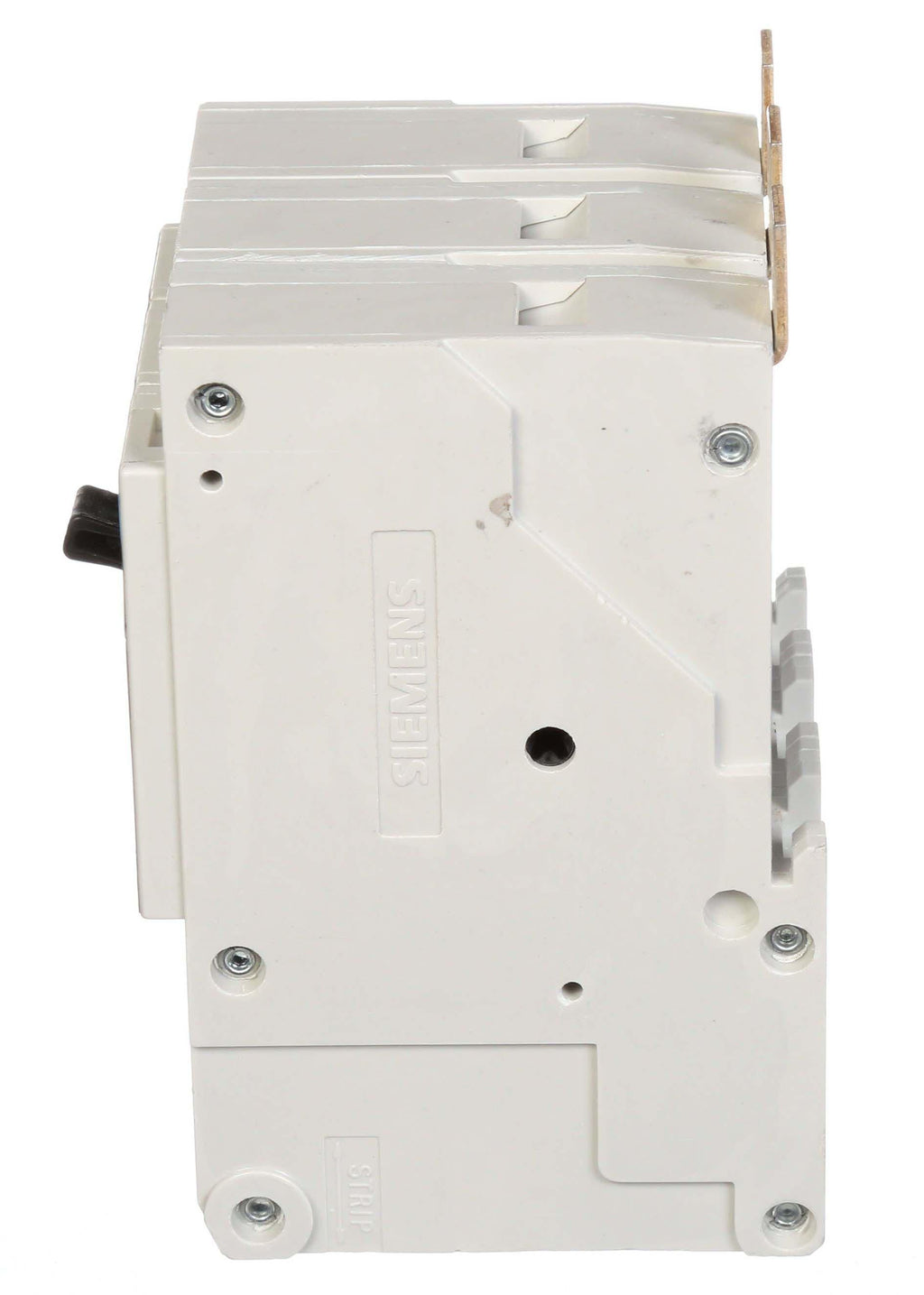

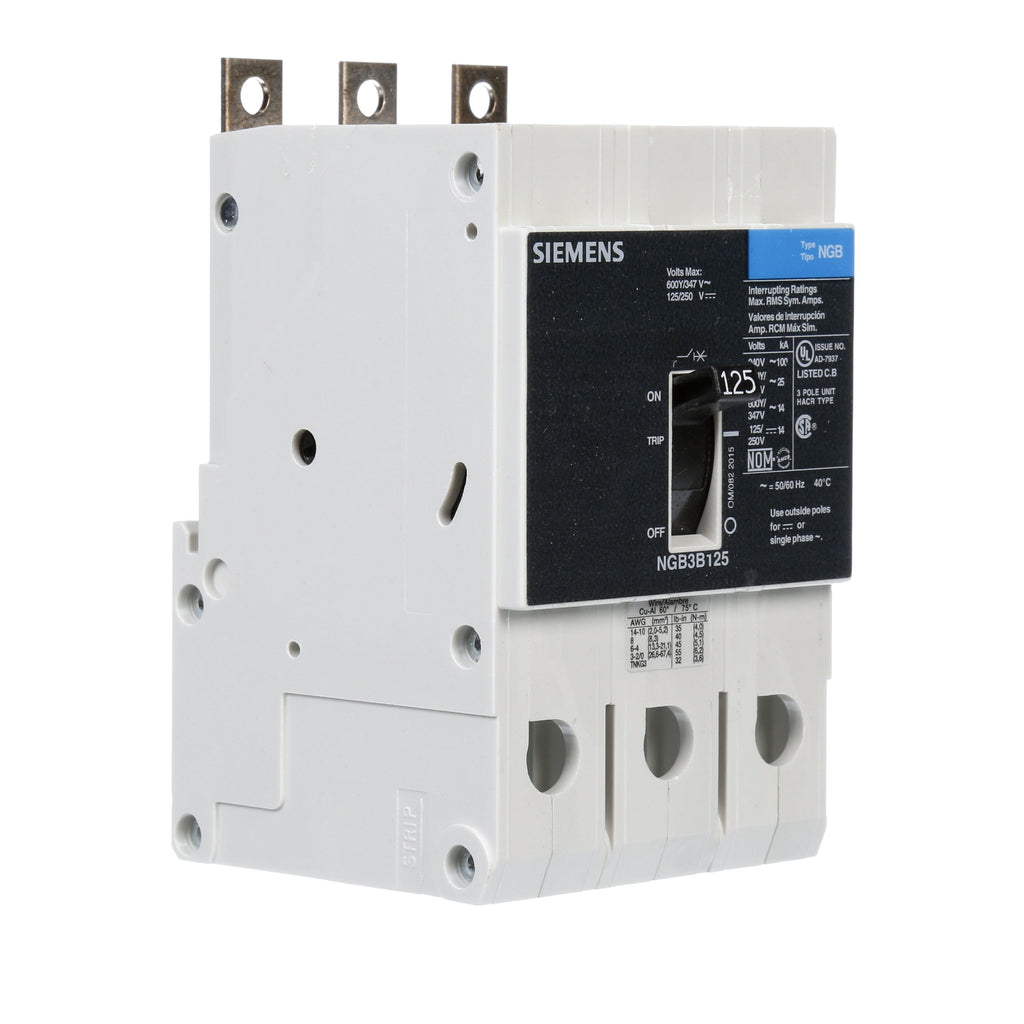

NGB3B125B is a Siemens VL Series molded case circuit breaker designed for 3-pole, 125 amp, 600 volt applications.This Siemens NGB3B125B circuit breaker features a thermal magnetic trip unit with long-time and instantaneous protection functions. It has a bolt-on mounting type suitable for panelboard installation and supports reverse feed applications. The breaker offers a 25kA interrupting rating at 480V and complies with UL489 certification standards.
- Manufacturer: Siemens
- Series: VL Series, Type NGB
- Poles: 3
- Amperage: 125A
- Voltage Rating: 600V AC
- Interrupt Rating: 25kA at 480V
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
- Connection: Load side lug terminals
- Certifications: UL489
- Dimensions (HxWxD): 3 x 5.54 x 2.8 inches
- Weight: Approximately 2.6 lbs
Specifications
- Part Number: NGB3B125B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NGB
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : GG Frame
- Temp Rating : -13¡F-158¡F
- Protection : Thermal Magnetic
Product Data
- UPC : 783643414396
- GTIN : 00783643414396
- Country of Origin : Mexico
- Weight : 2.615
- Certification : UL, IEC
