Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NGB3B125

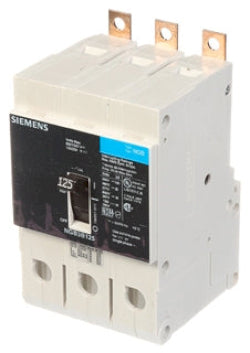

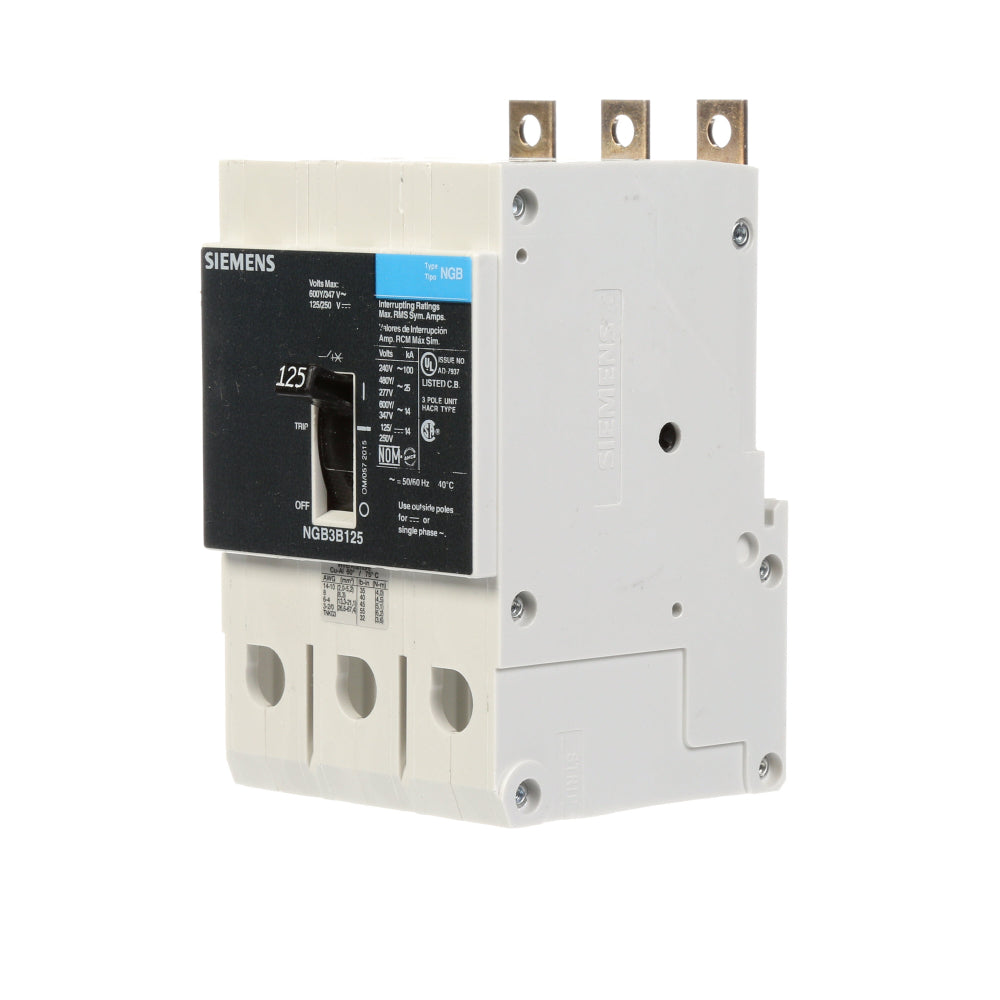

NGB3B125 is a Siemens 3-pole molded case circuit breaker with a 125 amp rating and 600 volt capacity designed for panelboard mounting.This Siemens NGB series breaker features thermal magnetic trip protection with long-time and instantaneous trip functions. It supports bolt-on mounting and is suitable for reverse feed applications. The breaker has a 25kA interrupt rating at 480V and is UL listed for safety and reliability.
- Amperage: 125A
- Voltage: 600V
- Poles: 3
- Frame/Series: NGB
- Mounting Type: Bolt-On
- Interrupt Rating: 25kA at 480V
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
- Phase: 3
- Connection: Load side lug terminals
- Dimensions: 3" x 5.54" x 2.8"
- Weight: 2.61 lbs
- Certifications: UL Listed
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: NGB3B125
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NGB
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : GG Frame
- Temp Rating : -13¡F-158¡F
- Protection : Thermal Magnetic
Product Data
- UPC : 783643553538
- GTIN : 00783643553538
- Country of Origin : Mexico
- Weight : 2.575
- Certification : UL, IEC
